Specifications
Build Volume: 330 × 240 × 300 mm (13 × 9.4 × 11.8 in)
Extrusion: Dual extrusion with swappable print cores (AA, BB, CC)
Layer Resolution: 20–600 microns
Nozzle Options: 0.25, 0.4, 0.6, 0.8 mm
Filament Diameter: 2.85 mm (open material system)
Interface: 4.7” Full-Color Touchscreen
Connectivity: Wi-Fi, Ethernet, USB, UltiMaker Digital Factory
Camera: Built-in camera for monitoring and timelapse
Build Plate: Heated glass build plate
Bundle Components: Includes Air Manager + Material Station
Power Source: 110–240 VAC
Noise Level: ~50 dB (with Air Manager filtration)
Use Case: Continuous 3D printing, engineering, composites, production-grade prototyping
Environment: Engineering offices, R&D labs, universities, professional makerspaces
📘 Description

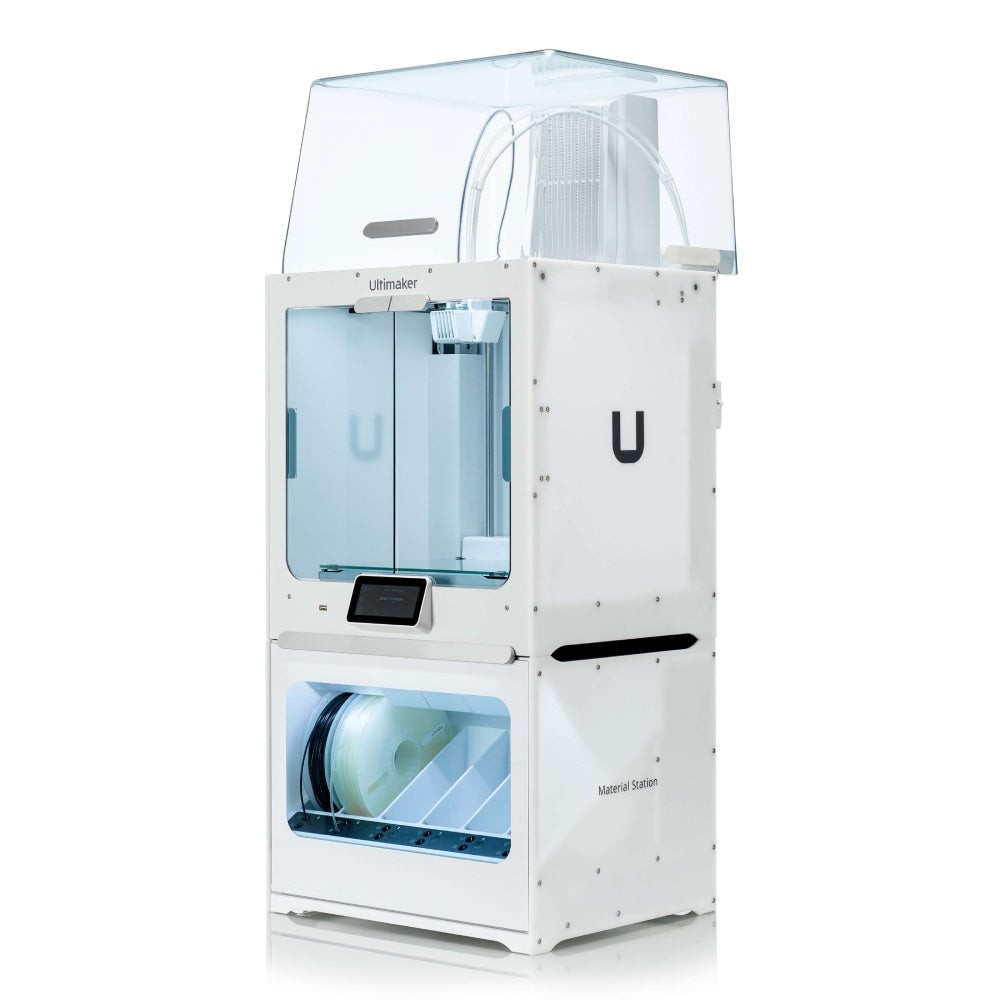

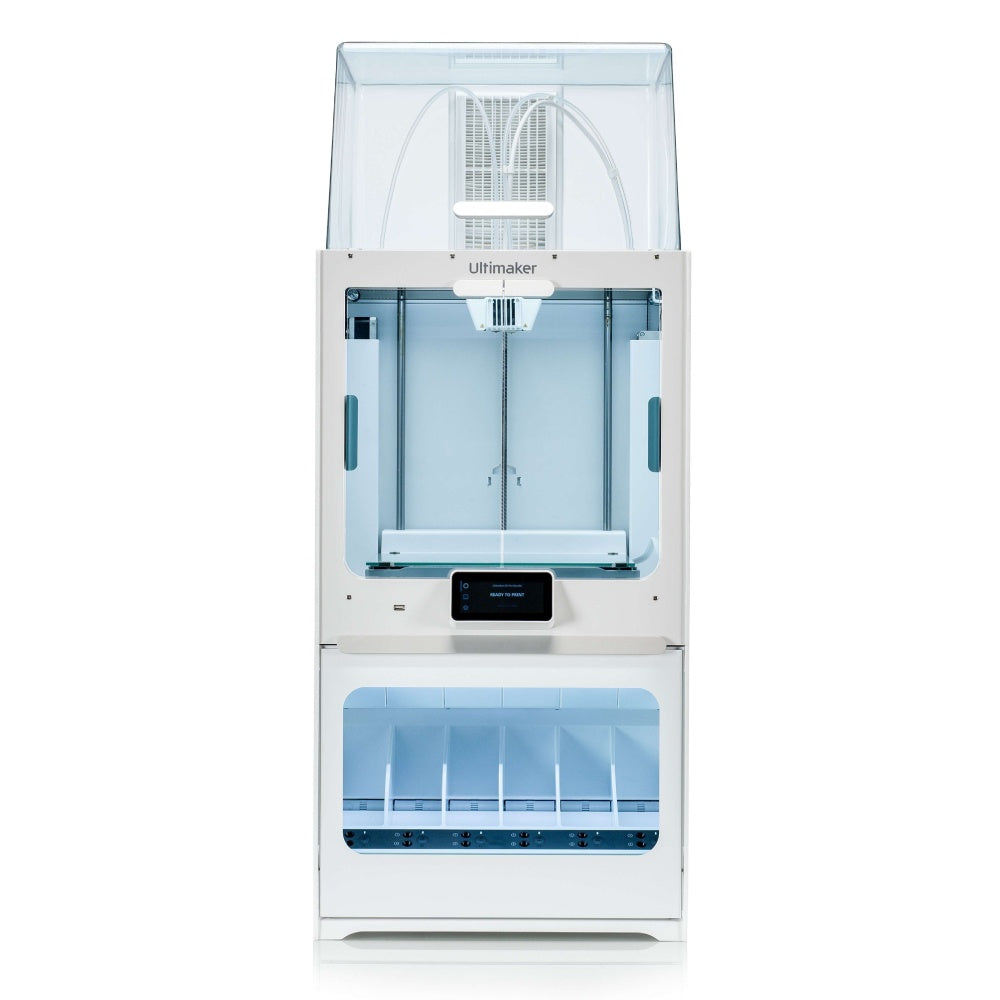

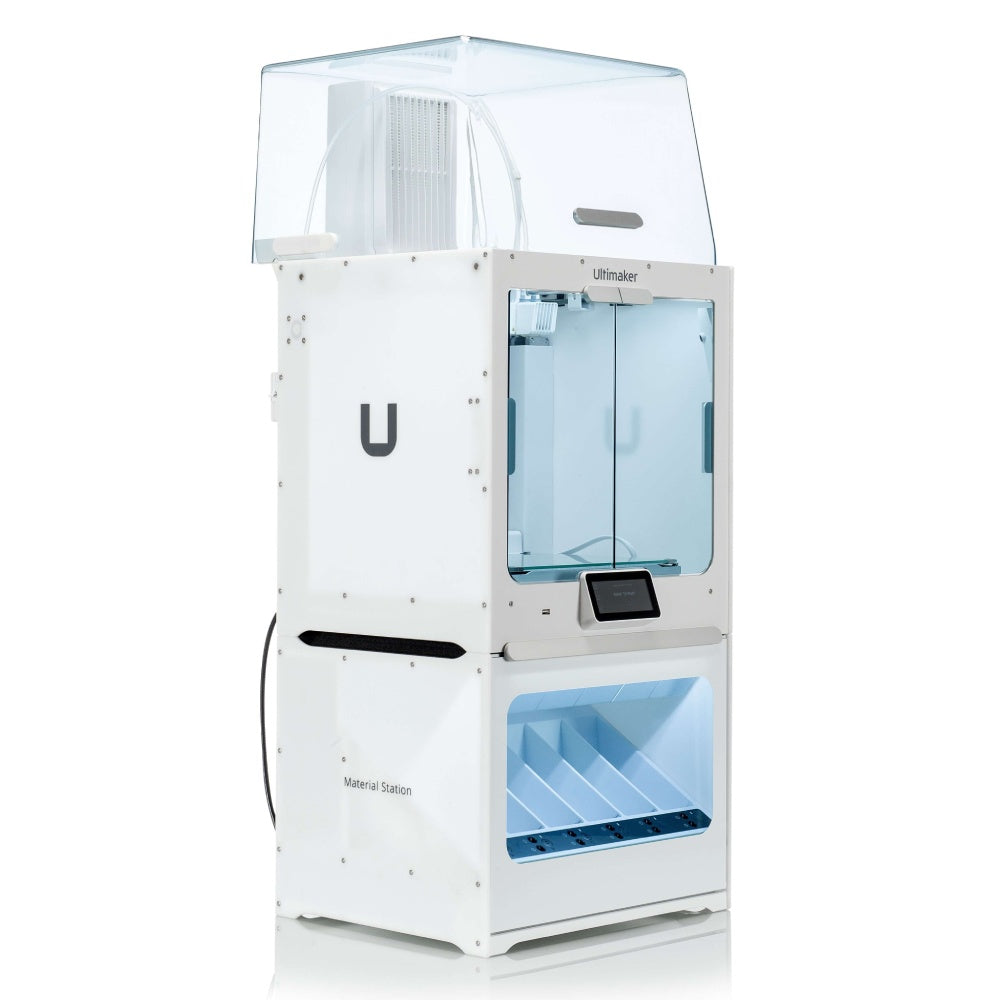

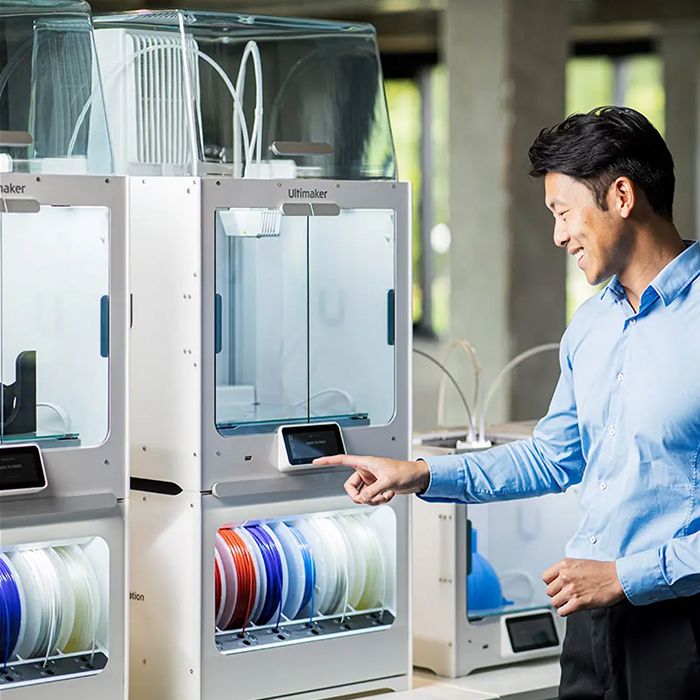

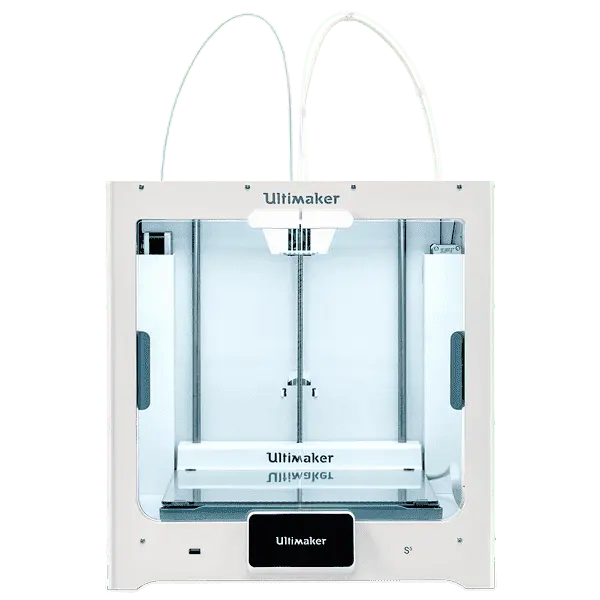

The UltiMaker S5 Pro Bundle is a complete 3D printing ecosystem that delivers continuous, reliable, and safe professional printing. Built around the award-winning S5 dual-extrusion printer, this bundle integrates the Air Manager for workplace safety and the Material Station for automated filament handling.
With a large build volume (330 × 240 × 300 mm), the S5 Pro Bundle is capable of producing full-scale prototypes, functional parts, and composite components. The Air Manager ensures safe, filtered operation in office or classroom environments, while the Material Station holds up to six spools, automatically switching between them for uninterrupted print jobs.
This bundle is ideal for teams that require industrial performance with minimal manual intervention — providing reliability, productivity, and ease-of-use at every step.
⚙️ Key Features
-
Complete Bundle: Includes S5 3D printer, Air Manager, and Material Station
-
Large Build Volume: 330 × 240 × 300 mm for big prototypes and parts
-

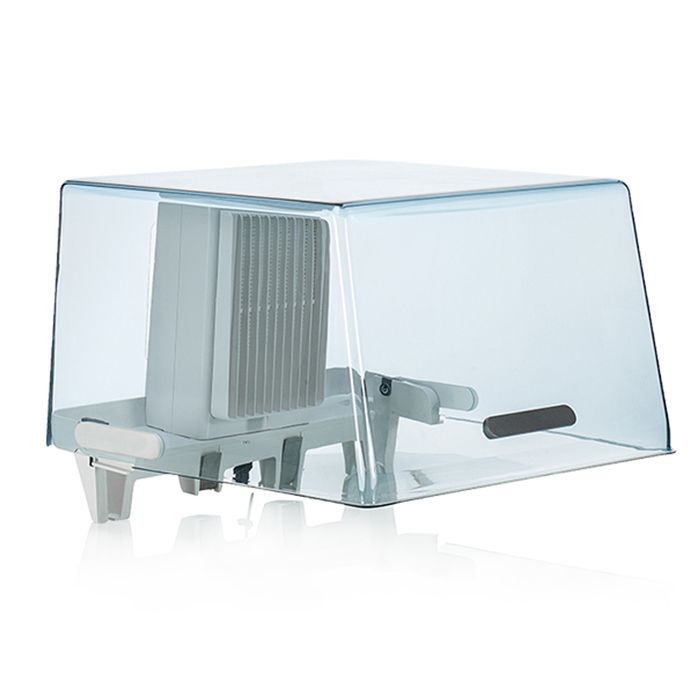

Air Manager: Filters up to 95% of ultrafine particles (EPA standard) for safer workplaces
-

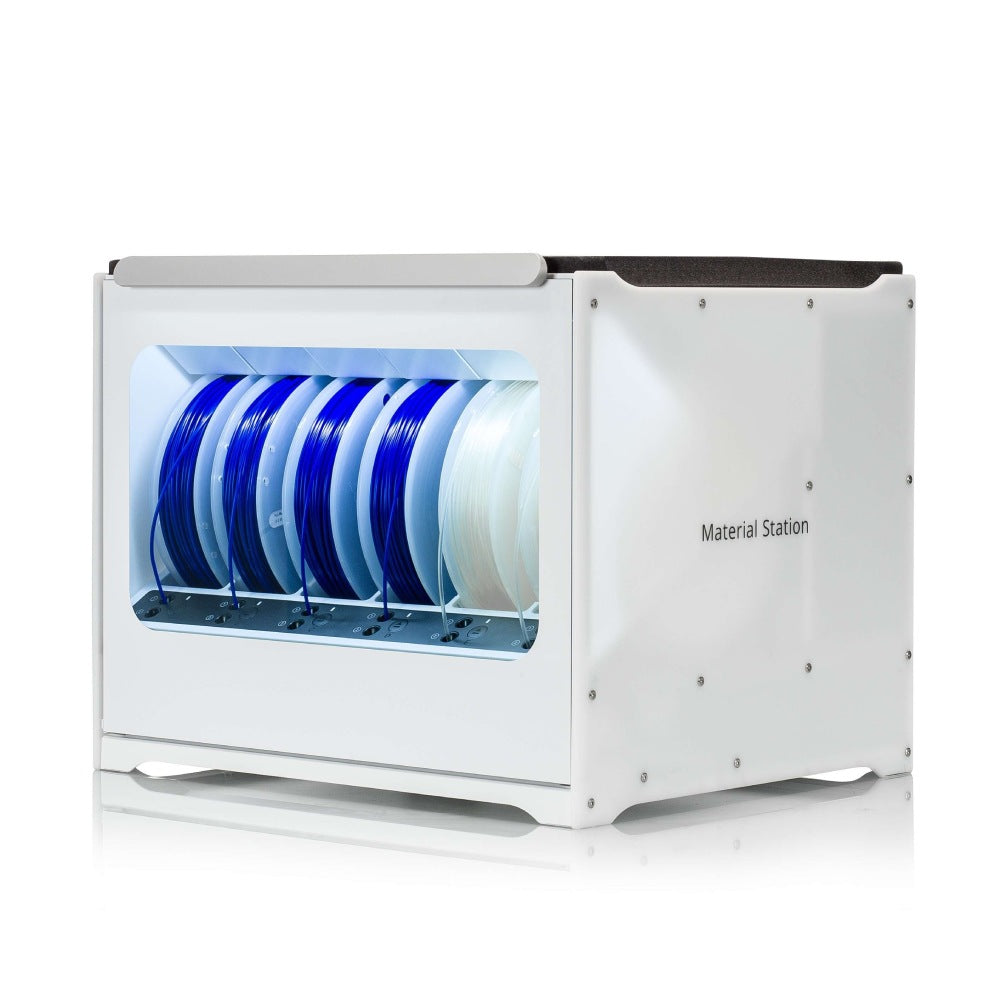

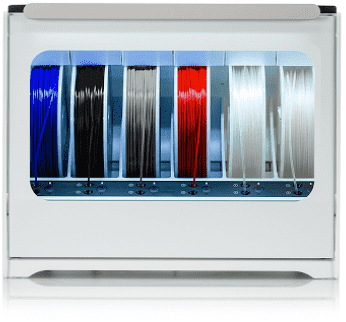

Material Station: Holds up to 6 spools, auto-switches filament, and keeps it humidity-controlled
-
Dual Extrusion System: Print with two materials (build + soluble support) or dual-color prints
-
Print Core Options:
-
AA Core → Standard materials (PLA, ABS, Nylon, PETG, CPE)
-
BB Core → Soluble supports (PVA, Breakaway)
-
CC Core → Composite-ready (carbon fiber, glass-filled filaments)
-
Heated Glass Build Plate: Consistent adhesion, reduced warping
-
Smart Workflow: Wi-Fi, Ethernet, USB + Cura with CAD integration (SolidWorks, Siemens NX, Autodesk)
-
Monitoring Camera: Built-in camera for remote progress checks
-
Quiet Operation: Safe for offices, schools, and labs
🪟 Air Manager vs. Material Station Benefits
| Feature |
Air Manager |
Material Station |
| Function |
Filters UFPs, encloses printer |
Stores up to 6 spools, manages filament |
| Safety |
Protects users, EPA-certified filtration |
Protects materials from humidity |
| Productivity |
Maintains stable print environment |
Auto-switching allows continuous printing |
| Best Use Case |
Offices, classrooms, labs |
R&D teams, production, multi-material work |
🔍 Model Comparison
| Model |
Build Volume |
Key Difference |
Best For |

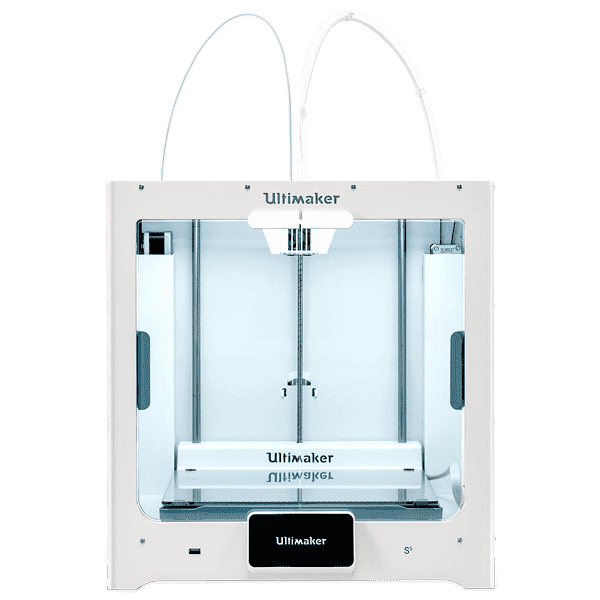

| UltiMaker S5 |
330 × 240 × 300 mm |
Base model, dual extrusion |
Professional prototyping |
| S5 Pro Bundle |
330 × 240 × 300 mm |
Includes Air Manager + Material Station |
Safe, continuous, automated workflows |
| UltiMaker S7 |
330 × 240 × 300 mm |
Flexible build plate + advanced air control |
Advanced R&D, engineering labs |
🧰 Ideal Applications
-
Continuous prototyping and small-batch production
-
Engineering-grade jigs, fixtures, and end-use parts
-
Multi-material and composite part printing
-
Classroom and university research labs
-
Offices requiring safe, low-maintenance 3D printing
