Specifications
Build Volume: 330 × 240 × 300 mm (13 × 9.4 × 11.8 in)
Extrusion: Dual extrusion with swappable print cores (AA, BB, CC, HT)
Layer Resolution: 20–400 microns
Nozzle Options: 0.25, 0.4, 0.6, 0.8 mm
Filament Diameter: 2.85 mm
Interface: 7” Full-Color Touchscreen
Connectivity: Wi-Fi, Ethernet, USB, UltiMaker Digital Factory
Camera: Integrated for remote monitoring
Enclosure: Fully enclosed, actively heated chamber up to 70 °C
Build Plate: Flexible, heated magnetic build plate (up to 120 °C)
Materials: PLA, ABS, Nylon, CPE, PETG, PVA, Breakaway, carbon fiber composites, ESD-safe, and high-temp filaments (UltiMaker PPS CF, PC, TPU 95A, PA-CF)
Power Source: 110–240 VAC
Noise Level: ~50–55 dB
Use Case: Advanced prototyping, composite production, manufacturing tools, high-temperature applications
Environment: Engineering labs, aerospace, automotive, manufacturing facilities, universities
📘 Description

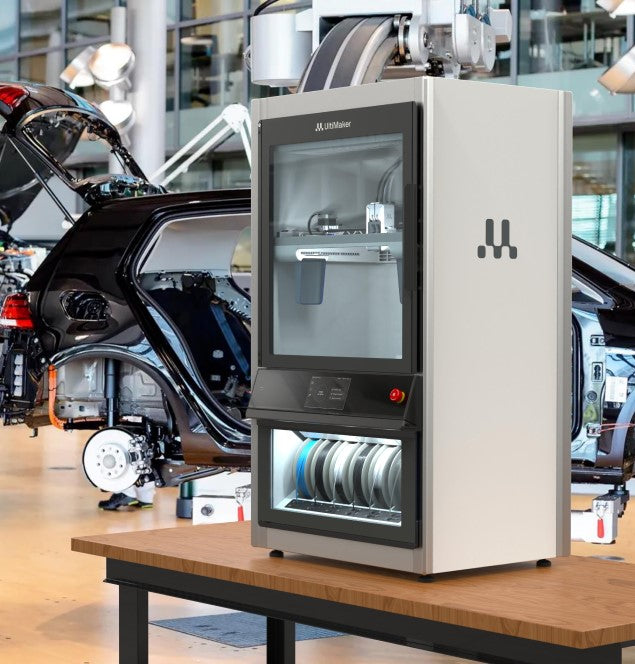

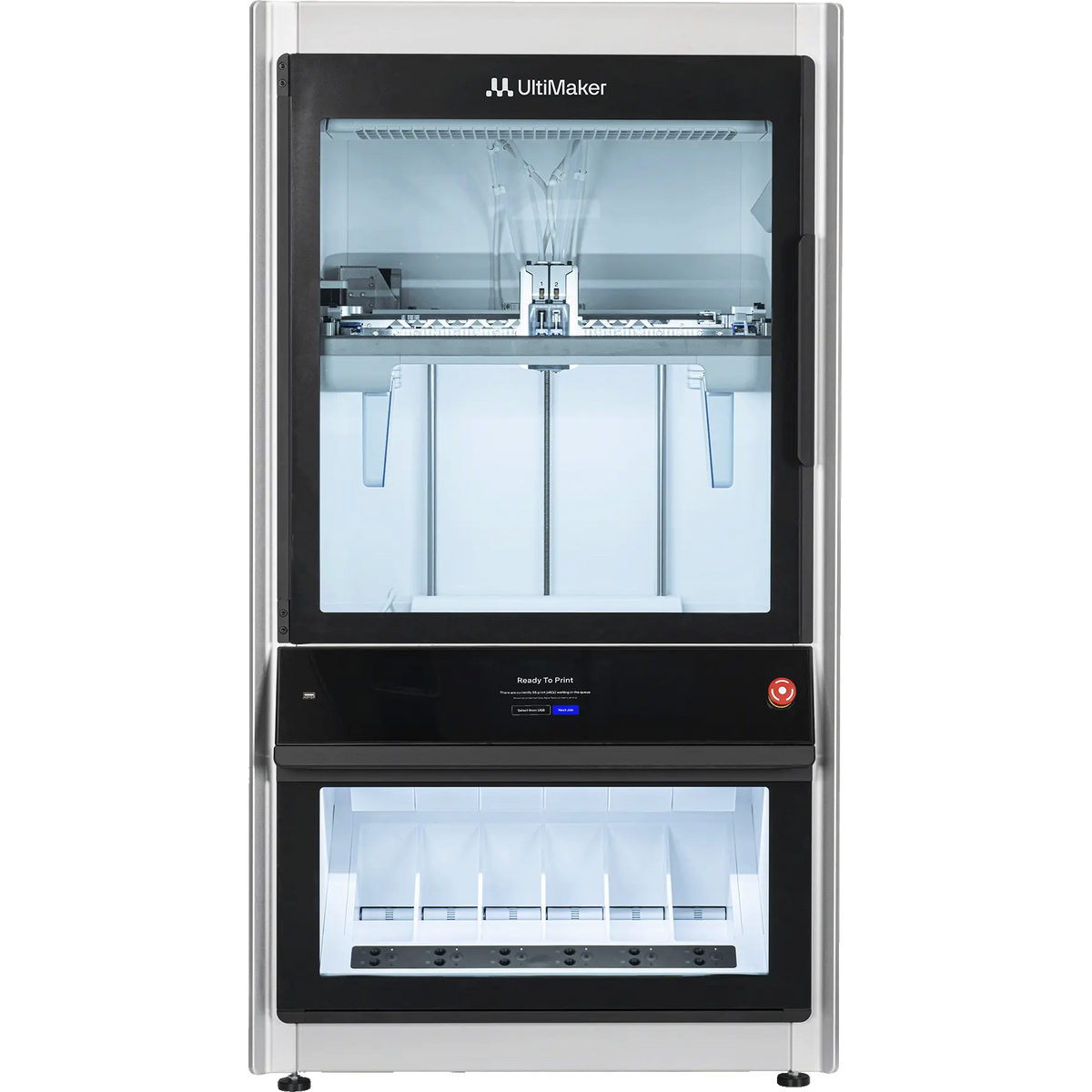

The UltiMaker Factor 4 is UltiMaker’s industrial-grade 3D printer built for high-strength composites and advanced engineering materials. With a fully enclosed, actively heated build chamber, and a flexible heated build plate, it enables dimensionally accurate, production-ready parts across a wide range of technical filaments.
Factor 4 supports next-generation UltiMaker materials, including PPS CF, PC, and ESD-safe polymers, making it an ideal choice for aerospace, automotive, and electronics applications. Its modular dual extrusion system uses AA, BB, CC, and HT print cores, ensuring compatibility with everything from PLA and soluble supports to carbon fiber and high-temperature composites.
Combined with UltiMaker Digital Factory for fleet management and Cura for CAD-to-print workflows, the Factor 4 is designed for professional teams that need reliability, scale, and material versatility in demanding environments.
⚙️ Key Features
-
Enclosed, Heated Chamber: Maintains up to 70 °C for warp-free high-temp printing
-

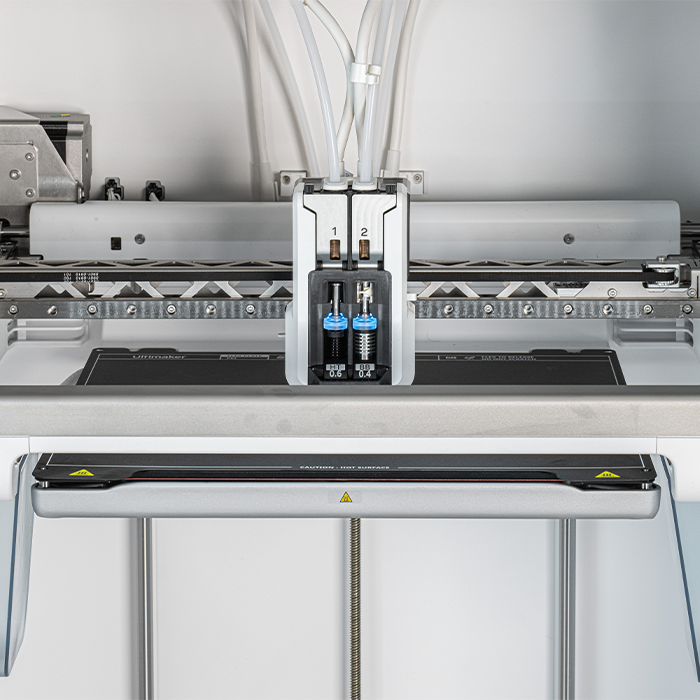

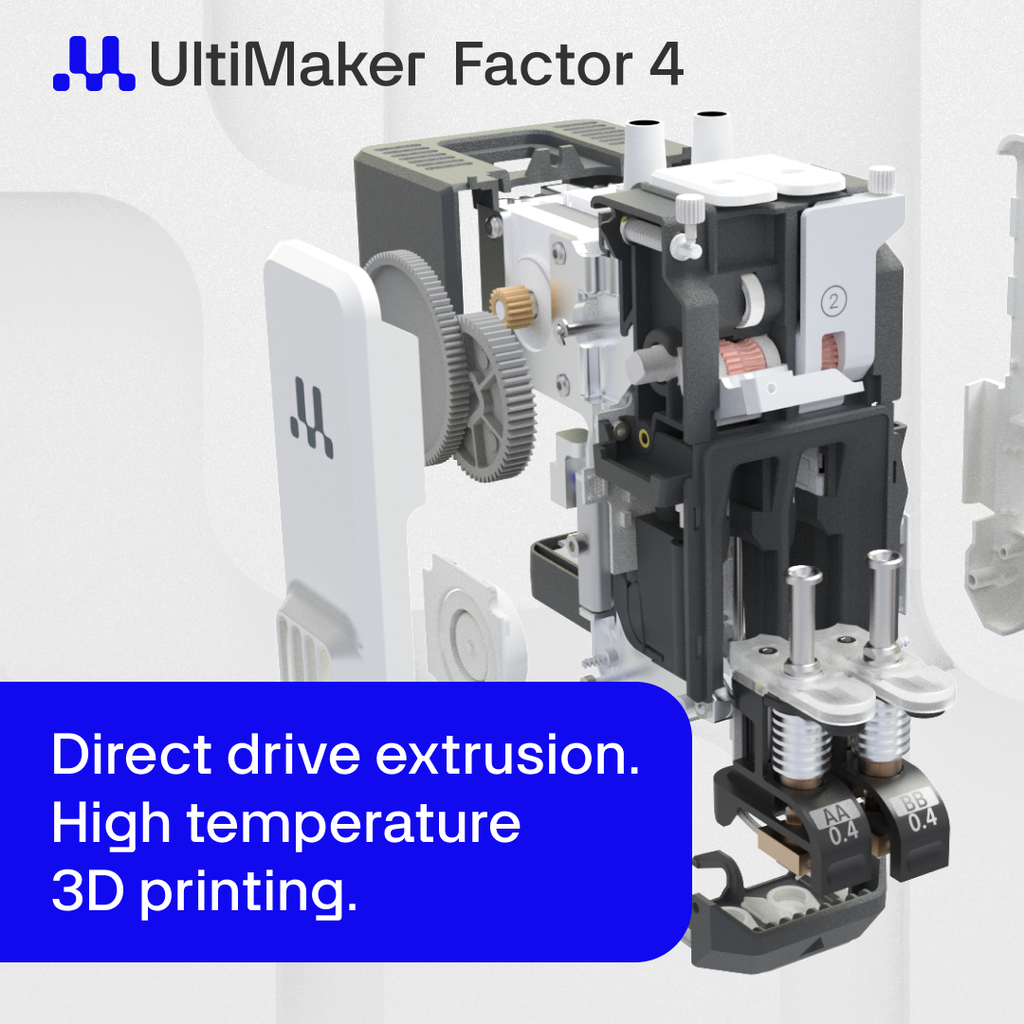

Dual Extrusion: Complex geometries, soluble supports, and multi-material printing
-

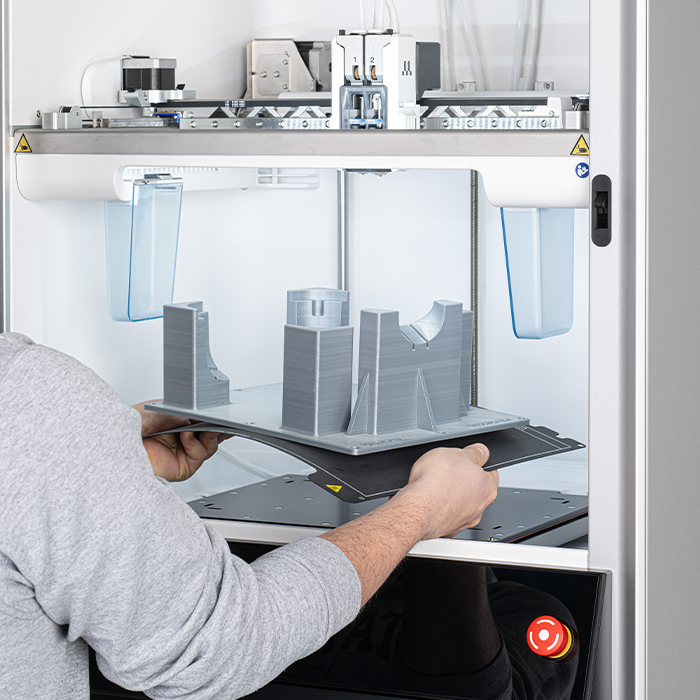

Flexible Heated Build Plate: 120 °C bed with magnetic attachment for easy part removal
-

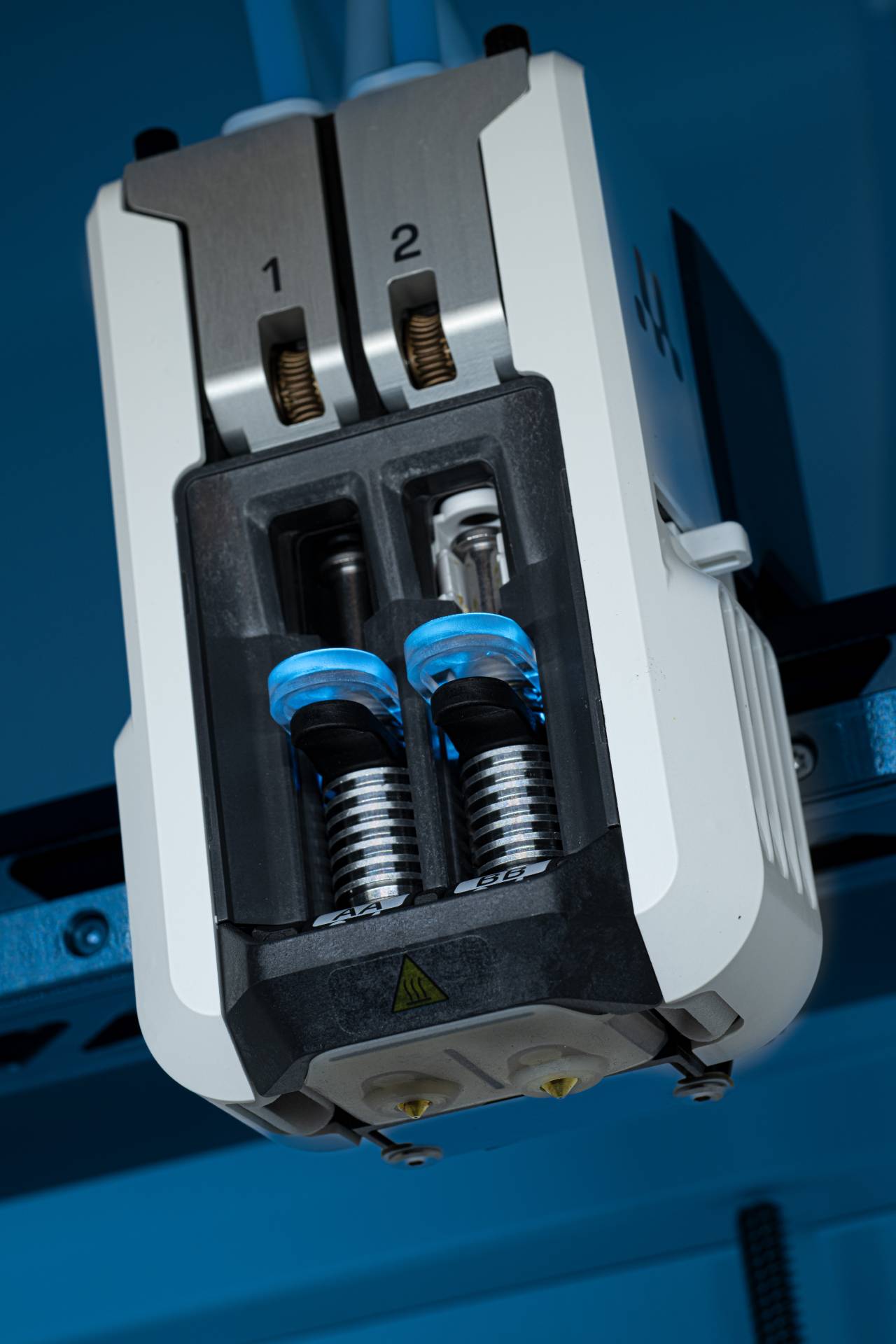

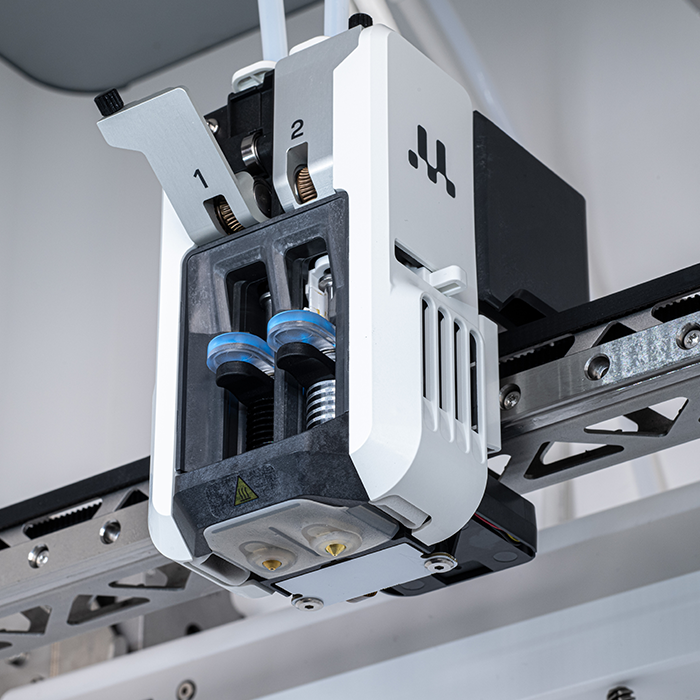

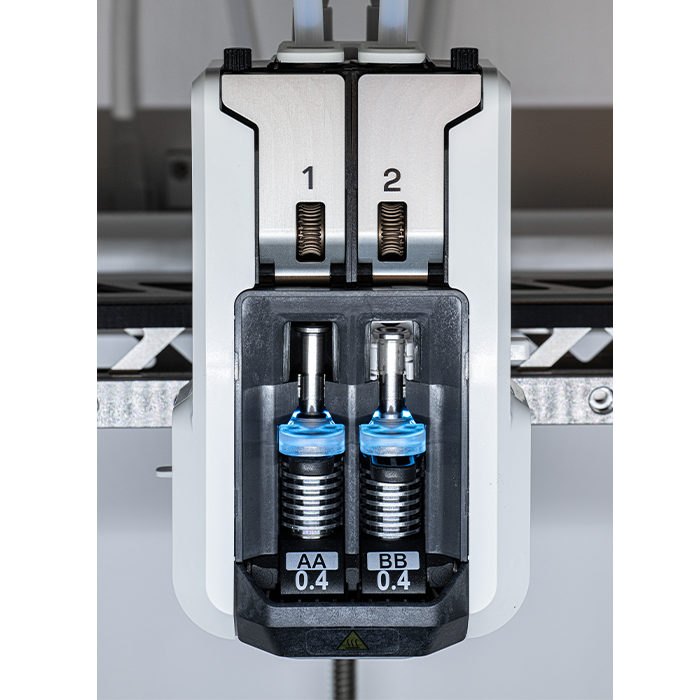

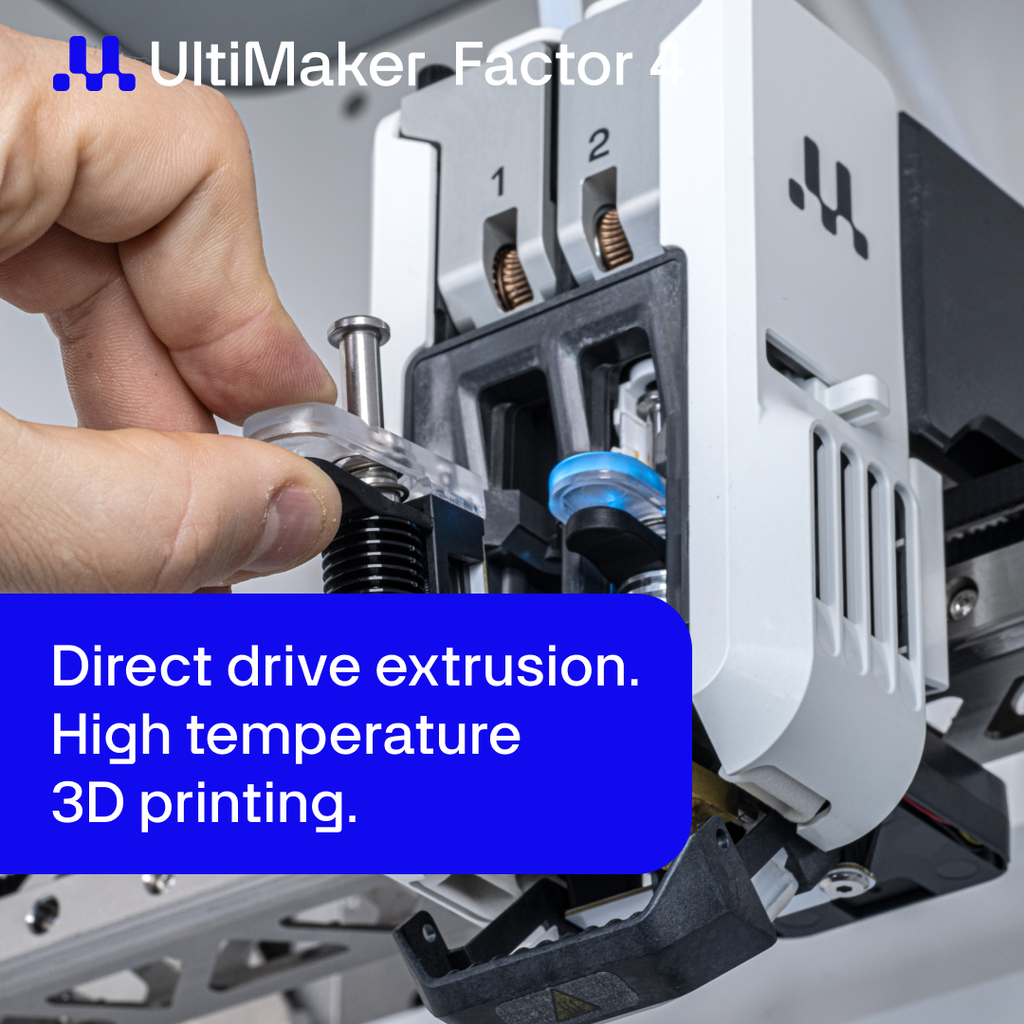

Swappable Print Cores:
-
AA Core → General materials (PLA, ABS, Nylon, PETG, CPE)
-
BB Core → Soluble supports (PVA, Breakaway)
-
CC Core → Carbon fiber and glass-filled composites
-
HT Core → High-temperature filaments (PPS CF, PC, ESD-safe)
-
Large Build Volume: 330 × 240 × 300 mm — ideal for end-use tooling and prototypes
-
Industrial Reliability: Dimensional accuracy of ±0.2 mm (on parts < 100 mm)
-
Connectivity: Wi-Fi, Ethernet, USB, UltiMaker Digital Factory
-
Seamless Workflow: Cura + CAD plugins (SolidWorks, Siemens NX, Autodesk)
-

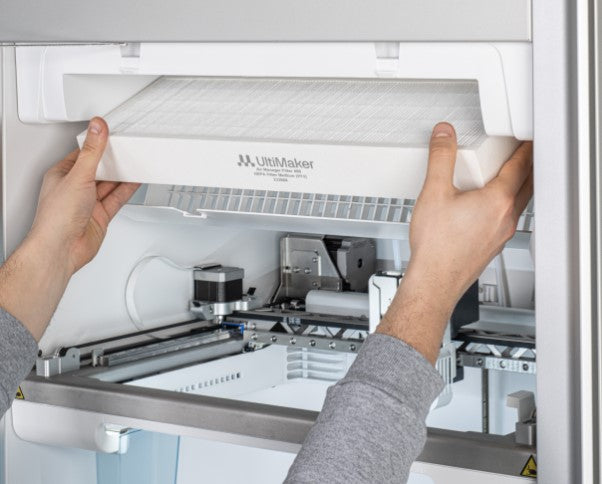

Workplace Ready: Air filtration, enclosure safety, and remote monitoring
🪟 Heated Chamber & Flexible Build Plate Advantages
| Feature |
Heated Chamber |
Flexible Heated Build Plate |
| Function |
Maintains chamber temp up to 70 °C |
Up to 120 °C, removable magnetic plate |
| Benefit |
Prevents warping & improves layer adhesion |
Easy part removal, less chance of breakage |
| Best Use Case |
ABS, PC, PPS CF, composites |
High-strength, production-ready parts |
🔍 Model Comparison
| Model |
Build Volume |
Key Difference |
Best For |
| UltiMaker S5 |
330 × 240 × 300 mm |
Dual extrusion, glass plate |
General prototyping, composites |
| S5 Pro Bundle |
330 × 240 × 300 mm |
Air Manager + Material Station |
Continuous, automated workflows |
| UltiMaker S7 |
330 × 240 × 300 mm |
Flex plate + advanced air management |
Advanced composites, labs |
| Factor 4 |
330 × 240 × 300 mm |
Heated chamber + HT Core support |
Industrial composites, high-temp parts |
🧰 Ideal Applications
-
Aerospace and automotive prototypes
-
Electronics housings & ESD-safe components
-
Carbon fiber-reinforced parts
-
High-temperature applications (PPS CF, PC)
-
Jigs, fixtures, and end-use tooling
-
University & R&D materials research
