Overview

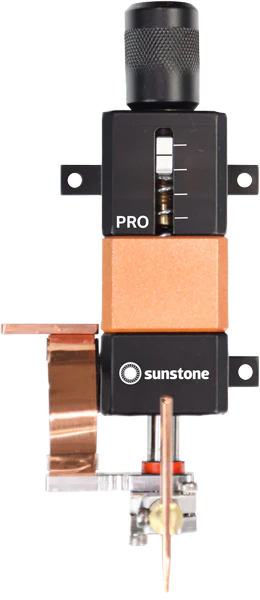

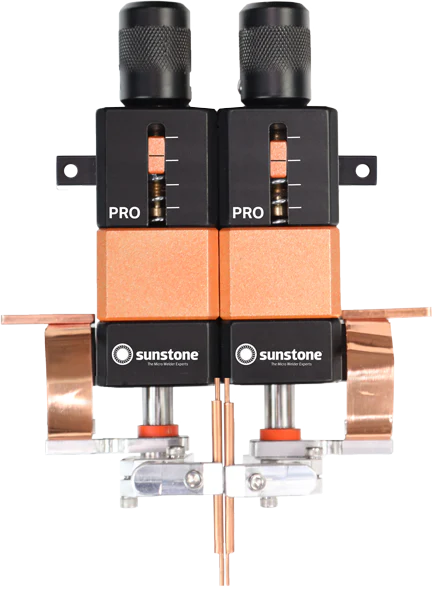

The Sunstone PRO X WH is a precision resistance weld head system designed to deliver controlled, repeatable welds in production and laboratory environments. Engineered to pair with Sunstone external power supplies and weld controllers, this system provides stable electrode alignment, regulated weld pressure, and hands-free operation for applications where consistency and accuracy are critical.
The PRO X WH is commonly used in electronics, medical, and aerospace workflows that require precise positioning and mechanically consistent weld geometry when joining small parts, fine wires, and terminals.
Ideal For
-
Production benches requiring repeatable resistance welds
-
R&D laboratories and test environments
-
Electronics and sensor assembly
-
Medical component manufacturing
-
Fixture-based or hands-free welding workflows
Key Features
-
Integrated precision weld head for controlled electrode alignment
-
Regulated weld pressure for consistent joint quality
-
Hands-free operation for improved repeatability and throughput
-
Compatible with Sunstone CD, HF, and PA series controllers
-
Fine mechanical adjustments for electrode travel and positioning
-
Stable benchtop construction for tight-tolerance applications
Applications
-
Sensor and microelectronic terminal welding
-
Battery tab and connector lead attachment
-
Fine wire, mesh, or braid resistance welding
-
High-repeat production welding environments
-
Medical device and R&D fixture-based welding
Specifications
| Specification |
Details |
| Weld Type |
Resistance welding (via external controller) |
| Control Type |
Weld head with integrated motion and pressure |
| Trigger Options |
Foot pedal, external controller, or automation |
| Compatibility |
Sunstone CD, HF, and PA series power supplies |
| Operating Environment |
Production benches, R&D labs, electronics assembly |
What’s Included
Warranty
This product includes Sunstone’s 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship.
-
Internal electronics and system components covered for 2 years
-
Consumable components covered under a 1-Year warranty
-
Service and support provided by Sunstone’s U.S.-based technical team
Customer Resources
📄 Datasheet
📄 User manual
▶️ Video: Product Video
📧 Customer Support: Direct manufacturer assistance troubleshooting. Contact them at custservice@sunstonewelders.com | +1 (877) 786-9353
DO YOU NEED TRAINING?
Sunstone's training team is ready to help you master the PRO X WH Weld Head System Visit Sunstone's Training Page to learn more.
