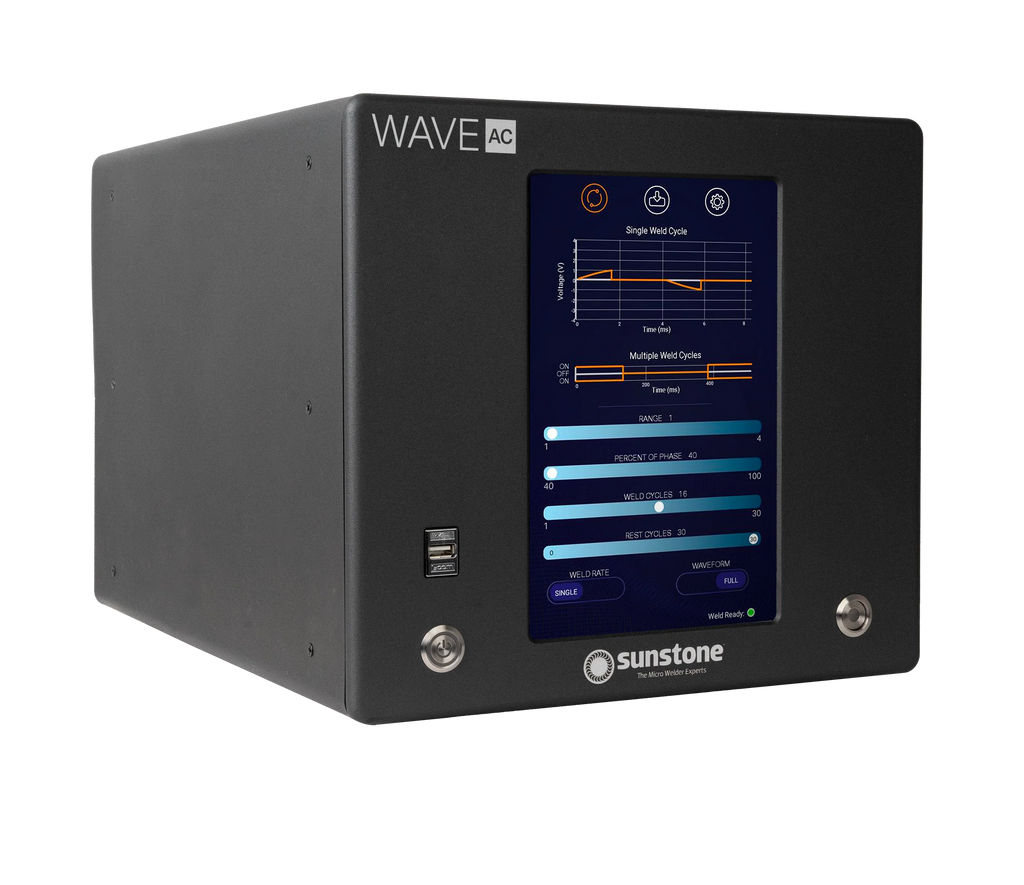

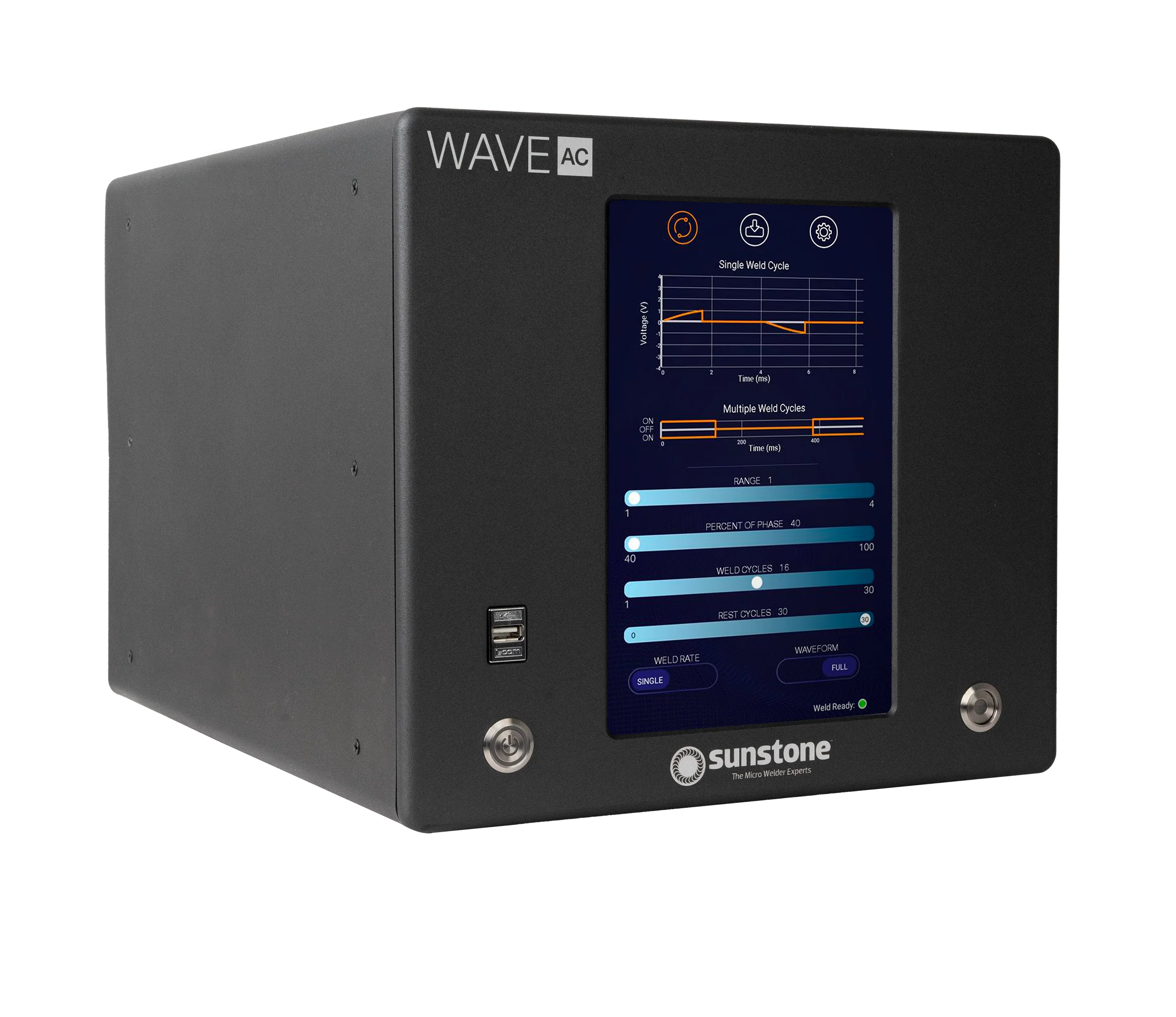

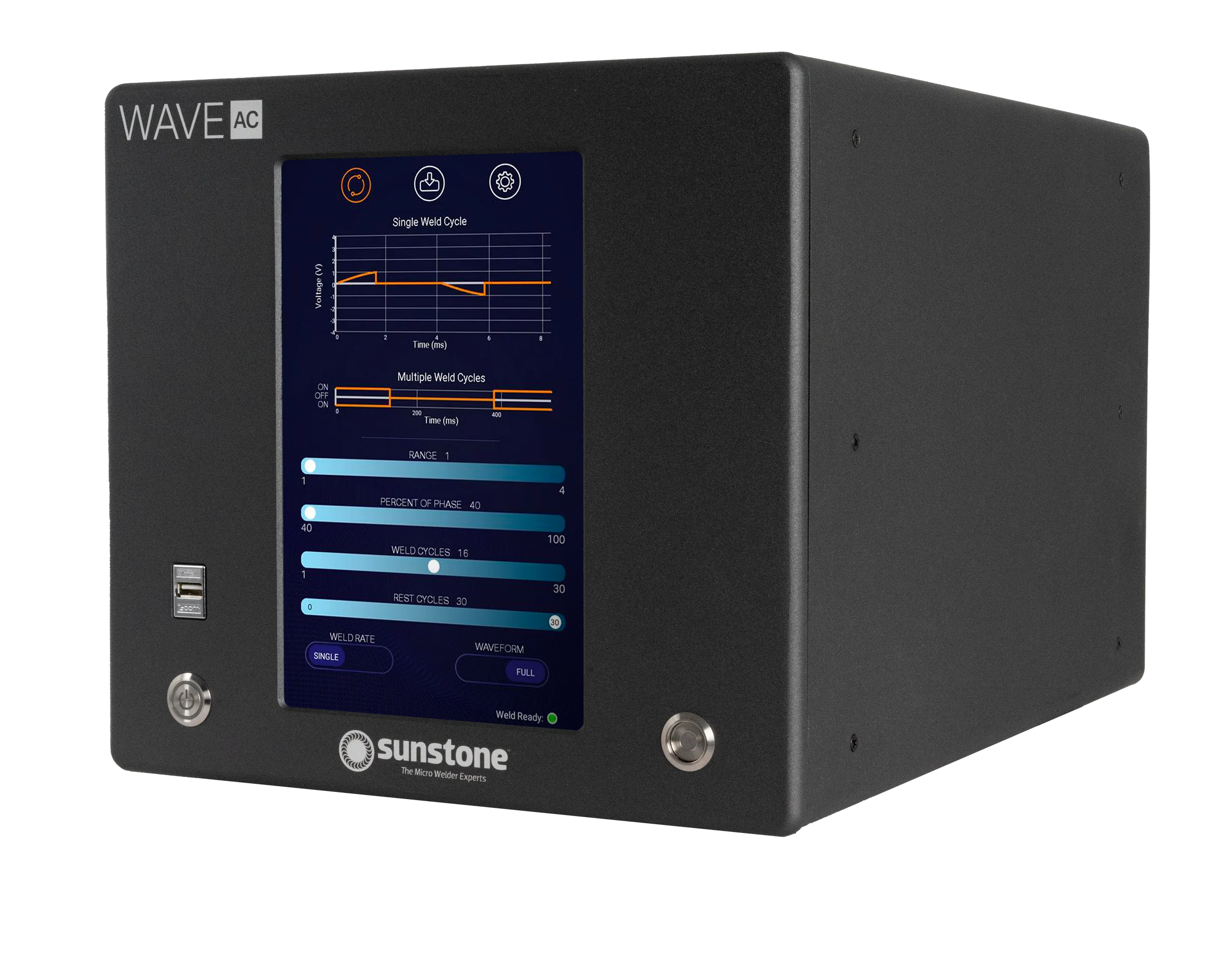

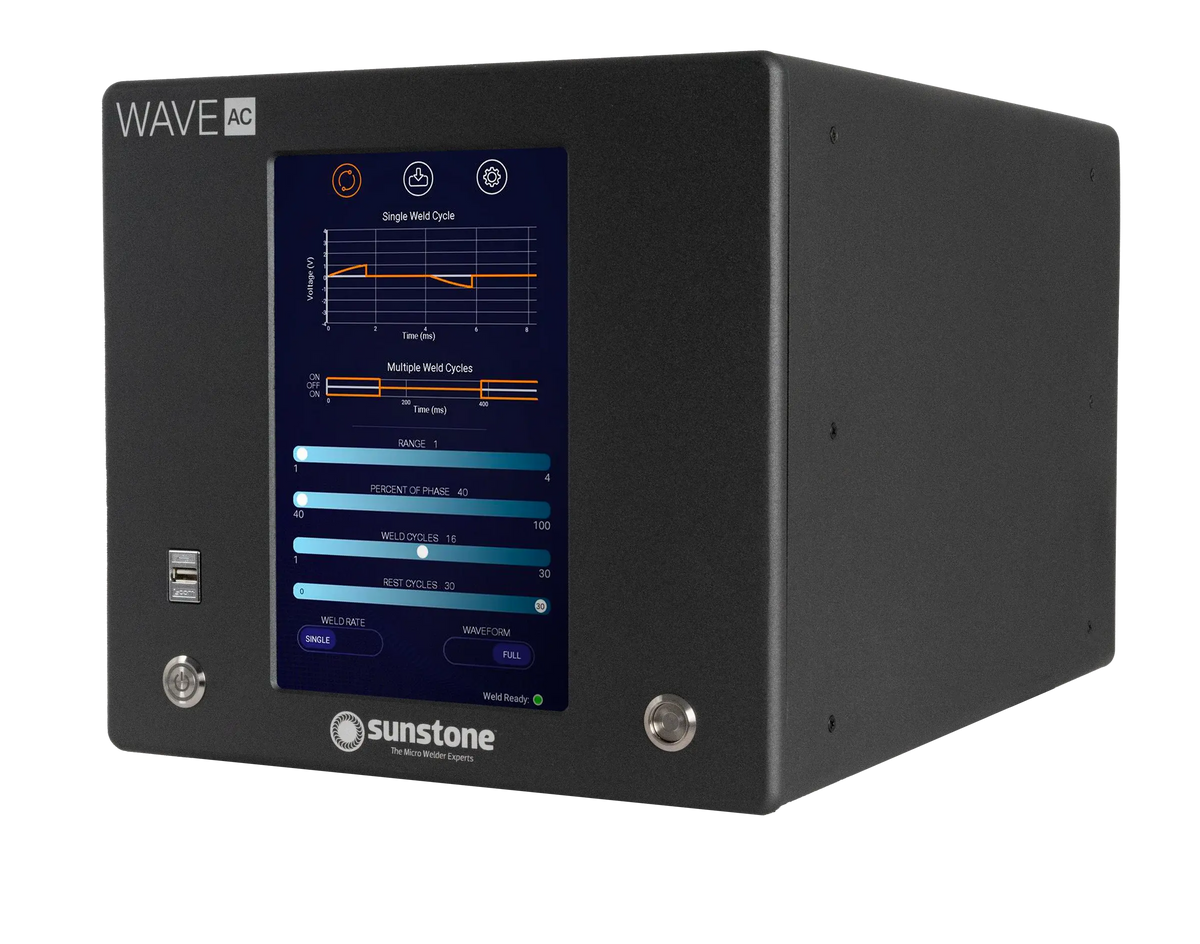

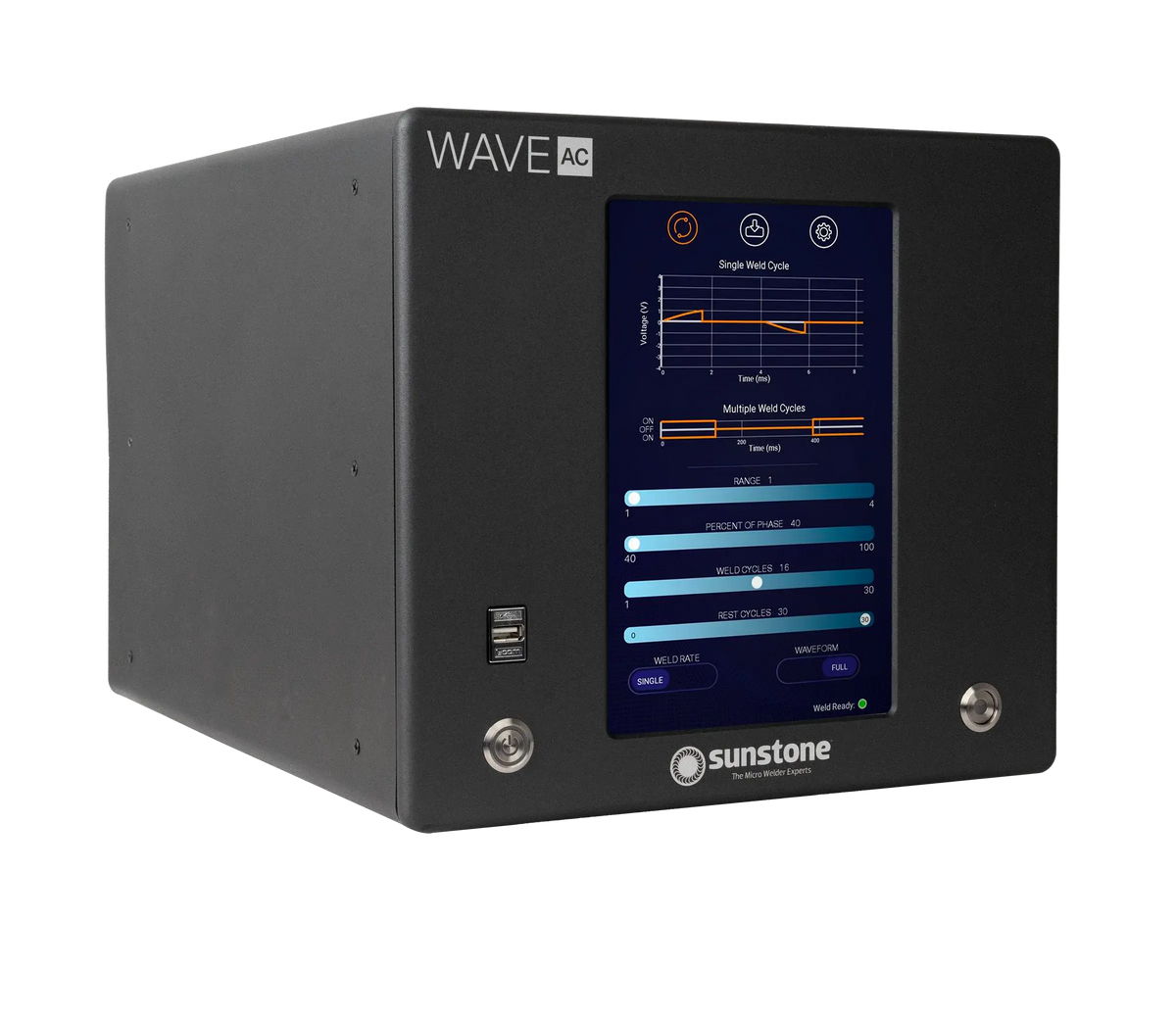

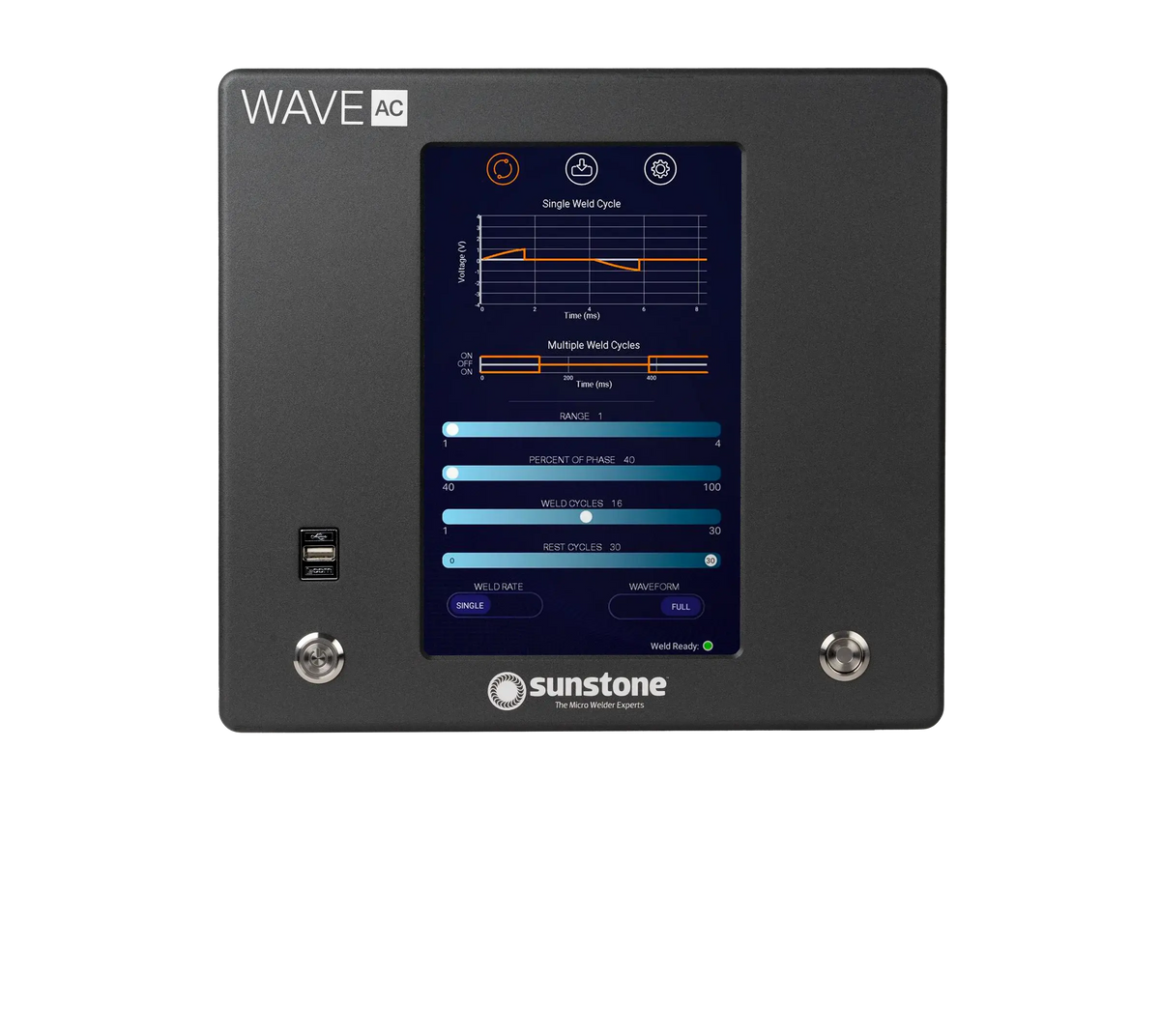

The Sunstone Wave AC is a state-of-the-art micro TIG welding system that operates using alternating current (AC) — enabling it to weld highly conductive materials like aluminum and copper with precision and stability. Unlike standard DC micro welders, the Wave AC provides advanced waveform control and cleaning action, making it one of the few systems capable of low-amperage aluminum welding in fine-feature environments.
Engineered for technicians and researchers, the Wave AC excels in foil, tab, terminal, and wire bonding on hard-to-weld conductive metals — while maintaining precise arc focus and a small heat-affected zone.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $499 (discounted rate).
Weld Type: Alternating Current (AC) Micro TIG
Trigger: Foot pedal or automation-compatible input
Interface: Advanced digital touchscreen interface
Power Source: 110/220 VAC auto-switching
Use Case: Micro TIG welding of conductive materials (especially aluminum)
Environment: Advanced labs, aerospace facilities, battery R&D, aluminum weld stations
⚙️ Key Features
-
AC Micro TIG Arc: Enables welding of aluminum, copper, and other difficult metals
-
Digital Touch Interface: Precision waveform and energy settings
-
Waveform Tuning: Balance, frequency, and amplitude control for optimized weld profiles
-
Argon Shielding: Integrated for oxidation-free welds
-
Foot Pedal or Automation Trigger: Operator or system-initiated weld control
-
Compact Industrial Design: Benchtop form factor with full professional feature set
🧰 Ideal Applications
-
Aluminum tab welding (battery, aerospace, R&D)
-
Copper wire or foil bonding
-
EV module development and prototyping
-
Thermoelectric generator or heat sink assembly
-
Industrial sensor and connector manufacturing
Warranty:
This product includes Sunstone’s standard 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship. Consumable parts are covered under a 1-Year warranty. All service is performed by Sunstone’s U.S.-based support team.
DO YOU NEED TRAINING?
Sunstone's training team is ready to help you master the Wave AC Welder Visit Sunstone's Training Page to learn more.
