Models: CD200DP-RS · CD400DP-RS · CD600DP-RS
Pulse Type: Dual-Pulse Capacitive Discharge
Trigger Type: Remote Start (foot pedal, hand switch, or external signal)
Interface: Digital display with rotary controls
Automation Ready: Semi-automated (remote triggering only)
Overview

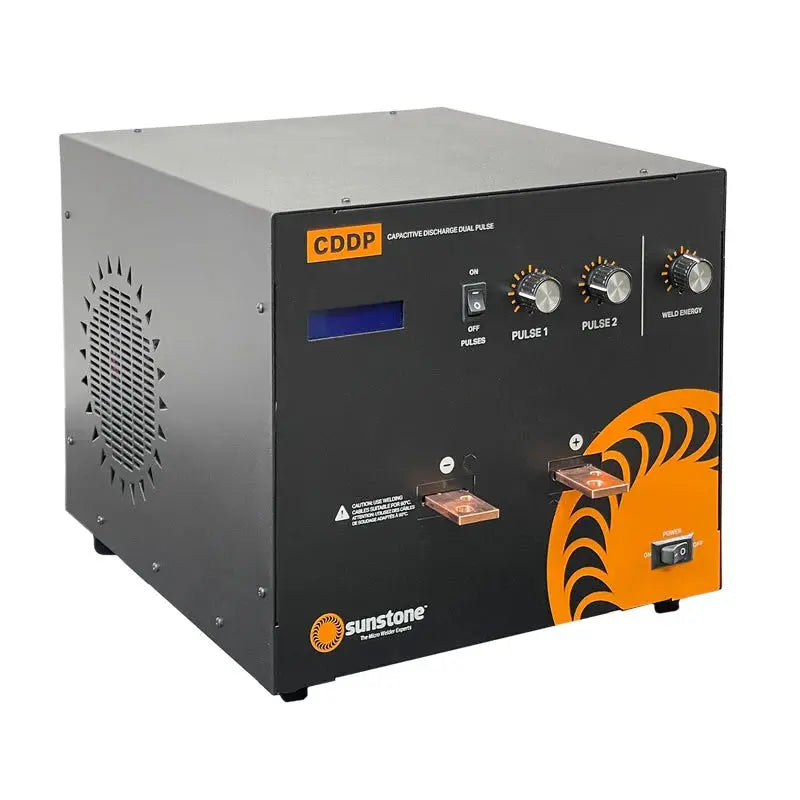

The Sunstone CD Dual-Pulse Remote Start (RS) Series expands on the proven performance of Sunstone’s standard CD welders by adding remote triggering capability, allowing hands-free welding through a foot pedal, hand switch, or external control signal such as a PLC or automated sequence.
By eliminating the need for a front-panel weld button, RS models are ideal for integrated workstations, ergonomic production setups, and semi-automated cells. The same dual-pulse capacitive discharge system is retained—ensuring clean, consistent, and repeatable welds across thin to moderately thick conductive materials.
This series is especially well suited for environments transitioning from lab-scale welding to controlled production, where precision, repeatability, and operator efficiency are critical.
Shared Features Across RS Models
-
Remote start input for foot pedals, hand triggers, or automation signals
-
Dual-pulse discharge system for improved surface conditioning and weld integrity
-
Microprocessor-controlled energy output for repeatable weld results
-
Digital display with rotary energy adjustment controls
-
Auto-switching 110V / 220V AC power input
-
Rugged, compact benchtop chassis
-
Visual and audible system readiness indicators with thermal protection
Model Comparison
| Model |
Stored Energy |
Dimensions (in) |
Weight |
Typical Use Cases |
| CD200DP-RS |
200 Ws |
18 × 15 × 18 |
31 lbs |
Delicate components, battery tabs, foils; fastest cycle times |
| CD400DP-RS |
400 Ws |
18 × 15 × 18 |
35 lbs |
Medium-thickness terminals, connectors, layered materials |
| CD600DP-RS |
600 Ws |
18 × 15 × 18 |
35 lbs |
Small bus bars, thicker stacks, complex foil layers |
Ideal Applications
-
Battery tab welding using foot-activated or timed triggers
-
Thermocouple and sensor assembly in controlled environments
-
Medical device and aerospace micro-welding
-
Ergonomic workstations requiring hands-free operation
-
Integration with rotary indexers, weld heads, or PLC-controlled sequences
What’s Included
Each Sunstone CD Dual-Pulse RS Spot Welder ships configured for remote operation and includes:
-
Sunstone CD Dual-Pulse RS Spot Welder (model selected)
-
Integrated capacitive discharge power supply
-
Remote start input interface (foot pedal or trigger sold separately)
-
Digital display and rotary energy controls
-
Auto-switching 110V / 220V AC power input
-
Power cord
-
User manual and setup documentation
Electrodes, weld heads, foot pedals, and automation accessories are sold separately to allow application-specific configuration.
Warranty
This product includes Sunstone’s 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship.
-
Internal electronics and system components covered for 2 years
-
Consumable components covered under a 1-Year warranty
-
Service and support provided by Sunstone’s U.S.-based technical team
