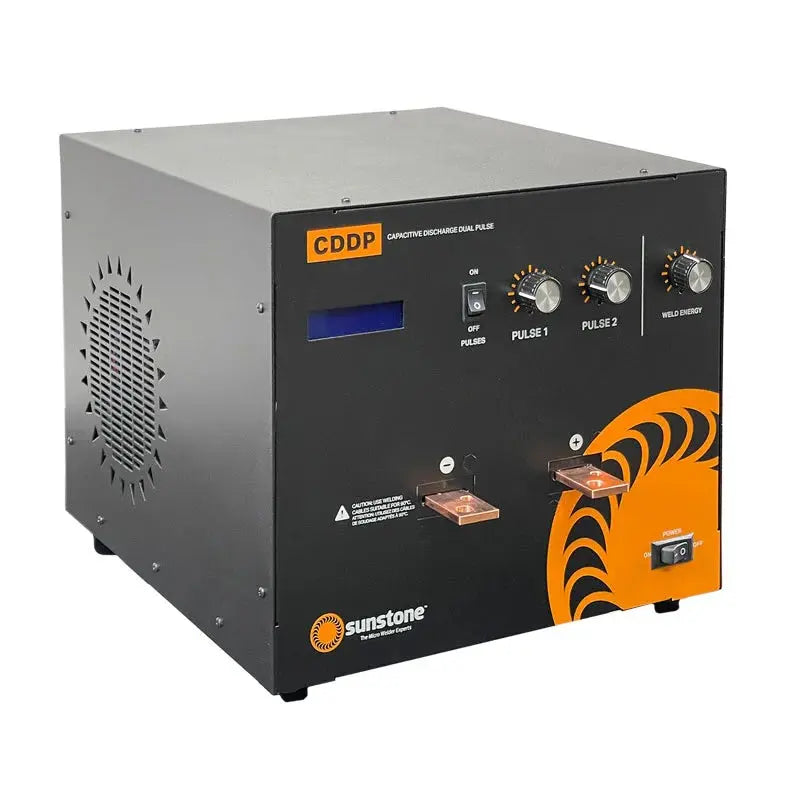

Sunstone Capacitive Discharge (CD) Dual-Pulse Spot Welders
SKU: 301030
Description
Models: CD200DP · CD400DP · CD600DP
Pulse Type: Dual-Pulse Capacitive Discharge
Interface: Manual
Trigger: Built-in front-panel button
Automation Ready: No
Overview
The Sunstone CD Dual-Pulse Standard Series delivers professional-grade resistance spot welding using a dual-pulse capacitive discharge system designed to improve weld cleanliness, consistency, and bond strength on thin to moderately thick conductive materials.
Each weld is performed using two precisely controlled energy pulses:
-
A conditioning pulse that cleans oxides and surface contamination
-
A primary weld pulse that delivers the full welding energy for a strong, repeatable bond
This approach produces cleaner welds with reduced spatter and improved repeatability—especially important for battery tabs, foils, fine wires, and precision components.
With a compact benchtop footprint, rugged construction, and a straightforward manual interface, the CD Dual-Pulse Series is ideal for labs, prototyping environments, R&D, and light production where automation is not required.
Shared Features Across All Models
-
Dual-pulse discharge improves weld reliability and surface preparation
-
Microprocessor-controlled energy output for consistent, repeatable welds
-
Front-panel digital display with intuitive energy adjustment
-
Manual triggering via integrated weld button
-
Auto-switching power input (110V / 220V AC)
-
Compact, heavy-duty chassis designed for benchtop use
Model Comparison
| Model | Stored Energy | Dimensions (in) | Weight | Typical Use Cases |
|---|---|---|---|---|
| CD200DP | 200 Ws | 18 × 18 × 15 | 31 lbs | Small parts, foils, battery tabs, thermocouples; fastest cycle times |
| CD400DP | 400 Ws | 18 × 15 × 18 | 35 lbs | Medium-thickness terminals, layered materials; deeper weld penetration |
| CD600DP | 600 Ws | 18 × 15 × 18 | 35 lbs | Small bus bars and thicker conductive materials; highest weld energy |
Ideal Applications
-
Battery tab welding (nickel, nickel-plated steel, copper)
-
Medical device wiring and sensor leads
-
Foil and mesh bonding
-
Thermocouple fabrication
-
Laboratory R&D and benchtop manufacturing
What’s Included
Each Sunstone CD Dual-Pulse Spot Welder ships ready for manual operation and includes:
-
Sunstone CD Dual-Pulse Spot Welder (model selected)
-
Integrated capacitive discharge power supply
-
Built-in manual weld trigger button
-
Front-panel digital energy display and controls
-
Auto-switching 110V / 220V power input
-
Power cord
-
User manual and setup documentation
Electrodes, weld heads, foot pedals, and automation accessories are sold separately to allow application-specific configuration.
Warranty
This product includes Sunstone’s standard 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship.
-
Internal electronics and system components covered for 2 years
-
Consumable components covered under a 1-Year warranty
-
Service and support provided by Sunstone’s U.S.-based technical team
