3D Potter - Scara H.D. (Heavy Duty) 3D Printer

Overview

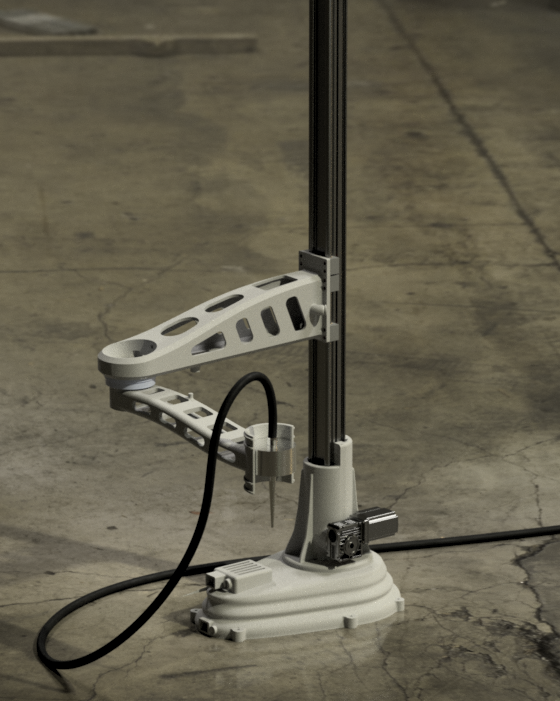

The 3D PotterBot SCARA H.D. (Heavy Duty) is an industrial-grade ceramic 3D printer engineered for architectural applications, large-scale installations, and advanced research. Built for serious production environments, the SCARA H.D. combines a reinforced robotic arm system with high-torque motors, industrial bearings, and ultra-rigid construction to handle heavier materials and extended print durations.

Designed for professionals who need maximum reach, power, and precision, this model represents the top-tier performance class of 3D Potter’s SCARA lineup — ideal for commercial and institutional-scale ceramic 3D printing.

Key Features

• Heavy-Duty SCARA Robotic Arm – High-torque, reinforced arm design for massive clay builds.

• Industrial Construction – Steel and aluminum frame for rigidity and vibration-free motion.

• Direct Clay Extrusion – Prints real clay and paste materials with consistent pressure and flow.

• Stainless Steel Auger System – Ensures smooth, controlled extrusion for precise material delivery.

• Extended Build Volume – Reaches up to 9 feet in diameter and 9 feet in height for large installations.

• Upgraded Motors & Electronics – Optimized for industrial reliability and long-duration print jobs.

• 10 lb Clay Cartridge System – Supports uninterrupted printing of large-scale pieces.

Specifications

• Category: Ceramic / Clay 3D Printer – SCARA Robotic Arm

• Model: PotterBot SCARA H.D. (Heavy Duty)

• Build Volume:

  • Reach: Up to ~108" diameter (approx. 274 cm)

  • Height: Up to ~108" (approx. 274 cm)

• Clay Capacity: 10 lbs (4.5 kg)

• Motion System: Reinforced SCARA robotic arm with industrial bearings and heavy-duty linear rails

• Extrusion: Stainless steel auger direct extrusion system

• Frame: Steel and aluminum hybrid design

• Power: Standard AC outlet

• Software: Compatible with open-source slicers (Cura, Simplify3D, Repetier, etc.)

Compatibility

• Materials: Standard pottery clay, porcelain, and high-viscosity paste materials

• Software: Cura, Simplify3D, Repetier, and other G-code slicers

• Connectivity: USB/SD card

Warranty

3D Potter Inc. includes a 1-Year Limited Manufacturer Warranty covering defects in materials and workmanship from the original purchase date.

• Printer components and hardware covered for 1 year

• Defective parts will be replaced free of charge under warranty

• Warranty coverage is valid for a total of 3 years from the original purchase date when combined with annual extended warranty plans

What is NOT covered and will void the warranty:

• Damage caused by improper use or operation outside of recommended guidelines

• Modification or altering of the printer in any way

• Electrical surges, water damage, fire, or environmental damage

• Lack of proper machine maintenance

• Alteration of configuration, firmware, or system files

• Consumable items such as clay, rubber seals, polycarbonate tubes, and similar wear parts

Extended warranty options are available:

• Extended Warranty: $250 per year for all standard 3D Potter models

• Scara Series Extended Warranty: $450 per year

This warranty is not transferable. 3D Potter Inc. reserves the right to refuse warranty coverage on printers that are obsolete or no longer in production.

Customer Resources

📄 User Manual: Included with purchase
▶️ Training Videos - Interface Preview
📞 U.S. Support Team: Direct manufacturer assistance for installation and troubleshooting. Email them at techsupport@3dpotter.com
