Take your Omni system to the next level with the Omni X/XE 12W Laser Upgrade Kit, built for high-precision, high-output performance and engineered specifically for integration with the Omni X and Omni XE platforms. If you're looking to upgrade your workflow, this module delivers faster processing, greater cutting depth, and broader material capabilities — all backed by ComMarker’s advanced tech.
Key Features
-

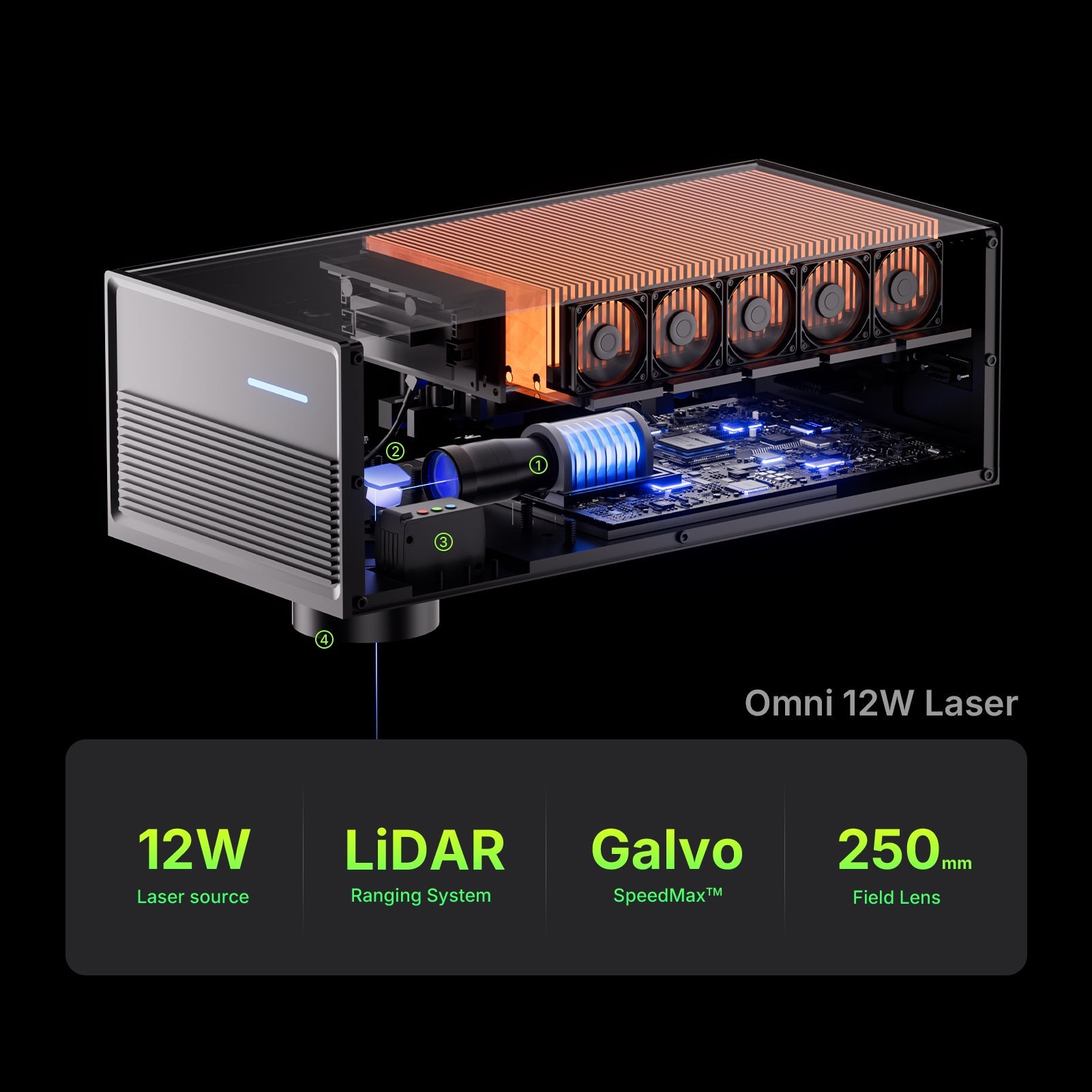

12W UV laser module designed for ultra-clean, high-speed engraving and cutting
-
355 nm wavelength UV beam for optimal precision across sensitive materials
-
Large working area: 9.8″ × 9.8″ (250 × 250mm) standard, expandable to 9.8″ × 15.7″ (250 × 400mm) with Slide Extension
-
Built-in LiDAR ranging system for automatic focus and enhanced accuracy
-

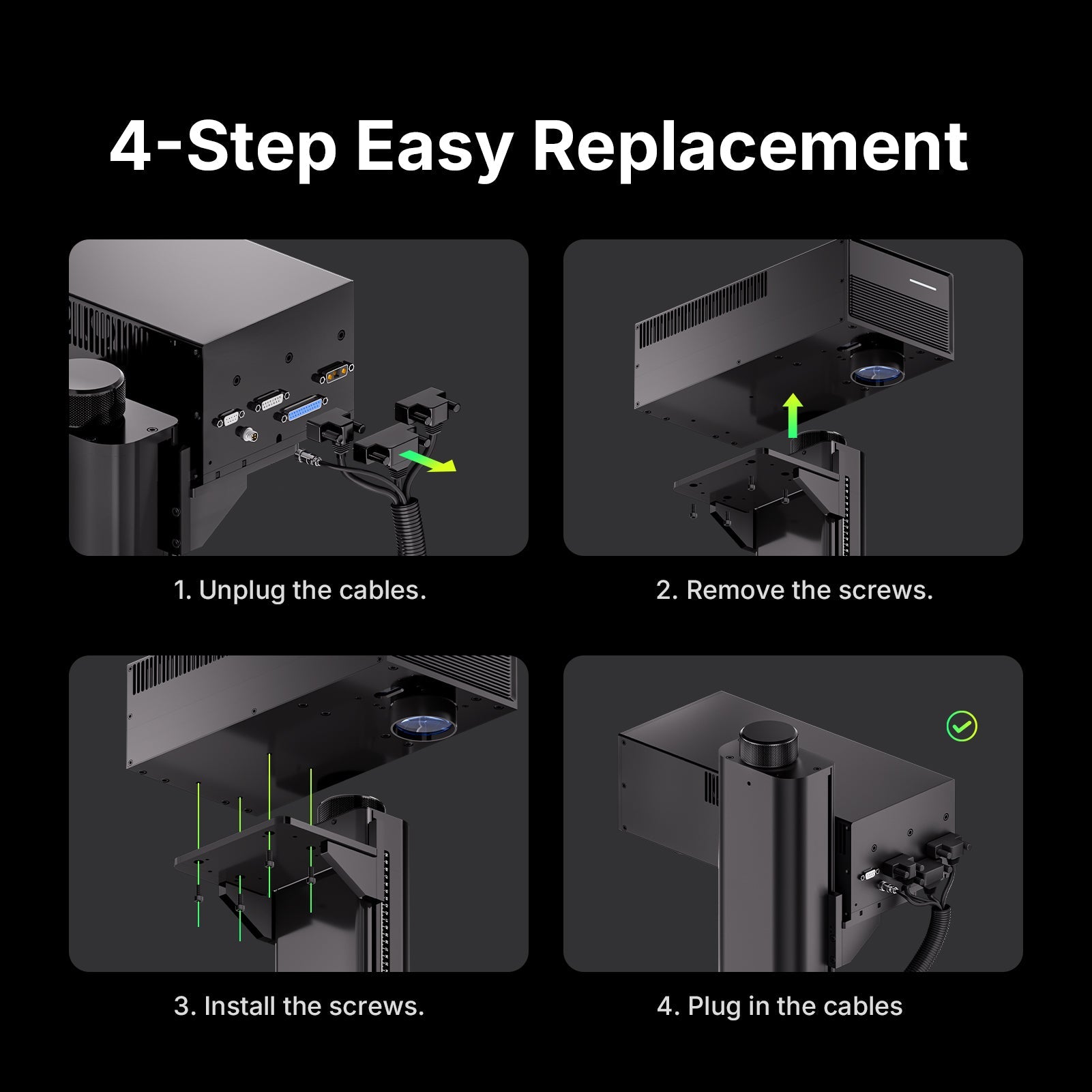

Works seamlessly with both Omni X and Omni XE machines (plug-and-play upgrade path)
Specifications
| Specification |
Value |
| Suitable For |
ComMarker Omni X / Omni XE
|
| Laser Type |
UV Laser
|
| Laser Power |
12W
|
| Laser Wavelength |
355 nm
|
| Working Area |
9.8″ × 9.8″ (250 × 250mm) standard; up to 9.8″ × 15.7″ (250 × 400mm) with Slide Extension
|
| Max. Working Speed |
10,000 mm/s
|

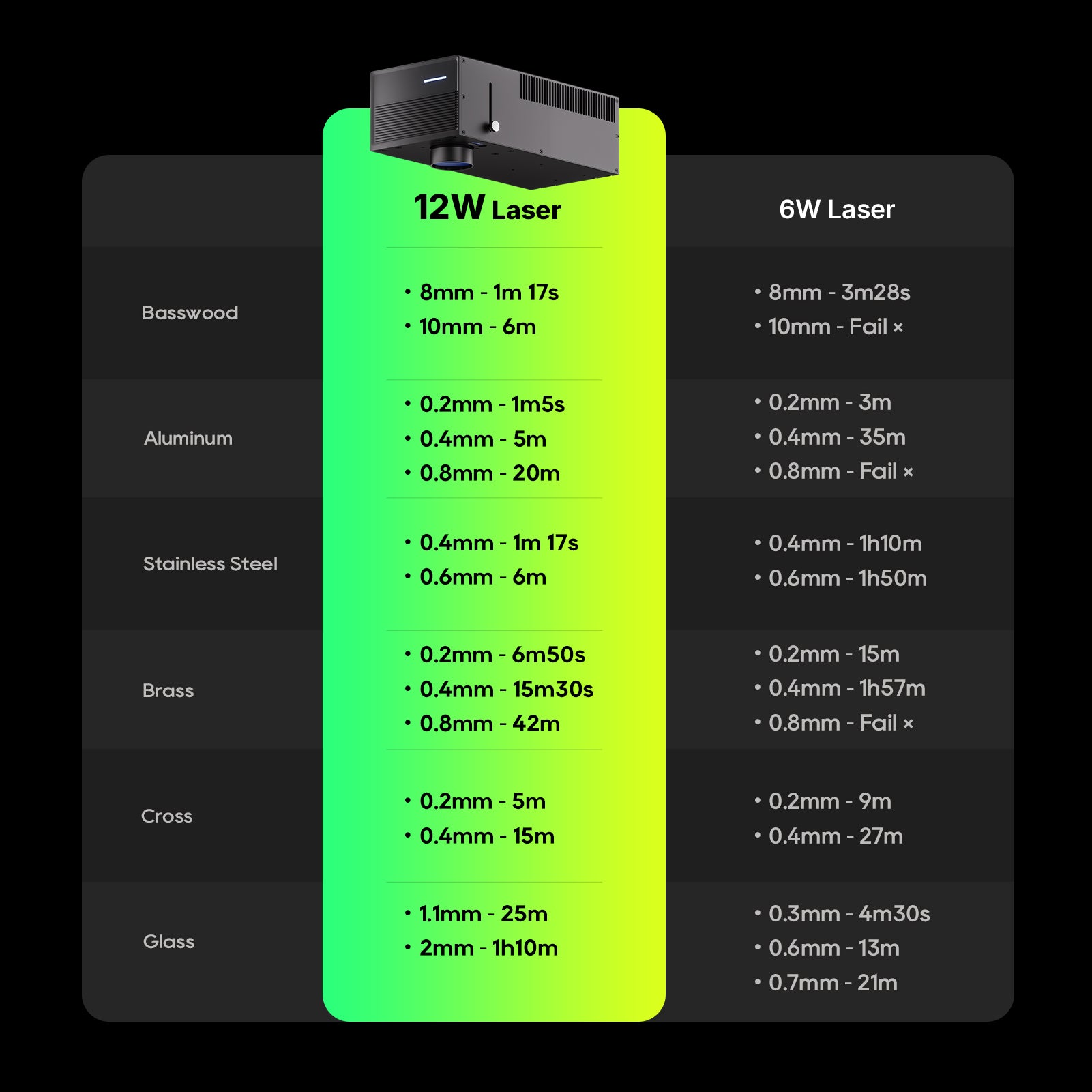

| Max Cutting Capacity (Basswood) |
~12 mm in multiple passes
|
| Max Cutting Capacity (Acrylic) |
~10 mm in multiple passes
|
| Max Cutting Capacity (Stainless Steel) |
~1 mm in multiple passes
|
| Laser Spot Dimension |
0.0019 mm
|
| XY Positioning Accuracy |
0.001 mm
|
| Operating Temperature |
50-83 °F (10-28 °C)
|
What’s Included
-

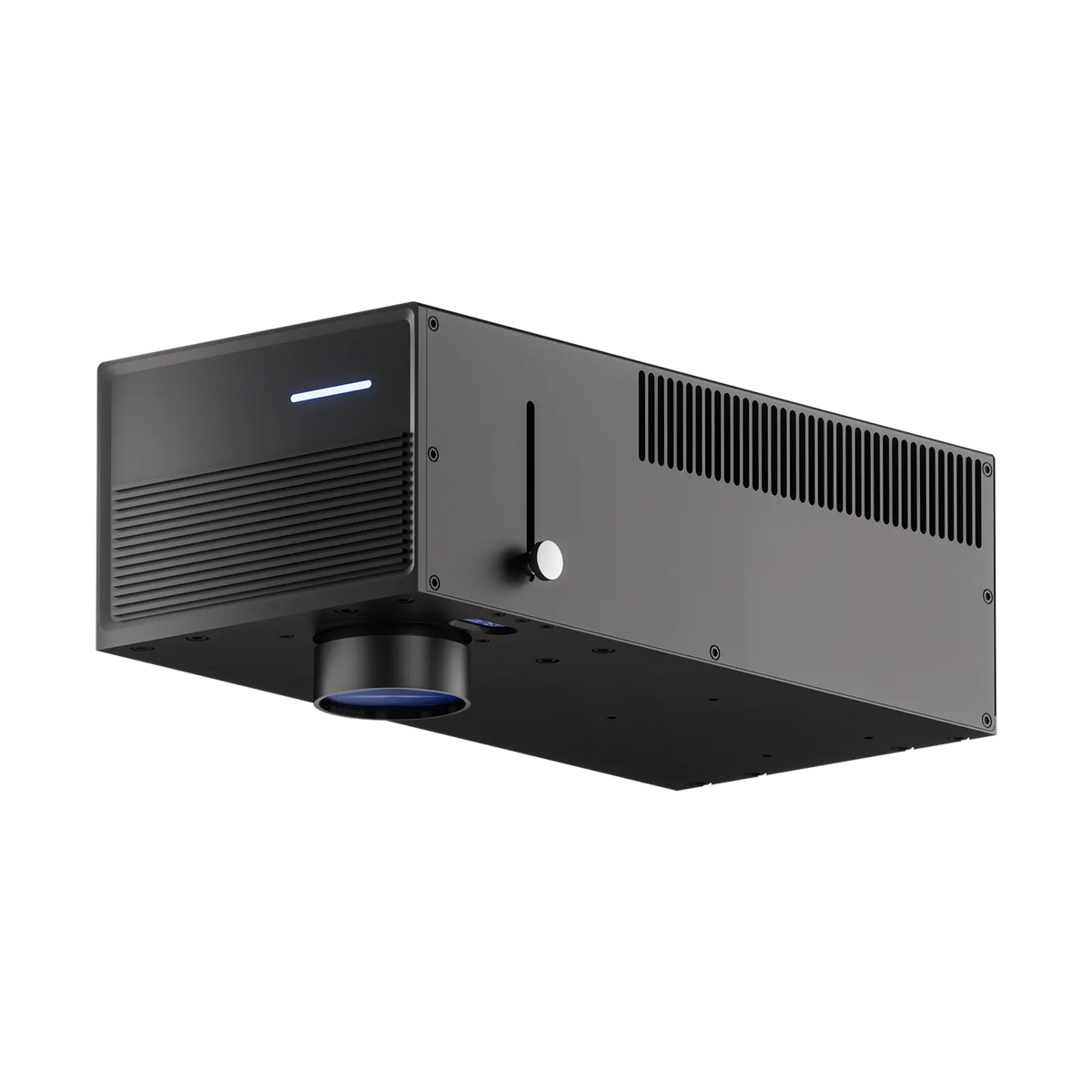

12W UV Laser Module
-
SuperVision™ 70 mm Field Lens
-
250 mm Field Lens
-
USB Drive with Firmware/Software
-
Allen Wrenches + Mounting Hardware
-
Instruction Manual & Safety Documentation
