Designed to support larger 2.25hp routers with a 3.5” barrel diameter (Makita or similar brands), the Shark HD500 Plus is an enhanced version of the popular HD500 CNC. In addition to all the standard features of the HD500, the Plus model includes Next Wave CNC's latest technological advancements, such as the 10.1" Android-based Touch Screen Display and a 2hp Water-Cooled Spindle.

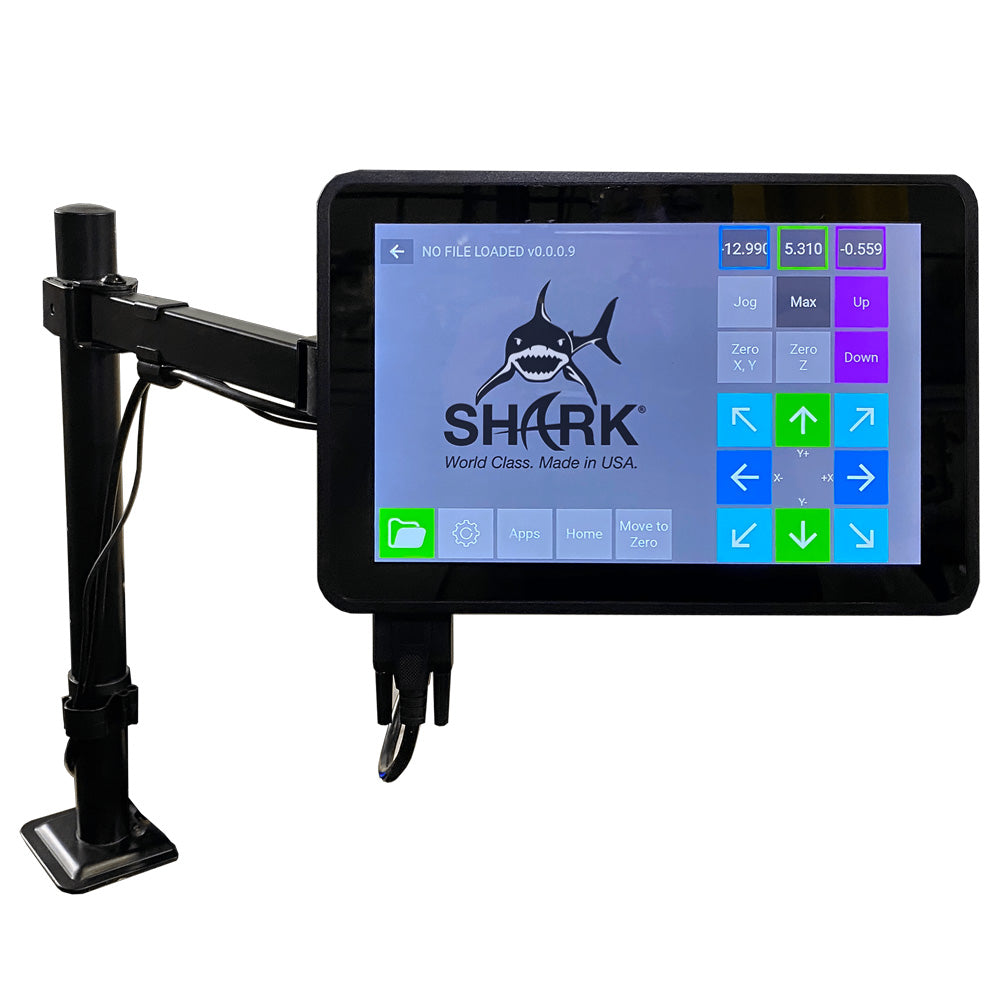

The Touch Screen Display offers features like:
- Multi-axis homing
- Program restart from any point within the G-code
- Visual run time display for precise project tracking

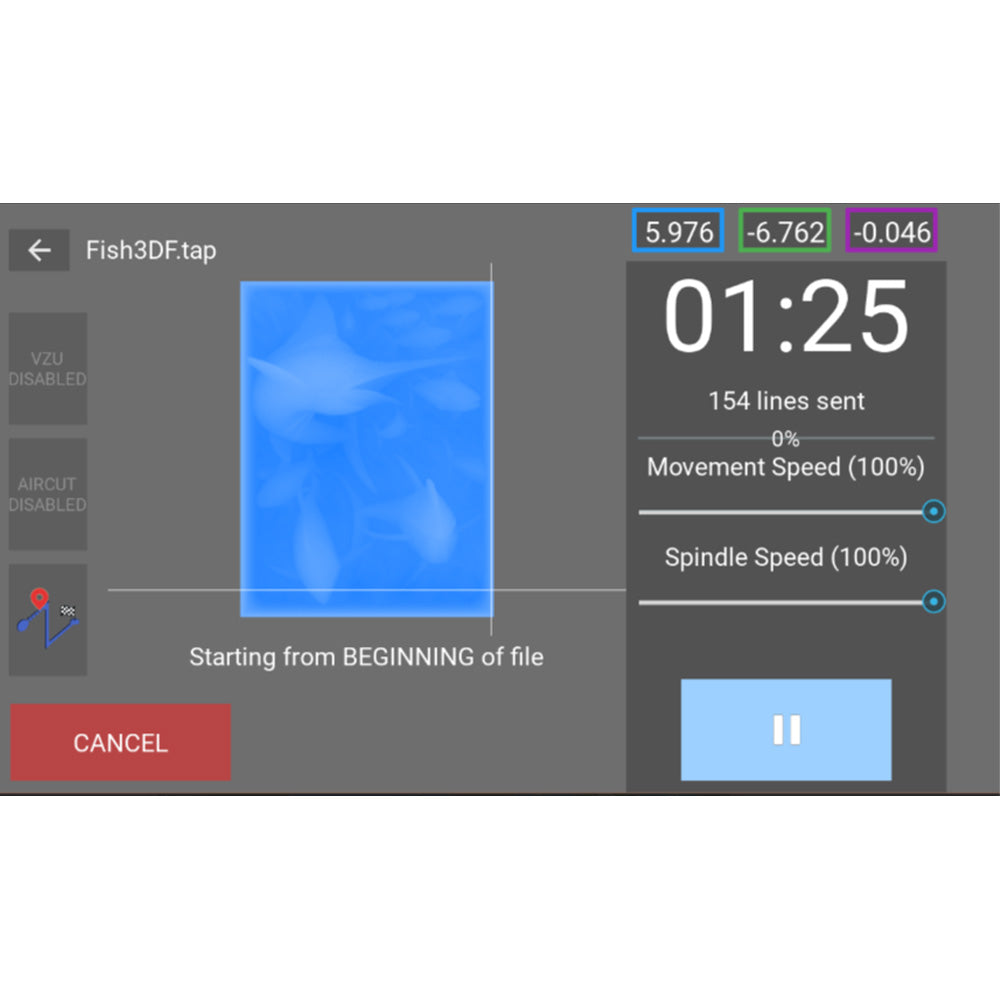

- Real-time project display on screen
- Diagonal rapid movements
- On-screen virtual zero point calibration
- Higher processing speeds, reducing 3D carving time by up to 50%
- Internal file storage
- USB ports for connecting peripherals like keyboards, mice, and flash drives

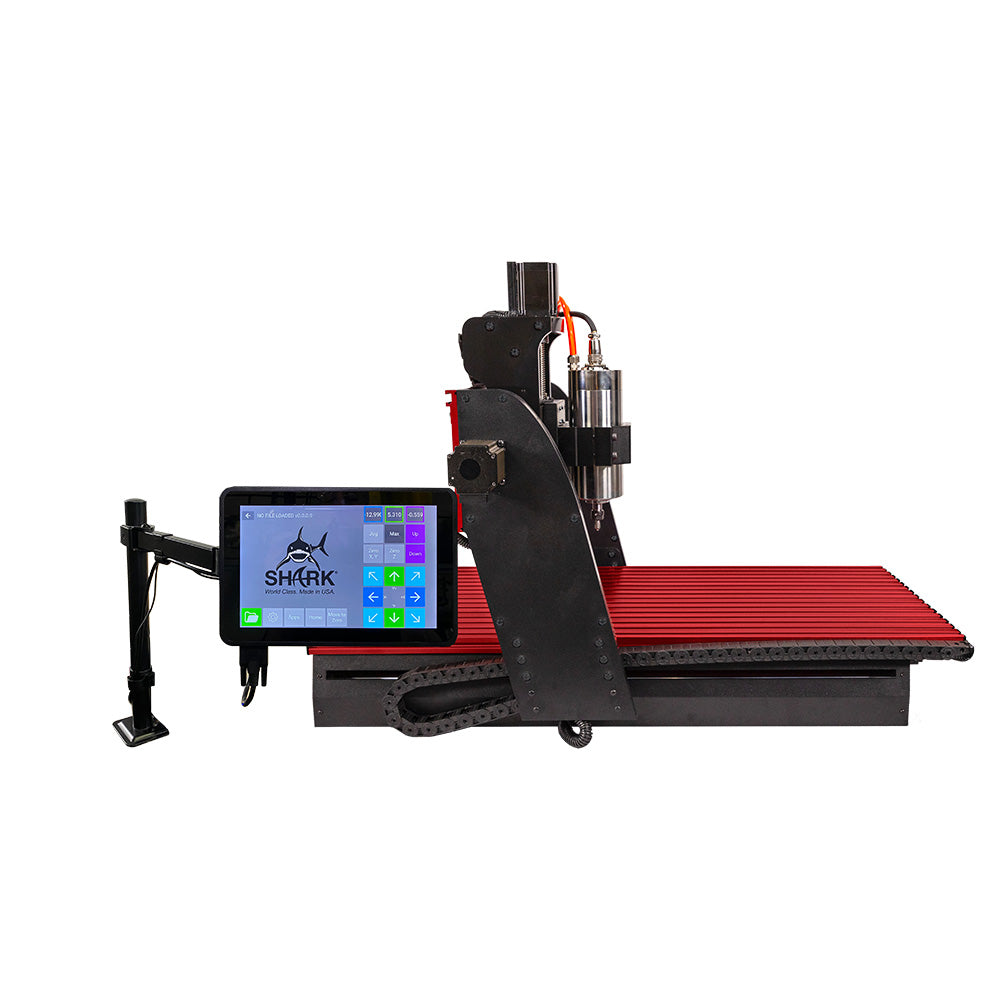

The Shark HD500 Plus features a 16” x 36” table and an extruded aluminum router mount, compatible with 3.5” barrel routers or Next Wave’s water-cooled spindle system. It also has robust linear gantry rails for added strength. The system can be controlled via pendant or computer and is ideal for carving plaques, signs, ornamental boxes, and precision parts made from wood, soft metals, or plastics.
This CNC router also offers 3D carving capabilities, complete with a 3D model library. It provides two control options:
-
Pendant Control: Use the included Vectric VCarve Desktop Design Software to create your design, then transfer it to a USB drive and plug it into the LCD pendant. The convenient touch screen interface allows you to operate the CNC without a computer.
-
Computer Control: Use the Ready2Control software with the exclusive patented Virtual Zero Unlimited technology, which adjusts your design to fit curves and angles not possible with other machines. (Computer and flash drive not included.)
The Shark HD500 Plus is also compatible with Next Wave's 2-Watt and 7-Watt Lasers.
Need a sturdy surface for your Shark CNC? Check out our selection of Kreg Universal Benches with hardwood tops, available in various sizes, with or without dog holes.
Features
- LCD Color Touch Pendant
- Water-Cooled Spindle System
- Vectric VCarve Software
- Ready2Control Software with Virtual Zero Unlimited Technology
- Linear guides and bearings on the gantry
- Anti-backlash, wear-compensated lead screws on all axes
- Aluminum gantry backplate for heavy-duty machining
- Steel-encased gantry legs for enhanced rigidity
- Automatic router on/off control
- USB interface
Specs
- Table dimensions: 16" x 36"
- XYZ travel: 13" x 25" x 7"
- Overall dimensions (W x L x H): 24-1/4" x 36" x 24-1/2"
- Power requirements: 120V, 60Hz, 10A fuse, Single Phase
- Surge protection requirements: 15A
Includes
- 2hp Water-Cooled Spindle (with VFD, cables, and bucket)
- Vectric VCarve Pro software
- Ready2Control software
- Color Touch Screen Pendant
- (2) Hold-down clamps
- Carbide V-bit
