📘 Overview

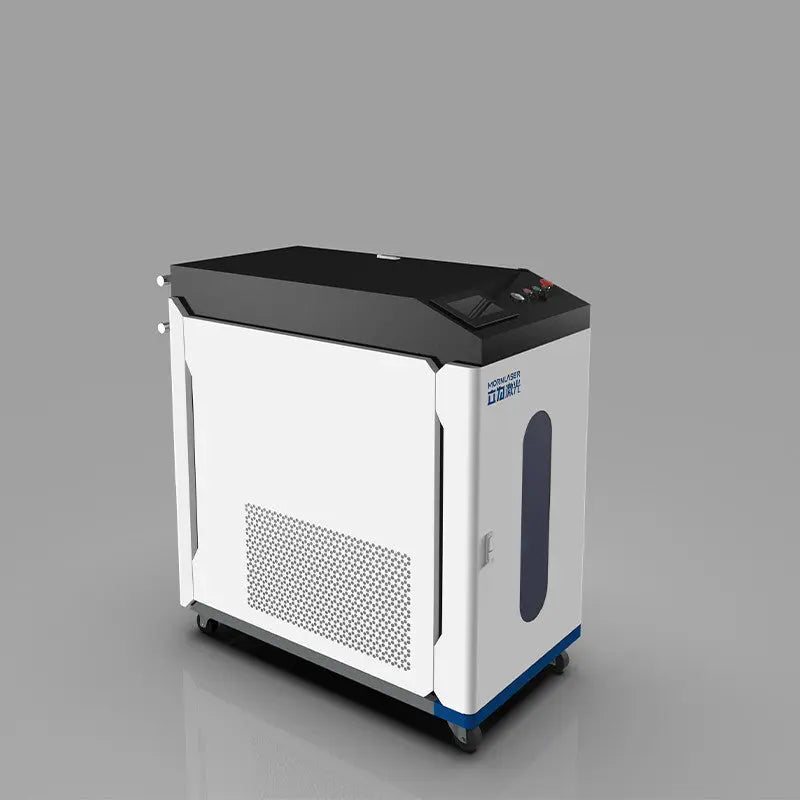

The Morn Pulsed Laser Cleaning Machine is a high‑precision, non‑contact cleaning solution ideal for removing rust, paint, oil, oxides, and coatings from metal and non‑metallic surfaces. With multiple power levels, adjustable scan widths, and fine spot control, this system is great for delicate or detailed cleaning tasks where preserving the base material is essential.

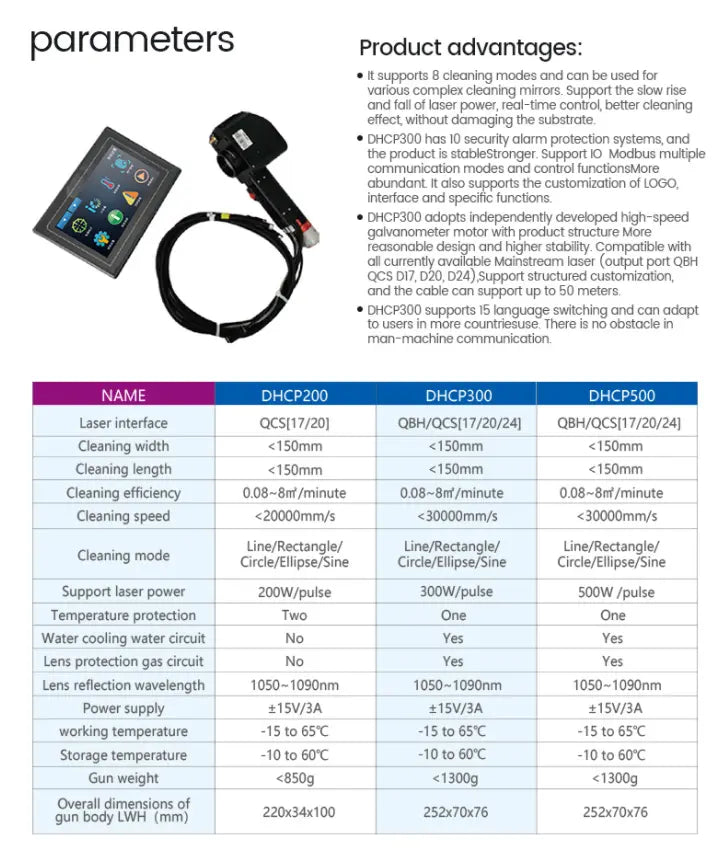

⚙️ Specifications (Model Variants)
| Model |
Laser Power |
Cooling Type |
Scan Width / Area |
Spot Diameter |
Power Adjustment Range |
Fiber Length |
Wavelength |
| MT‑CL100 / MT‑CL200 / MT‑CL300 |
100 W • 200 W • 300 W |
Air-Cooled |
65×65 mm • 80×80 mm • 100×100 mm |
~0.08 mm |
10‑100 % |
5‑10 meters (customizable) |
~1064‑1080 nm |
| MT‑CL500 / MT‑CL1000 |
500 W • 1000 W |
Water-Cooled |
120×120 mm • 200×200 mm |
~0.08 mm |
10‑100 % |
5‑10 meters (customizable) |
~1064‑1080 nm |
Additional Specs:
-
Operates under ≤ 80% humidity in working environment
-
Cooling: Air‑cooled or Water‑cooled options depending on variant
-
Supply: Single‑phase 220V ± 10%, 50/60 Hz AC
🧰 Key Features
-
Non‑contact cleaning with minimal risk of substrate damage
-
Adjustable scan area & pattern for intricate or large‑area tasks
-
Eco‑friendly operation — no chemicals, abrasives, or waste media required
-
Compact & ergonomic hand‑held head or scanner head options for flexibility
✅ Ideal Applications
-
Precision cleaning of molds, dies, and tools
-
Surface prep before welding, painting, or coating
-
Rust / coatings removal in automotive, aerospace, and marine sectors
-
Industrial maintenance for machinery, frames, or delicate parts
-
Artifacts, cultural relics, or historical restoration where substrate preservation is vital
🔍 Support & Resources
-
Standard manufacturer warranty—confirm for your specific model & region
-
Supplier provides training, demo videos, and usage guides
-
Operator tips: ensure optics are clean, adjust scan width appropriately to avoid over‑heating substrate
