📘 Overview

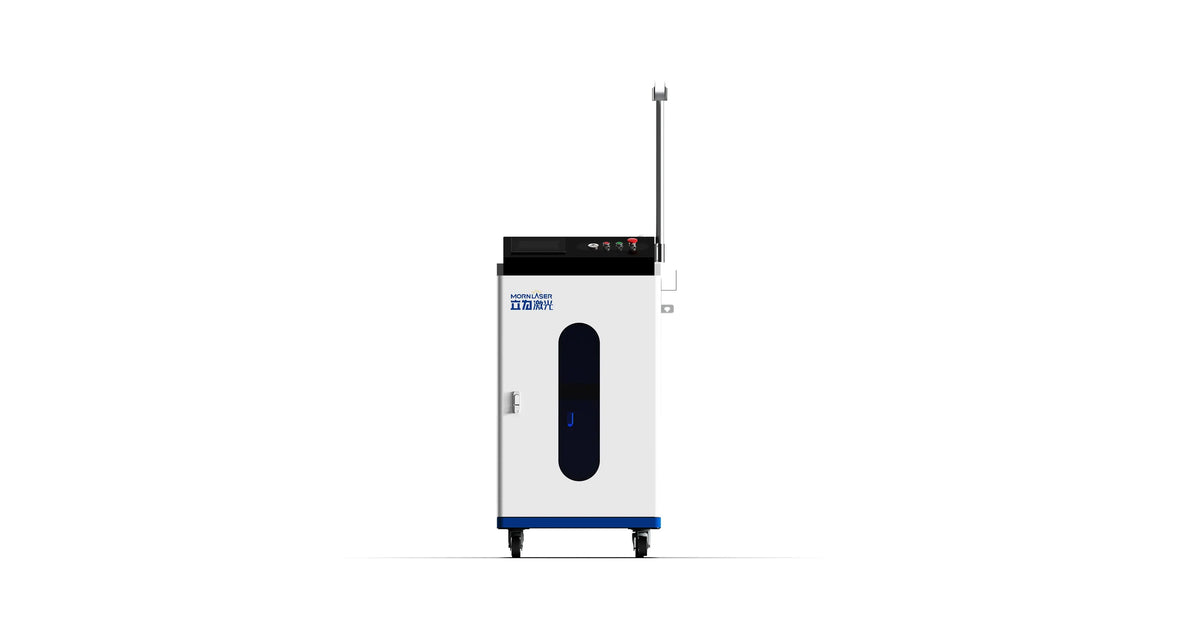

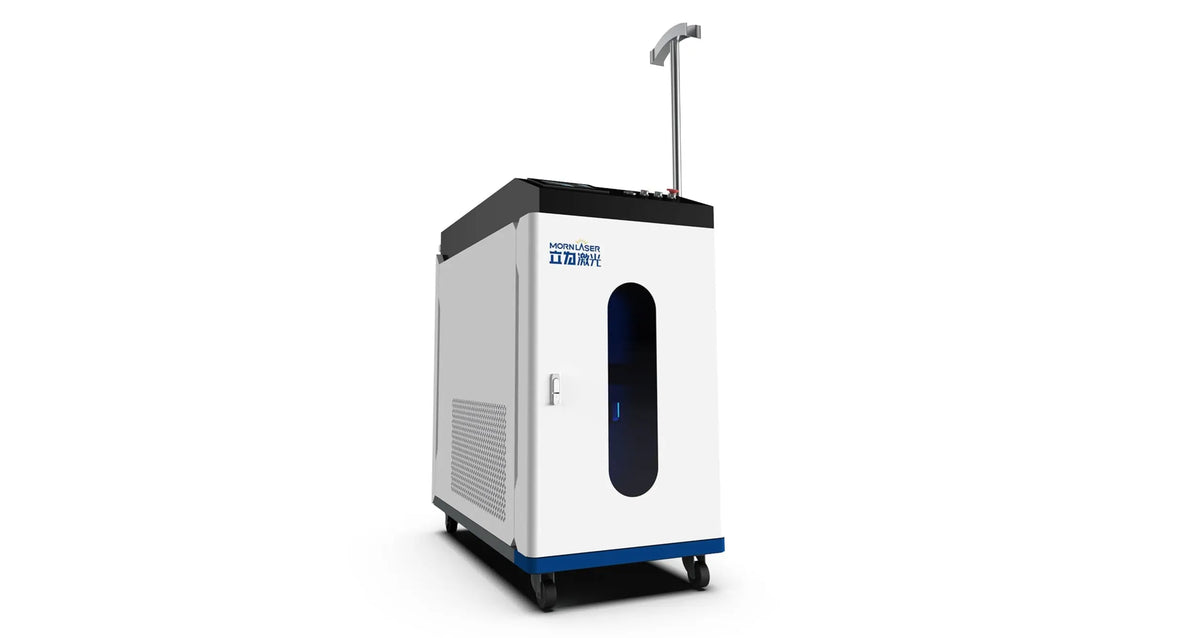

The Morn Handheld Fiber Laser Welding Machine is a premium, portable welding solution designed for fabrication, repair, and precision work across stainless steel, carbon steel, aluminum, and other alloys. With power options of 1000W, 1500W, or 2000W, this unit delivers high welding speed, excellent weld quality, and versatility for different joint types — all in one ergonomic, handheld form.
⚙️ Specifications
| Spec |
Detail |
| Laser Power Options |
1000 W • 1500 W • 2000 W
|
| Output Power Tunability |
10‑100%
|
| Laser Head Type |
Handheld type
|
| Wavelength |
~1080 ± 5 nm
|
| Material Types |
Stainless steel, carbon steel, aluminum alloys, copper, etc.
|
| Welding Thickness (approx.) |
Up to ~4 mm depending on material and power level
|
| Cooling Method |
Water cooling for higher power; air cooling for lighter setups (varies by model)
|
🧰 Key Features
-
High‑Speed Welding — Excellent travel speed and deep penetration, outperforming many traditional welding methods.
-
Versatile Joint Capabilities — Supports spot welding, butt, overlap, fillet welds, and irregular geometries.
-
Flexible Power Control — Power adjustability from low (10%) to full (100%) allowing fine control for thin or delicate materials.
-
Reliable Laser Source — High-quality laser fiber (e.g. Raycus or equivalent), long lifetime source.
-
Ergonomic Handheld Torch — Easy handling for extended work, operator comfort prioritized.
✅ Ideal Applications
-
Precision welding (sheet metal, cabinets, etc.)
-
Repair, maintenance, and industrial fabrication
-
Automotive and signage work
-
Projects needing portability and flexibility (on‑site welding)
📘 Support & Resources
-
Manufacturer warranty (confirm duration for your specific country/model)
-
Technical help and documentation for setup, torch handling, power adjustment, etc.
-
Spare parts and nozzles available via supplier
