Overview

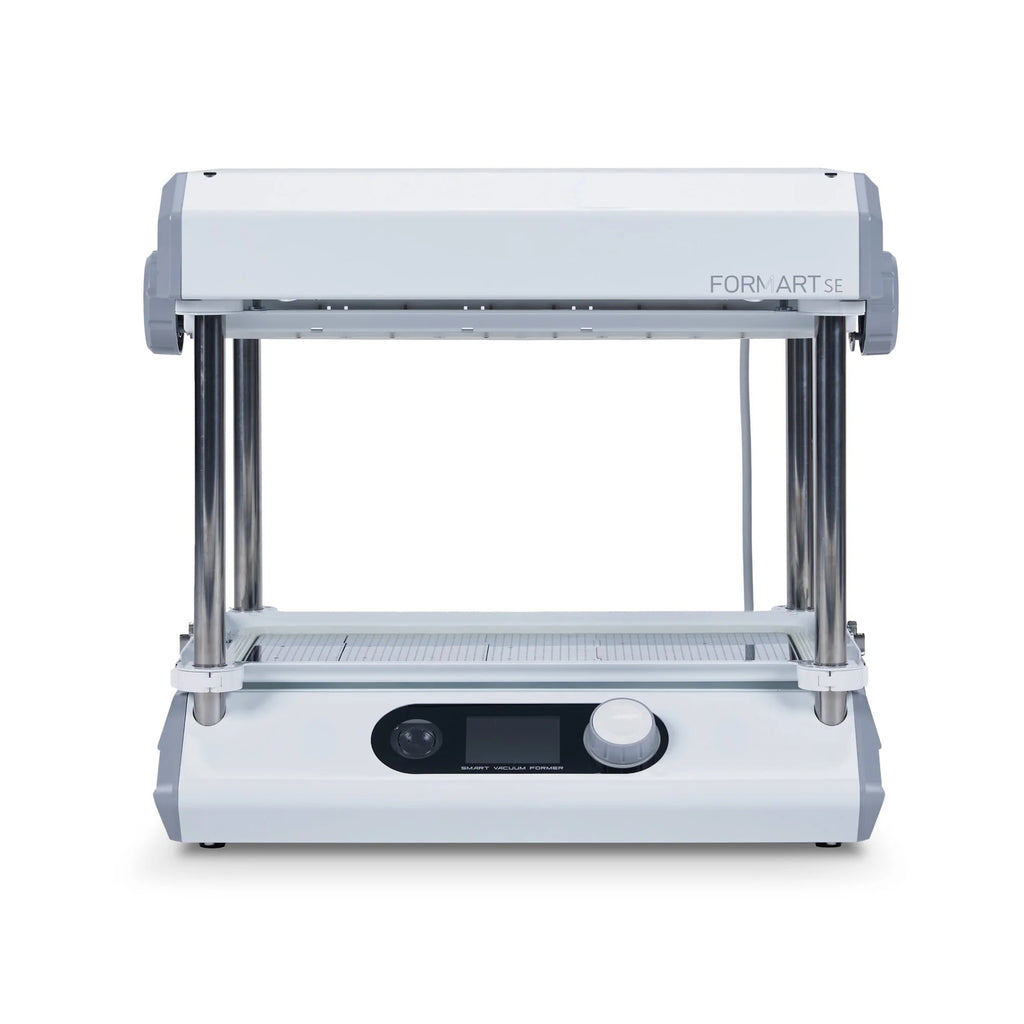

The MY YARD Formart SE is a professional desktop vacuum forming machine designed for makers, designers, educators, and small production environments. Combining an integrated heating system, dual vacuum pumps, and intelligent automation, the Formart SE delivers consistent, high-quality forming results in a compact, user-friendly platform suitable for both beginners and experienced users.
Key Features
Large Adjustable Forming Area
Offers a generous 8.50 × 10.63 in forming area. The adjustable sizing system allows users to reduce the work area to match project needs, helping minimize material waste.
Quick-Lock & Adjustable Frame System
Patented quick-lock frame secures plastic sheets instantly with a simple handle rotation. The adjustable-height frame allows easy material changes without disturbing the formed object.
Intelligent Suction Control
Features three selectable suction modes with up to –90 kPa vacuum strength, providing consistent results without manual tuning.
Rapid Quartz Heating Technology
Industrial-grade carbon fiber quartz heating elements heat up to three times faster than traditional systems, delivering uniform heat across the sheet.
Integrated Sheet Dehumidification
Built-in dehumidification removes moisture from plastic sheets prior to forming, reducing air bubbles and improving surface quality.
Smart Audio Alerts
Integrated speaker provides real-time alerts during key stages of the forming process, allowing for efficient multitasking.
Included Components
Shipped in Two Packages
Package 1
-
Base unit
-
Upper frame
-
Forming platform
-
Adjustable sizing kit
Package 2

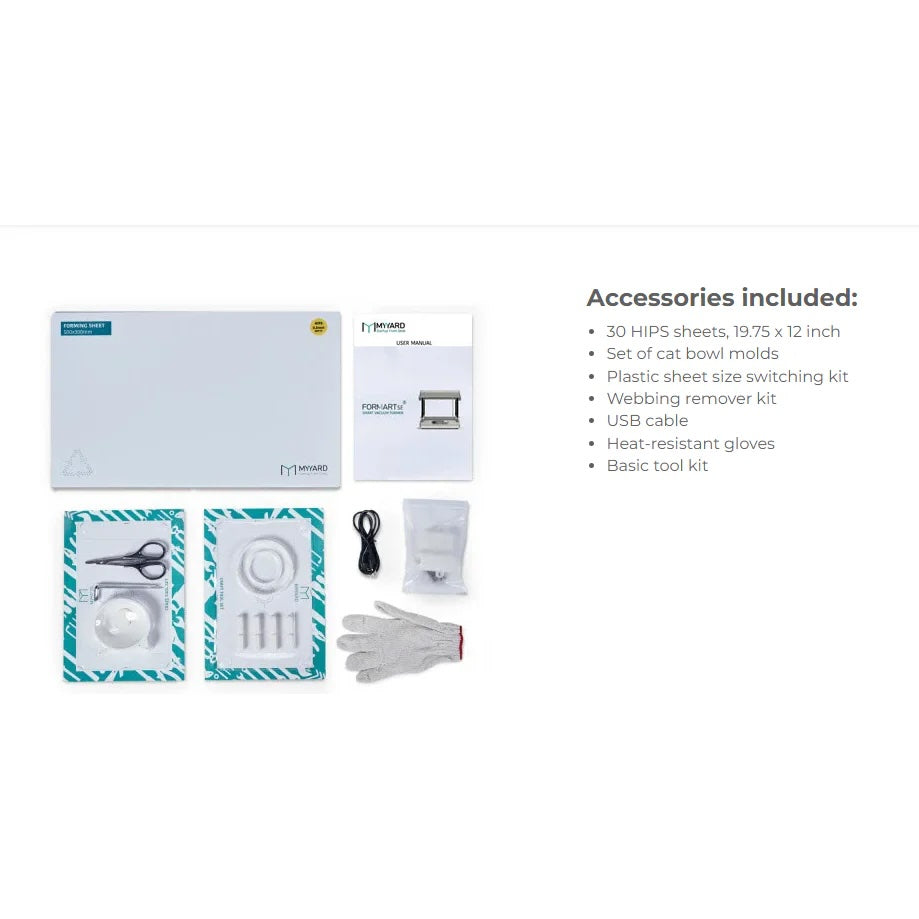

Included Accessories
Specifications
General
| Specification |
Details |
| Dimensions |
24.80 × 18.90 × 20.87 in |
| Weight |
52.91 lb |
| Display |
3.5" Full-Color LCD (480 × 320) |
| Alert System |
Integrated speaker |
Forming & Heating
| Specification |
Details |
| Sheet Thickness |
0.01 – 0.12 in |
| Supported Sheet Sizes |
19.75 × 12 in / 16.5 × 12 in / 12 × 12 in / 12 × 8 in |
| Heater Type |
Quartz heater tubes |
| Temperature Range |
140 – 446 °F |
Vacuum System
| Specification |
Details |
| Pump Type |
DC brushless pump + AC induction pump |
| Maximum Suction |
–90 kPa |
| Suction Modes |
3 selectable levels |
Power
| Specification |
Details |
| Power Supply |
100–120V AC @ 1500W / 220–240V AC @ 1700W |
Ideal Applications
-
Product prototyping
-
Mold making
-
Packaging design
-
Crafts and DIY projects
-
Educational environments
-
Small-batch production
Warranty & Support
-
Manufacturer Warranty – MY YARD vacuum forming machines include a manufacturer-backed warranty covering defects in materials and workmanship (excluding consumables and normal wear items).
-
30-Day Return Policy – Units may be returned within 30 days of the ship date in like-new condition. Refunds are issued minus shipping and handling costs.
-
Product Support – Access to dedicated product support for setup assistance, operation guidance, and troubleshooting.
Customer Resources
📄 User Manual
▶️ Video: Tutorial Unboxing and Setup
📞 U.S. Support Team: My Yard Support Center, call (346) 635-4110, or open a ticket with them
