Overview
The MY YARD Formart 2 is an advanced all-in-one desktop vacuum forming machine designed for makers, designers, educators, and product developers. Featuring rapid quartz heating, an integrated dual-pump vacuum system, intelligent material recognition, and automated pressure control, the Formart 2 delivers professional-quality forming results without the need for external vacuums or add-ons.
Designed to be equally accessible for beginners and powerful enough for experienced users, the Formart 2 streamlines the vacuum forming process while expanding material compatibility and workflow efficiency.
Key Features
Integrated Mold Release System
An automatic directional valve releases cooling air after forming, allowing molds to separate easily and reducing the risk of part damage during removal.
Smart Material Recognition
Built-in plastic sheet detection automatically scans QR codes on MYYARD materials and loads optimized forming settings for consistent, repeatable results.
Rapid Cooling System
Dual brushless cooling fans accelerate cooling cycles, increasing productivity and reducing overall cycle time.
Advanced Vacuum Sensing
An integrated vacuum sensor continuously monitors suction pressure, ensuring optimal forming conditions and greater flexibility across different materials.
Quick-Lock & Adjustable Frame
The patented quick-lock frame secures plastic sheets instantly. The frame can be paused at any height, enabling fast sheet changes without disturbing the formed object.
Intelligent Vacuum Control
Provides powerful suction up to –90 kPa with adjustable pressure control. Three preset suction modes allow users to achieve optimal results with minimal setup.
Integrated Preheating Cycle
Built-in preheating enhances forming accuracy and broadens material compatibility.
Plastic Sheet Dehumidification
Automatically removes moisture from plastic sheets before forming, reducing air bubbles and surface defects.
Smart Audio Alerts
Built-in speaker provides real-time notifications during critical forming stages.

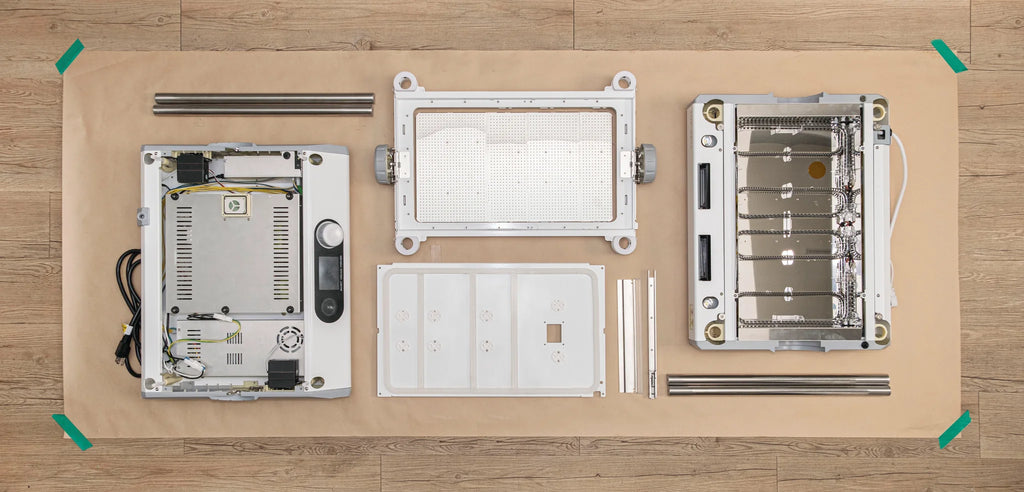

Included Components
Shipped in Two Boxes
Box 1
-
Bottom unit
-
Top frame
-
Forming bed
-
Size-adjusting kit
Box 2
Included Accessories
Specifications
General
| Specification |
Details |
| Dimensions |
24.80 × 18.90 × 20.87 in |
| Weight |
55.12 lb |
| Display |
3.5" Full-Color LCD (480 × 320) |
| Alert System |
Integrated speaker |
Forming & Heating
| Specification |
Details |
| Sheet Thickness |
0.01 – 0.12 in |
| Supported Sheet Sizes |
19.75 × 12 in / 16.5 × 12 in / 12 × 12 in / 12 × 8 in |
| Heater Type |
Quartz heater tubes |
| Temperature Range |
140 – 446 °F |
Vacuum System
| Specification |
Details |
| Pump Type |
DC brushless pump + AC induction pump |
| Maximum Suction |
–90 kPa |
| Pressure Control |
Adjustable |
| Suction Modes |
Intelligent presets |
Power
| Specification |
Details |
| Power Supply |
100–120V AC @ 1500W / 220–240V AC @ 1700W |
Additional Features
| Feature |
Included |
| Automatic Sheet Detection |
Yes |
| Automatic Mold Release |
Yes |
| Built-in Pressure Sensor |
Yes |
| Dual Cooling Fans |
Yes |
| Dehumidification System |
Yes |
Ideal Applications
-
Product prototyping
-
Food & confectionery molds
-
Custom packaging and blister packs
-
Creative projects and resin casting
-
Architectural and interior models
-
Costume and prop making
-
Home décor and lighting components
-
Educational and workshop use
Warranty & Support
-
Manufacturer Warranty – MY YARD vacuum forming machines include a manufacturer-backed warranty covering defects in materials and workmanship (excluding consumables and normal wear items).
-
30-Day Return Policy – Units may be returned within 30 days of the ship date in like-new condition. Refunds are issued minus shipping and handling costs.
-
Product Support – Access to dedicated product support for setup assistance, operation guidance, and troubleshooting.
