📘 Overview

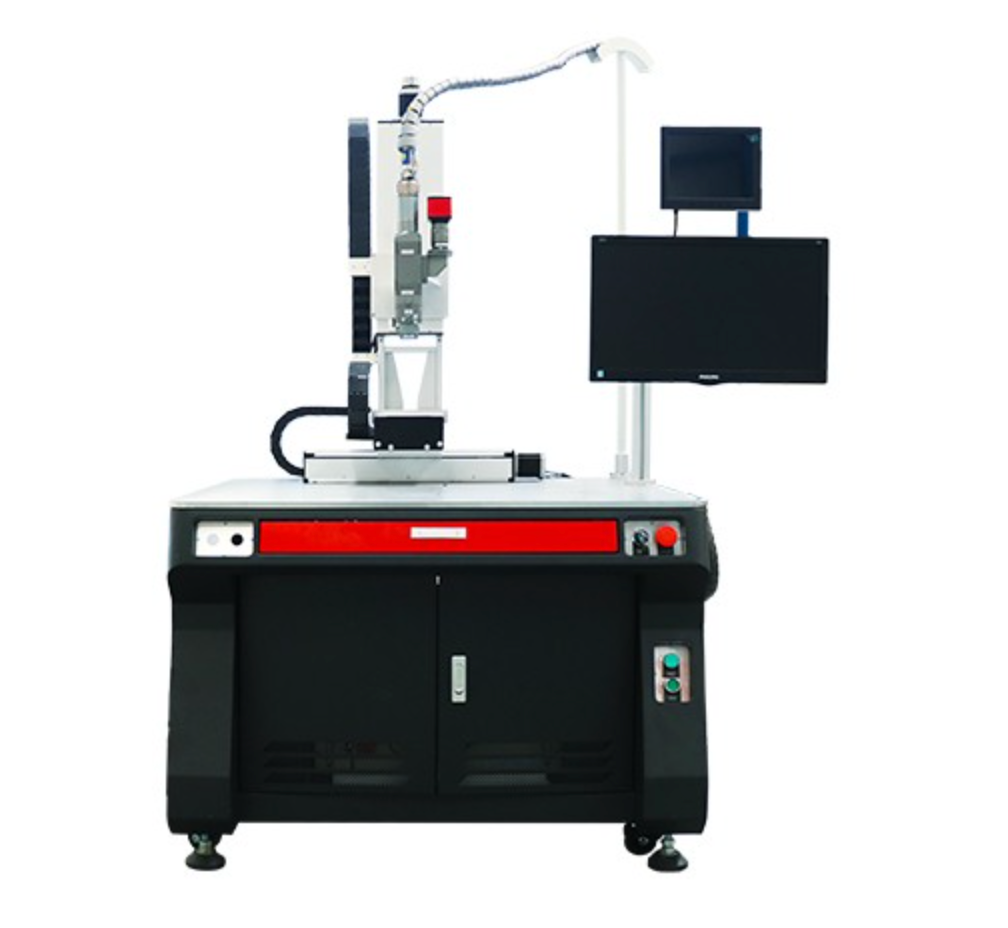

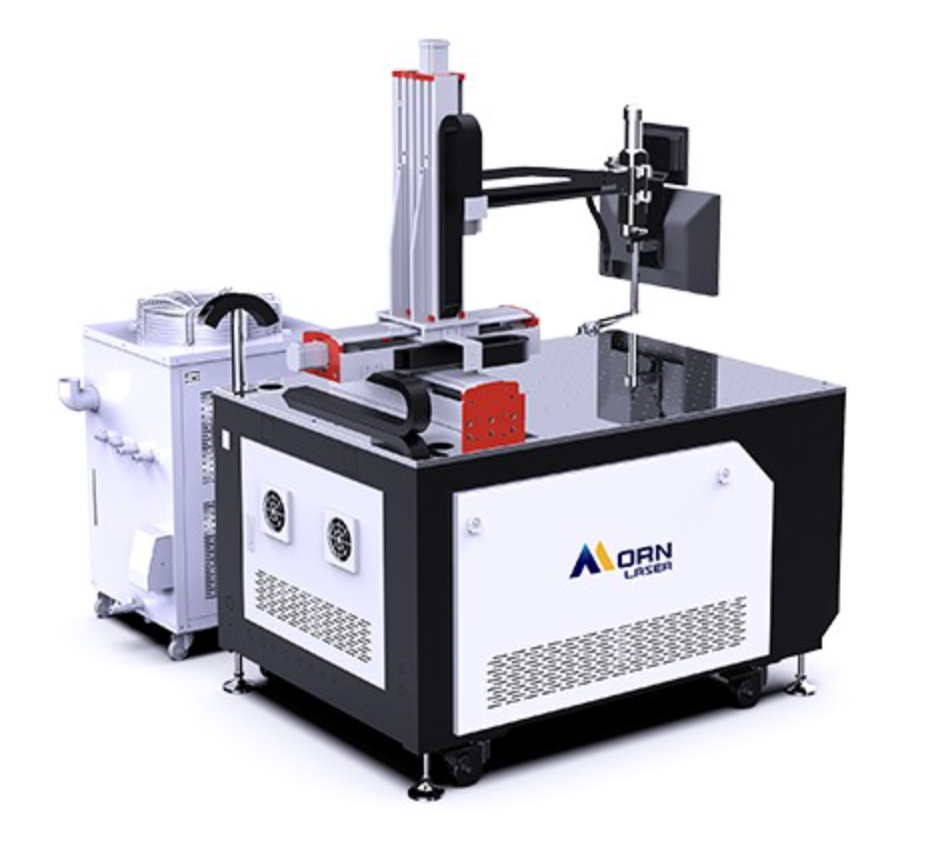

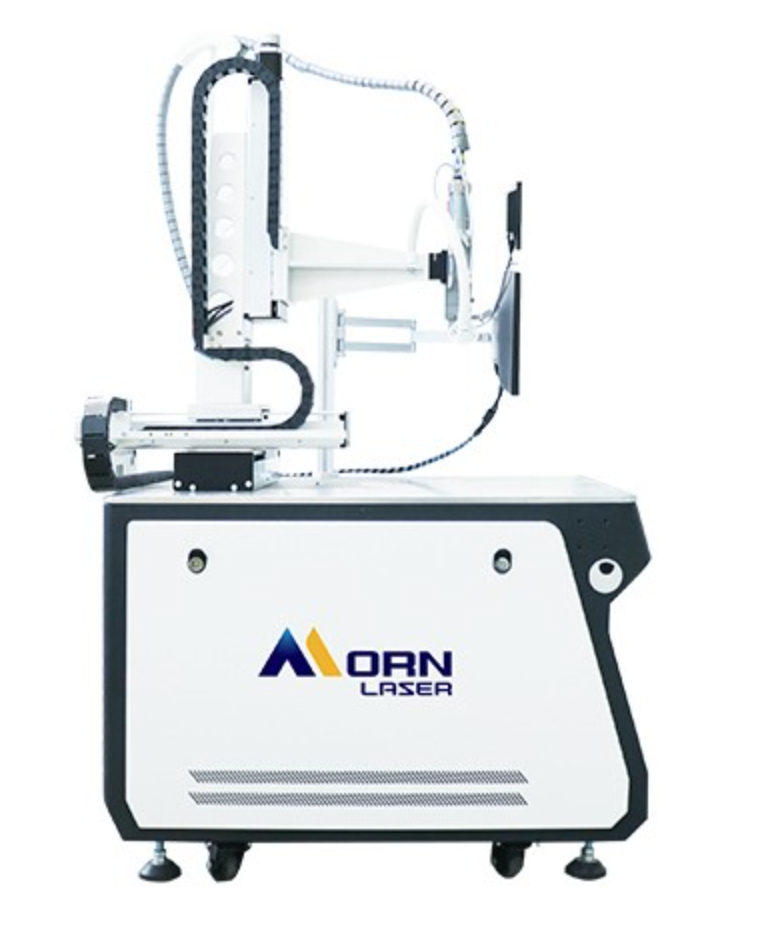

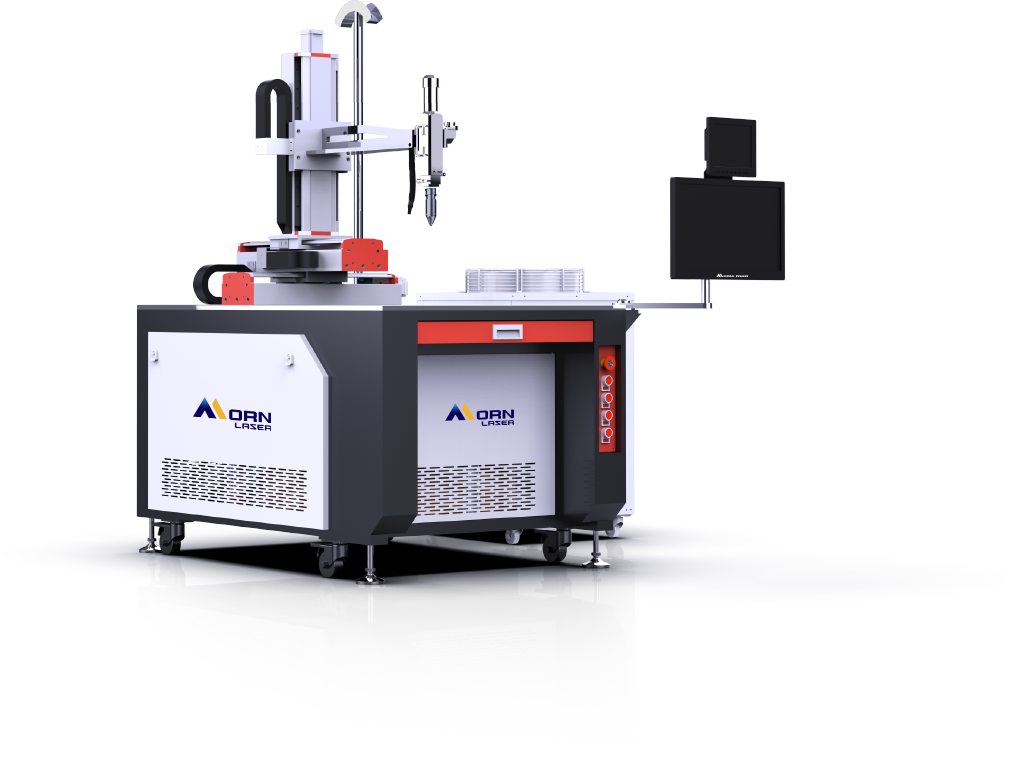

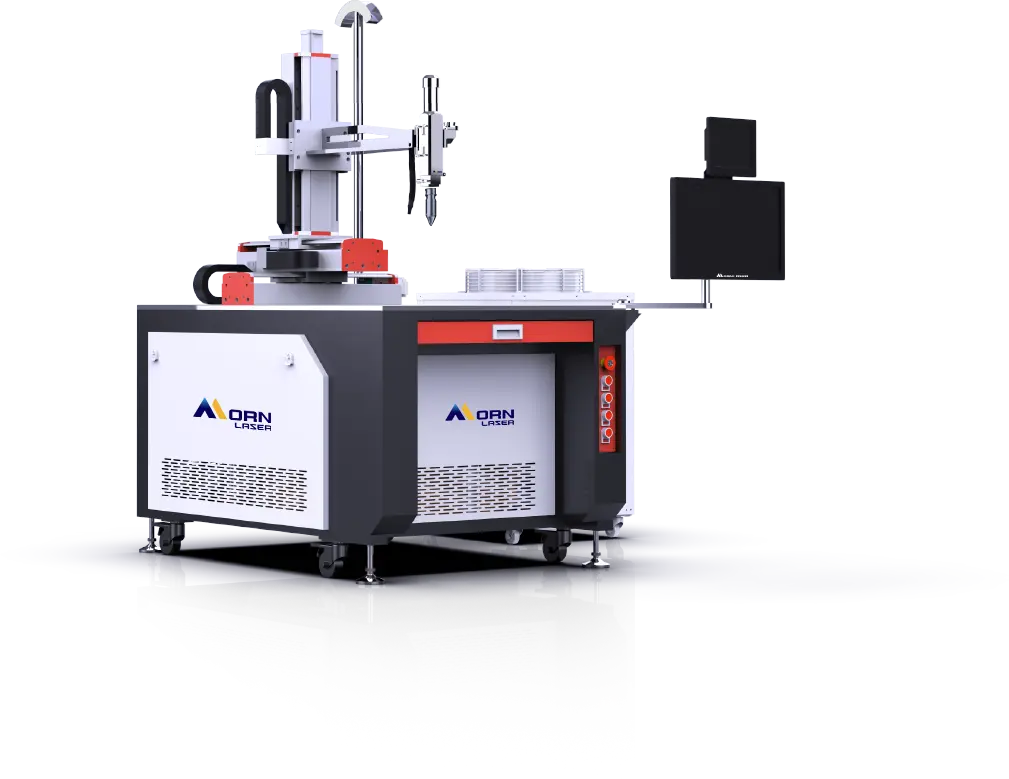

The Morn Automatic Fiber Laser Welding Machine is a high‑precision, high‑throughput welding platform designed for industrial mass production. It’s built to replace manual welding with automated accuracy, delivering consistent and clean welds over complex geometries. Equipped with CCD vision alignment, multi‑axis motion, and tunable laser power, it excels in repetitive assembly environments needing speed and reliability.
⚙️ Specifications (Model Variants)
| Model |
MT‑W1500 / MT‑W2000 / MT‑W3000 |
| Laser Power Options |
1,500 W • 2,000 W • 3,000 W |
| Output Power Range |
10‑100% |
| Maximum Melting Width |
Up to 10 mm |
| Welding Depth (Double‑Side) |
Up to 10 mm for some materials (e.g. stainless steel) |
| Spot Size Range |
Ø 0.1‑5 mm |
| Welding Depth (Single Side) |
~1‑3 mm (depending on material) |
| Material Compatibility |
Stainless Steel • Carbon Steel • Galvanized Steel • Aluminum • Copper |
| Best for Welding Types |
Overlap, butt, multi‑angle & shaped joints |
🧰 Key Features
-
Fully Automated Operation – Industrial CNC / motion control for precise, repeatable welds
-
Real‑Time CCD Monitoring System – Vision‑based alignment, joint tracking and precise focal adjustments
-
Multi‑Axis Motion & Fixturing – Supports configurable axes (3‑, 4‑, or 6‑axis) with optional rotary or fixture attachments to weld different shapes or batch parts efficiently
-
High Consistency & Productivity – Designed for continuous operation, large batches, and minimal operator variation
-
Flexible Welding Paths – Handles complex angles, shaped workpieces, fixtures; configurable for multi‑pass or precision geometry
✅ Ideal Applications
-
Automotive component manufacturing
-
Battery & energy sector (e.g. casing welding, tab welding)
-
Sheet metal enclosure production
-
Industrial fabrication lines requiring high repeatability
-
Custom parts / batch production
📦 What’s Included / What to Ask
-
Automatic welding machine base (chosen power variant)
-
CCD vision system for joint alignment
-
Controller / Motion system (multi‑axis)
-
Protective lens and safety kit
-
Fixtures or fixturing accessories (optional / per order)
-
User manual, setup guide, & operator documentation
🔍 Important Notes / User Guidelines
-
Material thickness and weld penetration depend on type of metal, joint type, surface condition.
-
For maximum “double‑side” melting depth (e.g. 10 mm), use proper fixturing and match power to material.
-
Cooling / ventilation for high‑power variants is critical—ensure system environment is properly prepared.
📘 Support & Resources
-
Warranty: Standard manufacturer warranty (confirm with supplier per power level)
-
Customer Support & Setup Guidance Available
-
Training Materials: Vision system calibration, fixture setup, power tuning, weld profiles
