Sunstone Welders

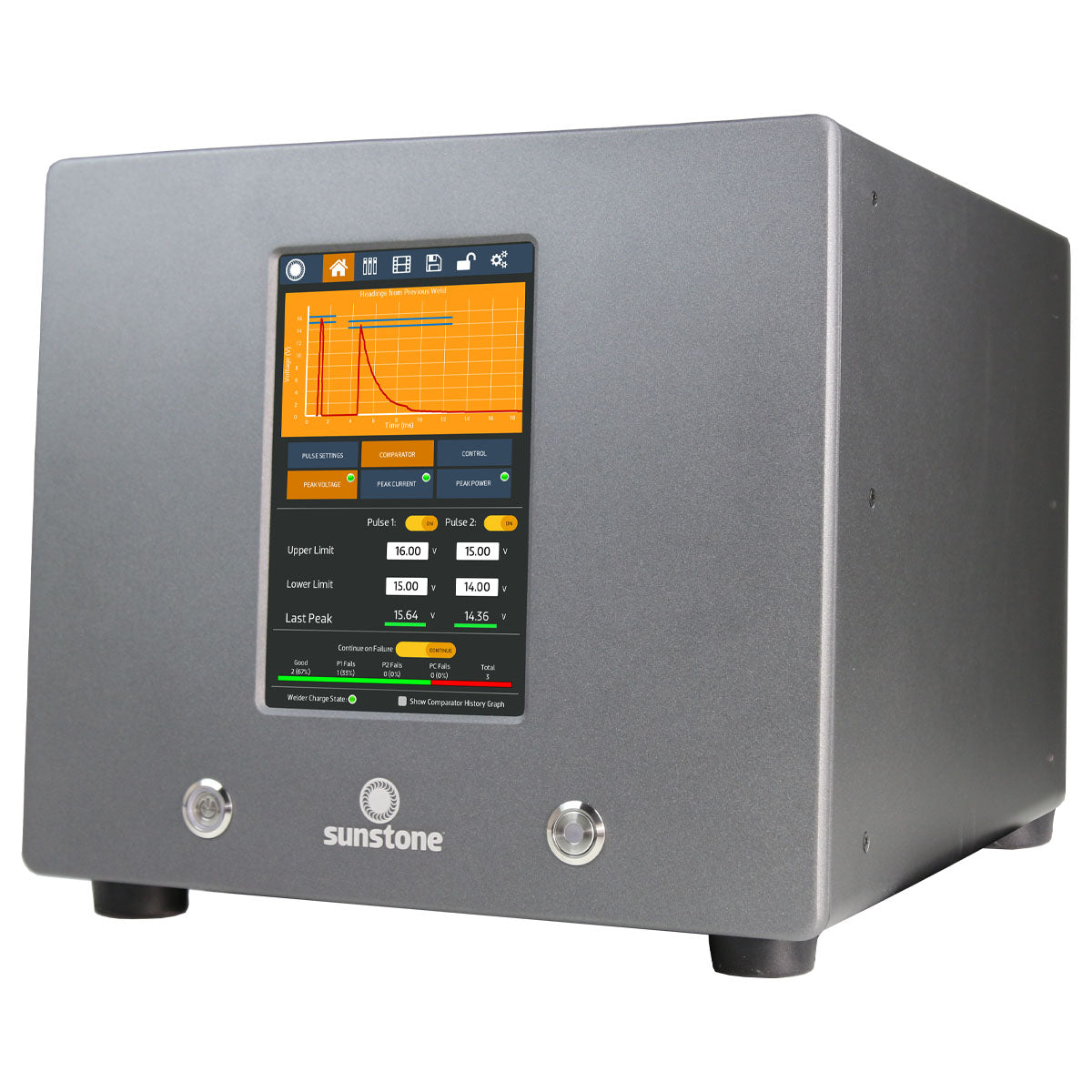

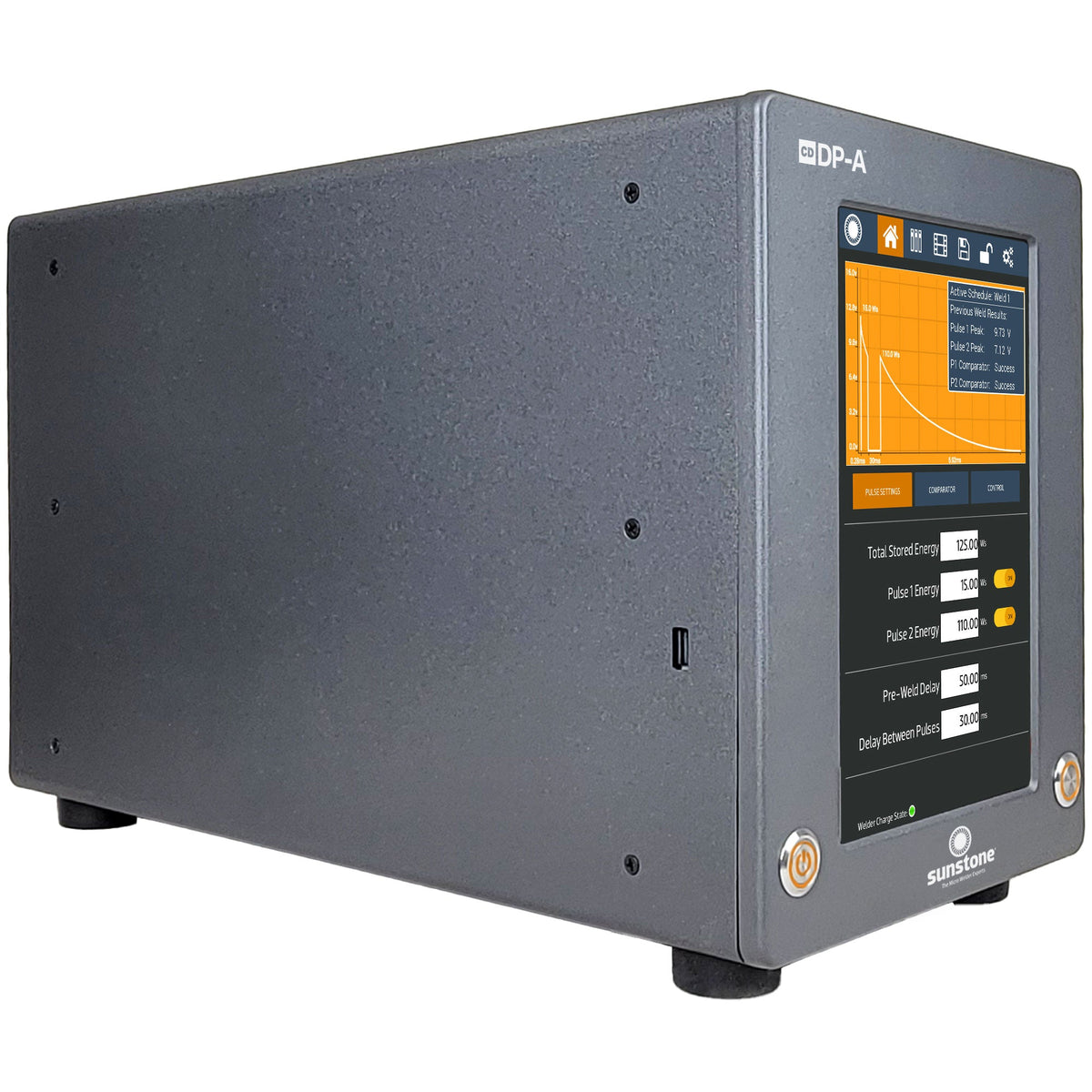

Sunstone Capacitive Discharge (CD) Dual-Pulse Welders – Advanced Series (DPA Series)
SKU: 301050
Description
Models: CD200-DPA · CD400-DPA · CD600-DPA · CD1200-DPA
Pulse Type: Dual-Pulse Capacitive Discharge
Trigger Type: Remote Start (foot pedal, PLC, robotic interface)
Interface: Advanced digital control interface
Automation Ready: Yes – semi- and fully automated systems
Overview
The Sunstone CD Dual-Pulse Advanced (DPA) Series represents the most advanced capacitive discharge welding platform in the Sunstone lineup. Built specifically for automation-driven environments, DPA models combine Sunstone’s proven dual-pulse welding technology with an upgraded digital interface that allows precise control over weld energy, pulse sequencing, and timing.
Unlike standard or RS models, the DPA Series is engineered for repeatability, traceability, and integration—making it ideal for robotic cells, PLC-controlled systems, and high-precision production workflows. These systems deliver consistent, high-quality welds across demanding applications where process control and reliability are critical.
Shipping Notice
This product is not eligible for free shipping.
Flat Freight Rate: $349 (discounted rate)
Shared Features Across All DPA Models
-
Dual-pulse welding technology for improved surface conditioning and weld integrity
-

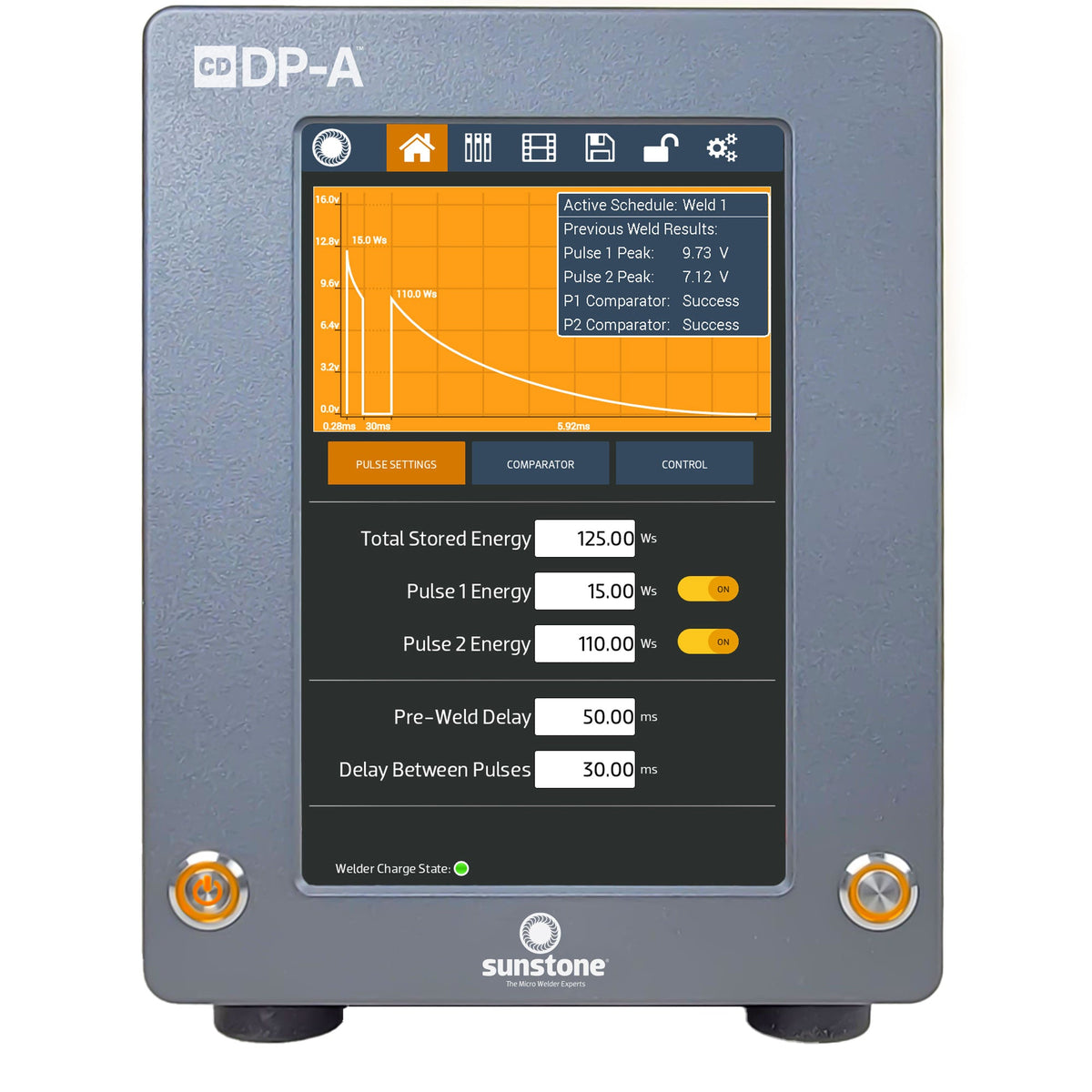

Advanced digital interface with fine-tuned energy and timing controls
-

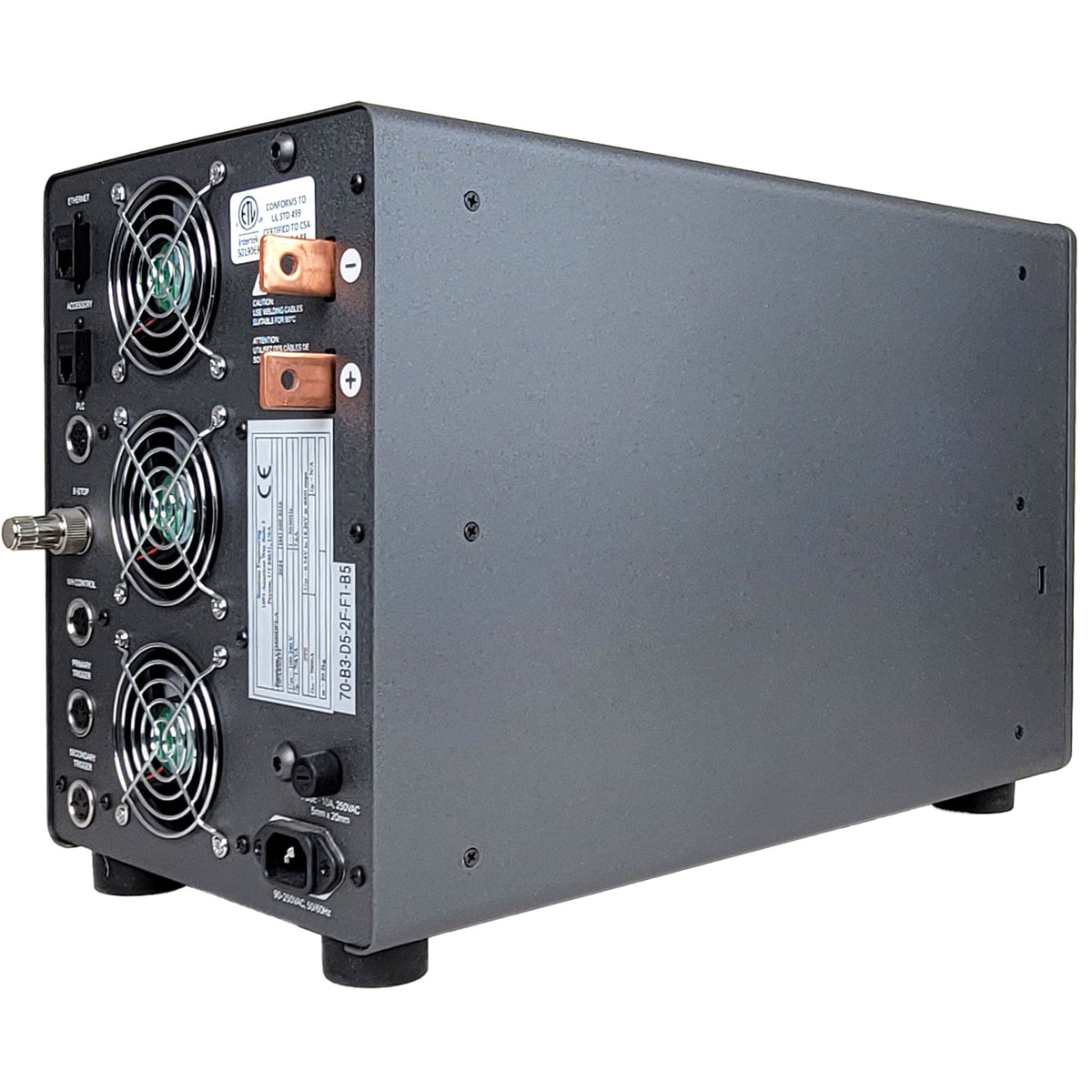

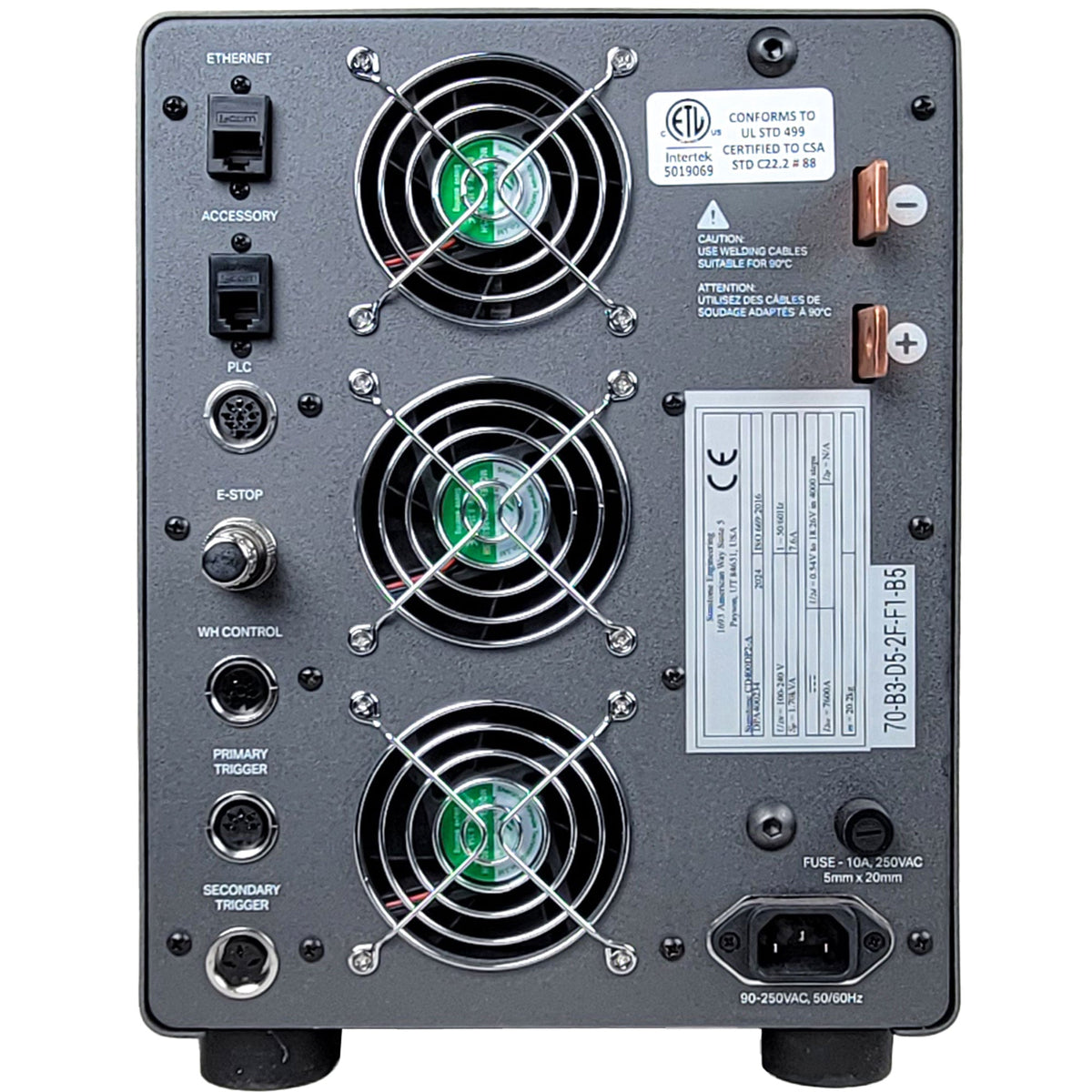

Remote start capability for foot pedals, PLCs, and robotic signals
-
Automation-ready architecture for semi- or fully automated production cells
-
Microprocessor-controlled output for repeatable weld quality
-
Auto-switching 110V / 220V AC input for global deployment
-
Real-time system feedback and readiness indicators
-
Heavy-duty industrial chassis designed for continuous operation
Model Comparison
| Model | Stored Energy | Dimensions (in) | Weight | Typical Use Cases |
|---|---|---|---|---|
| CD200-DPA | 200 Ws | 18 × 15 × 18 | 31 lbs | High-precision tabs, foils, wires, and micro-components |
| CD400-DPA | 400 Ws | 18 × 15 × 18 | 35 lbs | Connectors, straps, mid-thickness terminals |
| CD600-DPA | 600 Ws | 18 × 15 × 18 | 35 lbs | Multilayer stacks, thicker foils, battery terminals |
| CD1200-DPA | 1200 Ws | 18 × 15 × 18 | 35 lbs | Thick copper tabs, bus bars, high-energy production welds |
Ideal Applications
-
Battery pack and energy storage manufacturing
-
Medical device and aerospace component welding
-
Robotic and PLC-controlled welding cells
-
Sensors, electronics, and precision terminal welding
-
Multi-layer, high-conductivity material joining
What’s Included
Each Sunstone CD-DPA welder is delivered ready for advanced integration and includes:
-
Sunstone CD Dual-Pulse DPA Spot Welder (model selected)
-
Advanced digital control interface
-
Remote start input for automation or foot pedal triggering
-
Integrated capacitive discharge power system
-
Auto-switching 110V / 220V AC power input
-
Power cord
-
User manual and setup documentation
Electrodes, weld heads, foot pedals, robotic interfaces, and automation accessories are sold separately to allow full application-specific configuration.
Warranty
This product includes Sunstone’s 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship.
-
Internal electronics and system components covered for 2 years
-
Consumable components covered under a 1-Year warranty
-
Service and support provided by Sunstone’s U.S.-based technical team
Customer Resources
📄 Datasheet
📄 User manual
▶️ Video: Product Video
📧 Customer Support: Direct manufacturer assistance troubleshooting. Contact them at custservice@sunstonewelders.com | +1 (877) 786-9353
