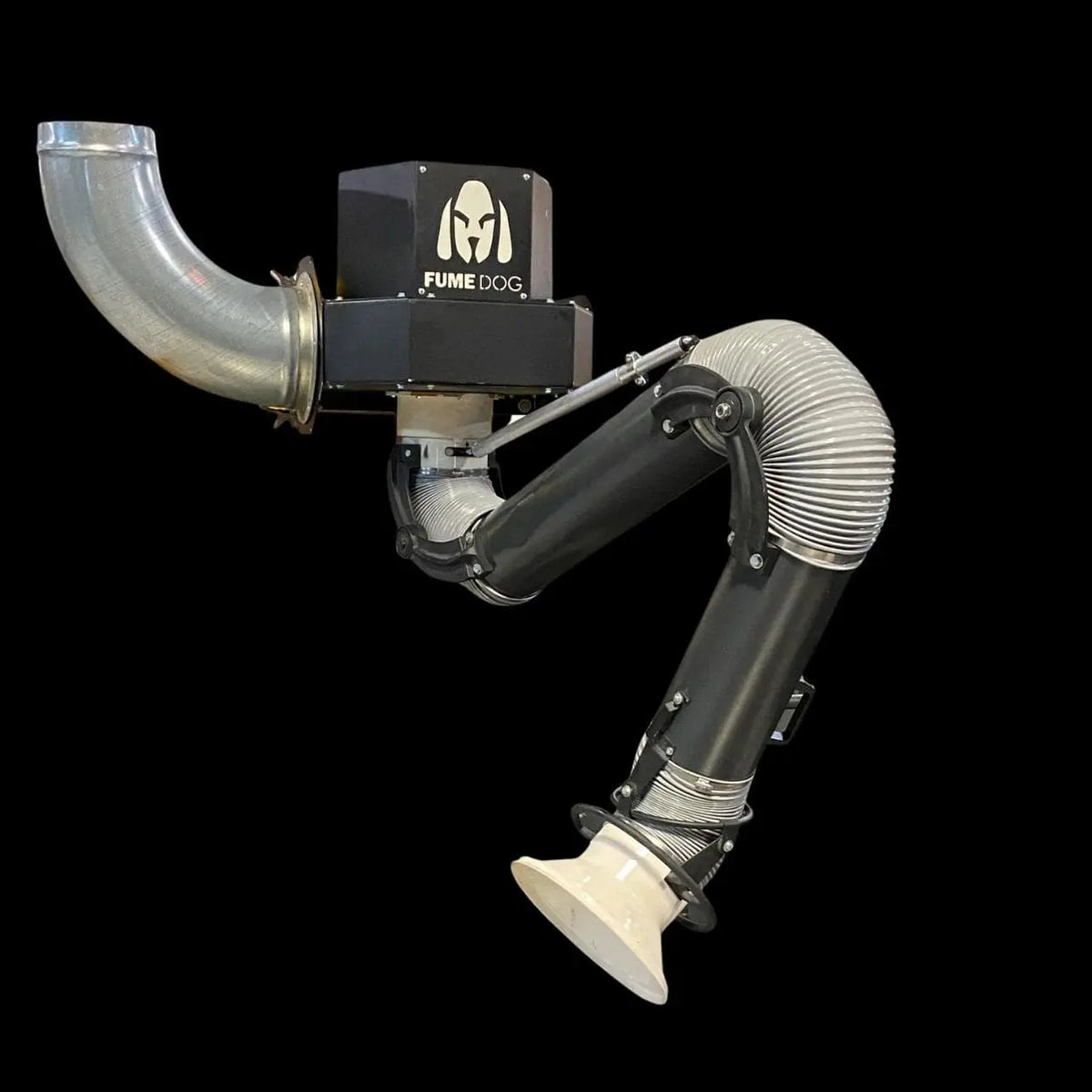

Fume Dog – Bulldog-EX – Wall-Mount Welding Fume Extraction / Exhaust System (1,200 CFM)

Description

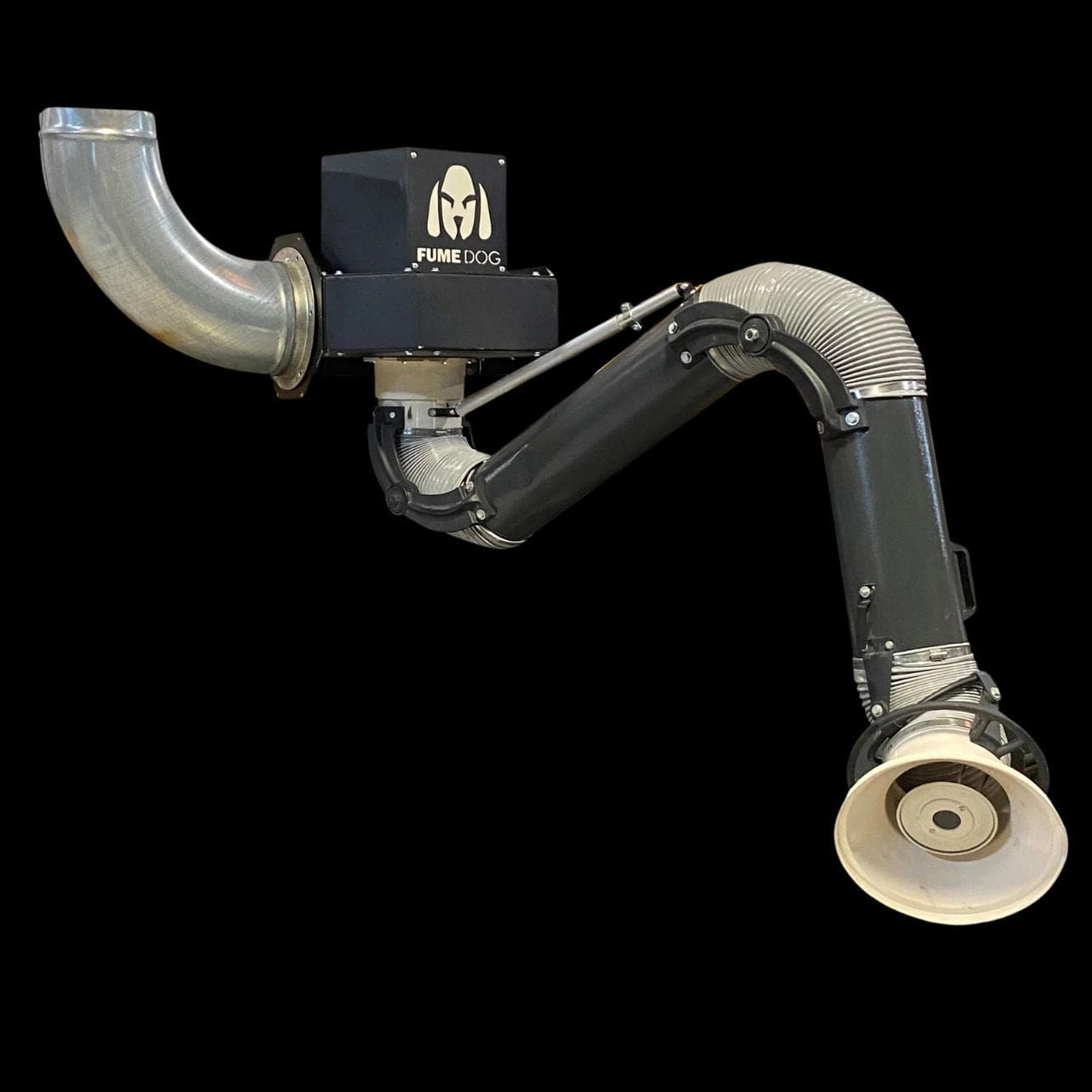

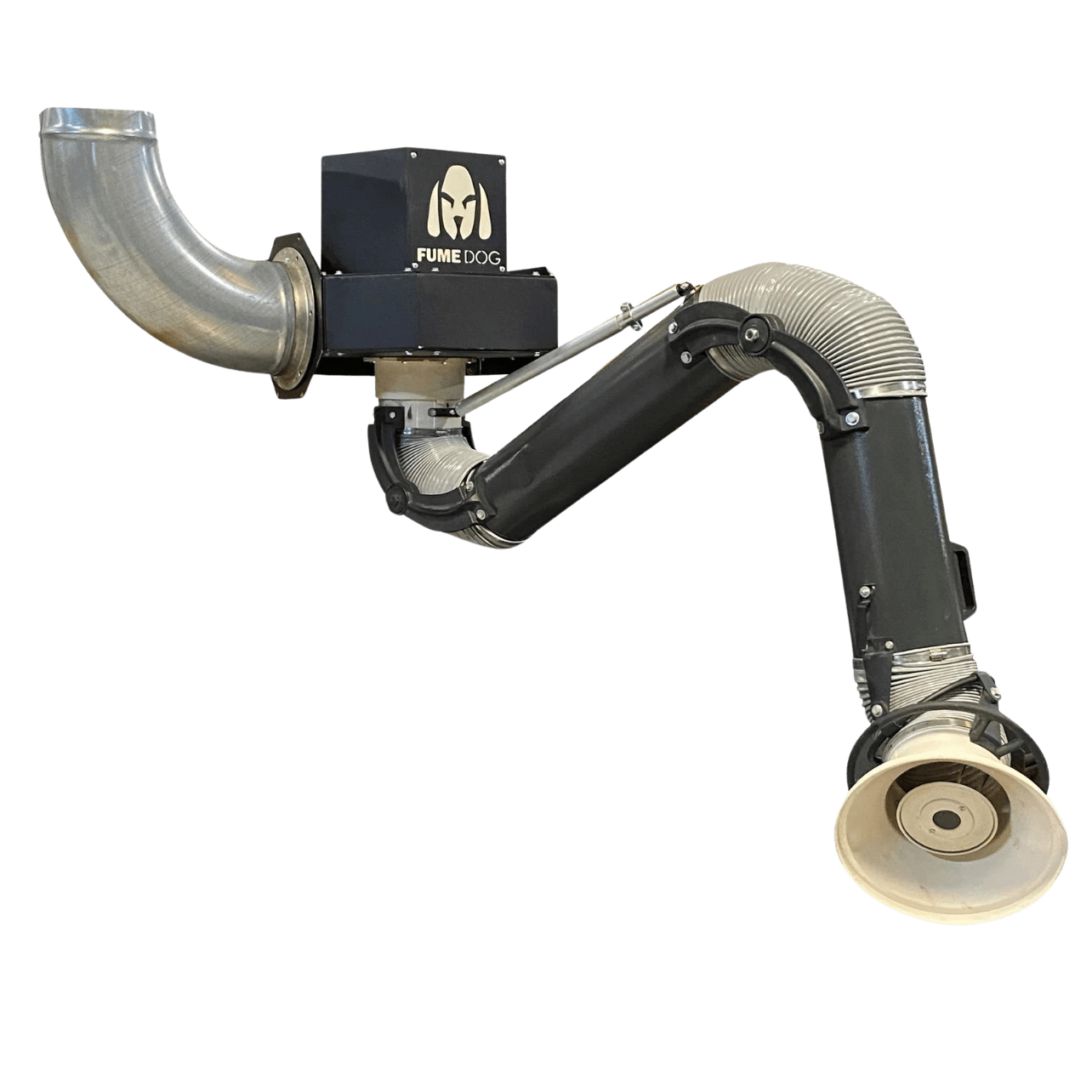

The Fume Dog Bulldog-EX is a heavy-duty wall-mounted fume extraction system engineered for welding environments that require direct source capture and outdoor exhaust. Delivering 1,200 CFM airflow, this unit ensures clean, safe working conditions by drawing welding fumes directly into its 8-inch articulating arm and venting them outside your facility.

With external joints for precise positioning and an internal damper to control airflow, the Bulldog-EX offers versatility and efficiency. It mounts securely to the wall with its integrated steel bracket, or can be configured with an optional 8-foot floor stand for pedestal-style installation.

This is an extraction system (not a filter-based unit), making it ideal for facilities with central ducting or outdoor venting requirements.

Shipping Notice:

This product is not eligible for free shipping.
Flat Freight Rate: $299 (discounted rate).

Specifications

• Airflow: 1,200 CFM

• Motor: 1.5 HP

• Power: 120 V / 1-phase

• Mounting Style: Wall-mounted base with integrated steel bracket

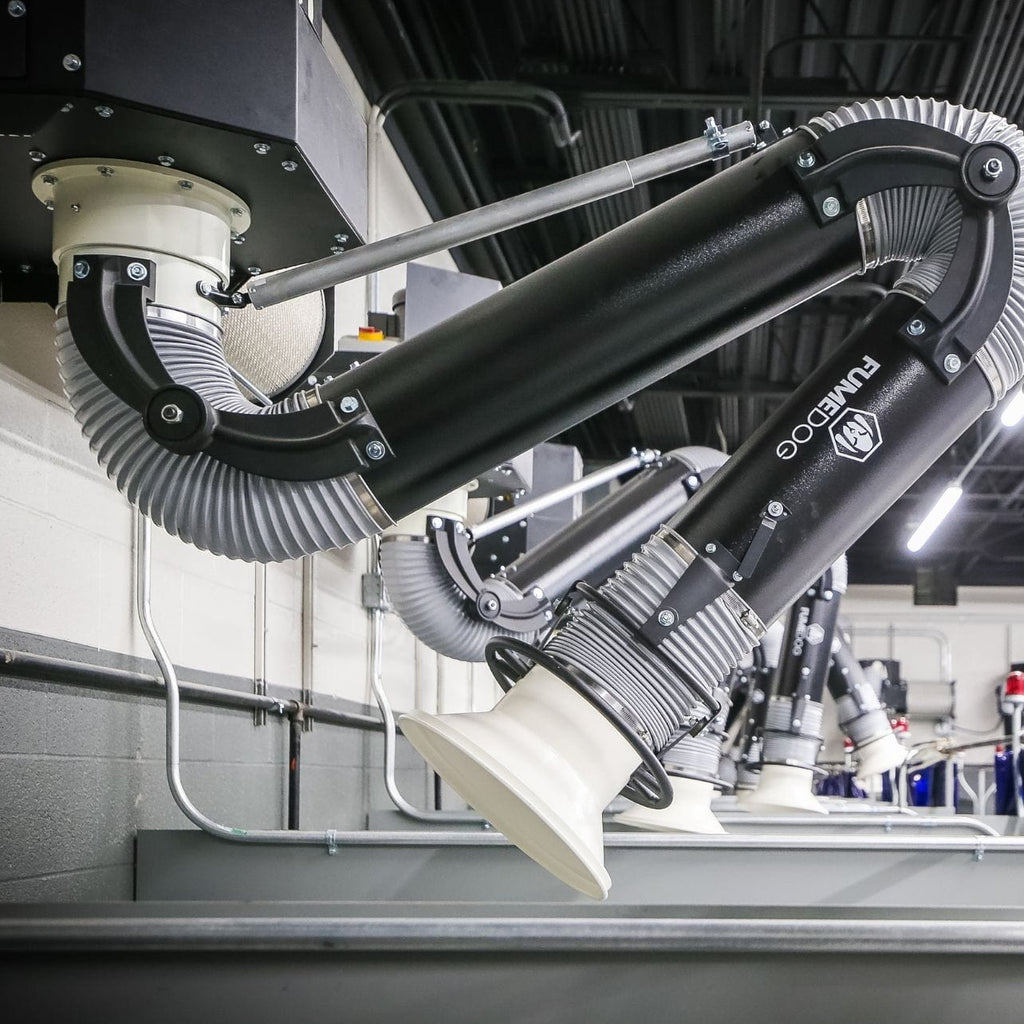

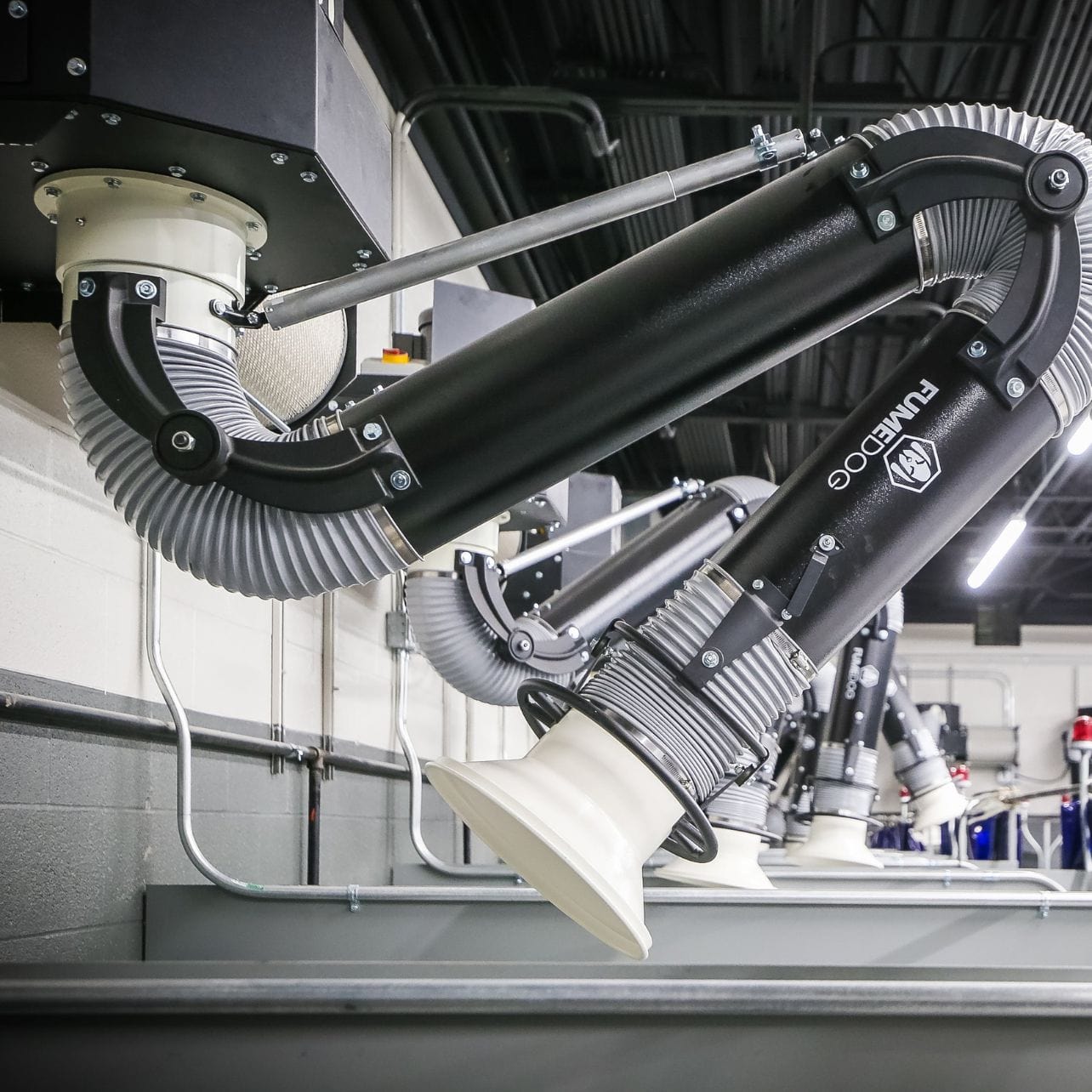

• Extraction Arm: 8" diameter, 10 ft length, 360° range, external joints, internal airflow damper

• Exhaust Outlet: Left or right side (field-configurable)

• Dimensions (unit only): 40.5" × 26" × 31.5"

• Weight (unit only): 215 lb

• Variants: Standard wall-mount or optional 8' floor stand

• Construction: Heavy-gauge steel housing (no plastic components)

• System Type: Exhaust-only extraction system (requires ducting, vents outdoors)

Key Features

• 1,200 CFM extraction capacity for welding applications

• Exhaust-only system: Direct venting outdoors, no onboard filters

• 8" diameter extraction arm with full articulation and internal damper

• Field-configurable exhaust outlet (left or right side)

• Heavy-duty all-steel construction built for industrial use

• Flexible installation options: Wall-mount standard, floor stand optional

Ideal Applications

• MIG, TIG, and stick welding stations

• Fabrication and industrial welding shops

• Welding booths in schools and training centers

• Facilities requiring direct exhaust systems with high airflow

Warranty

• 1-Year Manufacturer Warranty
