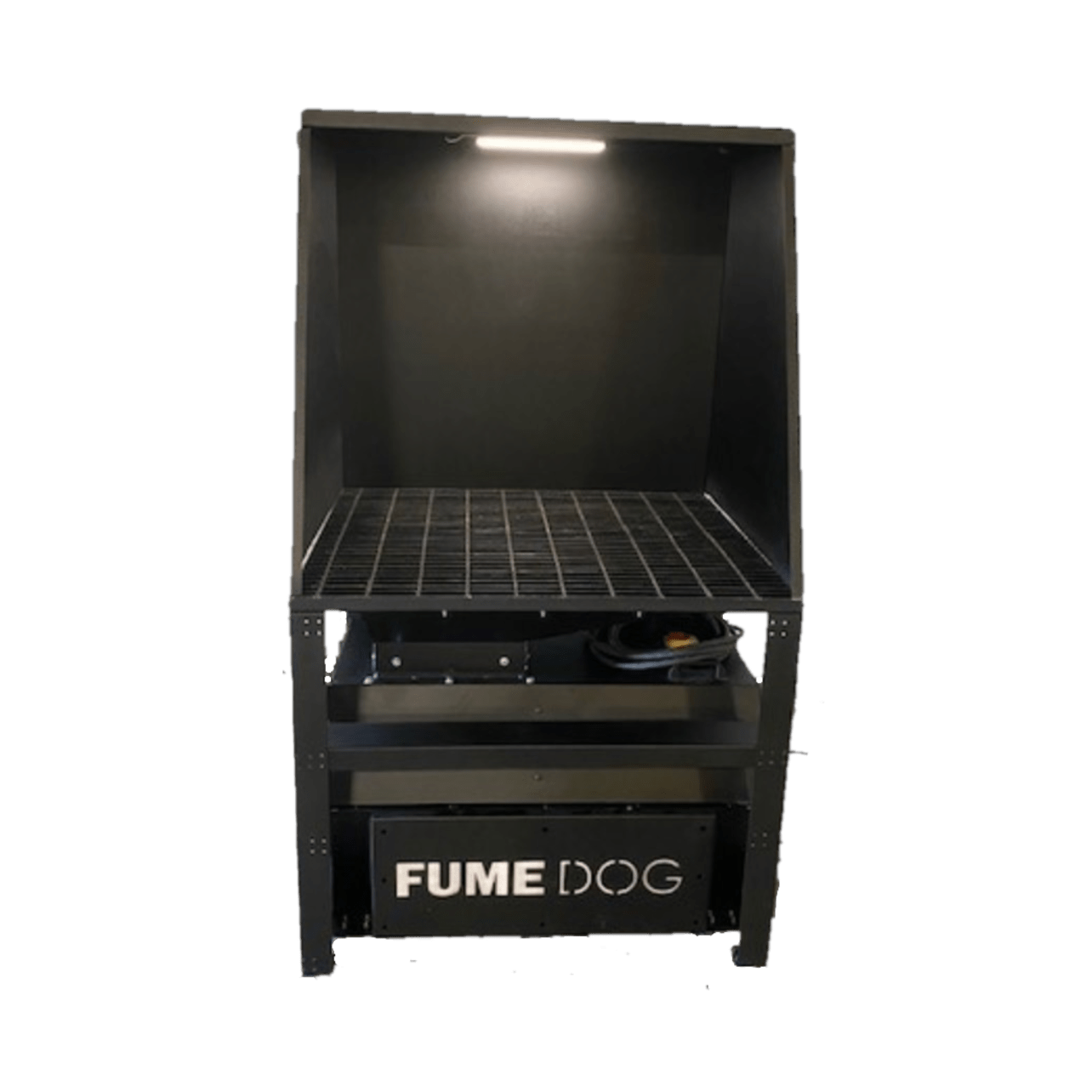

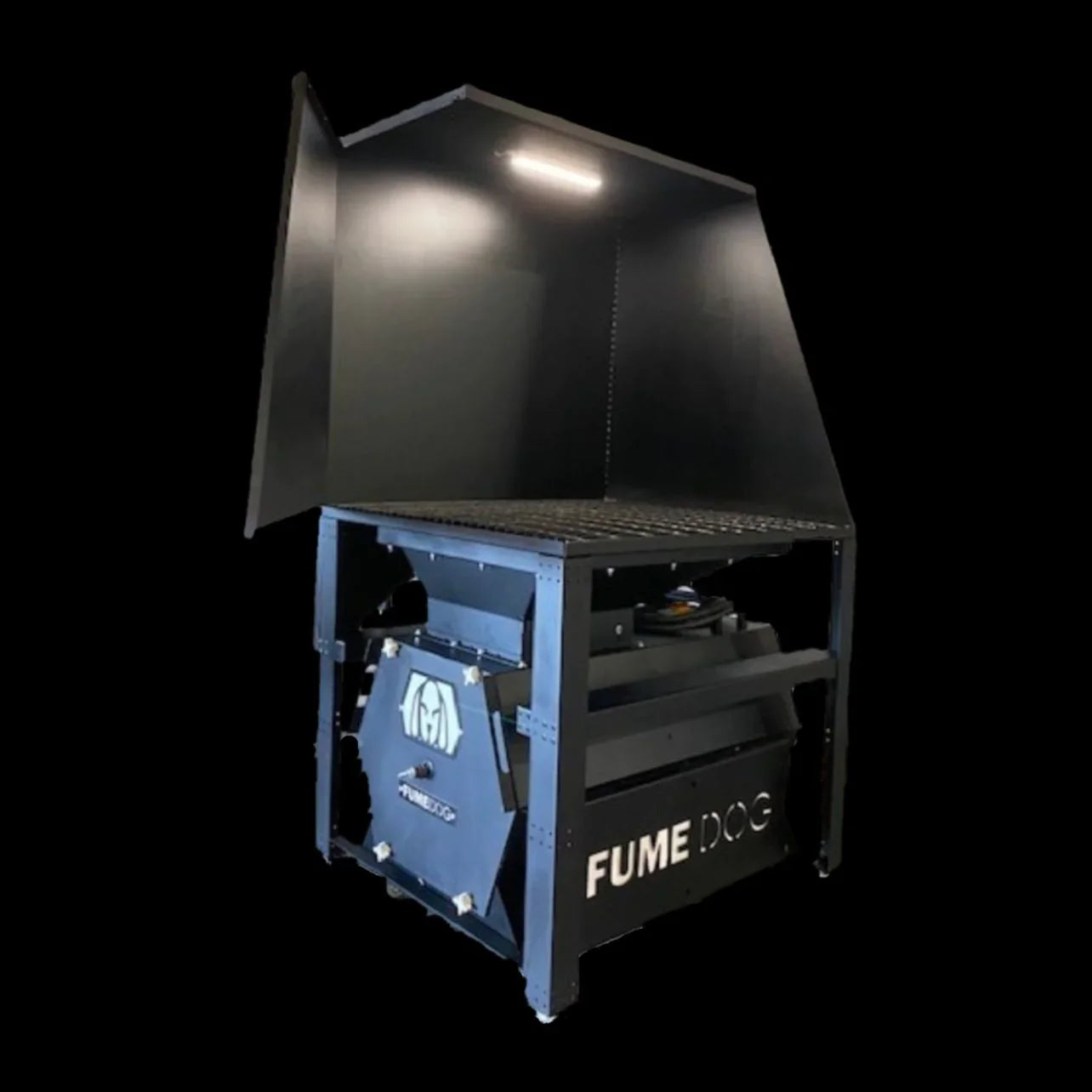

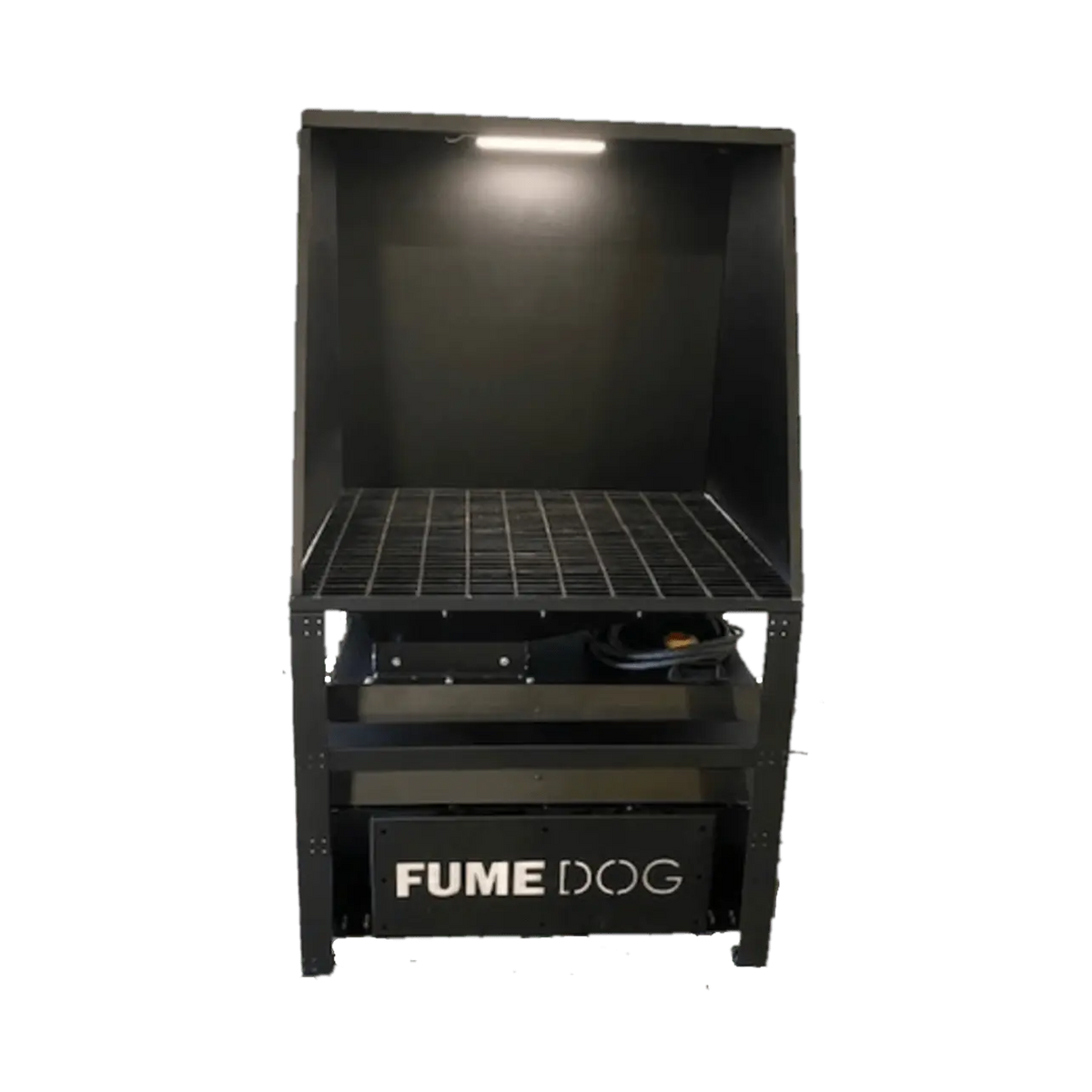

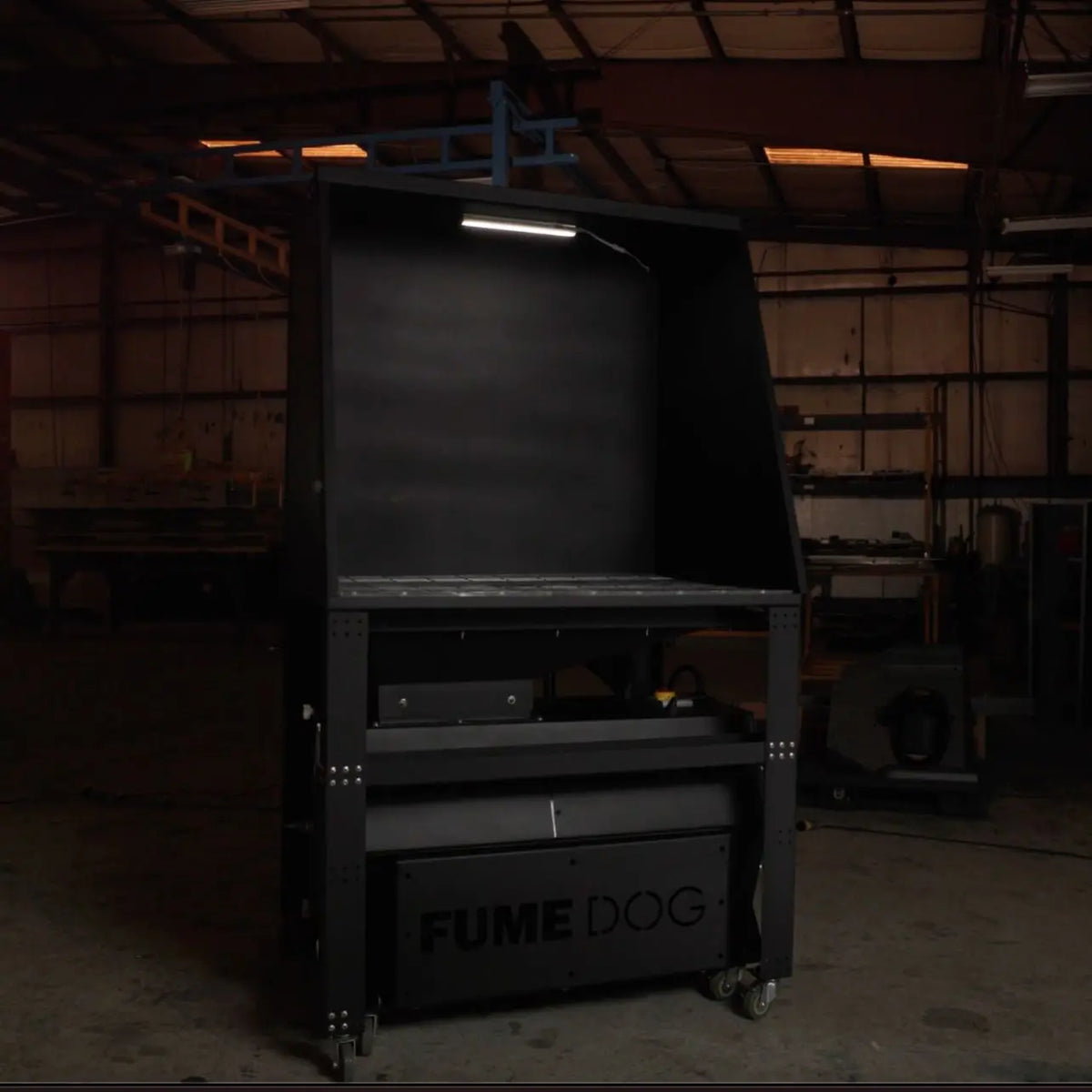

Fume Dog – Bulldog-DDT – Welding Downdraft Table with Built-In Fume Extraction

* Optional "3 in 1" package allows you to convert it from a downdraft table, to a portable, to a wall mounted fume extractor - Video Tutorial

Description

The Fume Dog Bulldog-DDT is a downdraft welding table with integrated fume extraction, designed to keep harmful welding smoke, particulates, and gases away from operators. With a 400 FPM capture velocity and an Air Stream Filter Cleaner that extends filter life 5–6x, the Bulldog-DDT ensures clean air and reduced operating costs.

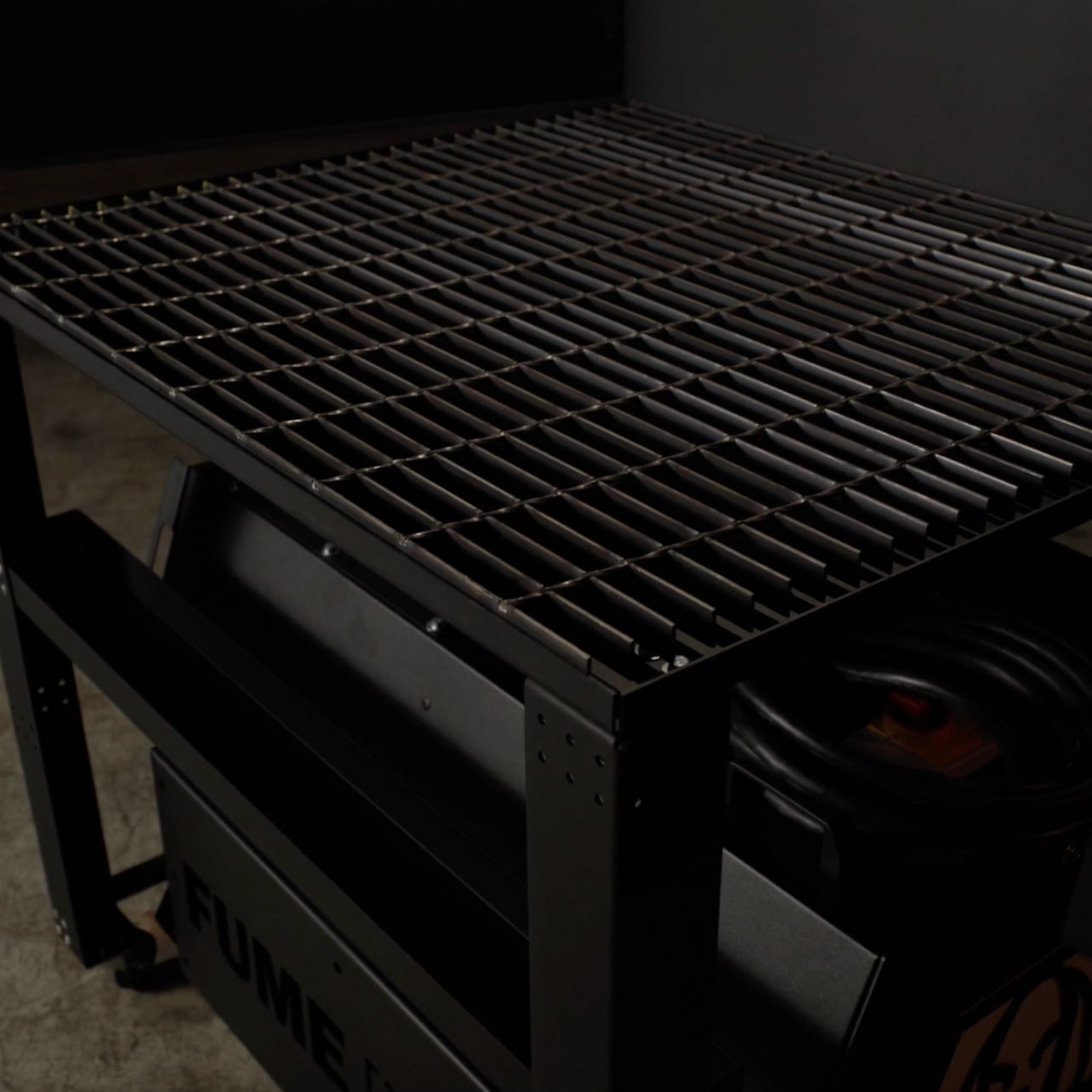

Built from heavy-duty steel with a perforated tabletop, this system combines the durability of a welding bench with the performance of a high-capacity fume extractor. An integrated light kit is included for improved visibility.

Shipping Notice

This product is not eligible for free shipping.
Flat Freight Rate: $499 (discounted rate).

Specifications

• Capture Velocity: 400 FPM

• Airflow: 2,000+ CFM equivalent (across perforated table surface)

• Filtration: Multi-stage (HEPA + activated carbon with Air Stream Filter Cleaner)

• Work Surface: Heavy-duty perforated steel table, 48" × 36" × 36"

• Construction: All-steel, powder-coated finish

• Power: 220 V / 1-phase (other voltages available)

• Noise Level: Shop-safe low-noise operation

• Options: Light kit included, “3-in-1” conversion to portable or wall mount

• Variants: FD-DDT-23 (Base) | FD-DDT-321 (With Fume Arm)

Available Configurations

• Downdraft Table [FD-DDT-23] (Base Model)

  • Standard Downdraft Table

  • Includes Light Kit

  • Includes Air Stream Filter Cleaner

  • Optional “3-in-1” kit (converts unit into portable or wall-mounted extractor)

• 3 in 1 Downdraft Table [FD-DDT-321] (Upgraded Package)

  • Includes all features of FD-DDT-23

  • Adds a Fume Arm for additional source capture flexibility

  • Best for shops needing both downdraft capture + localized arm extraction

Key Features

• 400 FPM capture velocity across table surface

• Air Stream Filter Cleaner extends filter life 5–6x

• Heavy-duty perforated tabletop for welding, grinding, and fabrication

• Multi-stage HEPA + carbon filtration for particulates and odors

• Optional “3-in-1” conversion package allows reconfiguration to portable or wall mount

• Integrated light kit for improved workspace visibility

• Industrial-grade steel housing built for continuous use

Ideal Applications

• Stick, MIG, and TIG welding

• Grinding, plasma cutting, and fabrication workstations

• Training facilities and welding schools

• Industrial shops needing a dedicated extraction workstation

Warranty

• 1-Year Manufacturer Warranty

Customer Resources

📄 User Manual (2022)
📄 DDT Main Assembly
📄 Brochure: Bulldog-DDT
▶️ Video: Performance Video
📧 Customer Support: support@fumedog.com | (877) 387-3348
