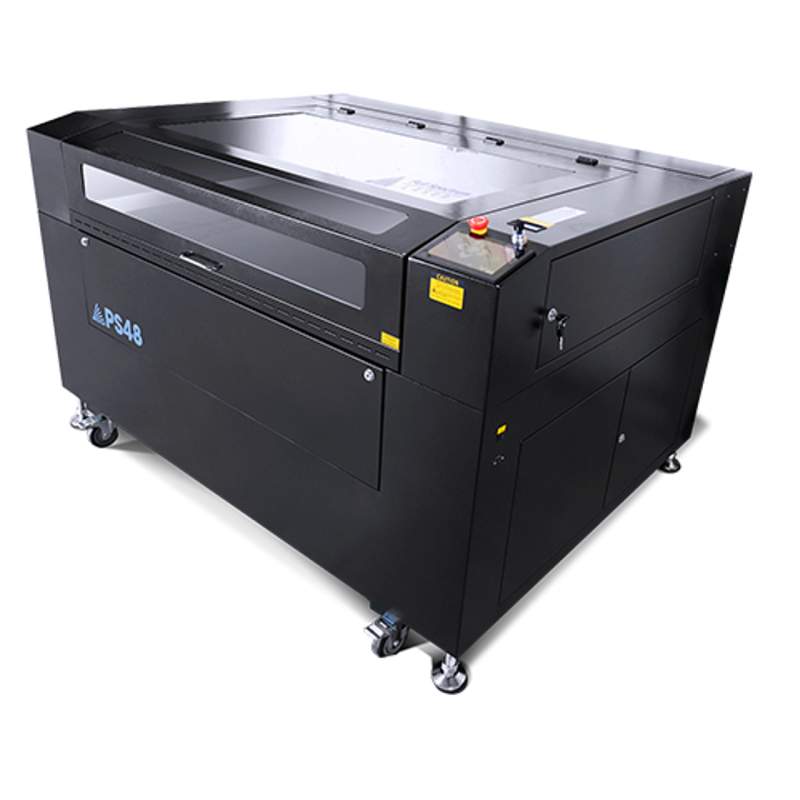

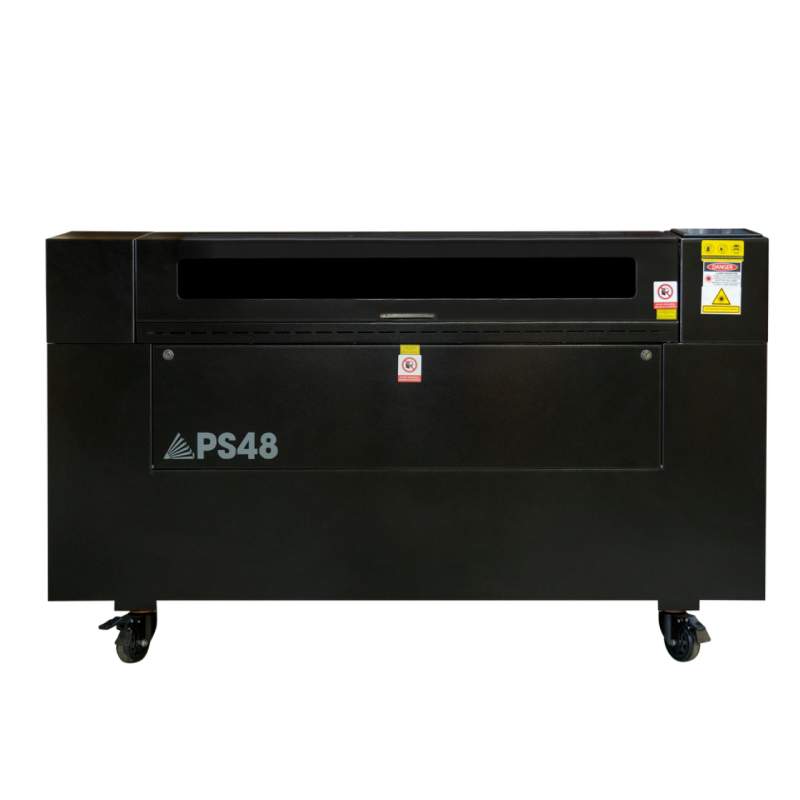

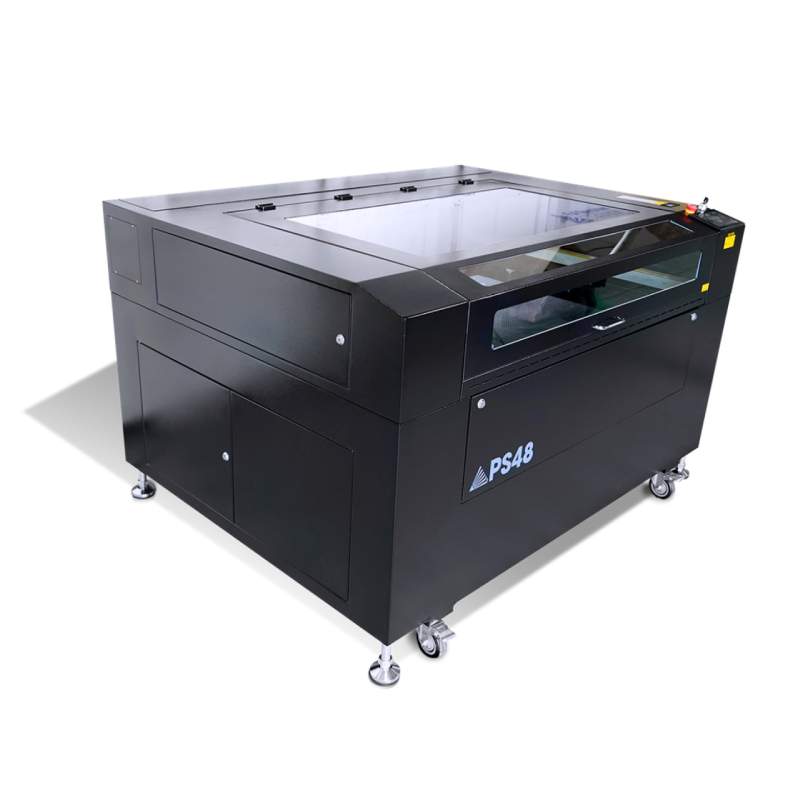

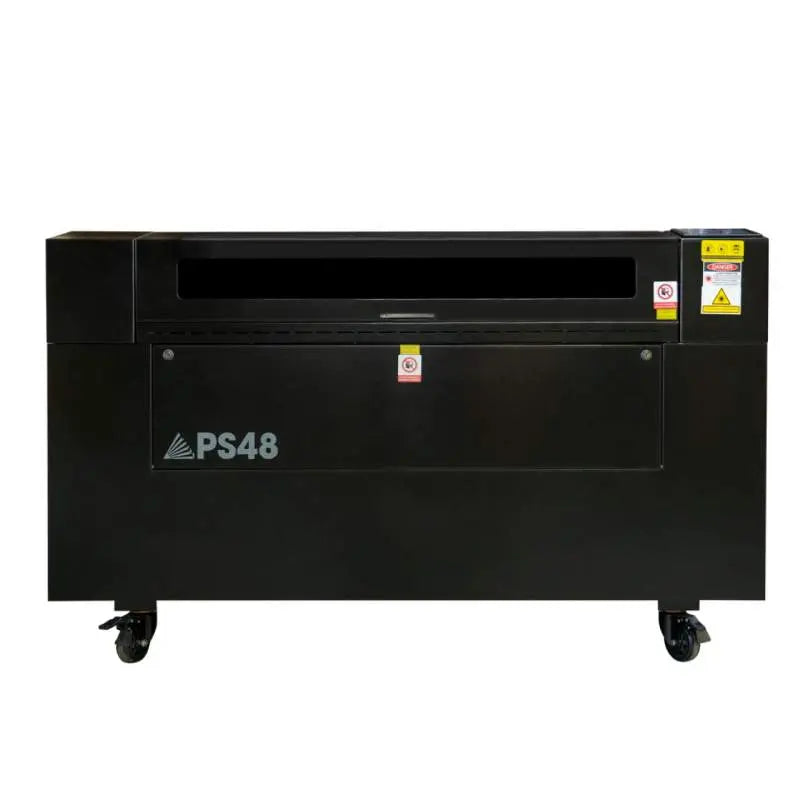

FSL Pro Series PS48 – Industrial Large-Format CO₂ Laser Cutting & Engraving System
SKU: P4836-90W
Description
Overview
The FSL Pro Series PS48 is the largest and most powerful model in Full Spectrum Laser’s P-Series lineup, built for full-scale manufacturing, signage, and production facilities. With an expansive 48" x 36" (1219 x 914 mm) work area and high-powered CO₂ laser tubes (120W, 150W, or 180W options), the PS48 delivers unmatched cutting depth, speed, and throughput.
Constructed for continuous operation, the PS48 combines a rigid steel frame, industrial linear guide rails, and a water-cooled CO₂ tube with the intuitive RetinaEngrave v3.0 control software. It is the go-to system for businesses requiring large-format precision and multi-shift reliability.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $649 (discounted rate).
Key Features
-
Massive 48” x 36” work area – the largest in the P-Series lineup
-
High-power sealed CO₂ laser options: 120W, 150W, or 180W
-
Industrial-grade build designed for 24/7 use in manufacturing environments
-
Browser-based RetinaEngrave v3.0 software – no installs, compatible across platforms
-
Engraving resolution up to 1000 dpi for detailed logos, text, and imagery
-

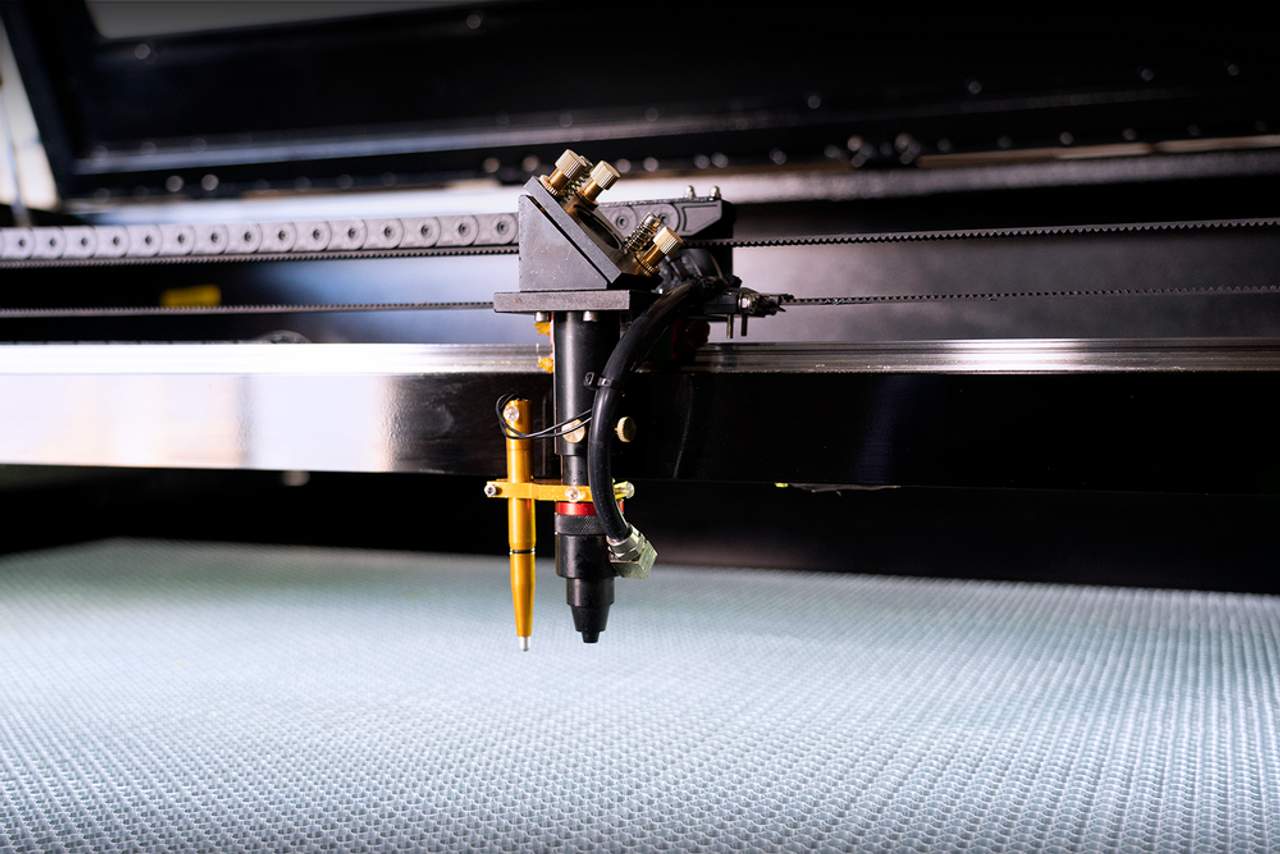

Linear guide rail motion system for smooth and precise cutting/engraving
-
Optional rotary attachment for cylindrical objects such as bottles, tumblers, and pipes
-

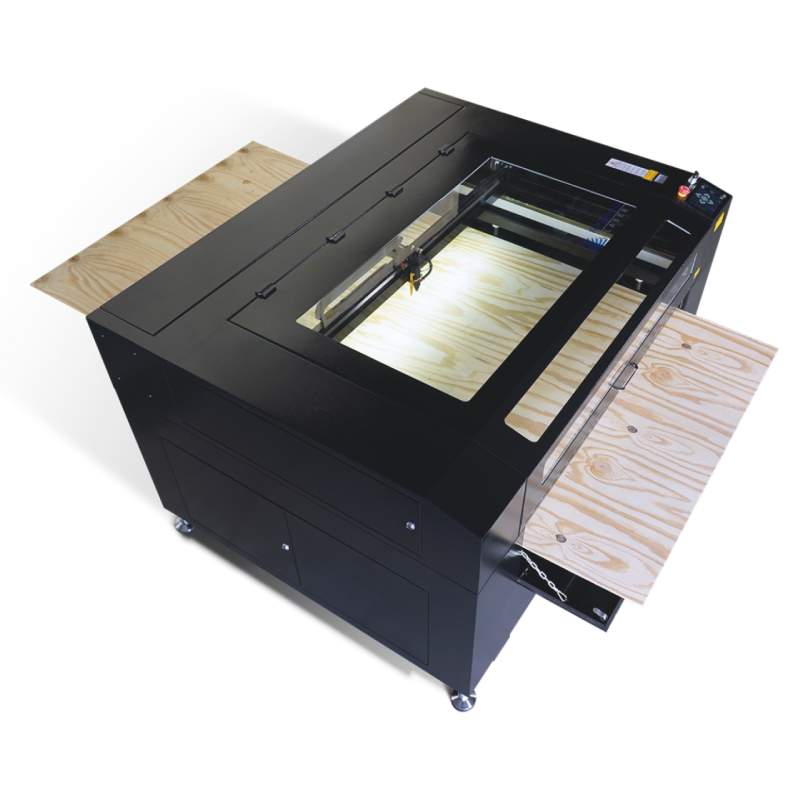

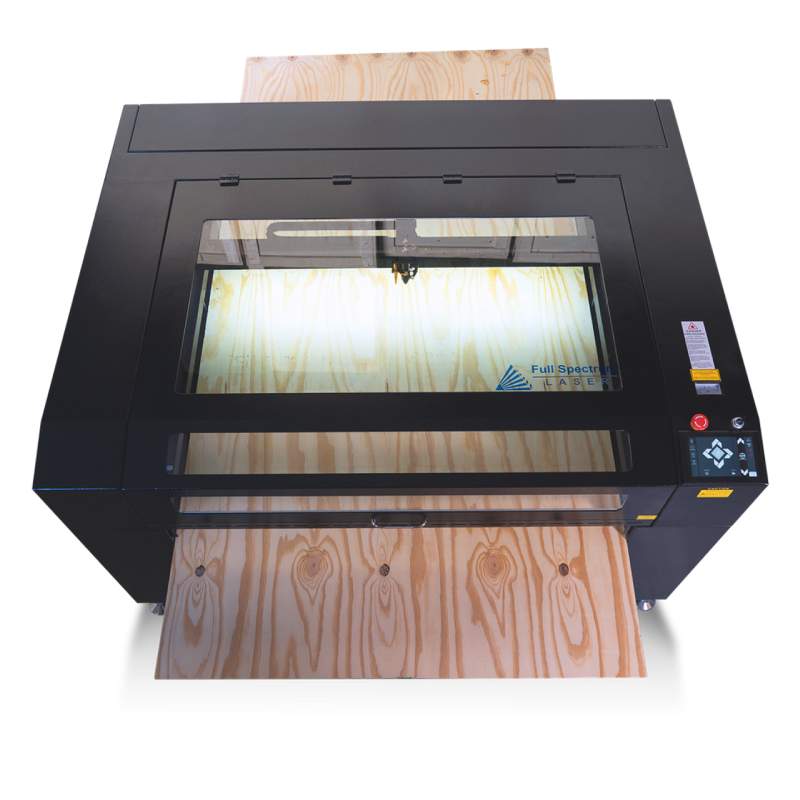

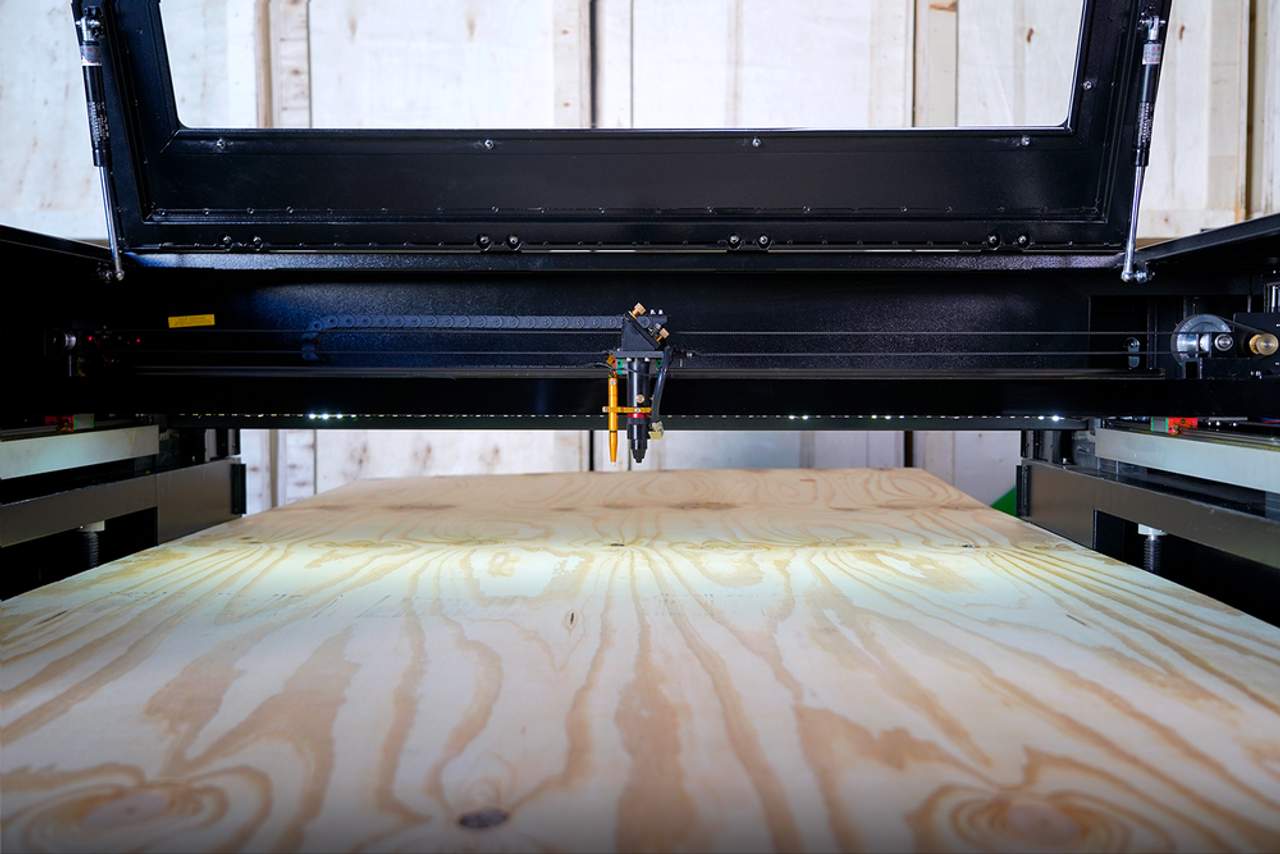

Patented removable floor / pass-through capability for oversized stock
-
External water chiller required for high-duty operation
-
Fume extraction system recommended (BOFA or FSL units) for safe indoor use
Supported Materials
-
Cut & Engrave: Wood, acrylic, textiles, leather, foam, cardboard, paper, rubber, plastics
-
Engrave Only: Glass, stone, ceramics, anodized and coated metals
-
Applications include large signage, furniture design, manufacturing runs, educational labs, and industrial prototyping
- Design Compatibility: Adobe Illustrator, CorelDRAW, Inkscape, CAD, and other SVG-based tools
What’s in the Box
-
FSL Pro Series PS48 Laser Cutter/Engraver
-
Honeycomb cutting table
-
2.0” lens
-
Exhaust ducting & clamps
-
Power cable & Ethernet cable
-
Setup tubing and accessories
-
Quick start guide and manuals
⚠️ Note: Requires external water chiller (sold separately) and fume extraction for safe operation.
Technical Specifications
| Category | Details |
|---|---|
| Work Area | 48” x 36” (1219 x 914 mm) |
| Machine Size | ~70” x 50” x 45” |
| Weight | ~700 lbs (varies by configuration) |
| Laser Type | Sealed CO₂ Tube |
| Laser Power | 120W, 150W, or 180W |
| Resolution | Up to 1000 dpi |
| Software | RetinaEngrave v3.0 (browser-based) |
| File Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity | Ethernet, WiFi |
| OS Compatibility | Windows, Mac, Linux |
| Cooling | External industrial water chiller required |
| Power | AC 220V (required for high-wattage models) |
| Operating Temp | 0°–45°C |
Comparable Models
| Model | Laser Power | Work Area | Unique Features | Best For |
|---|---|---|---|---|
| PS20 | 90W / 120W | 20" x 12" | Compact, entry industrial | Prototyping, small batch jobs |
| PS24 | 90W / 120W | 24" x 16" | Mid-size, compact footprint | Maker shops, classrooms |
| PS36 | 120W / 150W | 36" x 24" | Larger bed & high power | Mid-large production, signage |
| PS48 | 120W / 150W / 180W | 48" x 36" | Largest P-Series, max throughput | Full-scale manufacturing & industrial workloads |
