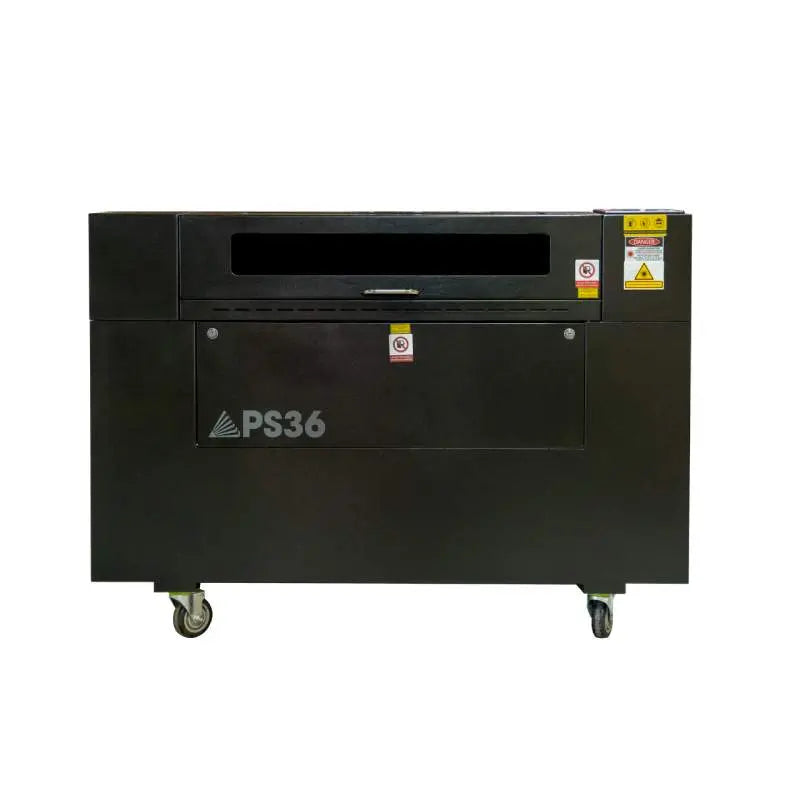

FSL Pro Series PS36 – Industrial CO₂ Laser Cutting & Engraving System
SKU: P3624-90W
Description
Overview

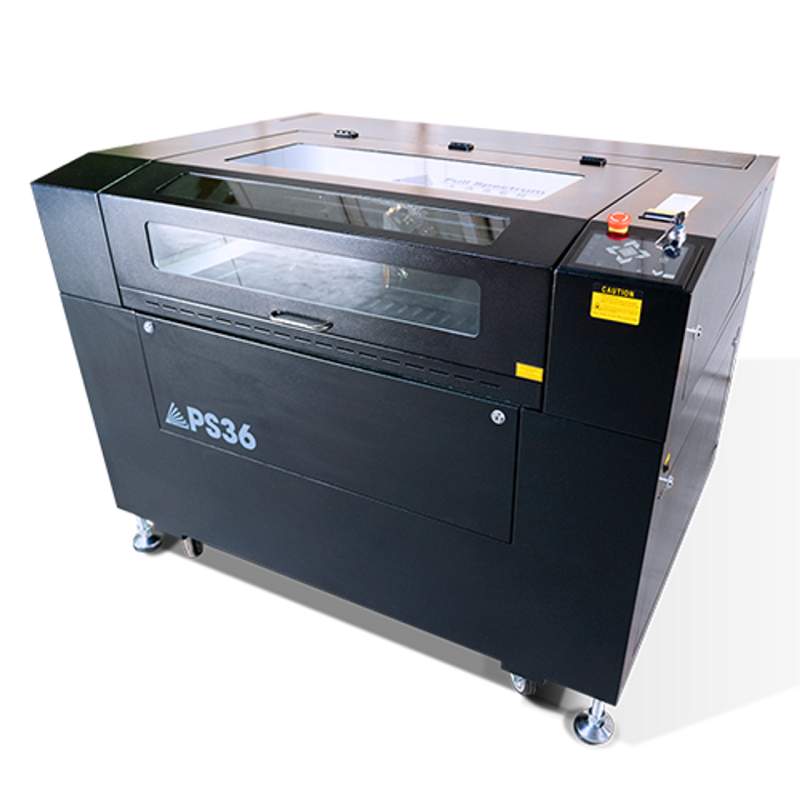

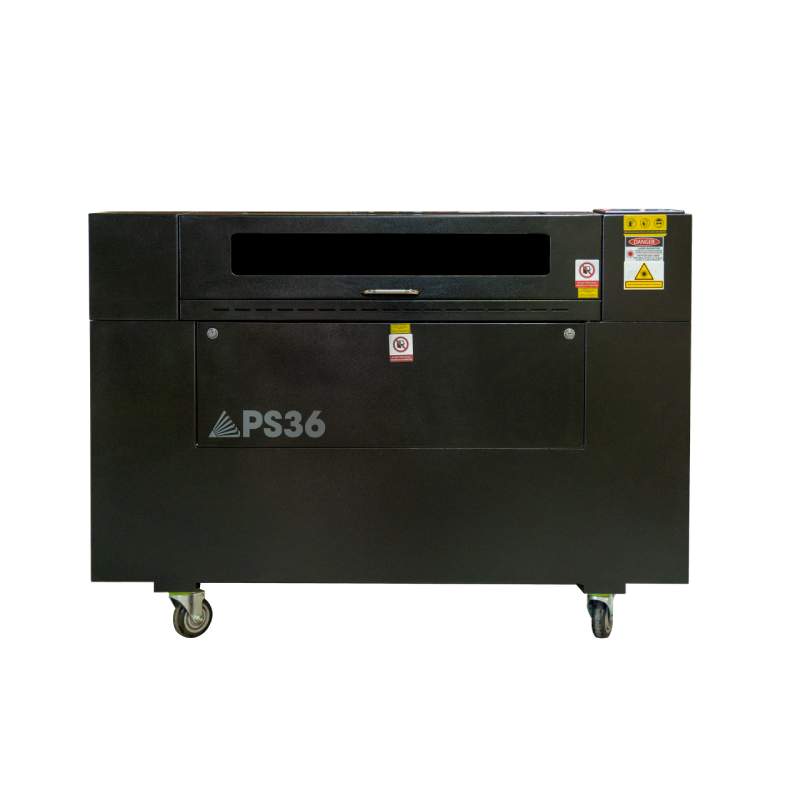

The FSL Pro Series PS36 is a powerful mid-to-large format laser cutter and engraver built for professional manufacturing, educational labs, and high-volume workshops. With a 36" x 24" work area and a choice of 120W or 150W sealed CO₂ laser tubes, the PS36 provides the cutting depth, speed, and reliability required for demanding production environments.
As part of Full Spectrum Laser’s industrial P-Series, the PS36 combines rugged steel construction, a linear guide rail motion system, and an industrial water-cooled laser source with the intuitive RetinaEngrave v3.0 software. This makes it a perfect balance of workspace size and industrial power, bridging the gap between compact shop systems and full-scale factory solutions.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $649 (discounted rate).
Key Features
-

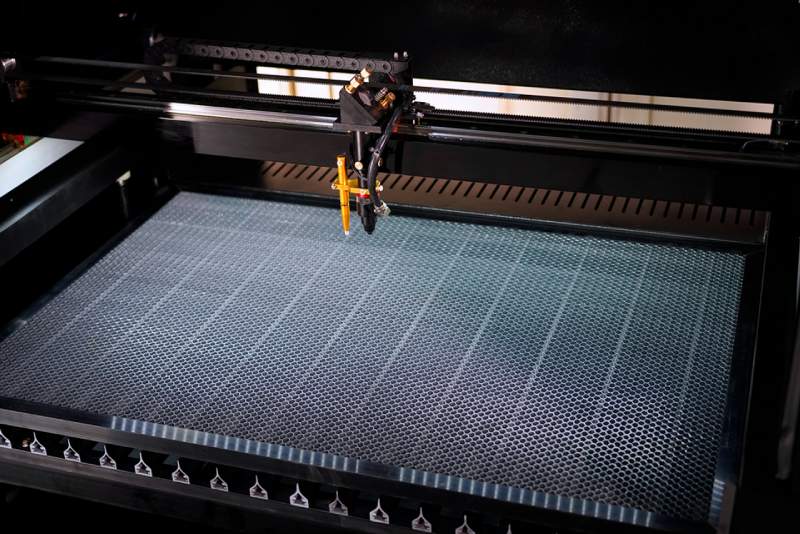

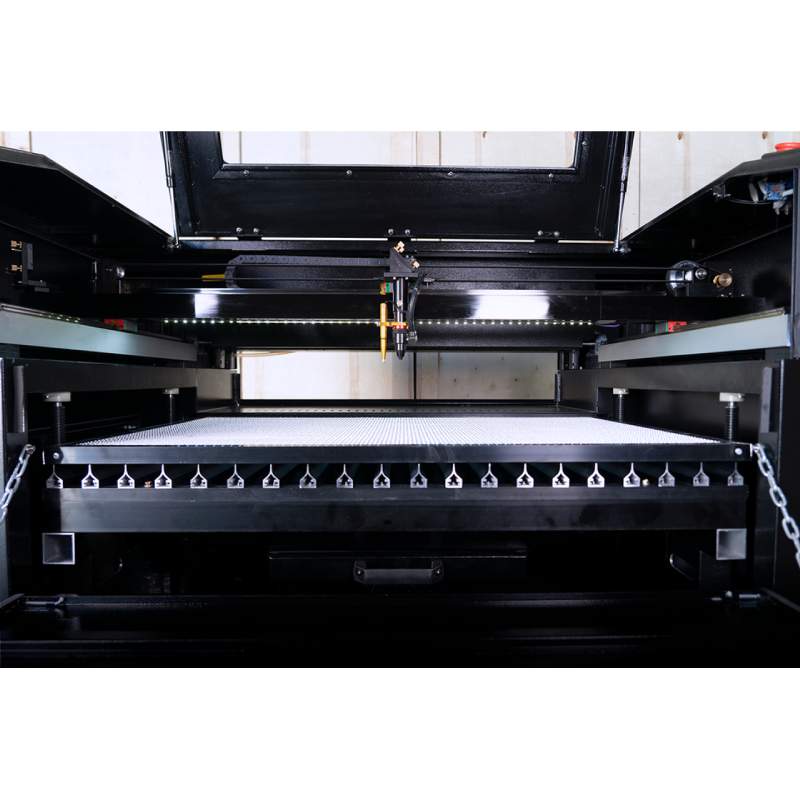

Large 36” x 24” work area – big enough for signage, furniture parts, and production jobs
-
High-power options: 120W or 150W sealed CO₂ laser tube
-
Industrial-grade design for continuous-duty operation
-
RetinaEngrave v3.0 software – browser-based, self-hosted, no downloads required
-
Engraving resolution up to 1000 dpi for detailed text, images, and logos
-

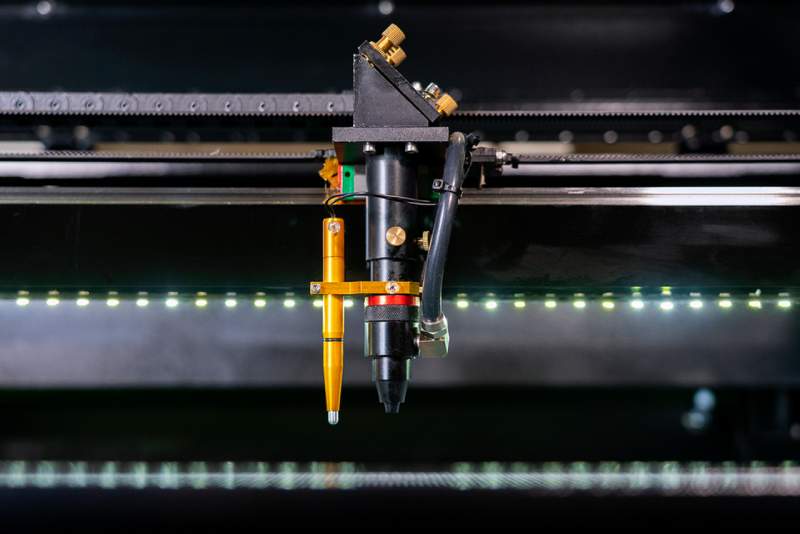

Rigid linear rail motion system for smooth, precise motion control
-
Optional rotary attachment – engrave bottles, tumblers, and cylindrical objects
-

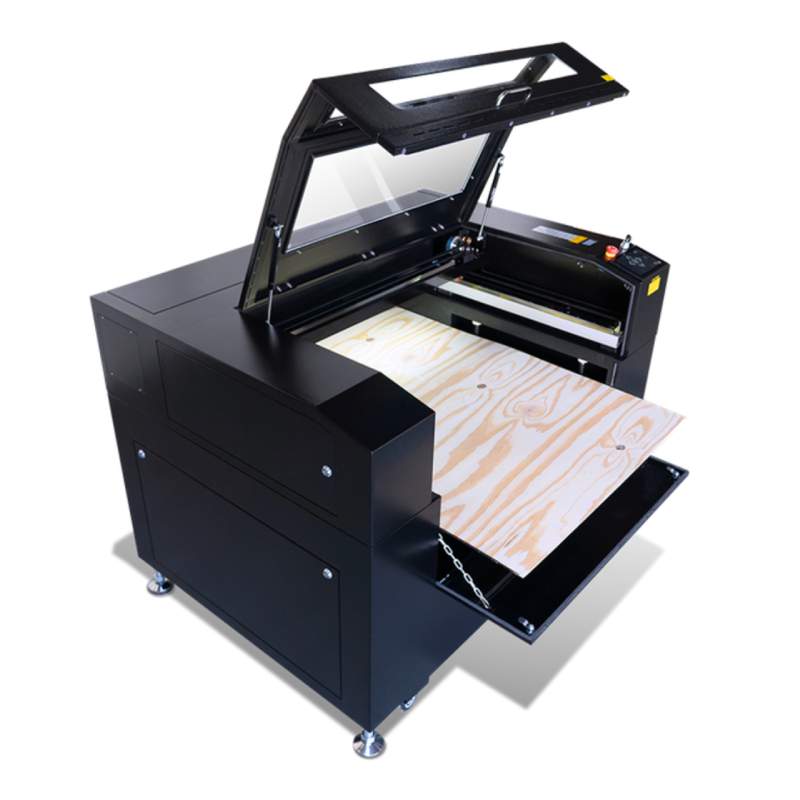

Patented removable floor (pass-through capability) for oversized materials
-
External water cooling system required for long duty cycles
-
Compatible with industrial fume extraction systems (BOFA or FSL units)
Supported Materials
-
Cut & Engrave: Wood, acrylic, leather, textiles, foam, cardboard, paper, rubber
-
Engrave Only: Glass, stone, ceramics, anodized and coated metals
-
Applications include production signage, packaging, prototyping, batch manufacturing, and high-volume custom products
- Design Compatibility: Works with Illustrator, CorelDRAW, Inkscape, CAD, and SVG-based workflows
What’s in the Box
-
FSL Pro Series PS36 Laser Cutter/Engraver
-
Honeycomb cutting table
-
2.0” lens
-
Exhaust duct & clamps
-
Ethernet cable & power cord
-
Setup tubing and accessories
-
Quick start guide and user manuals
⚠️ Note: Requires an external water chiller and fume extractor for safe operation.
Technical Specifications
| Category | Details |
|---|---|
| Work Area | 36” x 24” (914 x 610 mm) |
| Machine Size | ~60” x 40” x 42” |
| Weight | ~500 lbs (varies by configuration) |
| Laser Type | Sealed CO₂ Tube |
| Laser Power | 120W or 150W |
| Resolution | Up to 1000 dpi |
| Software | RetinaEngrave v3.0 |
| File Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity | Ethernet, WiFi |
| OS Compatibility | Windows, Mac, Linux |
| Cooling | External water chiller required |
| Power | AC 220V (required for 120W/150W) |
| Operating Temp | 0°–45°C |
Comparable Models
| Model | Laser Power | Work Area | Unique Features | Best For |
|---|---|---|---|---|
| PS20 | 90W / 120W | 20" x 12" | Compact industrial laser | Prototyping, small batch jobs |
| PS24 | 90W / 120W | 24" x 16" | Mid-size, versatile bed | Small shops, classrooms |
| PS36 | 120W / 150W | 36" x 24" | Larger bed + higher power | Signage, mid-large production |
| PS48 | 120W / 150W / 180W | 48" x 36" | Largest P-Series, max output | Full-scale manufacturing |
