FSL Pro Series PS24 – Industrial CO₂ Laser Cutting & Engraving System
SKU: P2416+
Description
Overview
The FSL Pro Series PS24 is a step up in Full Spectrum Laser’s industrial P-Series, designed for businesses that need larger cutting areas and higher throughput without sacrificing precision. With a 24" x 16" work area and a 90W or 120W CO₂ laser tube, the PS24 offers more workspace than the PS20 while keeping a compact, durable design suited for production environments.
Engineered for reliability, the PS24 integrates a rigid metal frame, linear rail motion system, and water-cooled laser power source to handle extended duty cycles. Whether you’re producing signage, packaging, prototypes, or custom manufacturing runs, the PS24 delivers speed, accuracy, and repeatable results.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $449 (discounted rate).
Key Features
-
Large 24” x 16” work area – more cutting space than the PS20
-
Laser power options: 90W or 120W sealed CO₂ tube
-
Industrial-grade build for continuous use
-
Browser-based RetinaEngrave v3.0 software – no downloads required
-
Engraving resolution up to 1000 dpi
-

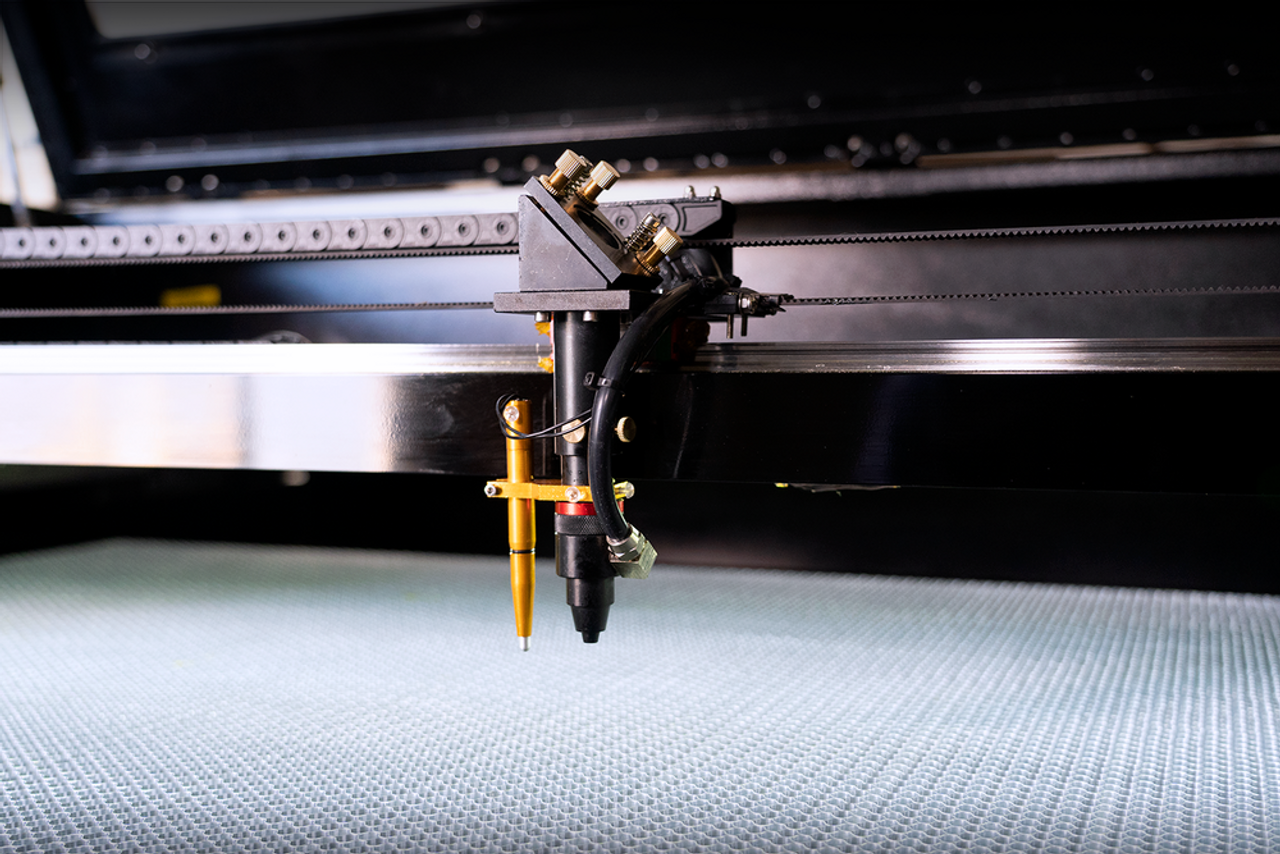

Rigid linear motion system for sharp engraving and precise cuts
-
Optional rotary attachment for cylindrical engraving (cups, tumblers, etc.)
-
Expandable with accessories (rotary, pass-through options, extractors)
-
Compatible with fume extraction systems (BOFA or similar recommended)
-
Ethernet + WiFi connectivity for shop-floor integration
Supported Materials
-
Cut & Engrave: Wood, acrylic, leather, textiles, paper, foam, cardboard, rubber
-
Engrave Only: Glass, stone, ceramic, anodized and coated metals
-
Perfect for signage, mid-size production, batch manufacturing, and maker businesses
- Design Compatibility: Works with Adobe Illustrator, CorelDRAW, Inkscape, CAD files
What’s in the Box
-
FSL Pro Series PS24 Laser Cutter/Engraver
-
Honeycomb table insert
-
2.0” lens
-
Exhaust ducting with clamps
-
Power cable & Ethernet cable
-
Setup tubing and accessories
-
User manuals and guides
⚠️ Note: Requires an external water chiller (sold separately) and fume extractor for safe operation.
Technical Specifications
| Category | Details |
|---|---|
| Work Area | 24” x 16” (610 x 406 mm) |
| Machine Size | ~48” x 32” x 41” |
| Weight | ~400 lbs |
| Laser Type | Sealed CO₂ Tube |
| Laser Power | 90W or 120W |
| Resolution | Up to 1000 dpi |
| Software | RetinaEngrave v3.0 |
| File Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity | Ethernet, WiFi |
| OS Compatibility | Windows, Mac, Linux |
| Cooling | External water chiller required |
| Power | AC 220V (required for 90W/120W models) |
| Operating Temp | 0°–45°C |
Comparable Models
| Model | Laser Power | Work Area | Unique Features | Best For |
|---|---|---|---|---|
| PS20 | 90W / 120W | 20" x 12" | Compact industrial system | Small batch production, prototyping |
| PS24 | 90W / 120W | 24" x 16" | Larger cutting area, more versatility | Mid-size production, maker shops |
| PS36 | 120W / 150W | 36" x 24" | High power + larger bed | Larger signage, higher throughput |
| PS48 | 120W / 150W / 180W | 48" x 36" | Maximum size and power | Full-scale manufacturing |
Customer Resources
📄 User Manual
📄 RetinaEngrave v3.0 Manual
▶️ Video: Tutorial
📞 U.S. Support Team: Direct manufacturer assistance troubleshooting. Email them at support@fslaser.com
Returns & Warranty
30-Day Returns — No questions asked. Return in original condition for a full refund.
Manufacturer Warranty — All products include a minimum 1-year manufacturer warranty. Extended warranty options available at checkout.
