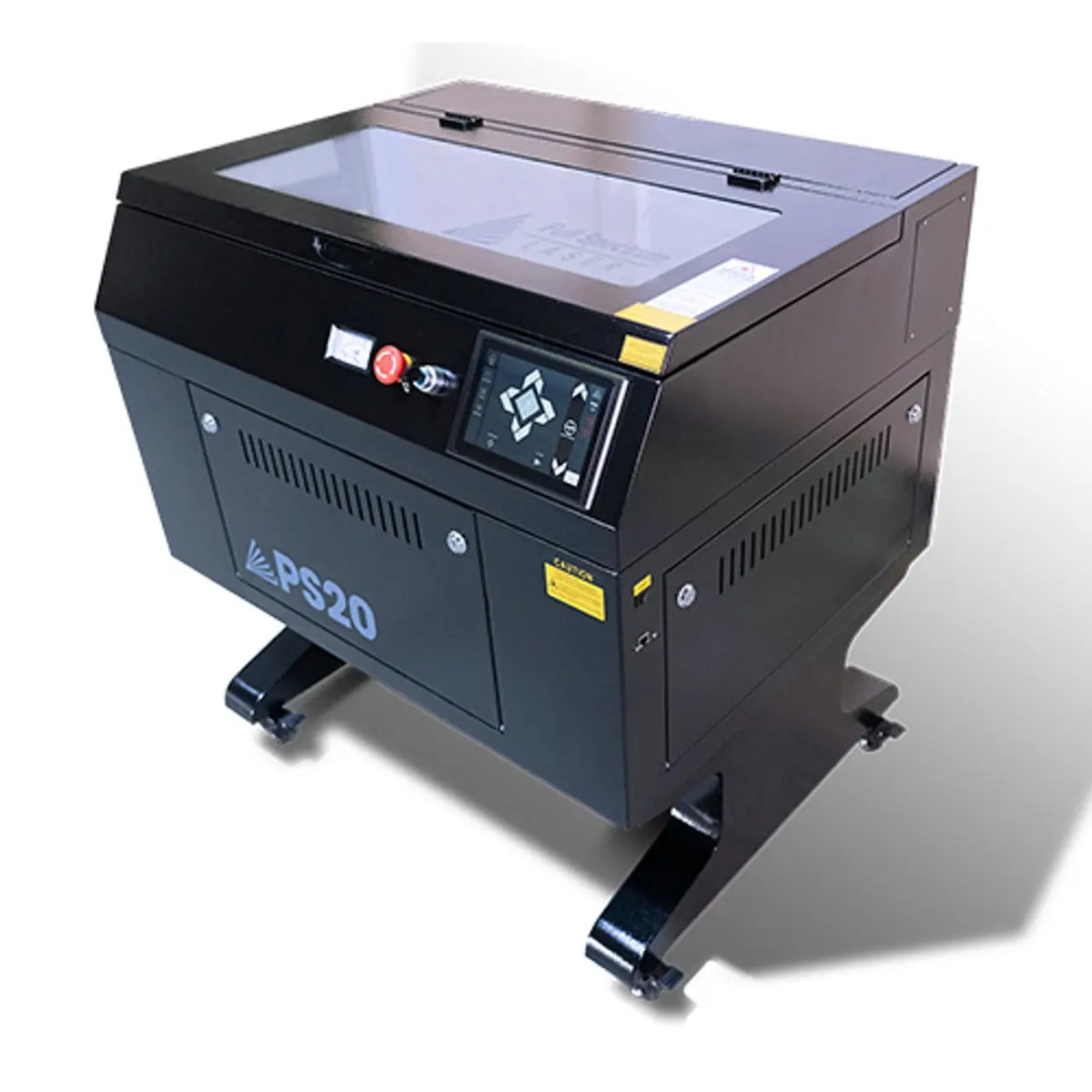

FSL Pro Series PS20 – Industrial CO₂ Laser Cutting & Engraving System
SKU: P2012+45W
Description
Overview
The FSL Pro Series PS20 is part of Full Spectrum Laser’s industrial-grade P-Series, designed for professionals, manufacturers, and production shops requiring maximum power, precision, and reliability. With a 20" x 12" work area and a choice of 90W or 120W sealed CO₂ laser tubes, the PS20 delivers deeper cuts, faster throughput, and the long-duty-cycle performance demanded by business-critical applications.
The PS20 is built for scalability, combining a durable metal chassis, linear guide rail system, and water-cooled laser source with the intuitive RetinaEngrave v3.0 software. It’s ideal for cutting thicker stock, engraving at high resolutions, and supporting continuous use in production environments.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $449 (discounted rate).
Key Features
-
Industrial-grade CO₂ laser system – built for continuous, high-volume use
-
Laser power options: 90W or 120W sealed CO₂ tube
-
20” x 12” work area for small-to-medium projects
-
RetinaEngrave v3.0 software – browser-based, self-hosted, no downloads required
-

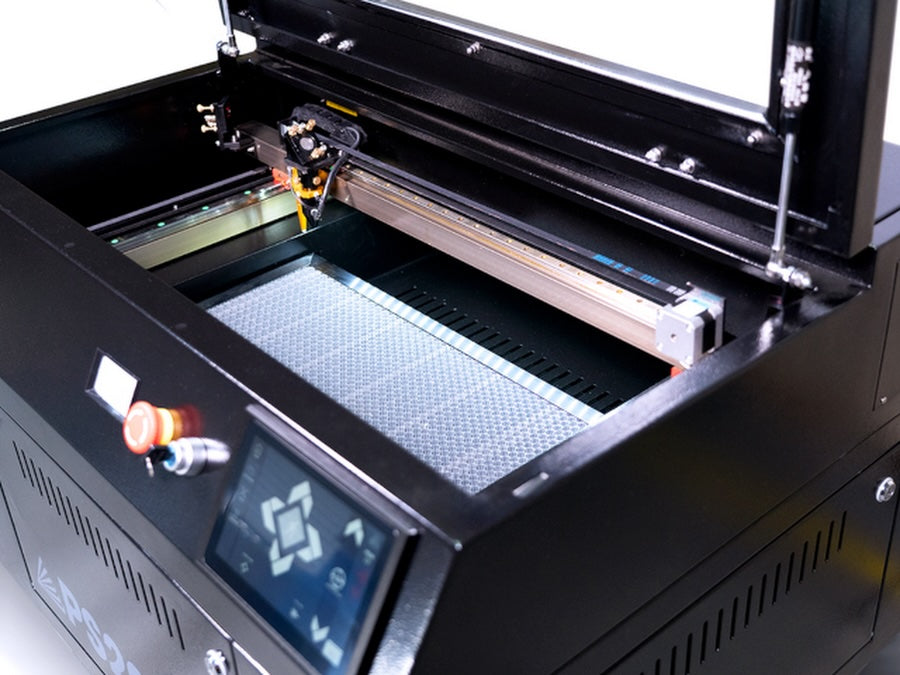

Rigid linear rail motion system for precise raster engraving and vector cutting
-
Optional rotary attachment for cylindrical items such as tumblers and bottles
-
Engraving resolution up to 1000 dpi for crisp text and images
-

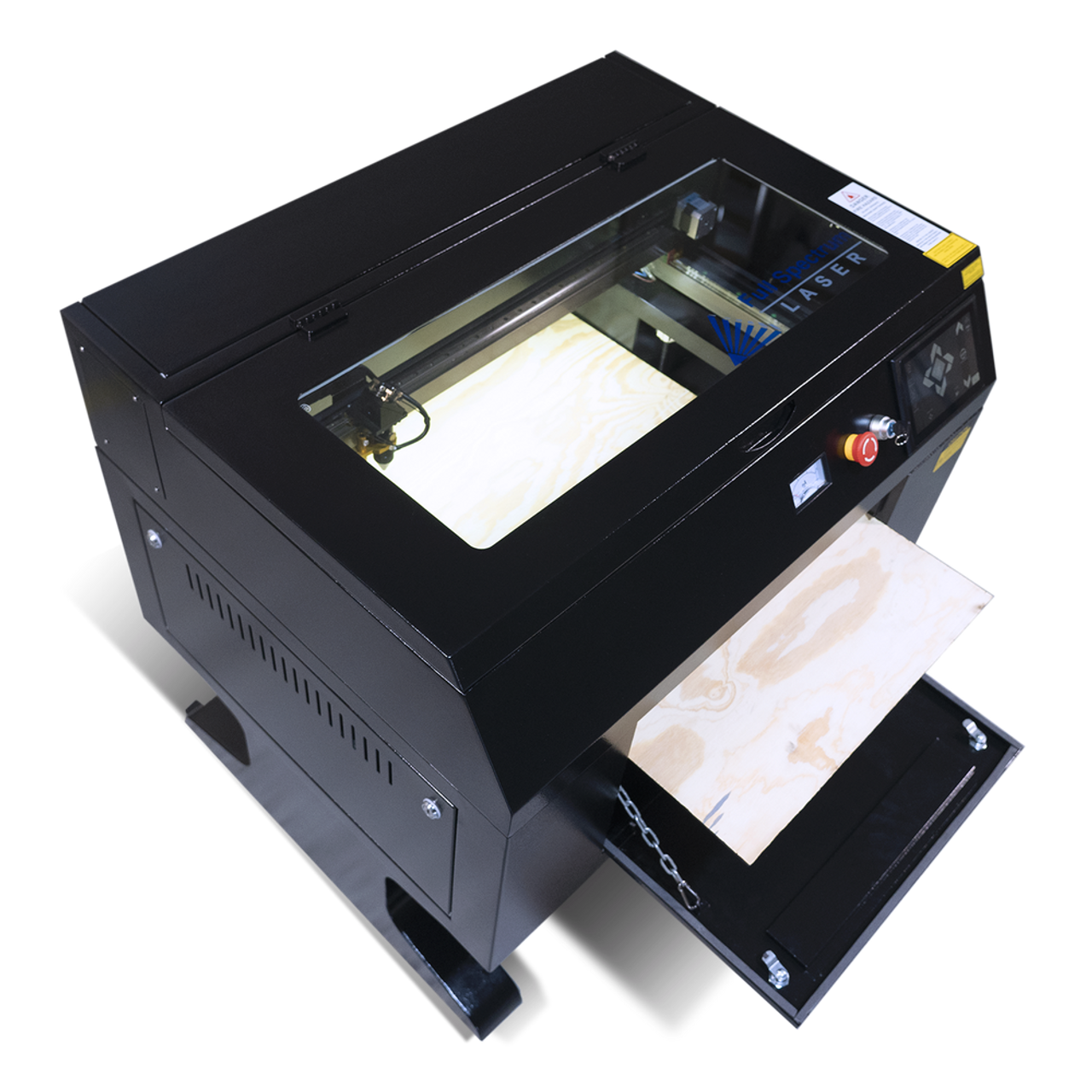

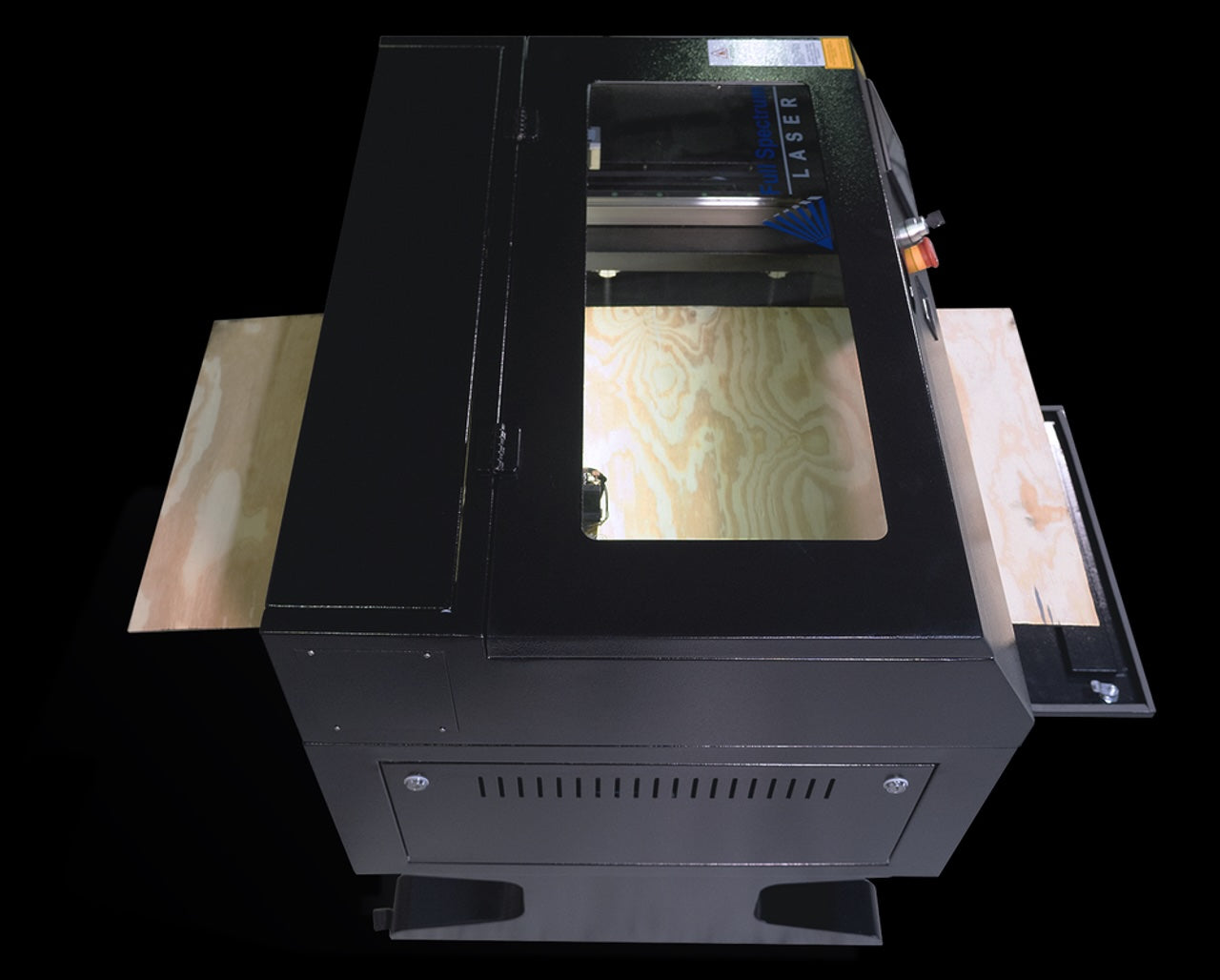

Patented removable floor (optional in P-Series) for oversized material pass-through
-
Heavy-duty water cooling system (required) to maintain peak performance
-
Fume extraction compatibility (BOFA and other external extractors recommended)
-
Industrial connectivity with Ethernet and WiFi for easy integration into shop environments
Supported Materials
-
Cut & Engrave: Wood, acrylic, leather, textiles, foam, paper, cardboard, rubber
-
Engrave Only: Glass, stone, ceramics, anodized and coated metals
-
Perfect for signage, industrial prototypes, batch production, and custom manufacturing
- Design Compatibility: Works with Adobe Illustrator, CorelDRAW, Inkscape, SVG and CAD formats
What’s in the Box
-
FSL Pro Series PS20 Laser System (90W or 120W)
-
Honeycomb work table
-
2.0” lens
-
Exhaust duct & clamps
-
Ethernet cable & power cord
-
Setup tubing and accessories
-
Quick start guides and manuals
⚠️ Note: Requires external chiller for cooling (sold separately) and a fume extraction system for safe operation.
Technical Specifications
| Category | Details |
|---|---|
| Work Area | 20” x 12” (508 x 305 mm) |
| Machine Size | ~45” x 27” x 40” (varies by configuration) |
| Weight | ~350 lbs |
| Laser Type | Sealed CO₂ Tube |
| Laser Power | 90W or 120W |
| Resolution | Up to 1000 dpi |
| Software | RetinaEngrave v3.0 (browser-based, self-hosted) |
| File Formats | JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity | Ethernet, WiFi |
| OS Compatibility | Windows, Mac, Linux |
| Cooling | External water chiller required |
| Power | AC 220V (required for 90W/120W models) |
| Operating Temp | 0°–45°C |
Comparable Models
| Model | Laser Power | Work Area | Unique Features | Best For |
|---|---|---|---|---|
| Muse Core | 40W / 45W | 20" x 12" | Entry-level desktop CO₂ laser | Hobbyists, small shops |
| Muse 3D | 40W / 45W | 20" x 12" | Adds 3D camera & autofocus | Advanced users, curved/warped materials |
| Muse Titan | 75W / 90W / 100W | 48" x 24" | Large-format, higher power | Production, signage, large projects |
| PS20 (Pro Series) | 90W / 120W | 20" x 12" | Industrial-grade, heavy-duty use, requires chiller | Professional manufacturing, 24/7 production |
