Overview

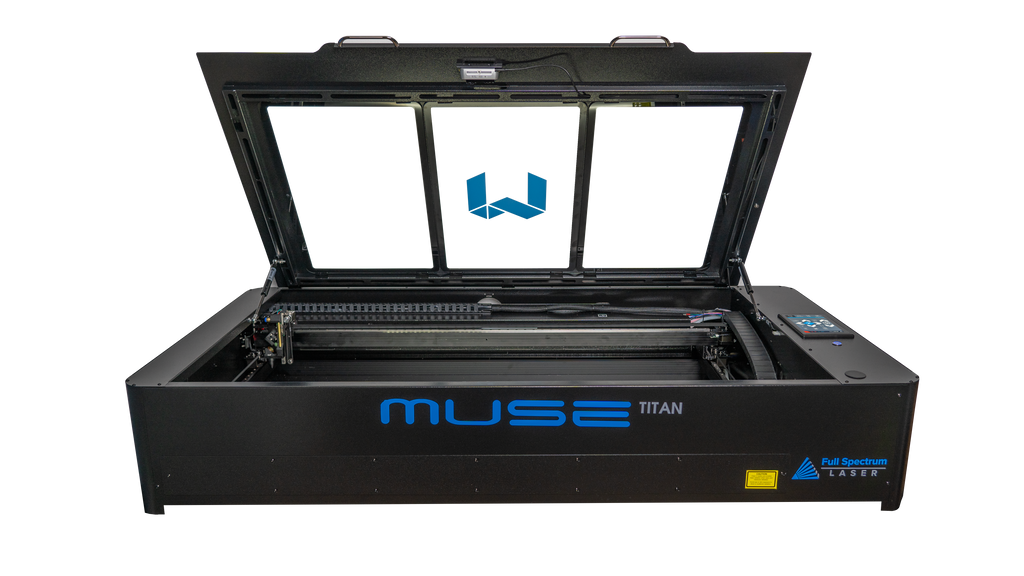

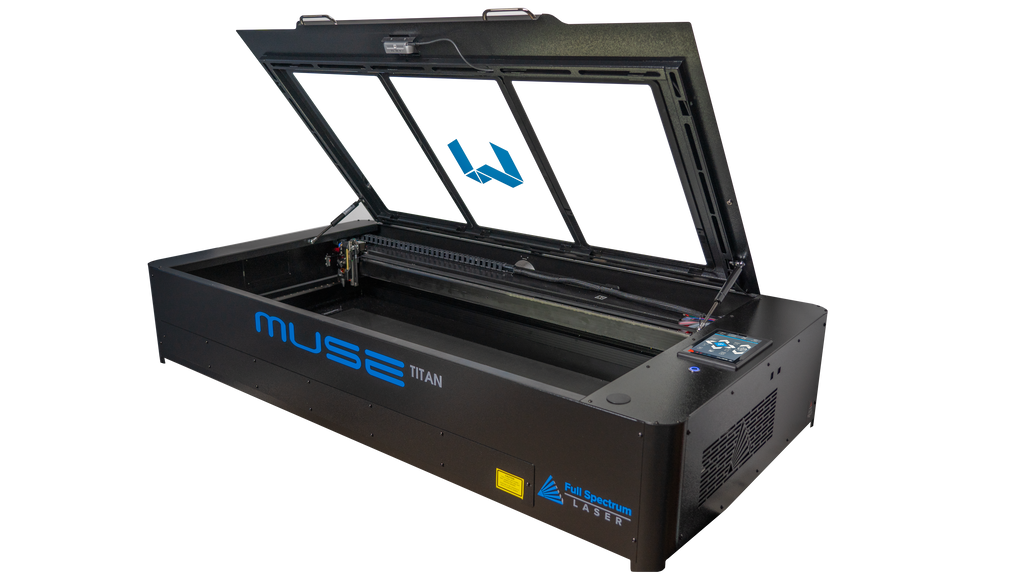

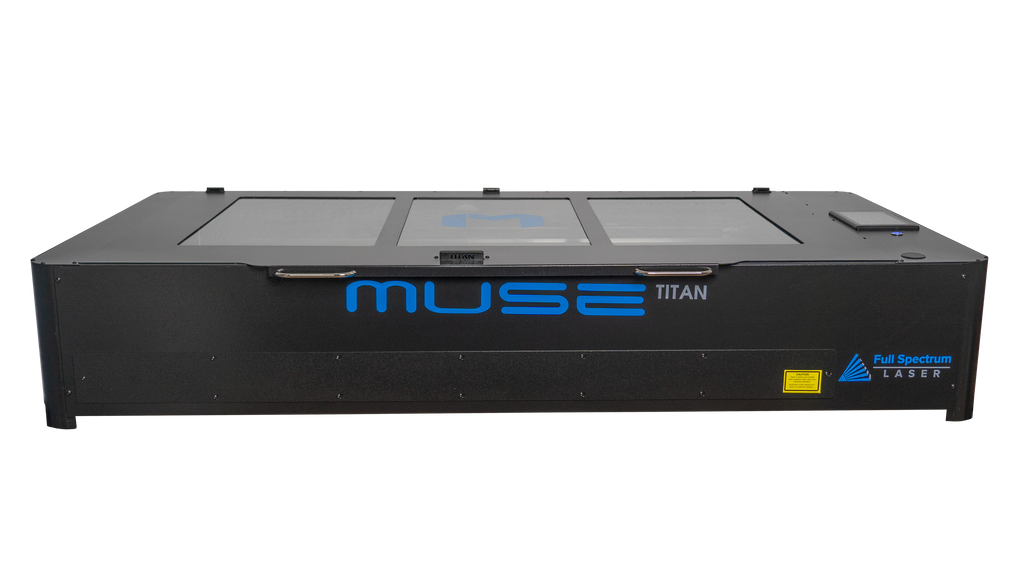

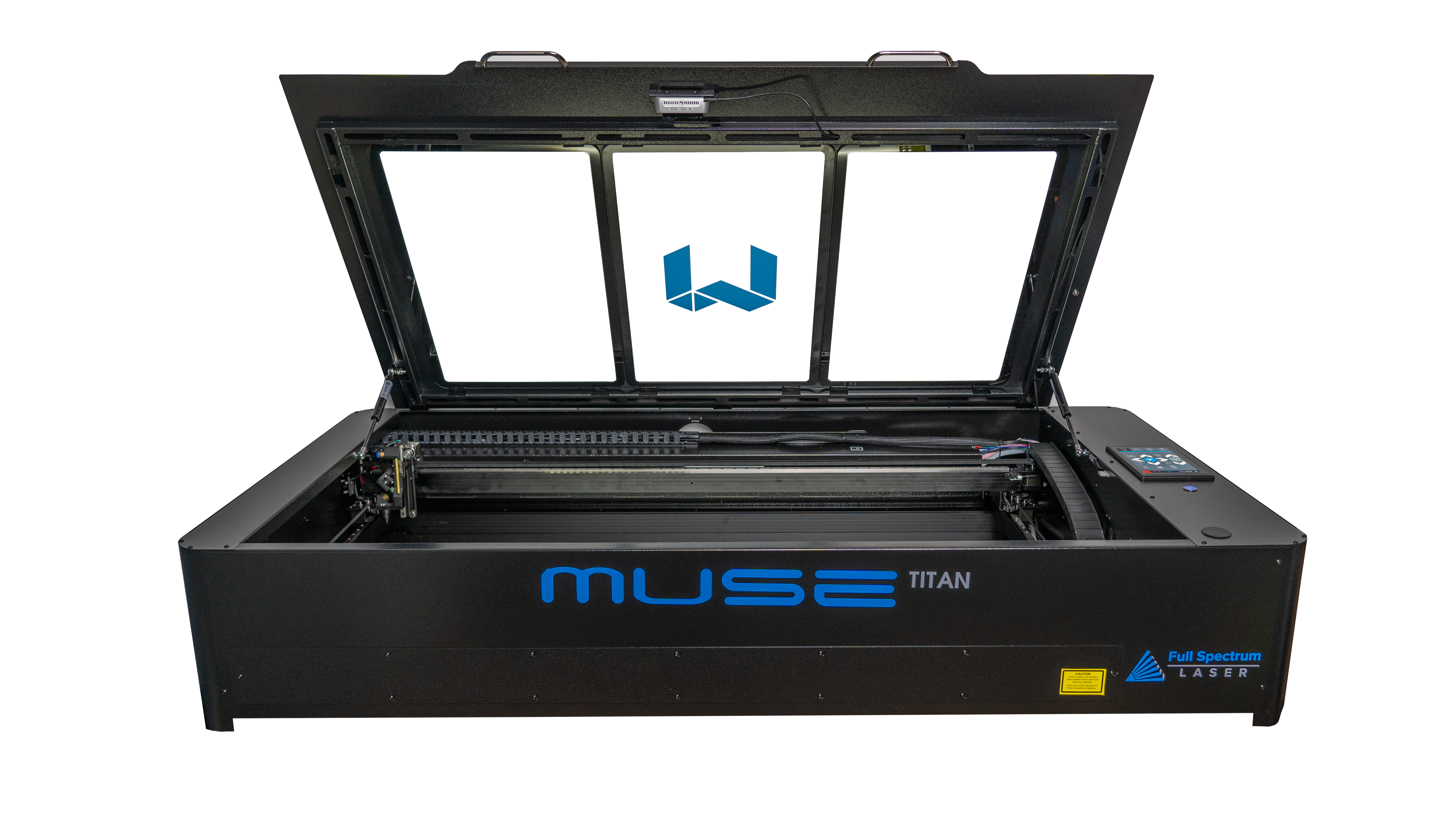

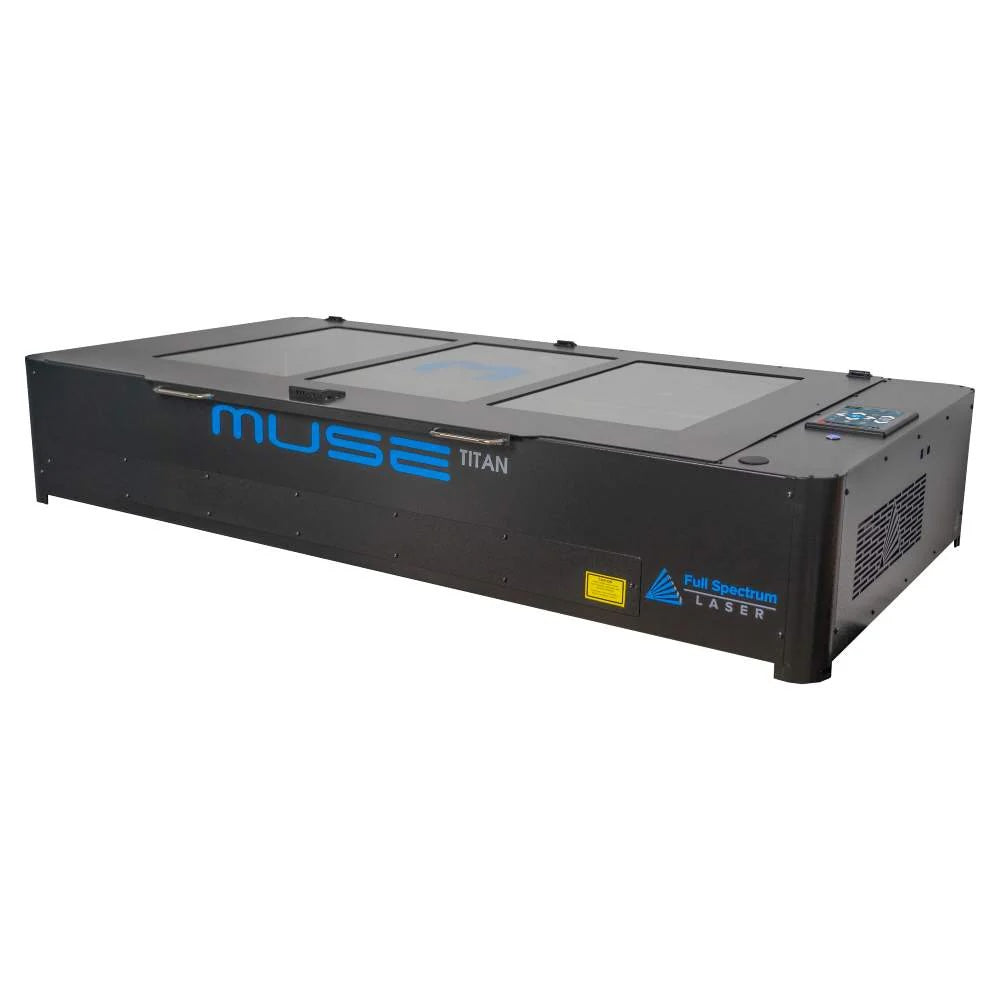

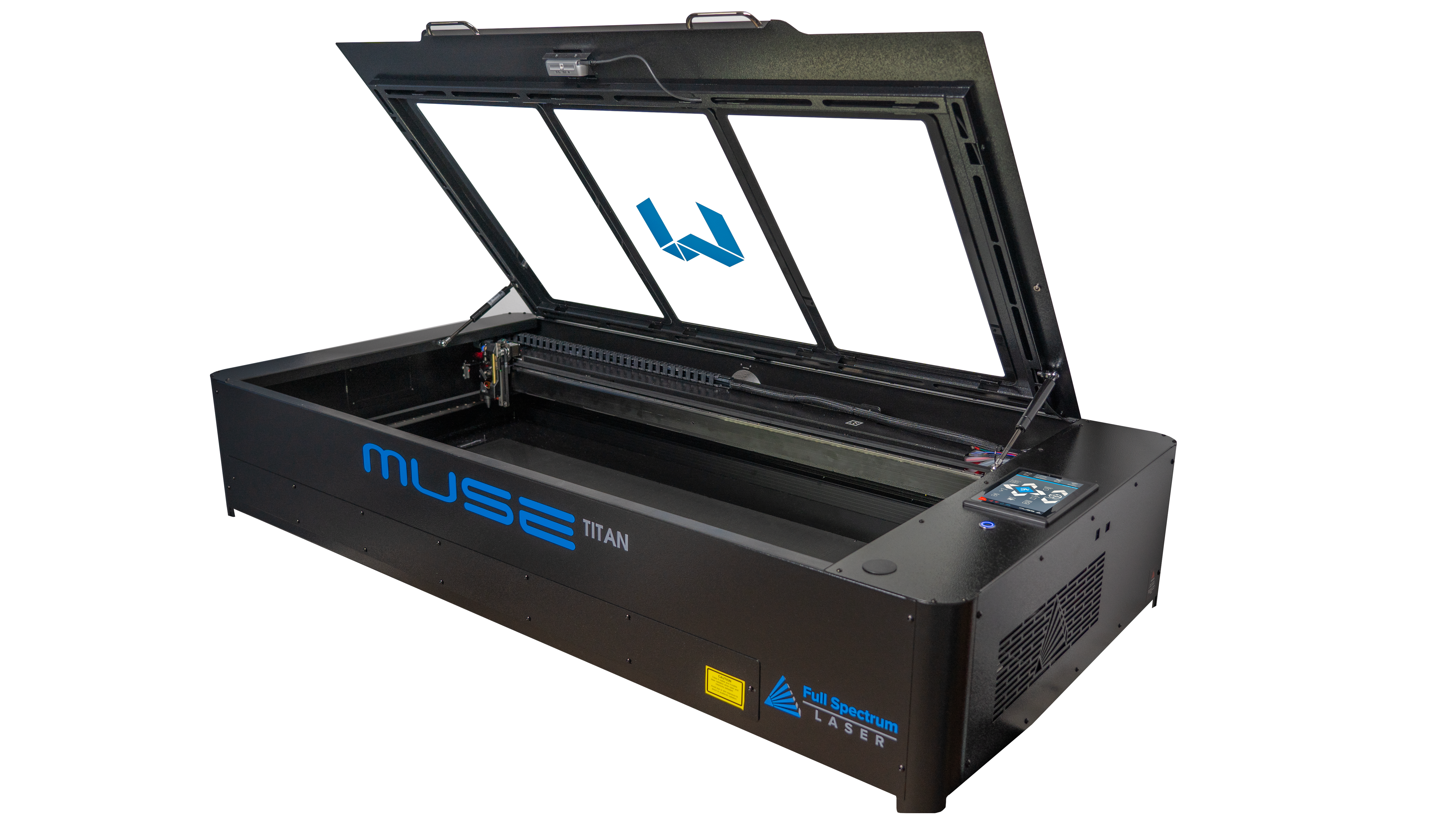

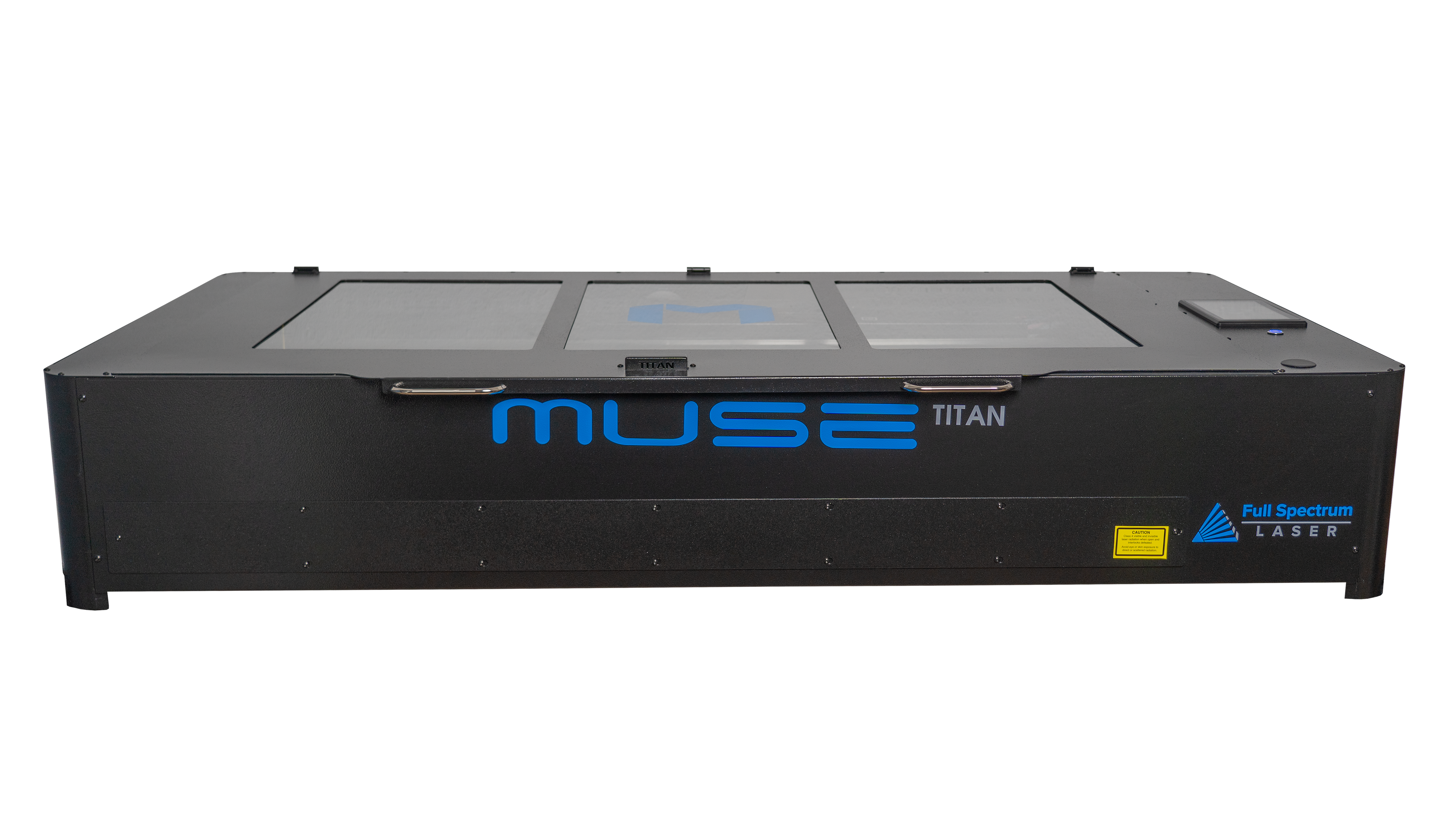

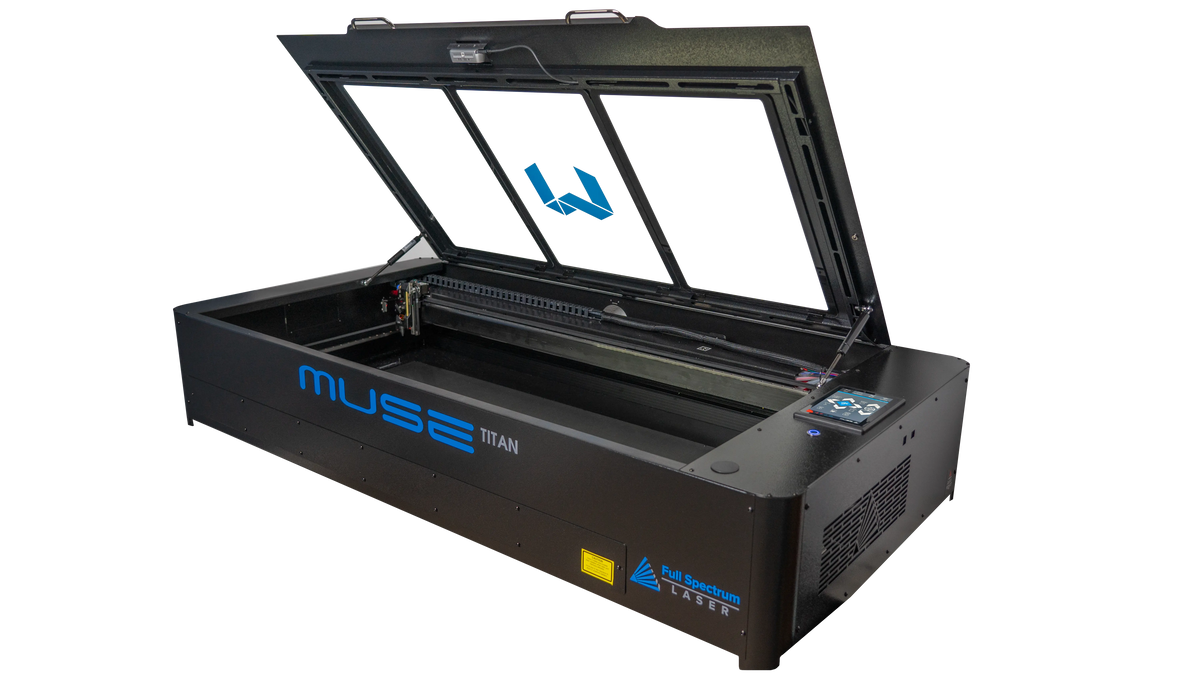

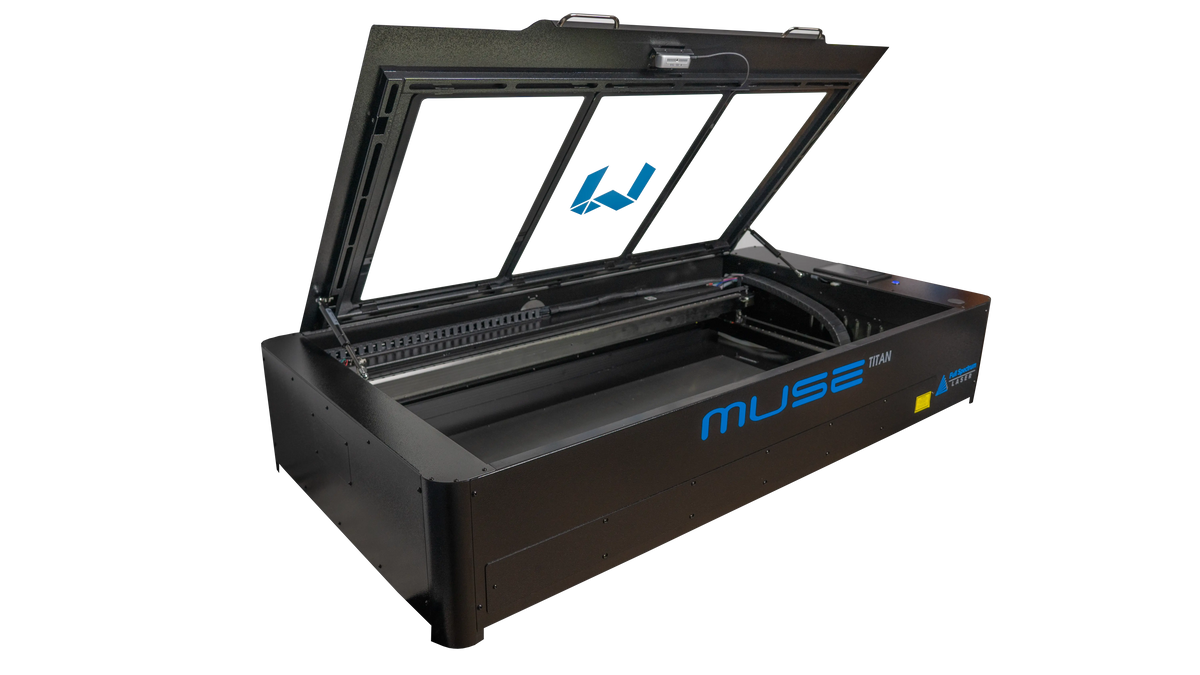

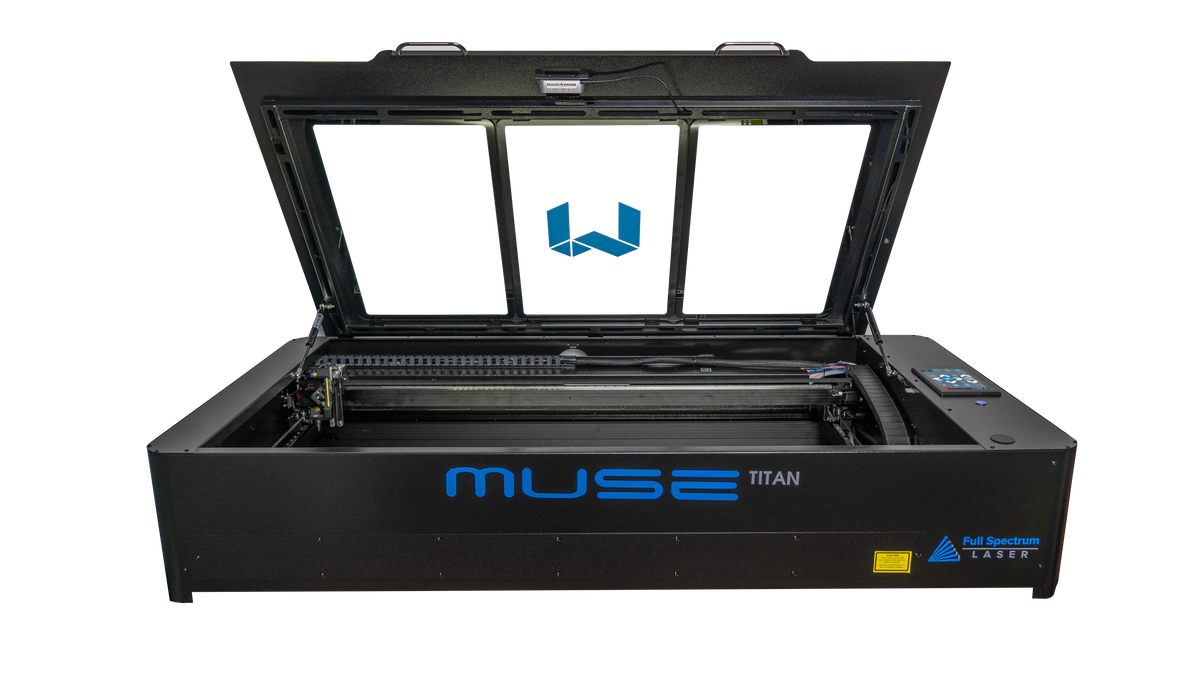

The FSL Muse Titan is a professional-grade large-format desktop CO₂ laser designed for businesses, makerspaces, and advanced creators who need industrial-level power in a compact footprint. With a massive 48" x 24" work area, the Titan is capable of handling oversized projects, batch production, and demanding cutting or engraving jobs that smaller desktop lasers can’t match.
Built with the same precision engineering as the Muse Core and Muse 3D, the Titan adds higher-powered laser options (75W, 90W, or 100W) for faster cuts and deeper engraving. It features the powerful RetinaEngrave v3.0 software, a patented removable floor, and a solid metal frame for stability and durability.
The Muse Titan bridges the gap between desktop convenience and industrial performance—making it the ideal solution for production environments, educational labs, and small manufacturers.
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $449 (discounted rate).
Key Features
-
Extra-large 48" x 24" (1219 x 610 mm) work area for oversized or multiple-piece projects
-
Laser power options: 75W, 90W, or 100W sealed CO₂ tube
-

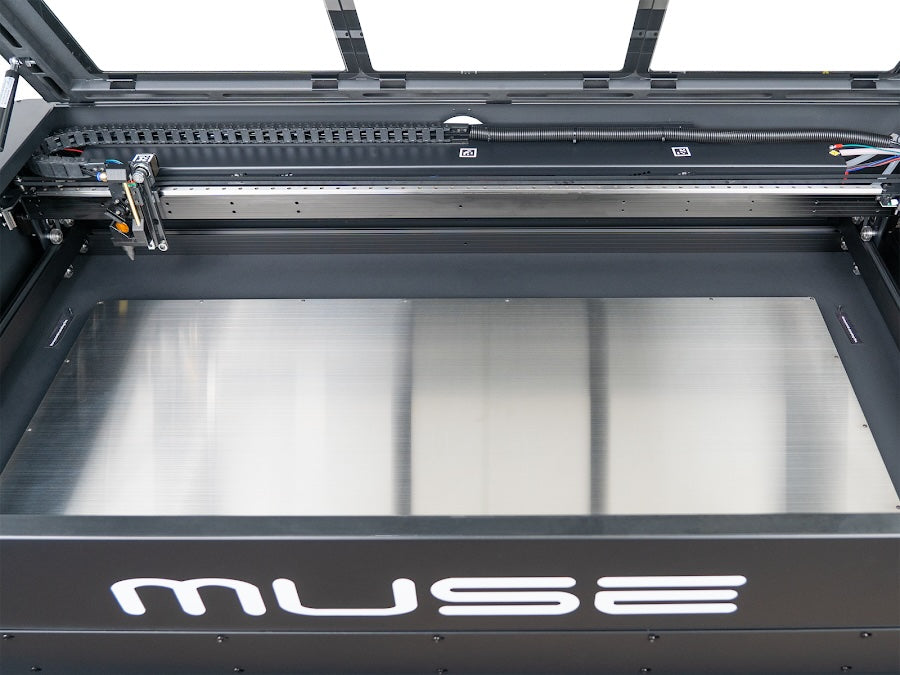

Patented removable floor to work with thicker or irregular materials
-
Engraving resolution up to 1000 dpi for photo-quality output
-
RetinaEngrave v3.0 browser-based control software – runs directly on the machine, cross-platform compatible
-

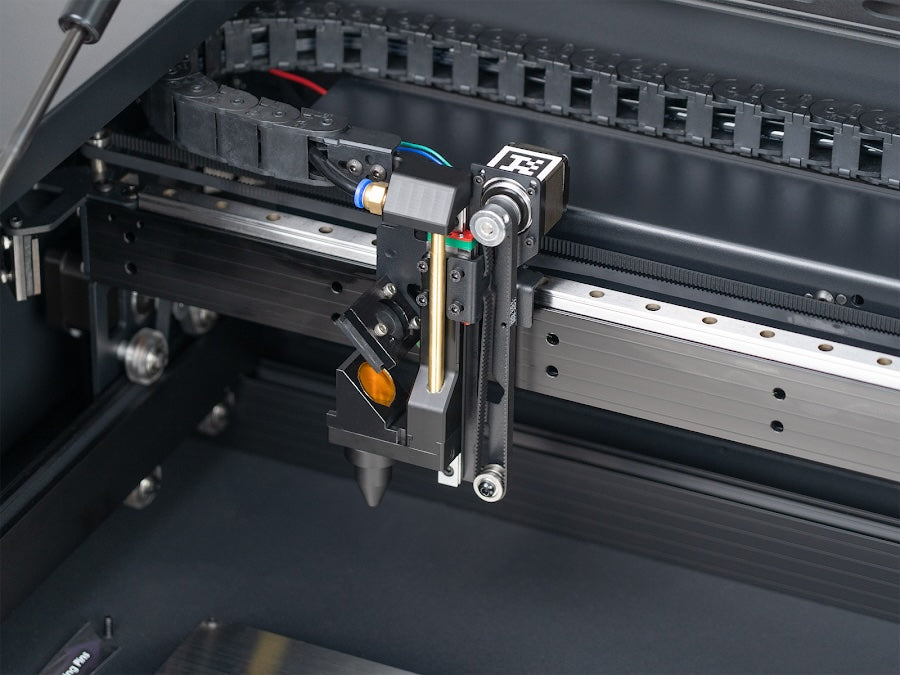

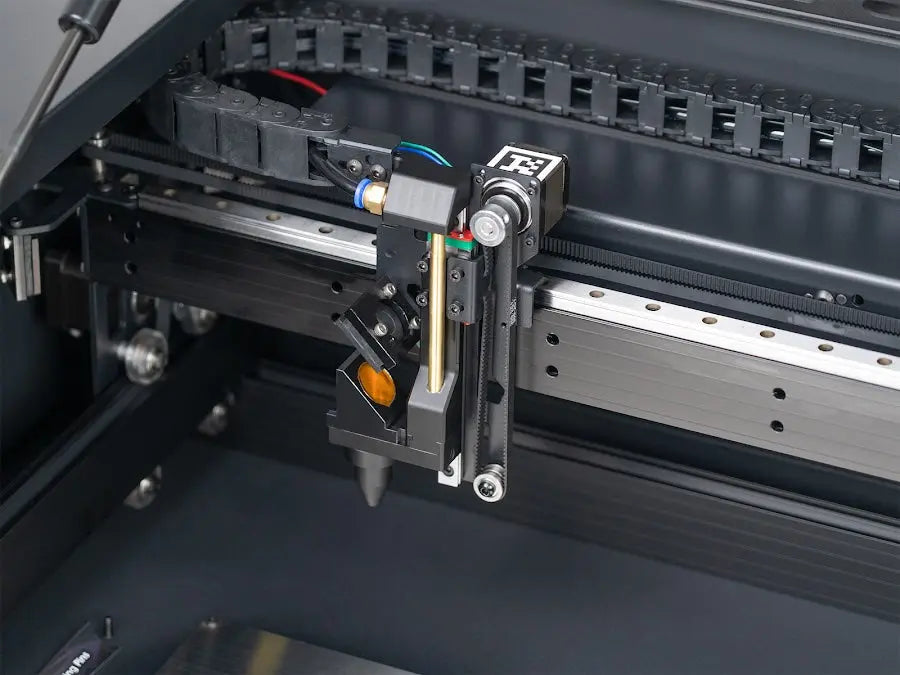

Rigid linear rail motion system for smooth, precise vector cutting and raster engraving
-
Rotary attachment compatibility for cylindrical items like bottles and tumblers
-

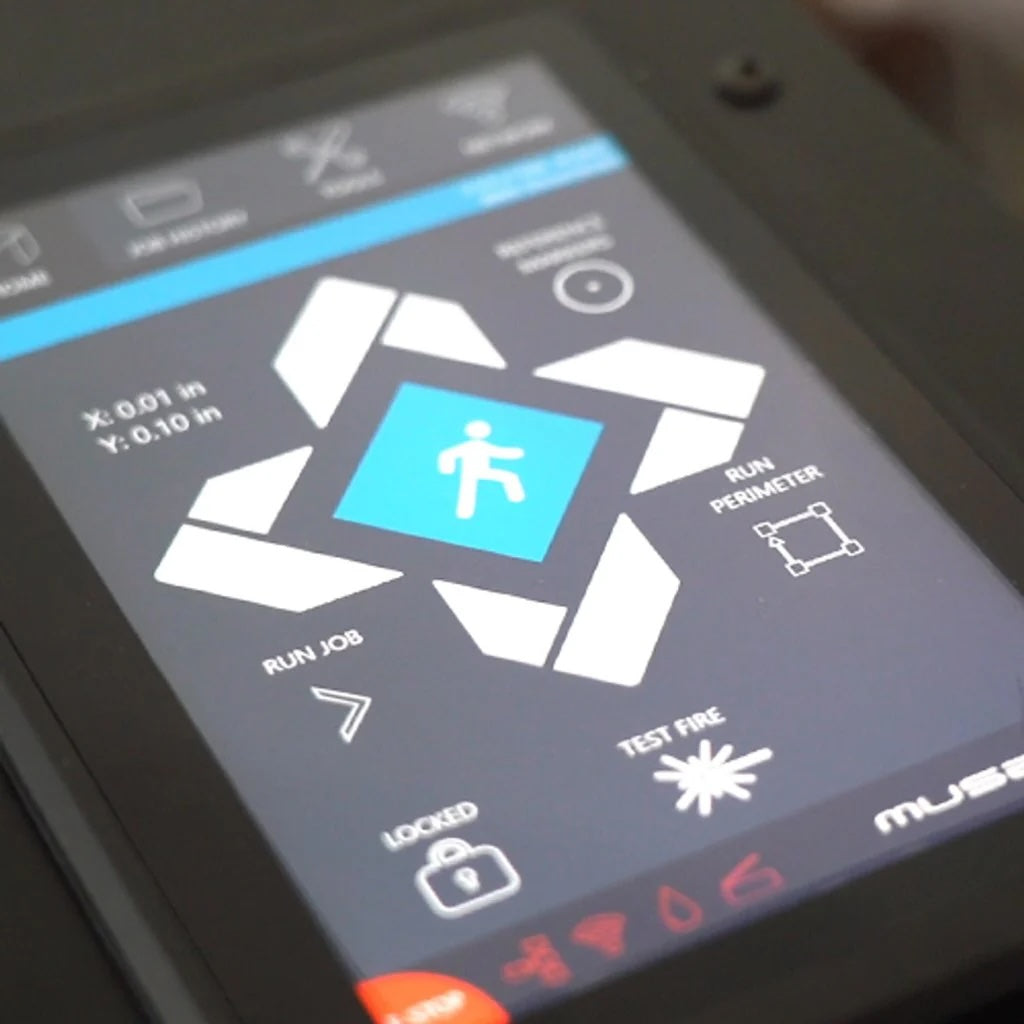

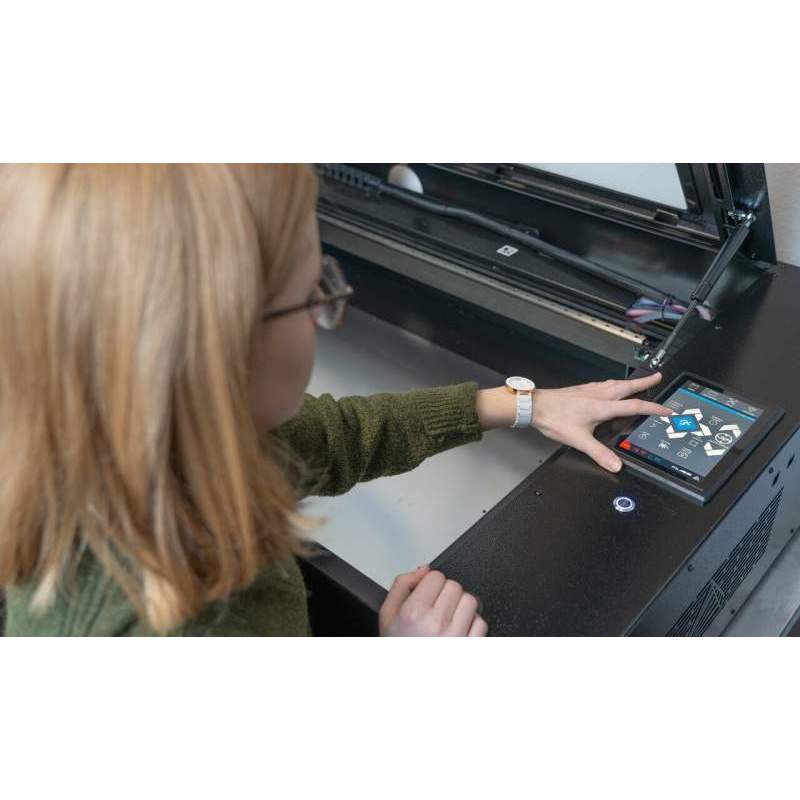

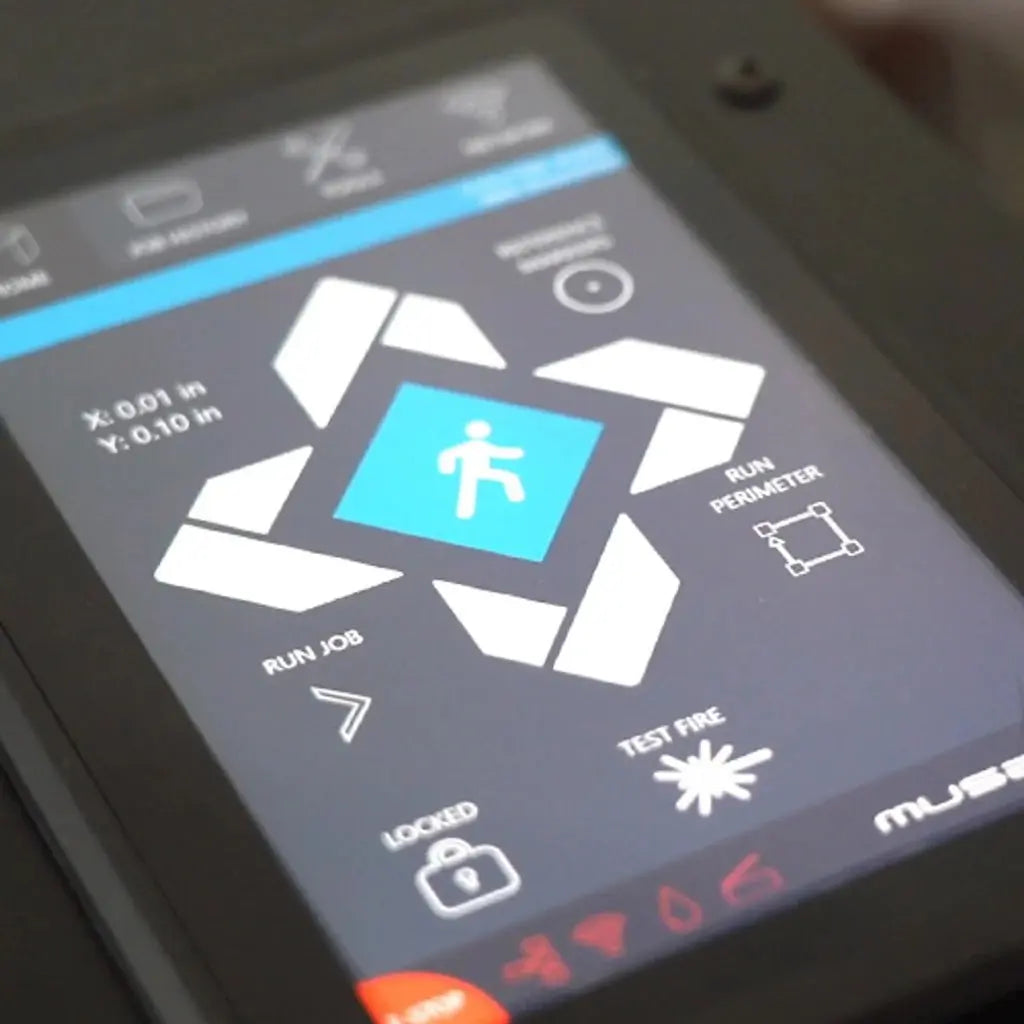

7” LCD touchscreen with intuitive onboard controls
-
Upgradeable with accessories including fume extractors, riser bases, and rotary tools
-
WiFi and Ethernet connectivity for easy integration into your workspace
Supported Materials
-
Cut & Engrave: Wood, acrylic, fabric, leather, paper, cardboard, rubber, foam
-
Engrave Only: Glass, stone, ceramics, anodized metals
-
Perfect for signage, furniture parts, prototypes, production runs, and custom products
-
Design Resources: Compatible with Adobe Illustrator, CorelDRAW, Inkscape, and SVG design software
What’s in the Box
-
FSL Muse Titan Laser Cutter & Engraver (choose 75W, 90W, or 100W)
-
Honeycomb work table
-

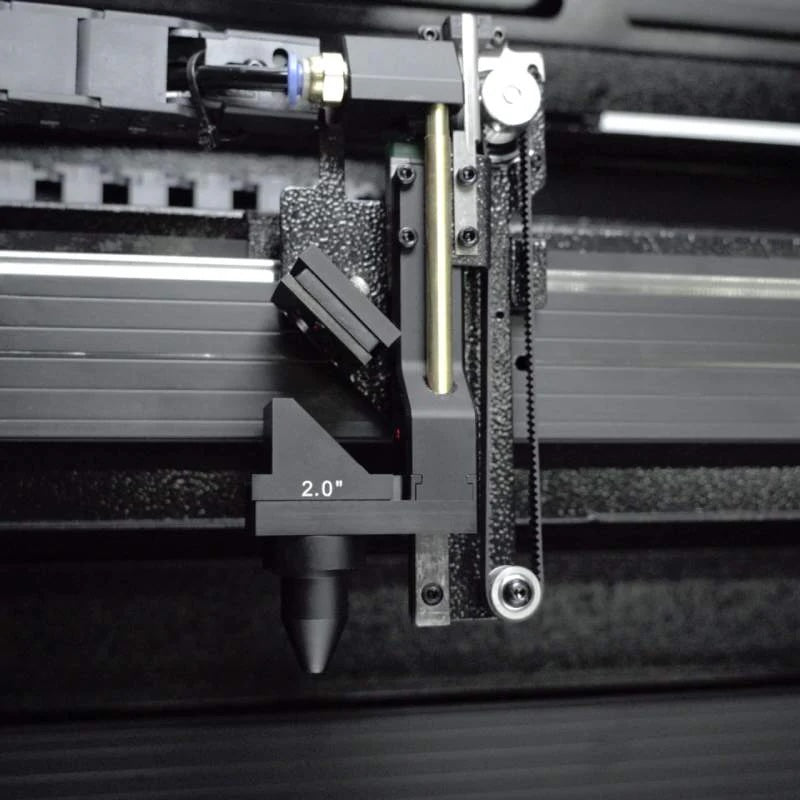

2.0” lens
-
Exhaust duct & clamps
-
Ethernet cable & power cord
-
Setup tubing and basic accessories
-
User manuals and quick start guides
⚠️ Note: Cooling system (Muse Coolbox or chiller) and fume extraction are sold separately and required for safe operation.
Technical Specifications
| Category |
Details |
| Work Area |
48” x 24” (1219 x 610 mm) |
| Z-Height |
2.5” (expandable with riser base) |
| Machine Size |
55” x 36” x 12” (approx.) |
| Weight |
250 lbs (varies by configuration) |
| Laser Type |
Sealed CO₂ Tube |
| Laser Power |
75W, 90W, or 100W |
| Resolution |
Up to 1000 dpi |
| Software |
RetinaEngrave v3.0 (browser-based, self-hosted) |
| File Formats |
JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity |
WiFi (802.11n), Ethernet |
| OS Compatibility |
Windows, Mac, Linux |
| Operating Temp |
0°–45°C |
| Power |
AC 110V / 220V (varies by wattage), up to ~2000W |

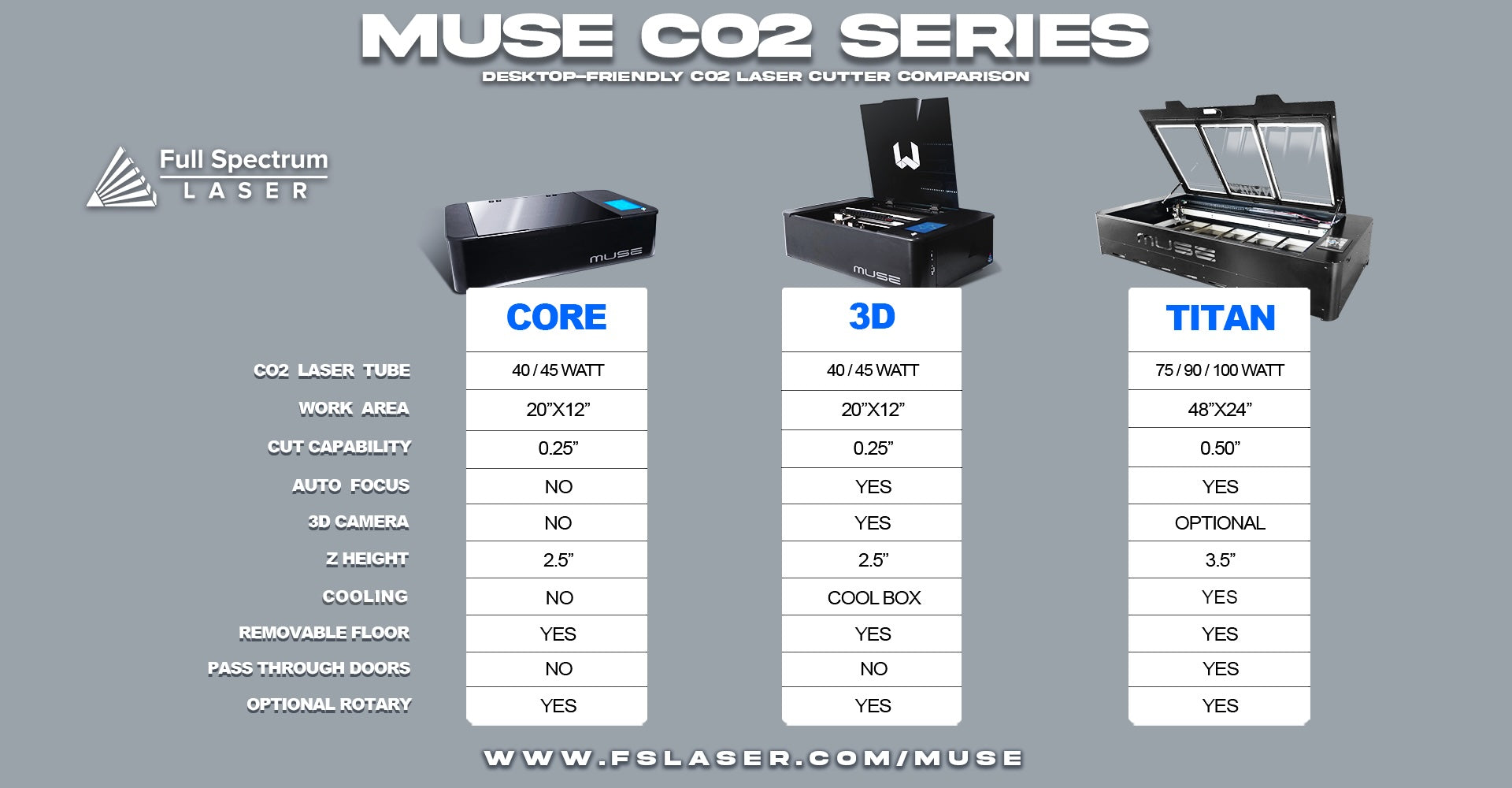

Comparable Models
| Model |
Laser Power |
Work Area |
Unique Features |
Best For |
| Muse Core |
40W / 45W |
20" x 12" |
Compact desktop CO₂ laser, removable floor |
Hobbyists, small shops |
| Muse 3D |
40W / 45W |
20" x 12" |

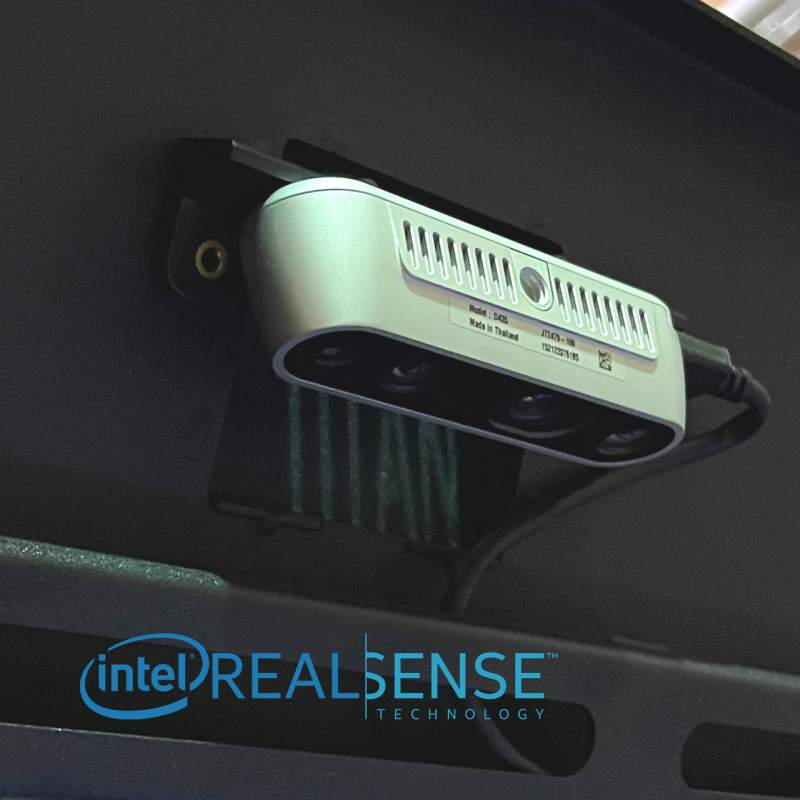

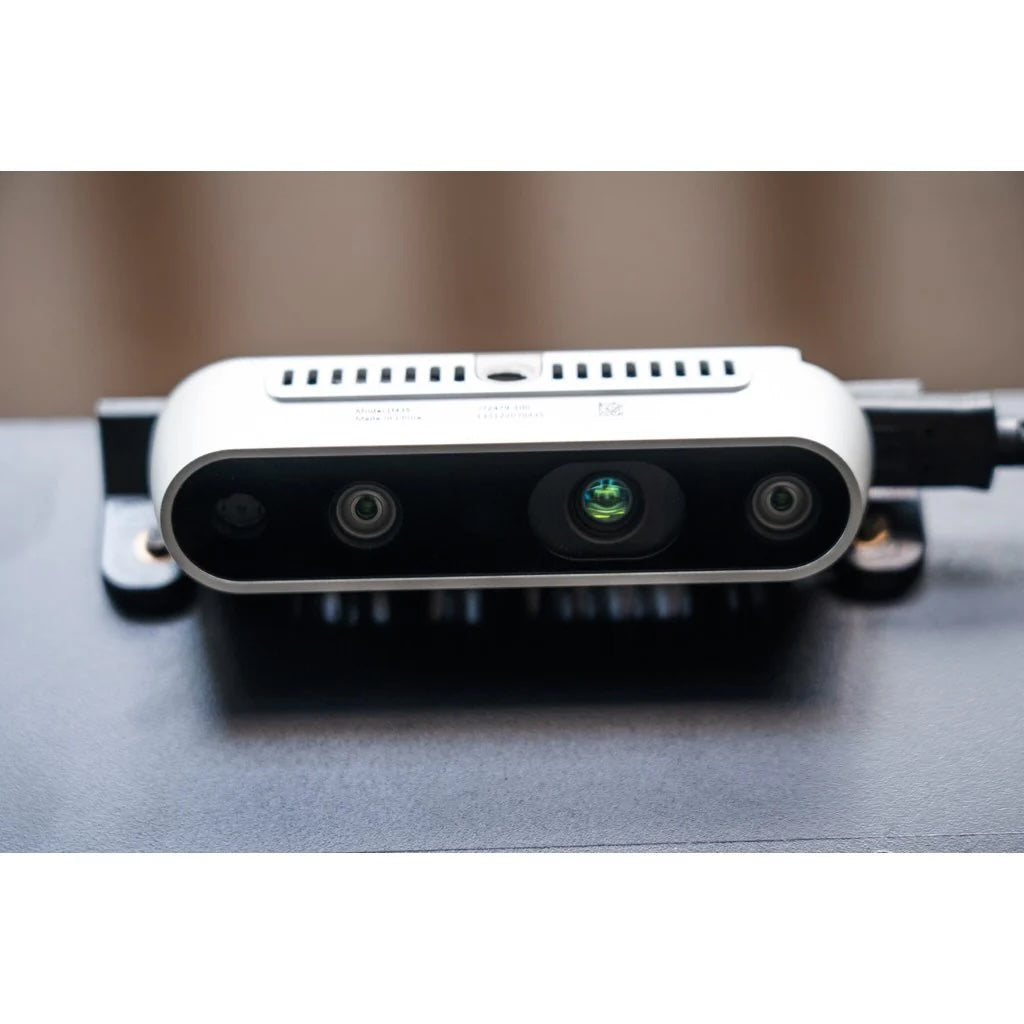

Adds Intel RealSense™ 3D Camera & Autofocus |
Pro users, advanced creators |
| Muse Titan |
75W / 90W / 100W |
48" x 24" |
Large-format, industrial-level cutting/engraving |
Businesses, makerspaces, production runs |
