Full Spectrum Laser

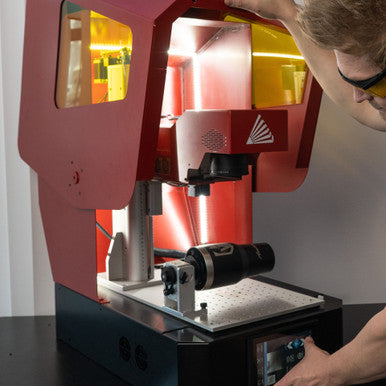

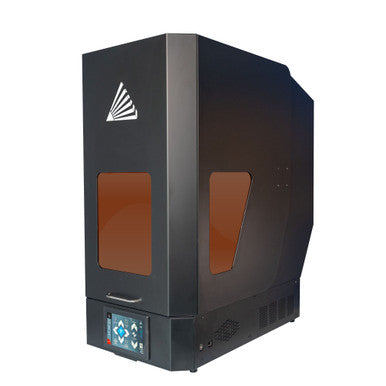

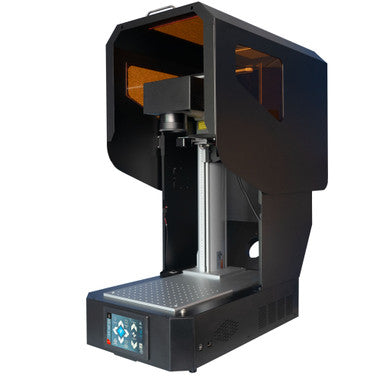

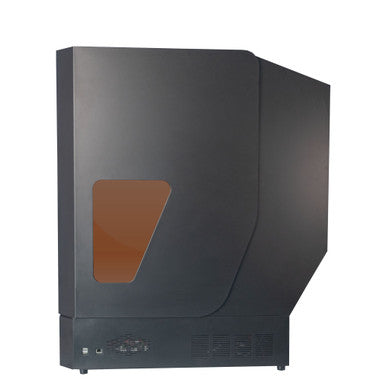

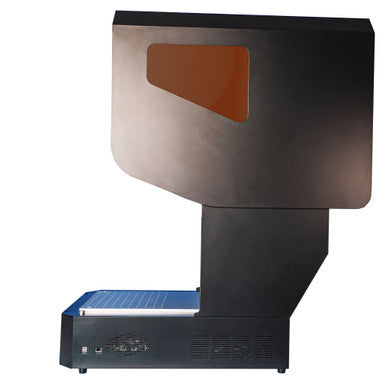

FSL Muse Galvo – UV Fiber Laser Engraver
SKU: MOPA-20
Description
Overview
The FSL Muse Galvo is a high-speed, precision fiber and UV laser engraver engineered for direct marking on metals, plastics, and coated materials. Unlike CO₂ lasers that cut and engrave organic materials, the Galvo specializes in industrial marking applications where durability, speed, and accuracy are critical.
With its galvanometer (Galvo) head system, the Muse Galvo delivers ultra-fast engraving by directing mirrors to position the laser beam—resulting in speeds far beyond traditional gantry systems. It’s ideal for serial numbers, barcodes, jewelry, tools, promotional items, and custom manufacturing work.
- Applications: Compatible with barcode/serial marking, jewelry engraving, industrial part identification
Shipping Notice:
This product is not eligible for free shipping.
Flat Freight Rate: $449 (discounted rate).
Key Features
-
Galvo-driven laser system – rapid marking with minimal mechanical movement
-
UV and fiber laser options for different materials and industries
-
Permanent marking on metals, plastics, glass, and more
-
High-resolution engraving for barcodes, QR codes, text, and fine logos
-
Compact desktop design with professional-grade performance
-
Low-maintenance sealed laser source with long operational lifespan
-
Compatible with RetinaEngrave v3.0 software for intuitive design and laser control
-

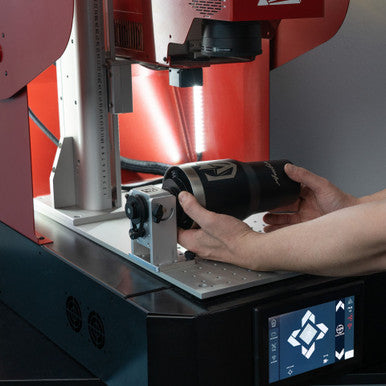

Rotary attachment compatibility for rings, tumblers, and cylindrical objects
-
No consumables required for most applications (fiber/UV marking is direct, not additive)
Supported Materials
-
Metals: Stainless steel, aluminum, titanium, brass, copper, gold, silver (engraving/marking)
-
Plastics & Polymers: ABS, polycarbonate, acrylic, and other industrial plastics
-
Glass & Ceramics: Surface marking and etching
-
Coated Surfaces: Anodized aluminum, painted metals, coated plastics
⚠️ Unlike CO₂ lasers (Muse Core, Muse 3D, Titan), the Muse Galvo does not cut organic materials like wood or fabric. It is purpose-built for marking/engraving rather than cutting.
What’s in the Box
-
FSL Muse Galvo UV/Fiber Laser Engraver
-
Work table/platform
-
Power cable & connection accessories
-
Quick start guide and manuals
⚠️ Note: Fume extraction is strongly recommended for safe operation. Rotary attachment sold separately.
Technical Specifications
| Category | Details |
|---|---|
| Laser Type | Fiber or UV Galvo system |
| Laser Power | Typically 20W–30W (varies by configuration) |
| Engraving Area | ~4” x 4” to 8” x 8” (varies by lens) |
| Resolution | High precision – ideal for barcodes, text, fine logos |
| Speed | Significantly faster than gantry-based CO₂ lasers |
| Software | RetinaEngrave v3.0 (browser-based, self-hosted) |
| OS Compatibility | Windows, Mac, Linux |
| Connectivity | WiFi, Ethernet |
| Lifespan | Fiber/UV source rated for tens of thousands of hours |
| Power | AC 110V / 220V (varies by model) |
Comparable Models
| Model | Laser Power | Work Area | Unique Features | Best For |
|---|---|---|---|---|
| Muse Core | 40W / 45W CO₂ | 20" x 12" | Desktop CO₂ laser for cutting/engraving organics | Hobbyists, small shops |
| Muse 3D | 40W / 45W CO₂ | 20" x 12" | Adds 3D camera & autofocus | Pro users, complex projects |
| Muse Titan | 75W / 90W / 100W CO₂ | 48" x 24" | Industrial-scale CO₂ cutting & engraving | Large-format, production runs |
| Muse Galvo | 20W–30W Fiber/UV | 4–8" field | High-speed permanent marking on metals/plastics | Industrial marking, jewelry, tools |
Customer Resources
📄 User Manual
📄 RetinaEngrave v3.0 Manual
▶️ Video: Tutorial
📧 U.S. Support Team: Direct manufacturer assistance troubleshooting. Email them at support@fslaser.com
