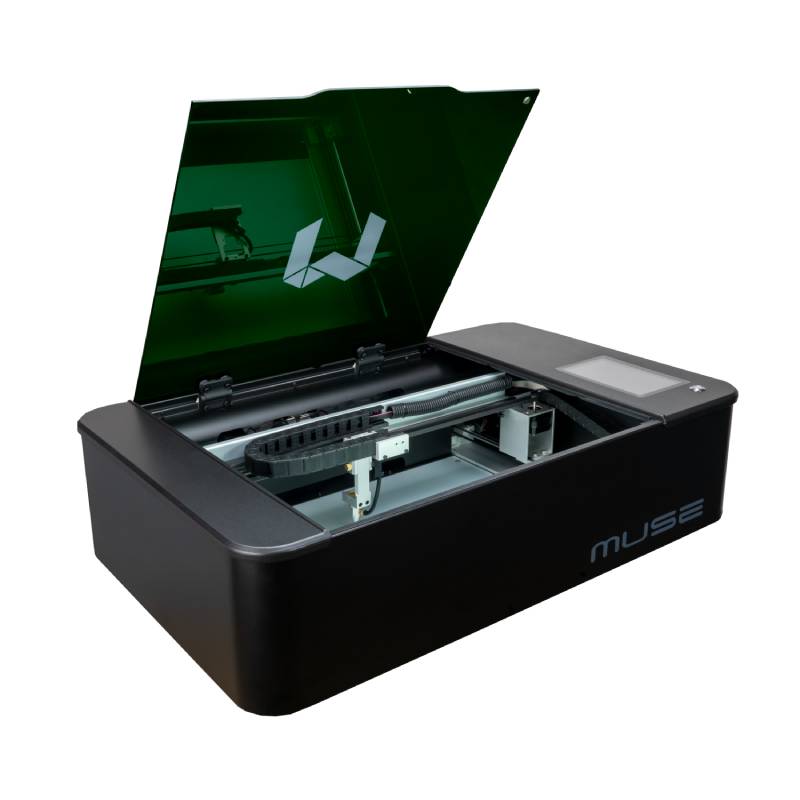

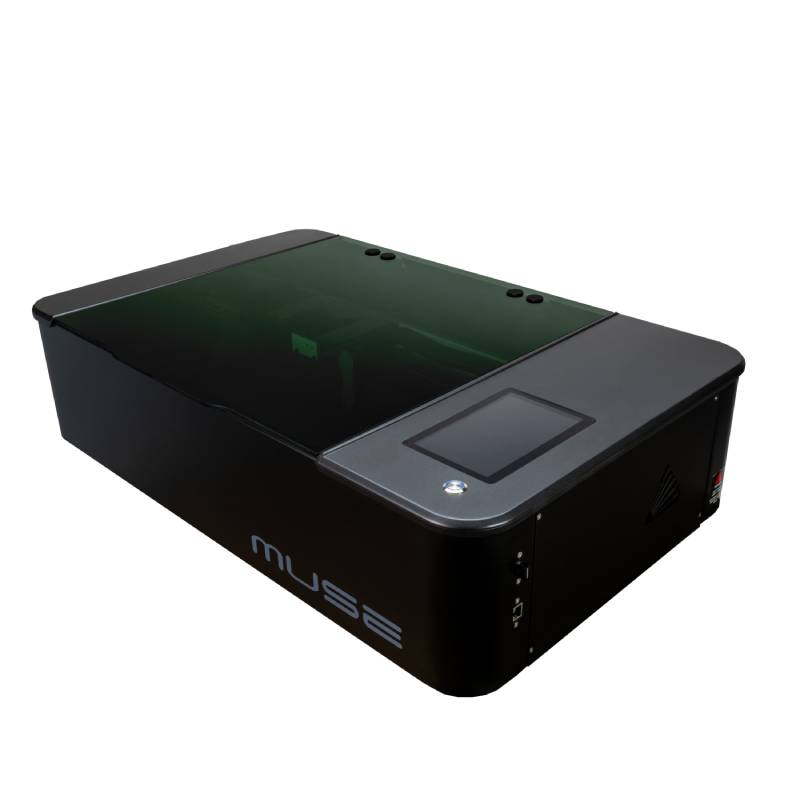

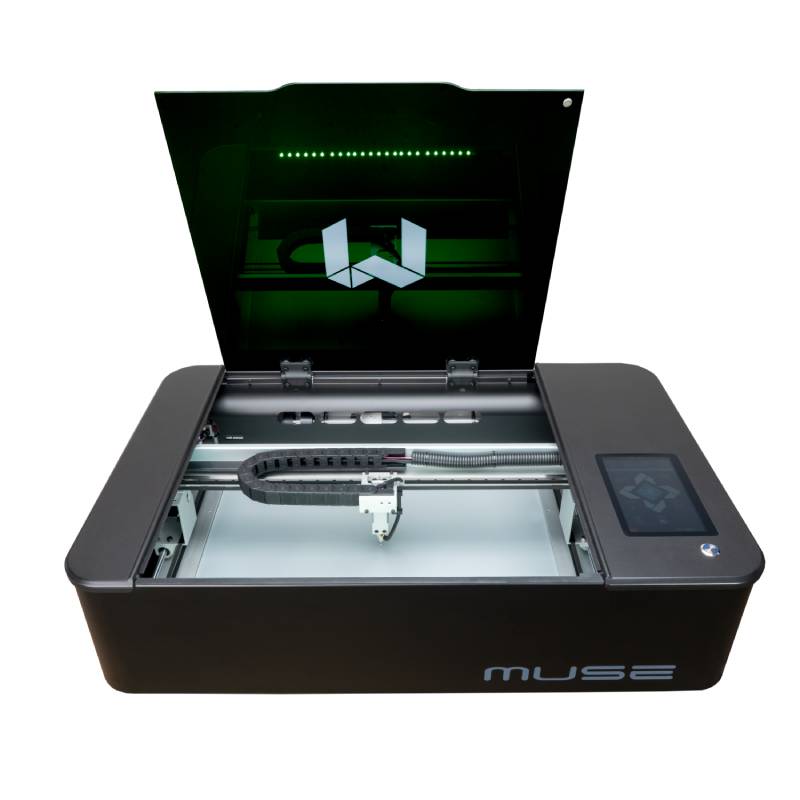

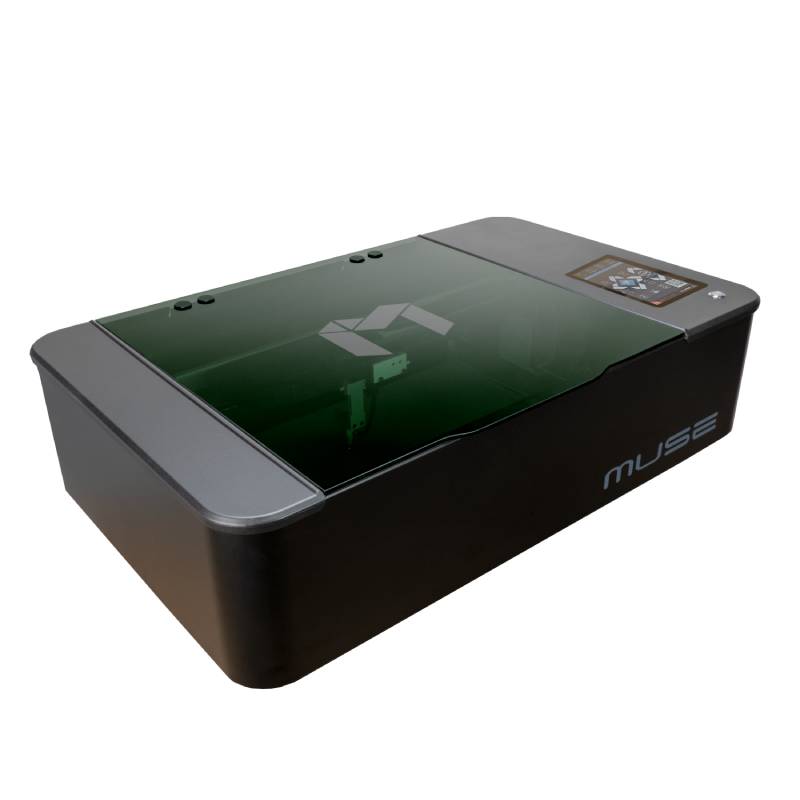

The FSL Muse 3D is a next-generation desktop CO₂ laser cutter and engraver designed for creators, professionals, and small businesses who demand precision and flexibility. Built on the trusted Muse Core platform, the Muse 3D adds advanced features such as Intel® RealSense™ 3D camera vision and motorized real-time autofocus. These upgrades unlock the ability to handle curved, uneven, or multi-thickness materials with unmatched accuracy.
With its 20" x 12" (508mm x 305mm) work area, sturdy metal construction, and browser-based RetinaEngrave v3.0 software, the Muse 3D empowers you to create professional-quality results on wood, acrylic, glass, leather, fabric, stone, and more—all from the convenience of your desktop.
Key Features
Intel® RealSense™ 3D Camera – scans millions of 3D data points for pixel-accurate cutting and engraving.
Motorized Real-Time Autofocus – automatically adjusts for varying material heights.

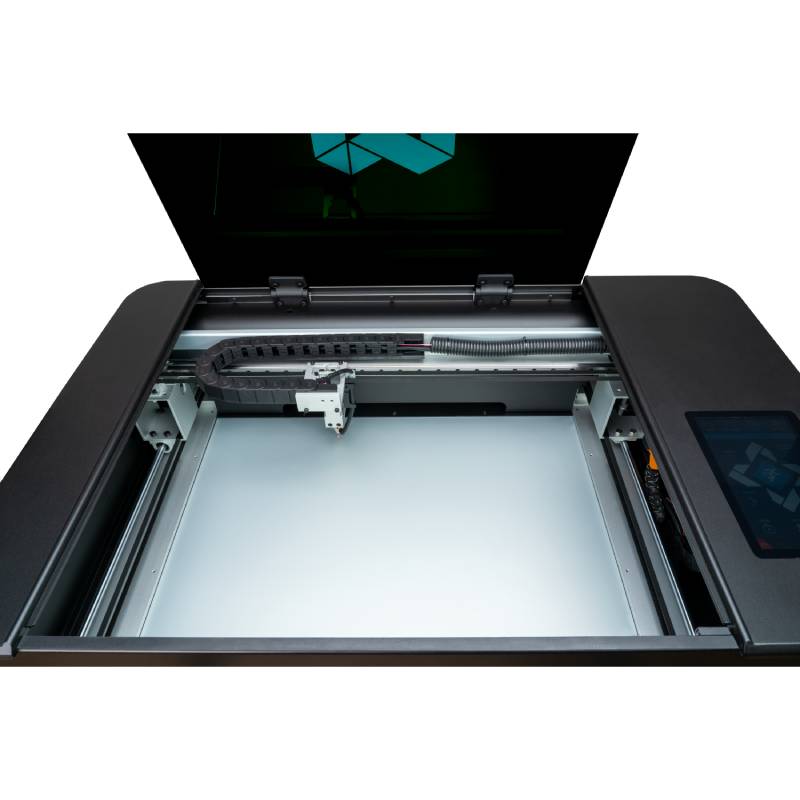

20" x 12" work area with patented removable floor for oversized material.
RetinaEngrave v3.0 software – self-hosted, browser-based laser control and design suite (no downloads required).

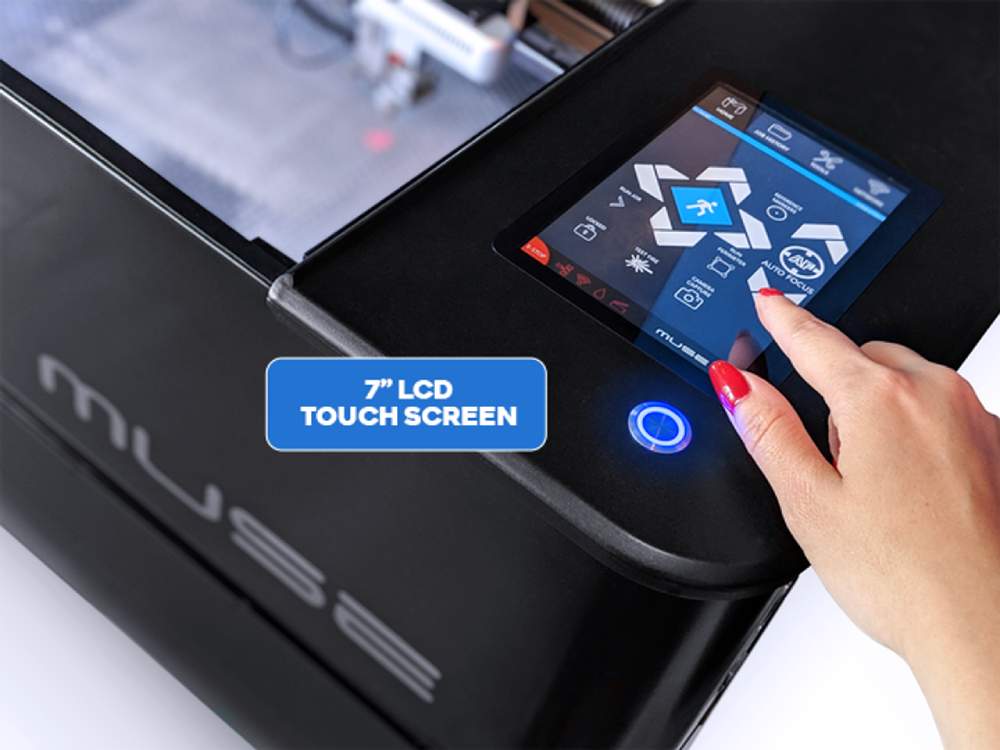

7” LCD Touchscreen – onboard control for easy project setup and monitoring.
Engraving resolution up to 1000 dpi for crisp detail and photo-quality images.
Cuts up to ¼” material depending on type and settings.

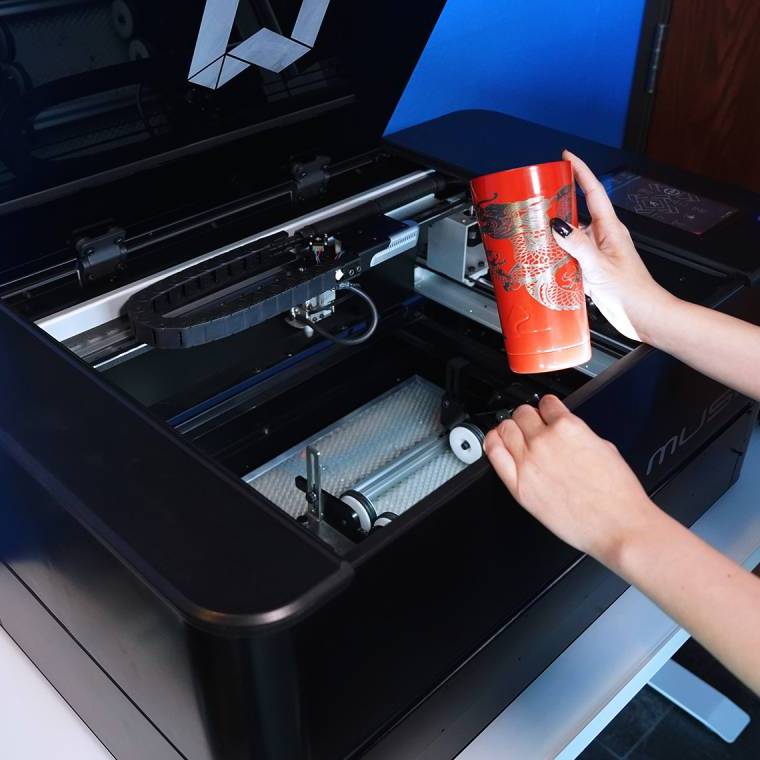

Rotary attachment compatibility for tumblers, bottles, and cylindrical objects.
Upgradeable accessories including riser base, focus lenses, and fume extraction.
Cross-platform compatibility (Windows, Mac, Linux) with WiFi/Ethernet connectivity.
Advanced Technology
True 3D Vision: Unlike standard 2D cameras, the RealSense™ 3D system maps depth and adjusts focus in real-time. Perfect for engraving curved or warped surfaces.
Autofocus Precision: Automatically sets the correct focal point across variable thickness materials, speeding up workflow.
Self-Hosted Control Software: RetinaEngrave v3.0 runs directly on the machine, accessed via any browser. Import designs in JPG, PNG, BMP, TIFF, SVG, DXF, or DWG.

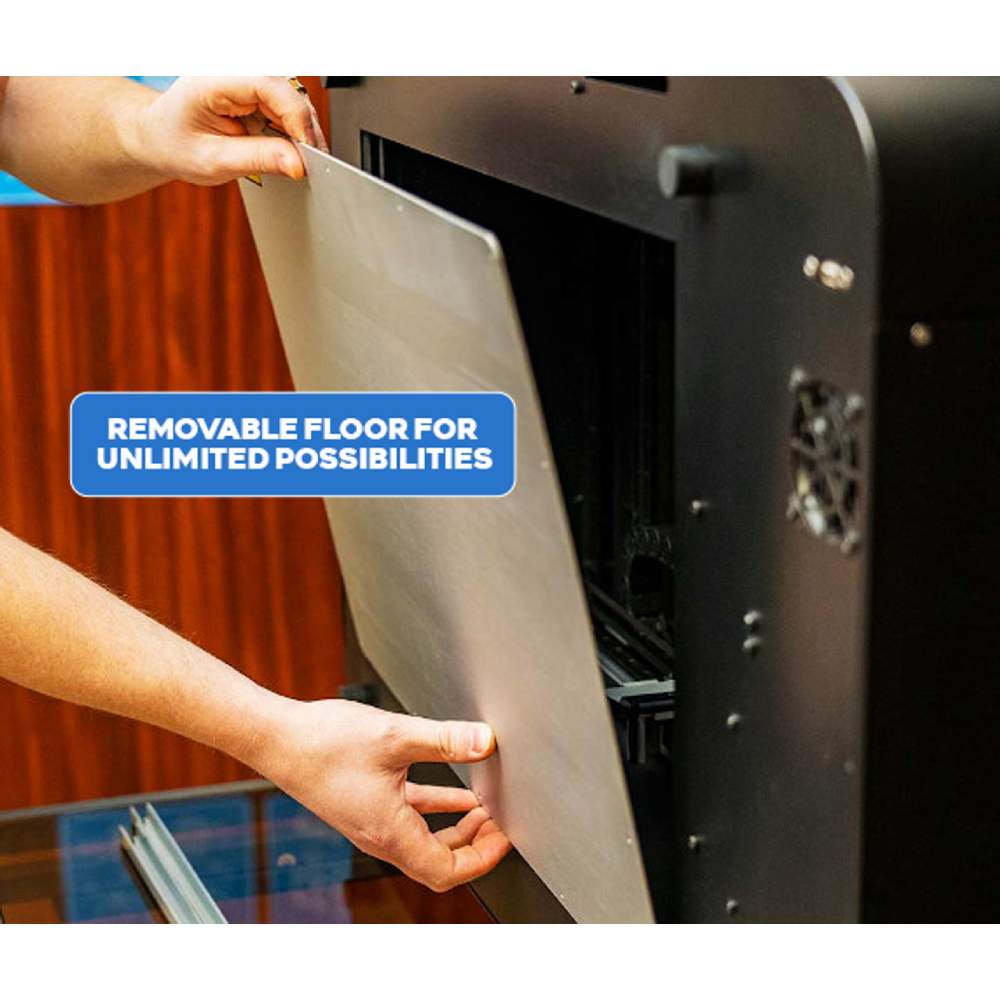

Removable Floor: Extend your work area by dropping the floor panel, accommodating larger projects and thicker stock.
Ideal for signage, prototypes, product customization, home décor, fashion, and more.
What’s in the Box
FSL Muse 3D Desktop CO₂ Laser Cutter (40W or 45W)
Honeycomb work table
2.0” lens
LCD Touchscreen
Exhaust duct & clamps
Ethernet cable & power cord
Setup tubing and hardware accessories
Quick start guide and manuals
⚠️ Note: Cooling system (Muse Coolbox or water pump/air compressor) sold separately. Proper fume extraction (such as BOFA systems) is strongly recommended.
Technical Specifications
Category
Details
Work Area
20” x 12” (508 x 305 mm)
Z-Height
2.5”
Machine Size
32.3” x 20.3” x 8.5” (820 x 515 x 215 mm)
Weight
54 lbs (24.5 kg)
Laser Type
Sealed CO₂ Tube
Laser Power
40W or 45W
Resolution
Up to 1000 dpi
Software
RetinaEngrave v3.0 (browser-based)
File Formats
JPG, PNG, BMP, TIFF, SVG, DXF, DWG
Connectivity
WiFi (802.11n), Ethernet
OS Compatibility
Windows, Mac, Linux
Operating Temp
0°–45°C
Power
AC 110V, <1000W consumption
Comparable Models
Model
Laser Power
Work Area
Unique Features
Best For
Muse Core
40W / 45W
20" x 12"
Standard desktop CO₂ laser, removable floor, RetinaEngrave v3.0
Entry-level, hobbyists, small shops
Muse 3D
40W / 45W
20" x 12"
Adds 3D camera + autofocus for curved/uneven materials
Pro users, advanced creators, product personalization
Muse Titan
75W / 90W / 100W
48" x 24"
Industrial-grade, full-sheet capability, higher power
