Overview

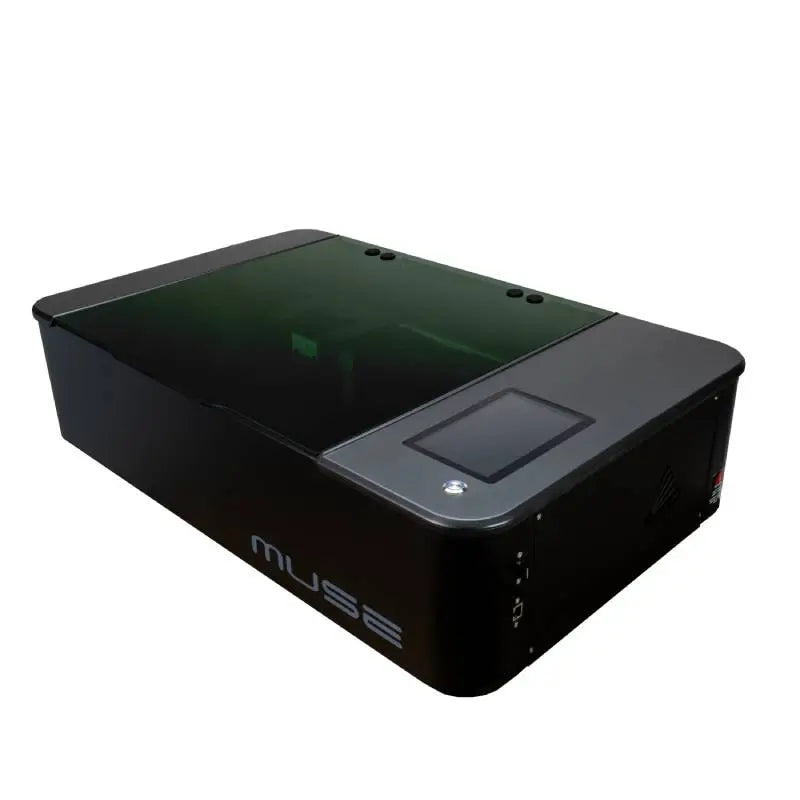

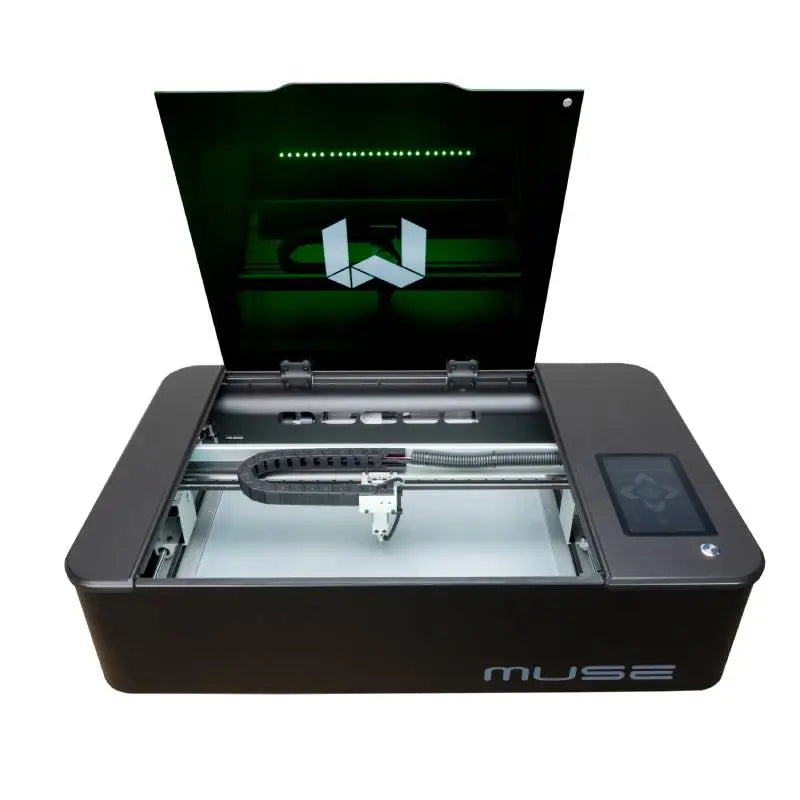

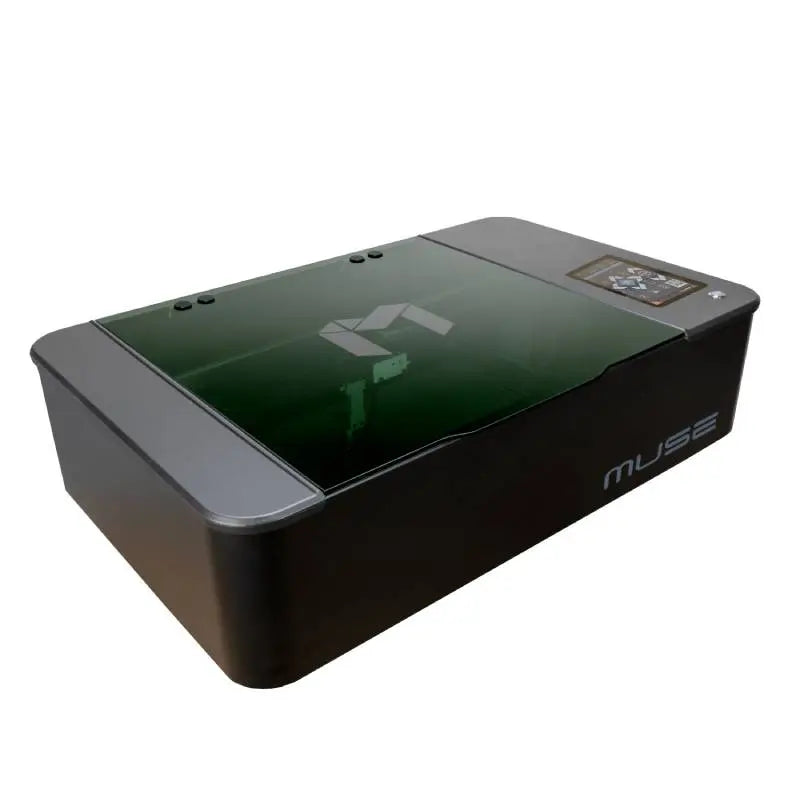

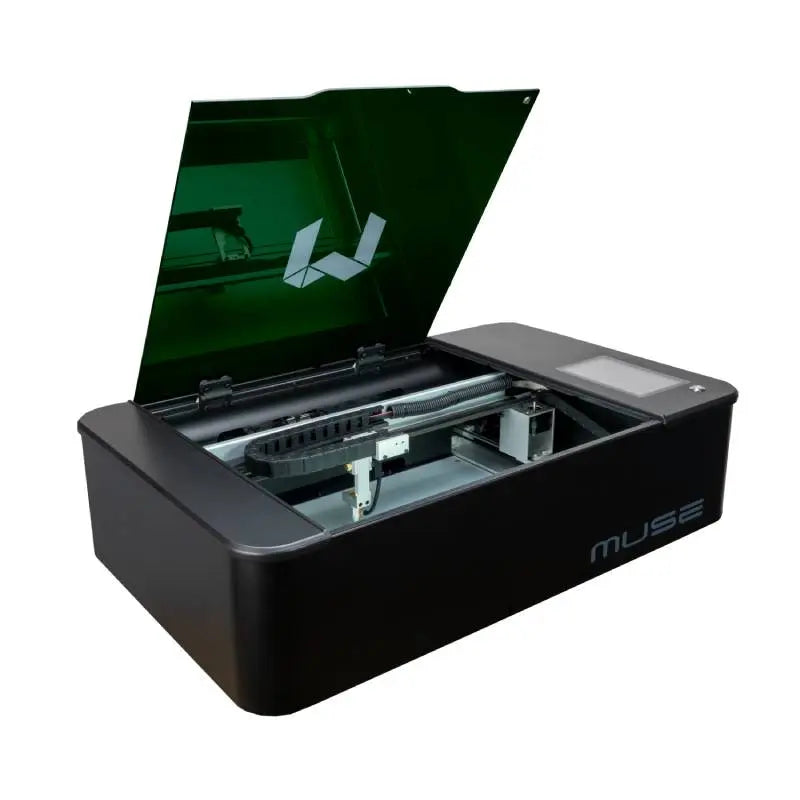

The FSL Muse 3D is a next-generation desktop CO₂ laser cutter and engraver designed for creators, professionals, and small businesses who demand precision and flexibility. Built on the trusted Muse Core platform, the Muse 3D adds advanced features such as Intel® RealSense™ 3D camera vision and motorized real-time autofocus. These upgrades unlock the ability to handle curved, uneven, or multi-thickness materials with unmatched accuracy.
With its 20" x 12" (508mm x 305mm) work area, sturdy metal construction, and browser-based RetinaEngrave v3.0 software, the Muse 3D empowers you to create professional-quality results on wood, acrylic, glass, leather, fabric, stone, and more—all from the convenience of your desktop.
Key Features
-
Intel® RealSense™ 3D Camera – scans millions of 3D data points for pixel-accurate cutting and engraving.
-
Motorized Real-Time Autofocus – automatically adjusts for varying material heights.
-

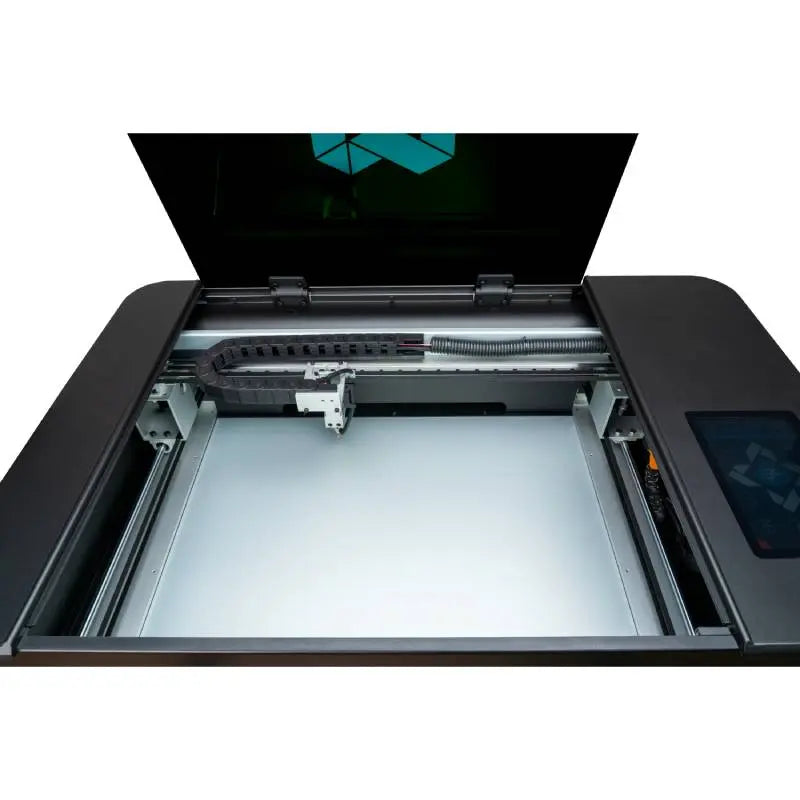

20" x 12" work area with patented removable floor for oversized material.
-
RetinaEngrave v3.0 software – self-hosted, browser-based laser control and design suite (no downloads required).
-

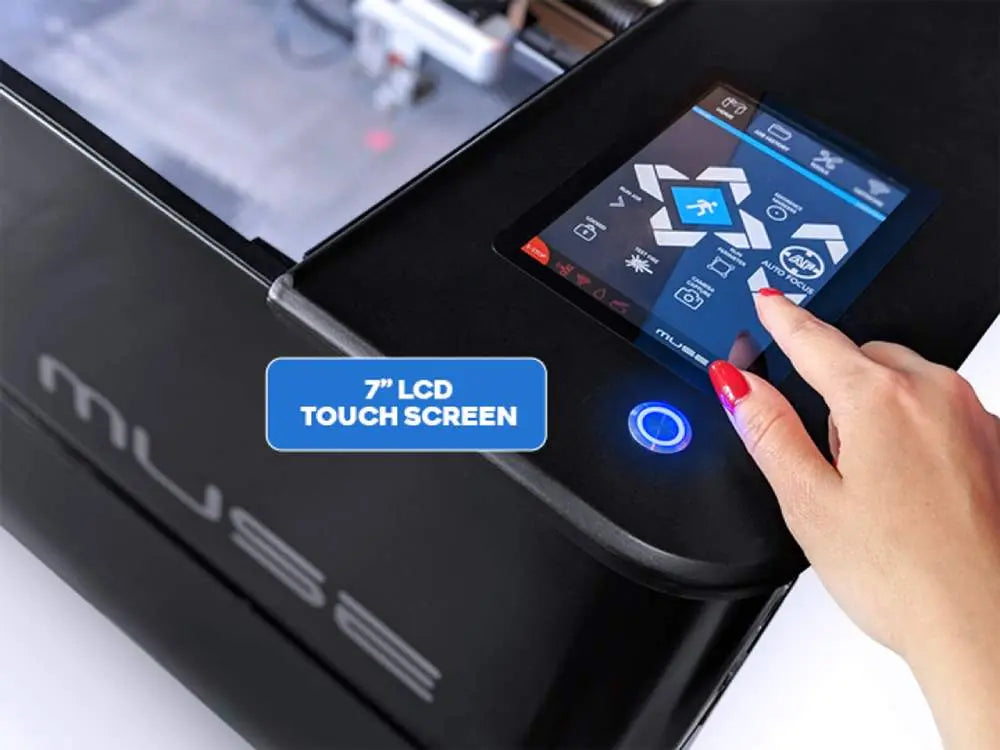

7” LCD Touchscreen – onboard control for easy project setup and monitoring.
-
Engraving resolution up to 1000 dpi for crisp detail and photo-quality images.
-
Cuts up to ¼” material depending on type and settings.
-

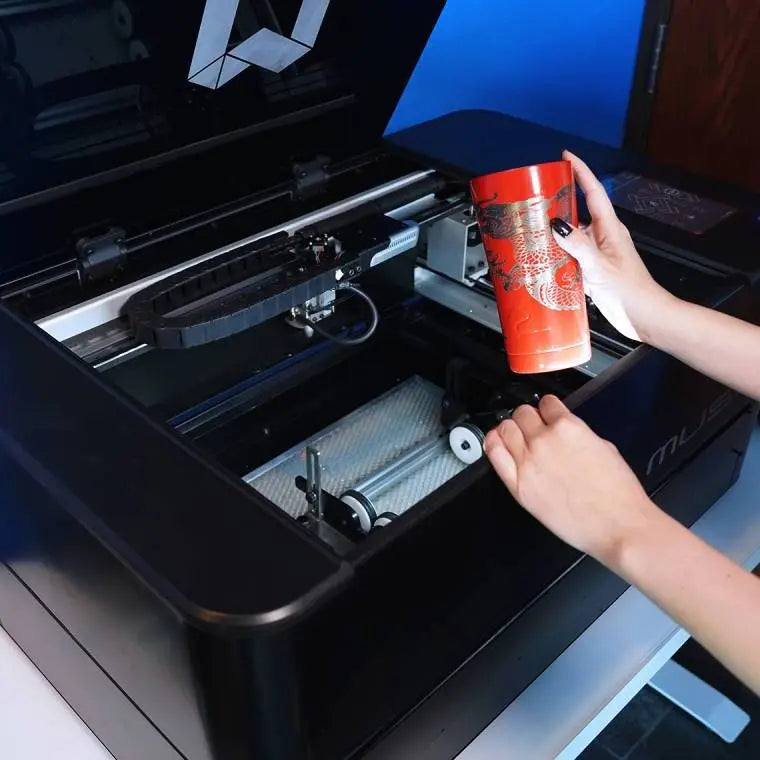

Rotary attachment compatibility for tumblers, bottles, and cylindrical objects.
-
Upgradeable accessories including riser base, focus lenses, and fume extraction.
-
Cross-platform compatibility (Windows, Mac, Linux) with WiFi/Ethernet connectivity.
Advanced Technology
-
True 3D Vision: Unlike standard 2D cameras, the RealSense™ 3D system maps depth and adjusts focus in real-time. Perfect for engraving curved or warped surfaces.
-
Autofocus Precision: Automatically sets the correct focal point across variable thickness materials, speeding up workflow.
-
Self-Hosted Control Software: RetinaEngrave v3.0 runs directly on the machine, accessed via any browser. Import designs in JPG, PNG, BMP, TIFF, SVG, DXF, or DWG.
-

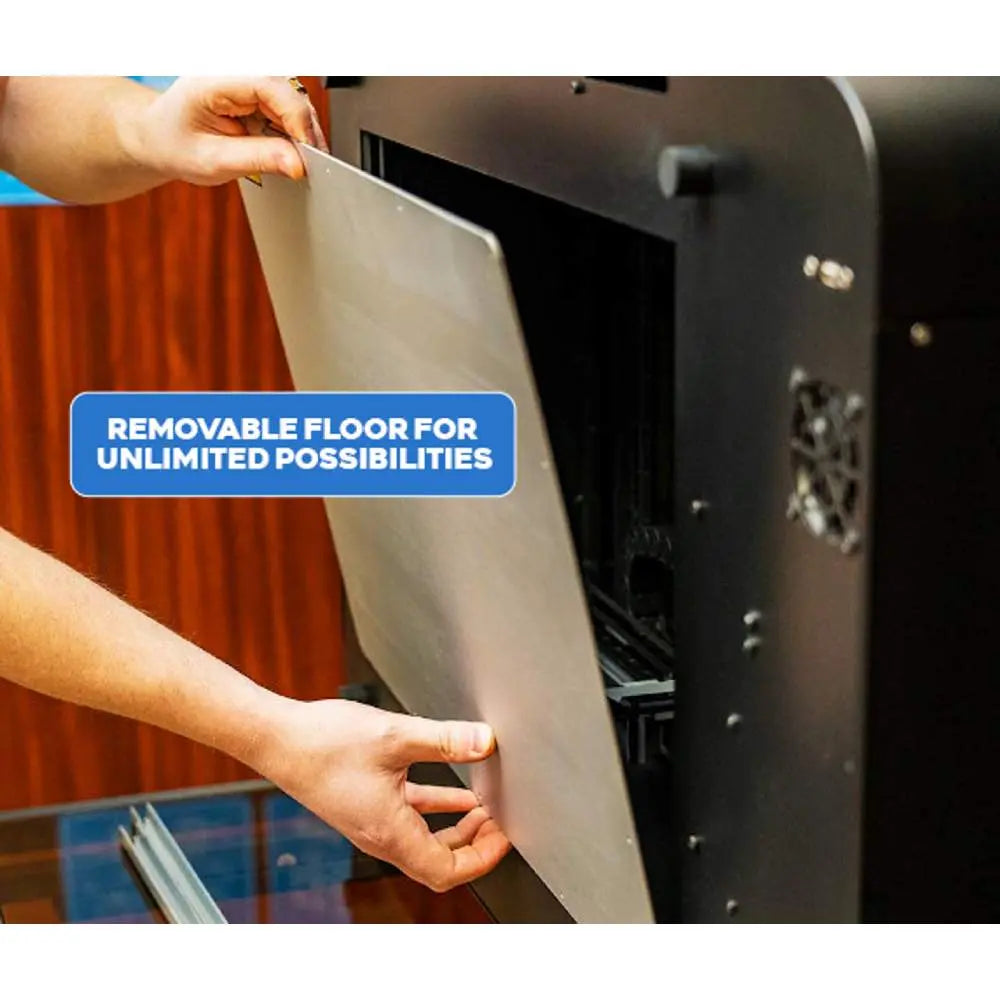

Removable Floor: Extend your work area by dropping the floor panel, accommodating larger projects and thicker stock.
Supported Materials
-
Cut & Engrave: Wood, acrylic, fabric, paper, cardboard, leather, rubber.
-
Engrave Only: Glass, stone, ceramics, anodized metals.
-
Ideal for signage, prototypes, product customization, home décor, fashion, and more.
-
Design Resources: Compatible with Adobe Illustrator, CorelDRAW, Inkscape, SVG libraries, and more
What’s in the Box
-
FSL Muse 3D Desktop CO₂ Laser Cutter (40W or 45W)
-
Honeycomb work table
-
2.0” lens
-
LCD Touchscreen
-
Exhaust duct & clamps
-
Ethernet cable & power cord
-
Setup tubing and hardware accessories
-
Quick start guide and manuals
⚠️ Note: Cooling system (Muse Coolbox or water pump/air compressor) sold separately. Proper fume extraction (such as BOFA systems) is strongly recommended.
Technical Specifications
| Category |
Details |
| Work Area |
20” x 12” (508 x 305 mm) |
| Z-Height |
2.5” |
| Machine Size |
32.3” x 20.3” x 8.5” (820 x 515 x 215 mm) |
| Weight |
54 lbs (24.5 kg) |
| Laser Type |
Sealed CO₂ Tube |
| Laser Power |
40W or 45W |
| Resolution |
Up to 1000 dpi |
| Software |
RetinaEngrave v3.0 (browser-based) |
| File Formats |
JPG, PNG, BMP, TIFF, SVG, DXF, DWG |
| Connectivity |
WiFi (802.11n), Ethernet |
| OS Compatibility |
Windows, Mac, Linux |
| Operating Temp |
0°–45°C |
| Power |
AC 110V, <1000W consumption |
Comparable Models
| Model |
Laser Power |
Work Area |
Unique Features |
Best For |
| Muse Core |
40W / 45W |
20" x 12" |
Standard desktop CO₂ laser, removable floor, RetinaEngrave v3.0 |
Entry-level, hobbyists, small shops |
| Muse 3D |
40W / 45W |
20" x 12" |
Adds 3D camera + autofocus for curved/uneven materials |
Pro users, advanced creators, product personalization |
| Muse Titan |
75W / 90W / 100W |
48" x 24" |
Industrial-grade, full-sheet capability, higher power |
Businesses needing high-volume production |
Customer Resources
📄 User Manual
📄 RetinaEngrave v3.0 Manual
▶️ Video: Tutorial
📧 U.S. Support Team: Direct manufacturer assistance troubleshooting. Email them at support@fslaser.com
