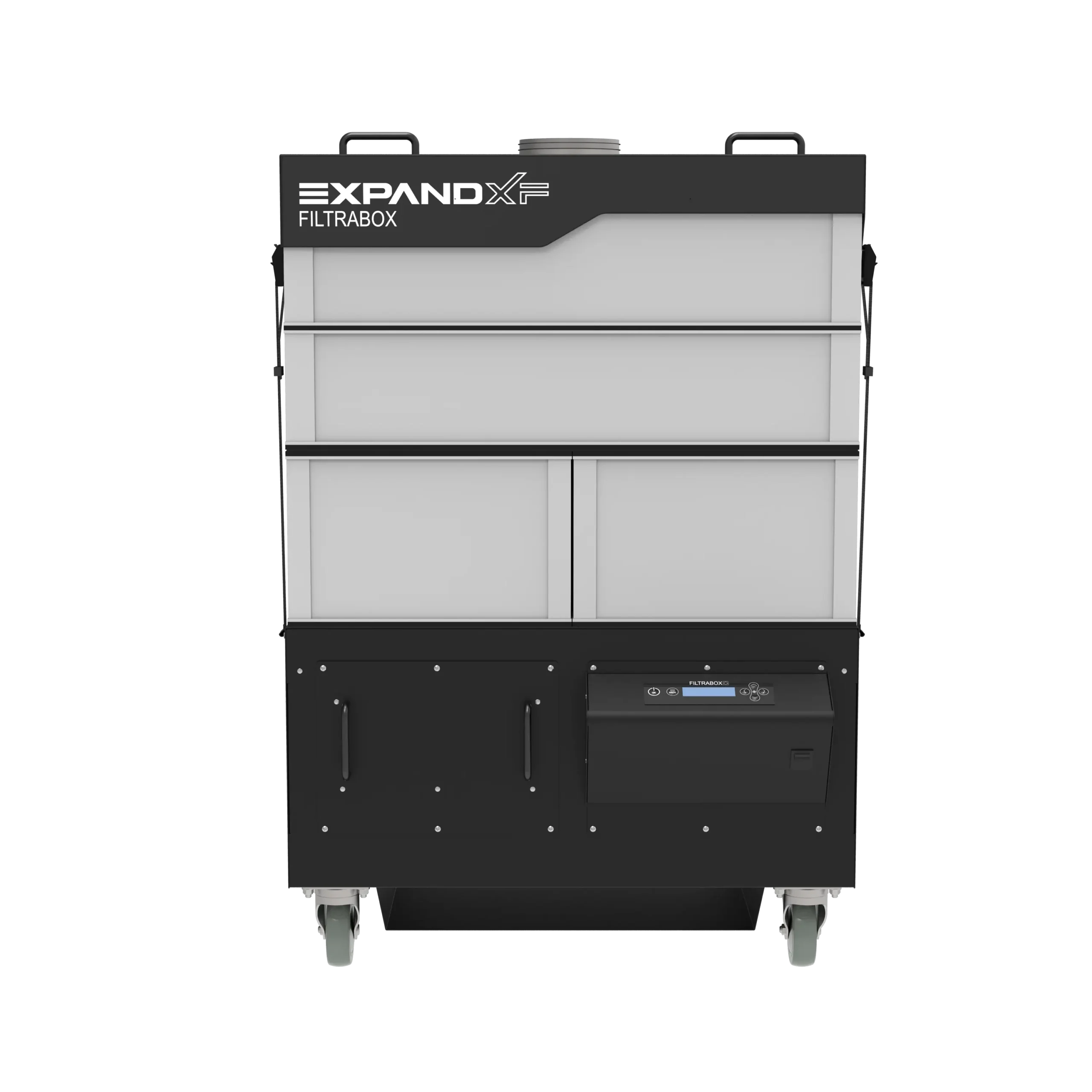

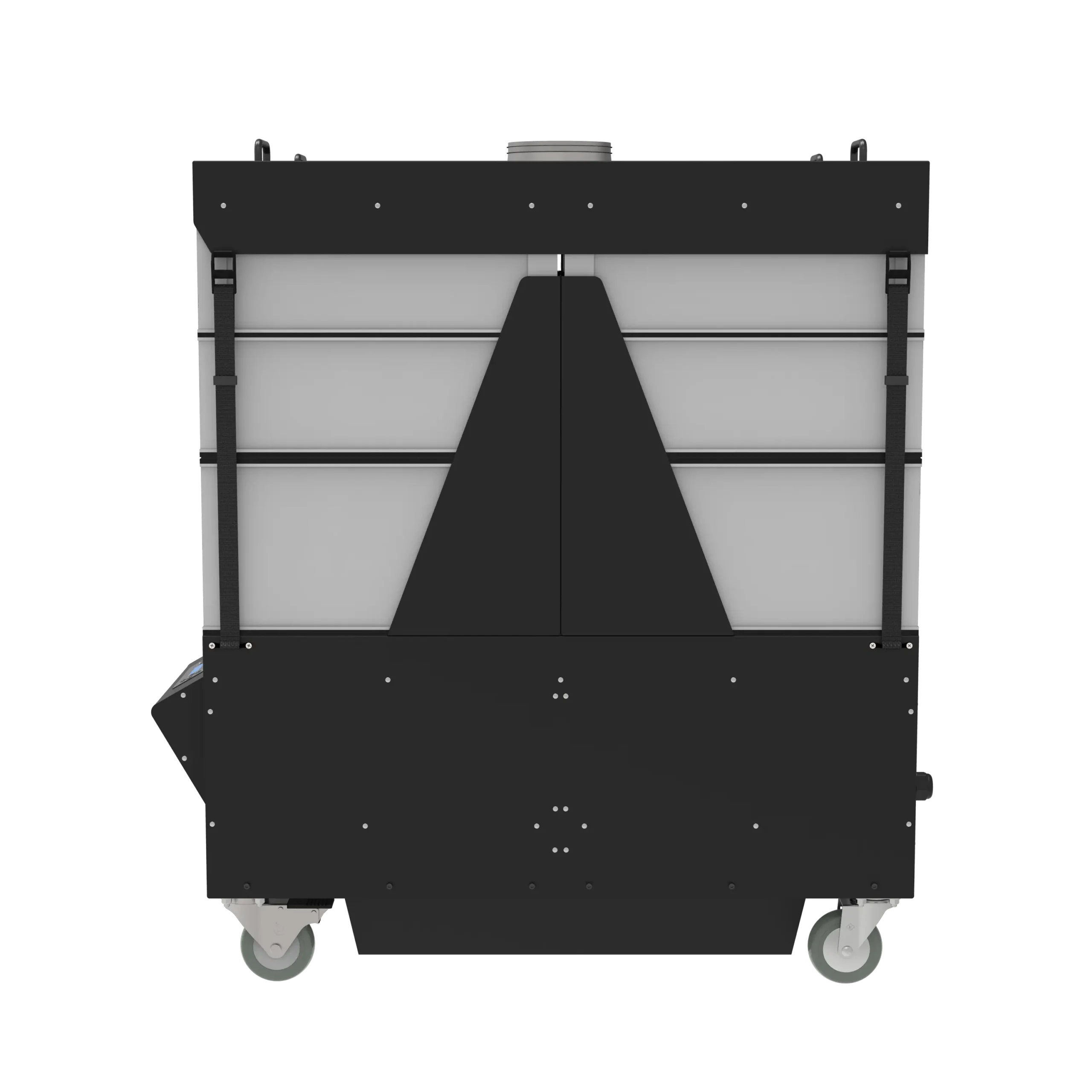

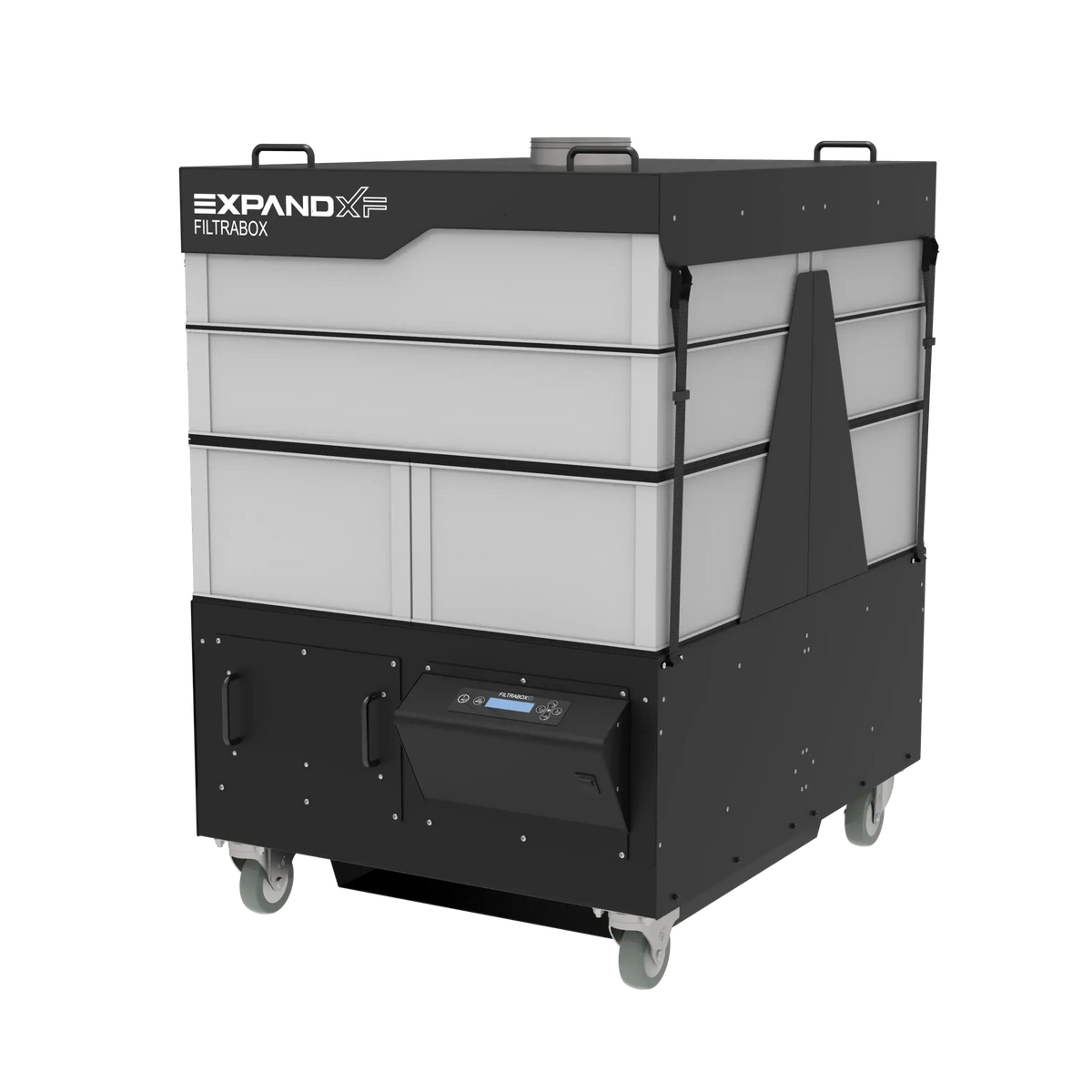

Filtrabox Expand XF Series – Industrial High-Capacity Fume Extraction (XF-3 / XF-4 / XF-5 / XF-6)

The Filtrabox Expand XF Series delivers maximum airflow, oversized filtration capacity, and industrial-strength extraction performance designed for demanding laser, fabrication, and manufacturing environments. All XF systems include triple-stage filtration, EZ-Link laser connectivity, and automatic airflow control, ensuring constant performance even as filters load.

Engineered for continuous duty cycles and high particulate output, the XF lineup is ideal for high-power lasers, large-format engravers/cutters, and industrial workspaces requiring reliable air purification.

Overview

• Extra Flow / Extra Filter Capacity – The XF Series uses significantly larger filter modules and multiple synchronized blowers to deliver aggressive airflow suited for heavy-duty extraction.

• Triple-Stage Filtration – Includes a rigid aluminum Pre-Filter, a rigid aluminum HEPA Filter (99.999% @ 0.3 µm), and a high-capacity Molecular Gas Filter with activated carbon + KMnO₄ oxidizers.

• Automatic Flow Control – Embedded sensors automatically increase blower speed to maintain target airflow throughout filter loading.

• Industrial Performance – Heavy-gauge casters, steel construction, and modular filter bays designed for high-use environments.

• EZ-Link Connectivity – Allows direct communication with compatible laser systems for coordinated operation.

Model Comparison – Airflow & Blower Configuration

All models share the same filtration stages and cartridge sizes. The primary difference is blower count, which determines maximum airflow output.

Source: All airflow, blower counts, and specs verified from brochures (pages with “Technical Specification”) .

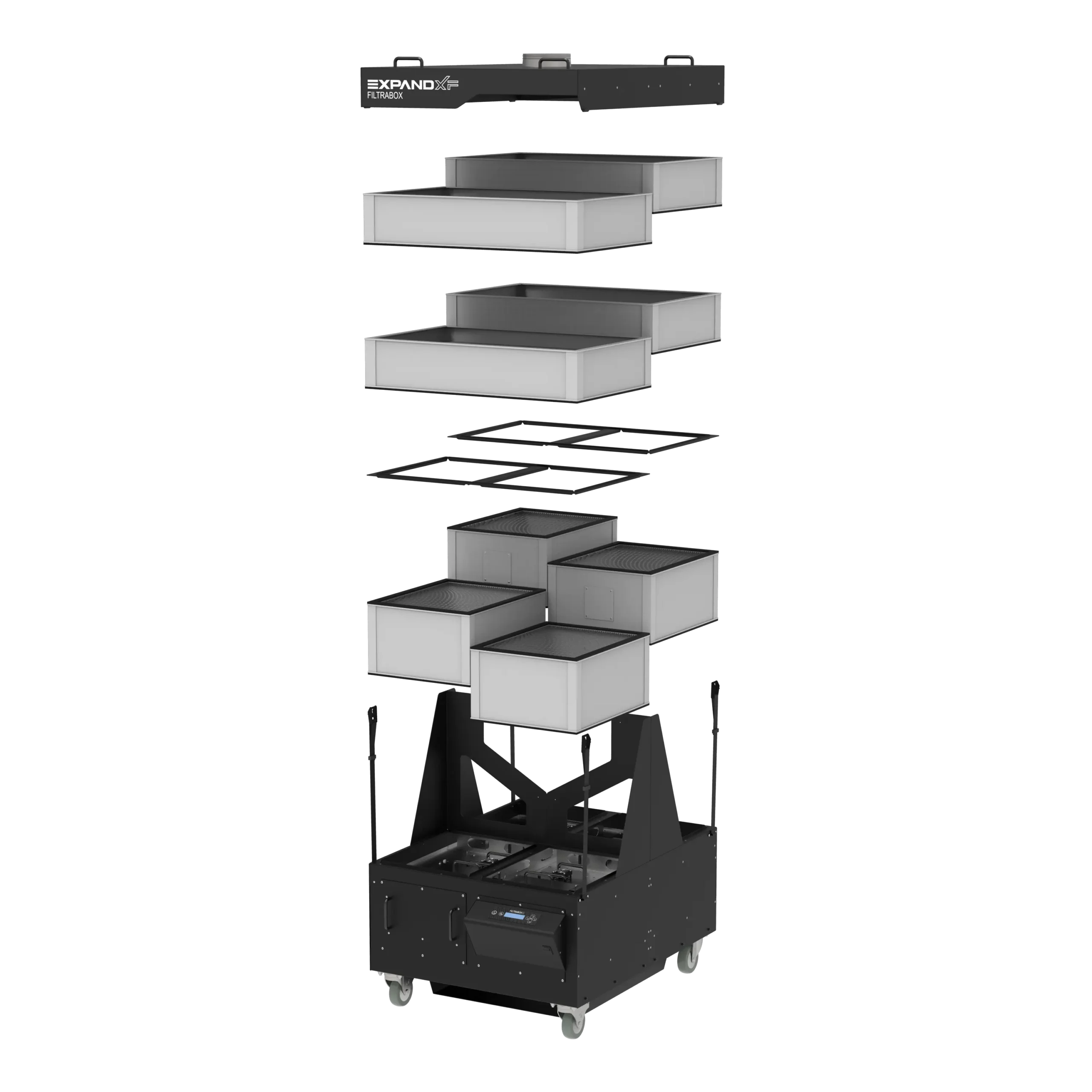

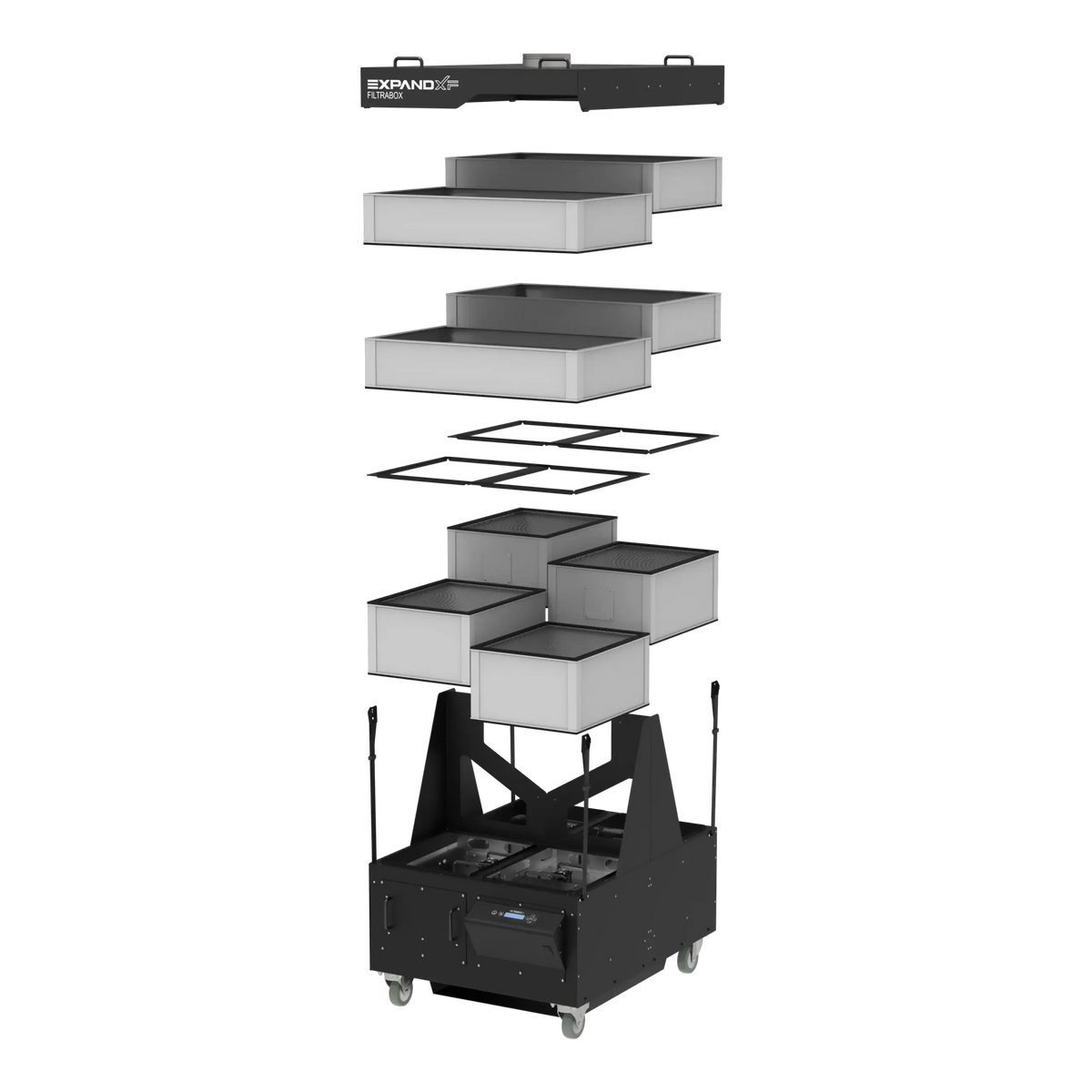

Filtration System

Each XF unit includes:

1. Pre-Filter Set (Rigid Aluminum) – F9
Captures the majority of fine laser dust and particulate matter.

2. HEPA Filter Set – 99.999% @ 0.3 µm
Medical-grade filtration for ultra-fine respirable dust.

3. Chemical Cartridge Set – 240 lb Media
Activated coconut carbon + KMnO₄ oxidizers for VOC and odor removal.

(All three stages confirmed identical in all XF brochures.)

Specifications (All Models Share These)

(Dimensions, noise profile, filter media specs confirmed across all brochures.)

Electrical Specifications by Model

(All electrical tables verified from last page of each brochure.)

Included with Each System

• Pre-Filter Set (pair of cartridges)

• HEPA Filter Set (pair of cartridges)

• Chemical Cartridge Set (four-cartridge pack)

• EZ-Link laser connectivity

• Industrial casters

• Control display module

Recommended Applications

• High-power CO₂ laser cutters

• Industrial fiber laser systems

• Large-format gantry lasers

• Continuous-run manufacturing lines

• Plastics, acrylic, composite, rubber, wood fume extraction

• Environments requiring ultra-clean air and large filter capacity
