Filtrabox Expand X-3 Fume Extraction System

Overview:

Engineered for large-format lasers, CNC machines, and high-volume production, the Filtrabox Expand X-3 delivers exceptional airflow and extended filter capacity in a compact industrial frame. Its triple-stage filtration removes particulates, smoke, and fumes with 99.97% efficiency while maintaining low noise levels and continuous 24/7 duty performance.

The Expand X-3 supports dual 4-inch inlets, digital airflow control, and tool-free maintenance, providing reliable air purification for multi-machine setups and demanding fabrication environments.

Key Features:

• Heavy-Duty Airflow Performance – Ideal for large-format lasers, multi-head engravers, or dual production workstations.

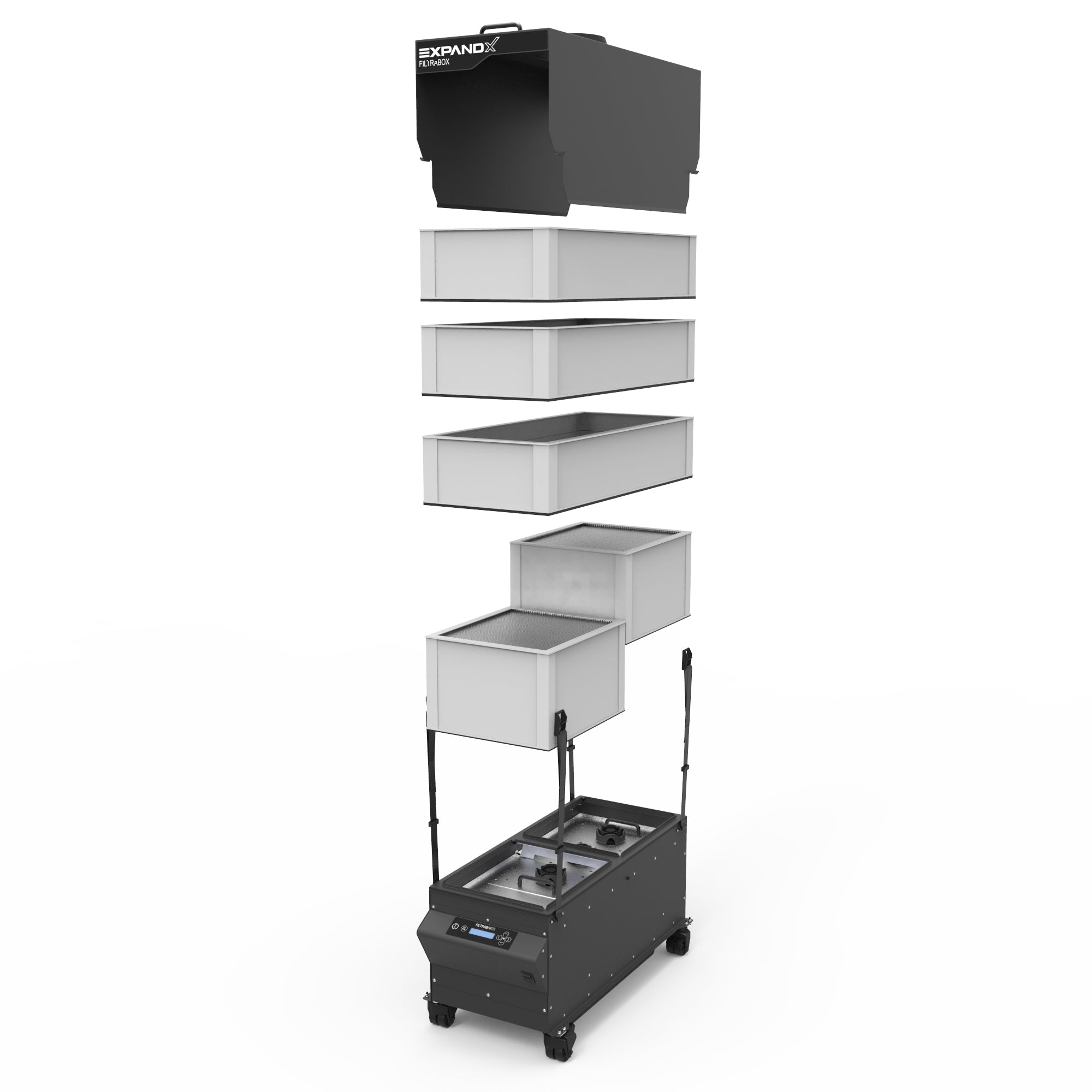

• Triple-Stage Filtration System – Pre-filter, HEPA, and activated carbon layers effectively remove particles and hazardous fumes.

• High-Capacity HEPA Filter – Captures dust and smoke with 99.97% efficiency at 0.3 microns for cleaner air quality.

• Dual 4″ Inlets – Supports multiple machine connections or larger exhaust lines for maximum flexibility.

• Variable Airflow Control – Adjust suction strength precisely for each application via a digital control panel.

• Digital Display Interface – Provides filter life status, airflow metrics, and system diagnostics.

• Quiet, Energy-Efficient Operation – Designed for continuous operation under 60 dB.

• Tool-Free Filter Access – Simplifies filter maintenance and replacements.

• Durable Steel Enclosure – Industrial-grade construction ensures stability and long-term reliability.

• Made in North America – Manufactured to Filtrabox’s professional quality and safety standards.

Specifications:

• Model: ExpandX 3

• Airflow Capacity: 750 m³/h (441 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 60 dB (at full power)

• Motor Type: Brushless variable-speed motor

• Control System: Digital speed and filter life display

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 20″ × 18″ × 22″

• Weight: Approx. 70 lbs (32 kg)

• Housing Material: Powder-coated steel

• Connection Ports: Dual 4″ (102 mm) diameter inlets

• Compatible Equipment: Large-format laser cutters, CNC routers, and industrial additive manufacturing systems

Applications:

• Large-format laser engraving and cutting systems

• Dual-station or multi-head laser setups

• Industrial 3D printing and additive manufacturing

• CNC machining, composite sanding, and material processing

Warranty:

• 1-Year Manufacturer Warranty (parts and labor)
