Donaldson BOFA - FumeCAB 700 (Fume Extraction Cabinet) - Includes UV Lighting and VOC (1U42003180850561-1447)

Includes UV Lighting and VOC Monitoring for Advanced Process Control

Overview

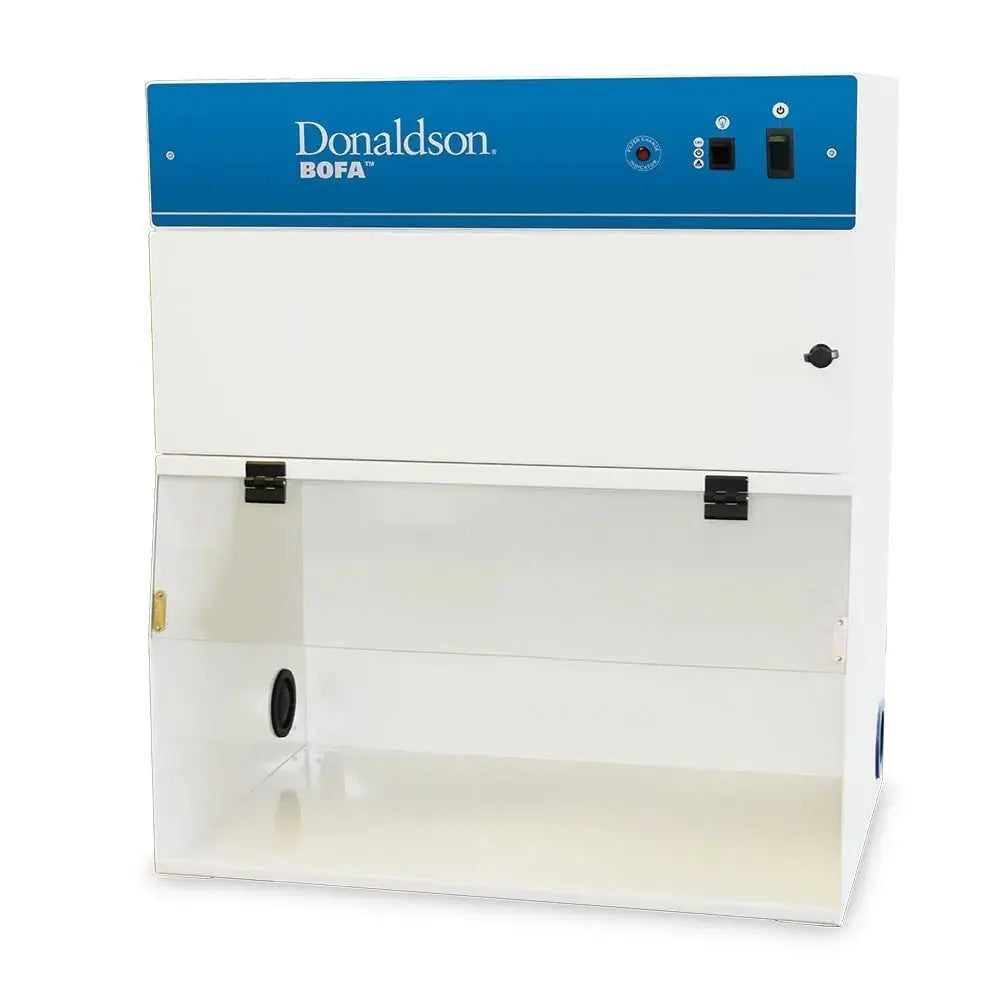

The Donaldson BOFA FumeCAB 700 is a versatile, high-performance fume extraction cabinet engineered for precision handworking and chemical handling processes. Designed with a spacious working area and ultra-bright LED lighting, it enables operators to easily identify uniformity issues and maintain consistent process quality.

With integrated HEPA and advanced carbon filtration, quiet operation, and configurable airflow control, the FumeCAB 700 delivers reliable air purification while supporting a wide range of demanding applications.

Ideal Applications

• Conformal coating

• Gluing

• Potting

• Handworking processes

• Hand soldering

• Lead-free soldering

• Monomer mixing

• Powder weighing and handling

Key Benefits

• Quiet operation for minimal workplace disruption

• Large working area for versatile applications

• Certified UKCA and CE compliant for industrial use

Filtration & System Features

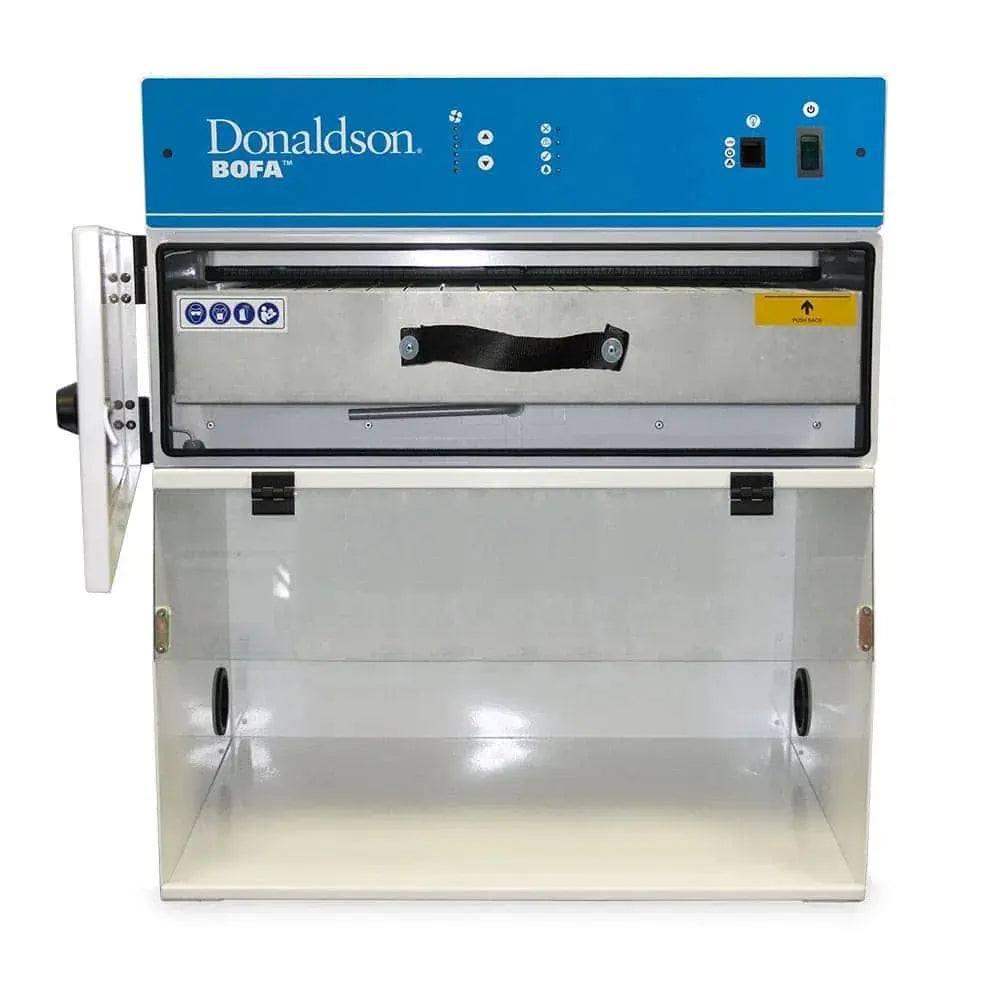

HEPA Filtration

• Filters 99.995% of particles down to 0.3 microns

• Secondary filtration layer for fine particulate capture

Advanced Carbon Filters (ACF Technology)

• Effectively captures odors and airborne contaminants

• Application-specific carbon types reduce bypass and tunneling

Reverse Flow Air Technology (RFA)

• Reduces internal air velocity

• Directs larger particulates into drop-out chambers

• Extends filter service life and improves capture efficiency

Automatic Flow Control (AFC)

• Maintains preset airflow rates for specific tasks

• Reduces noise levels and protects HEPA filters from excessive wear

Integrated & Optional Features

UV Lighting

• Supports conformal coating curing applications

VOC Monitoring

• Continuously monitors exhaust air for volatile organic compounds

• Alerts operators when VOC levels exceed preset thresholds

Conformal Coating Protection

• Magnetic protection system designed for coating applications

Specifications

Physical & Electrical

• Dimensions (Imperial): 30.71 × 27.56 × 19.29 in

• Dimensions (Metric): 780 × 700 × 490 mm

• Weight (Imperial): 143 lbs

• Weight (Metric): 65 kg

Electrical

• 115 V, 50/60 Hz, 3 amps

• 230 V, 50/60 Hz, 2 amps

Noise Level

• < 53 dBA at typical operating speed

Construction

• Powder-coated mild steel cabinet

Warranty

Covered under Donaldson BOFA’s standard manufacturer warranty.
