Donaldson BOFA - 3D PrintPRO 3 Fume Extraction System (Includes (2) 2m x50mm Hose with Cuffs) (1U32361001-1597-US)

(Includes (2) 2m × 50mm Hose with Cuffs | Part No. 1U32361001-1597-US)

---

Overview

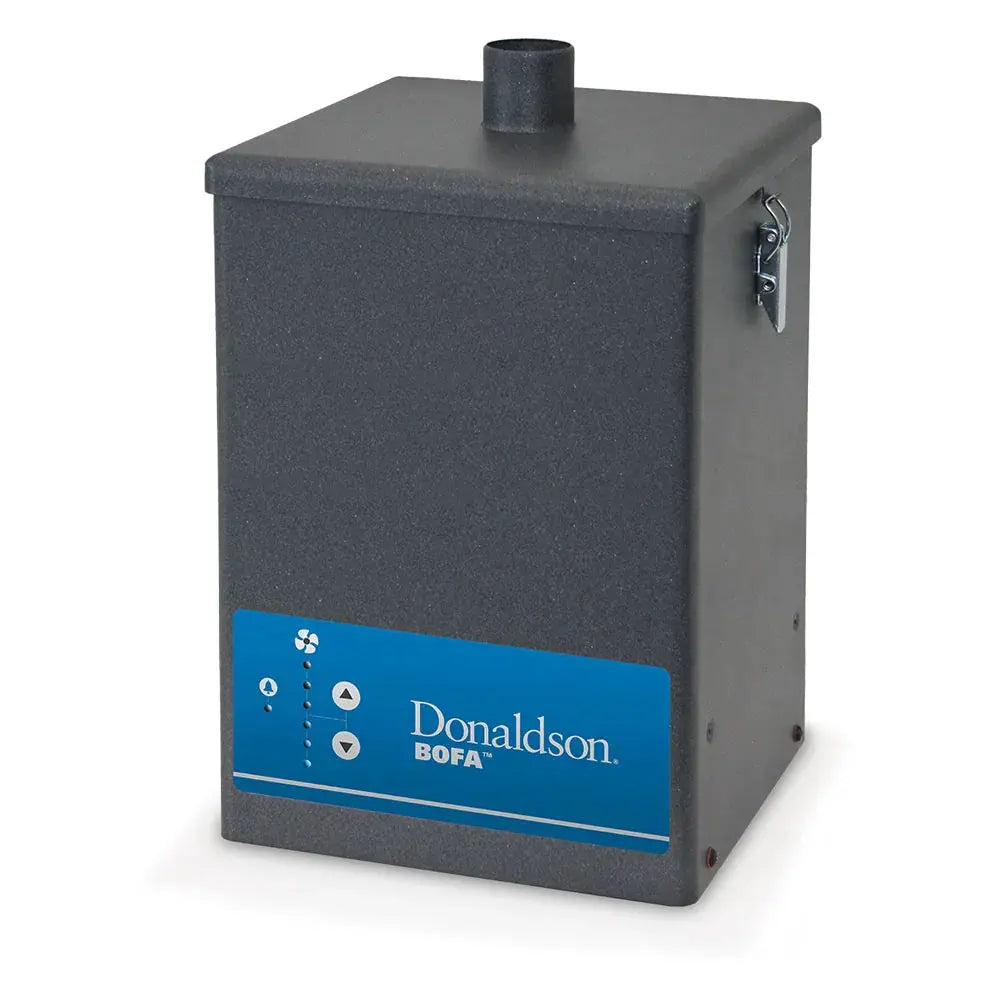

The Donaldson BOFA 3D PrintPRO 3 is a freestanding, high-performance fume extraction and atmosphere management system designed specifically for professional 3D printing environments. Engineered to effectively capture fumes and airborne particulates at the source, the system supports consistent print quality while helping maintain a clean, safe workspace.

Featuring an externally mounted plenum system, the 3D PrintPRO 3 efficiently filters emissions generated during printing processes. The system includes flexible extraction components and clear guidance for configuring a custom plenum to suit your specific printer setup.

---

Ideal Applications

• VAT Polymerization

• Fused Filament Fabrication (FFF / FDM)

• Material Jetting

---

Key Benefits

• Compact Footprint
  Designed for tight workspaces without sacrificing filtration performance.

• Low Noise Operation
  Quiet performance makes it suitable for offices, studios, classrooms, and labs.

• Digital Speed Control
  Adjustable airflow allows fine-tuning based on printer size and emission levels.

• Return Airflow Capability
  Helps improve air circulation within the workspace.

• Certified Safety Compliance
  Meets UKCA and CE standards for dependable operation.

---

Filtration & System Features

HEPA Filtration

• Captures 99.995% of particles at 0.3 microns

• Secondary filtration stage removes fine particulates before air recirculation

Advanced Carbon Filtration (ACF Technology)

• Application-specific carbon blends for odor and gas removal

• Designed to minimize bypass and tunneling for consistent adsorption

Multi-Voltage Sensing

• Automatically detects and adjusts to local voltage requirements

• Enables seamless use across different regions

Optional Smart Controls

• Remote Stop/Start Signal
  Operates only when the printer is active to reduce energy use

• Filter Change Signal
  Alerts when filters are approaching capacity to maintain performance

---

Specifications

System Specifications

Electrical

---

Included Components

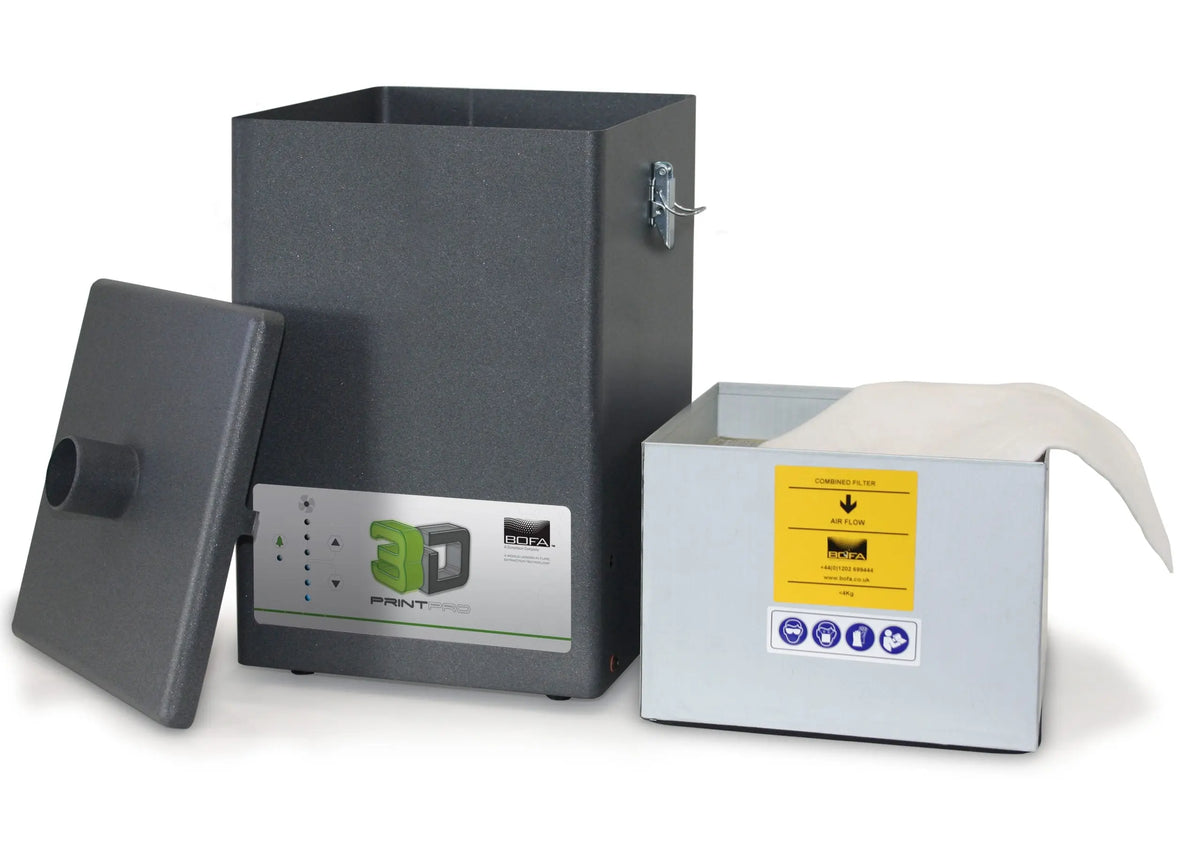

• 3D PrintPRO 3 fume extraction unit

• (2) 2 m × 50 mm extraction hoses with cuffs

• Flexible “stay-put” arm

• Conical extraction nozzle

• Instructions for custom plenum configuration
