Donaldson BOFA

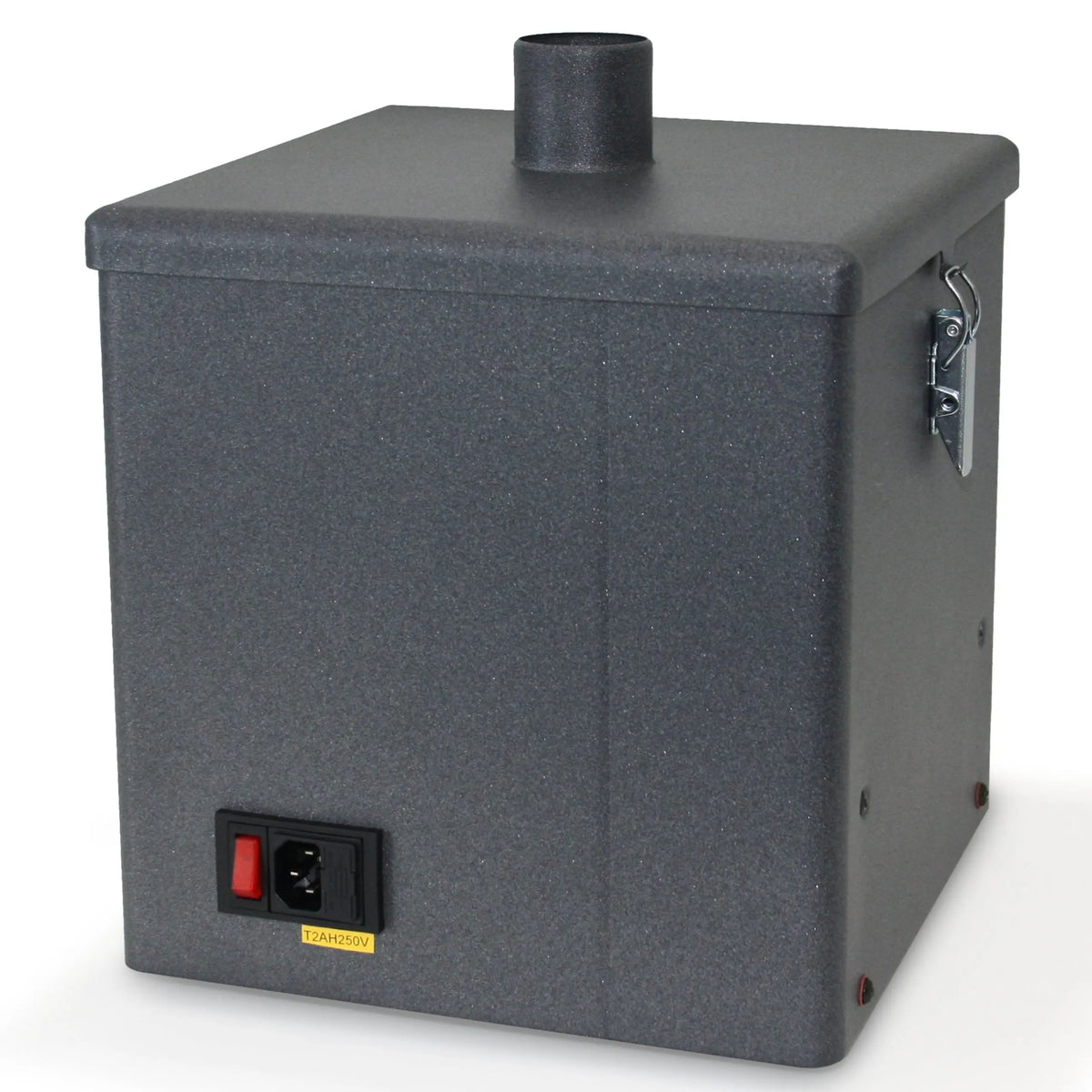

Donaldson BOFA - 3D PrintPRO 2 Fume Extraction System (1U32111000-1584)
SKU: 1U30376000-1584
Description
Overview
The Donaldson BOFA 3D PrintPRO 2 is a compact, cost-effective fume extraction and atmosphere management system engineered specifically for 3D printing environments. It captures harmful fumes and ultrafine particulates at the source while helping maintain a stable thermal zone around the print area for consistent print quality.

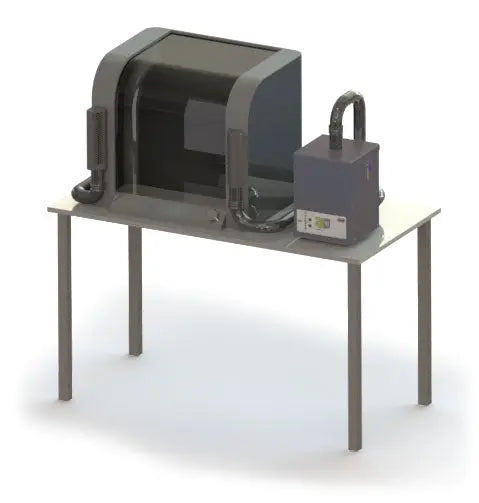

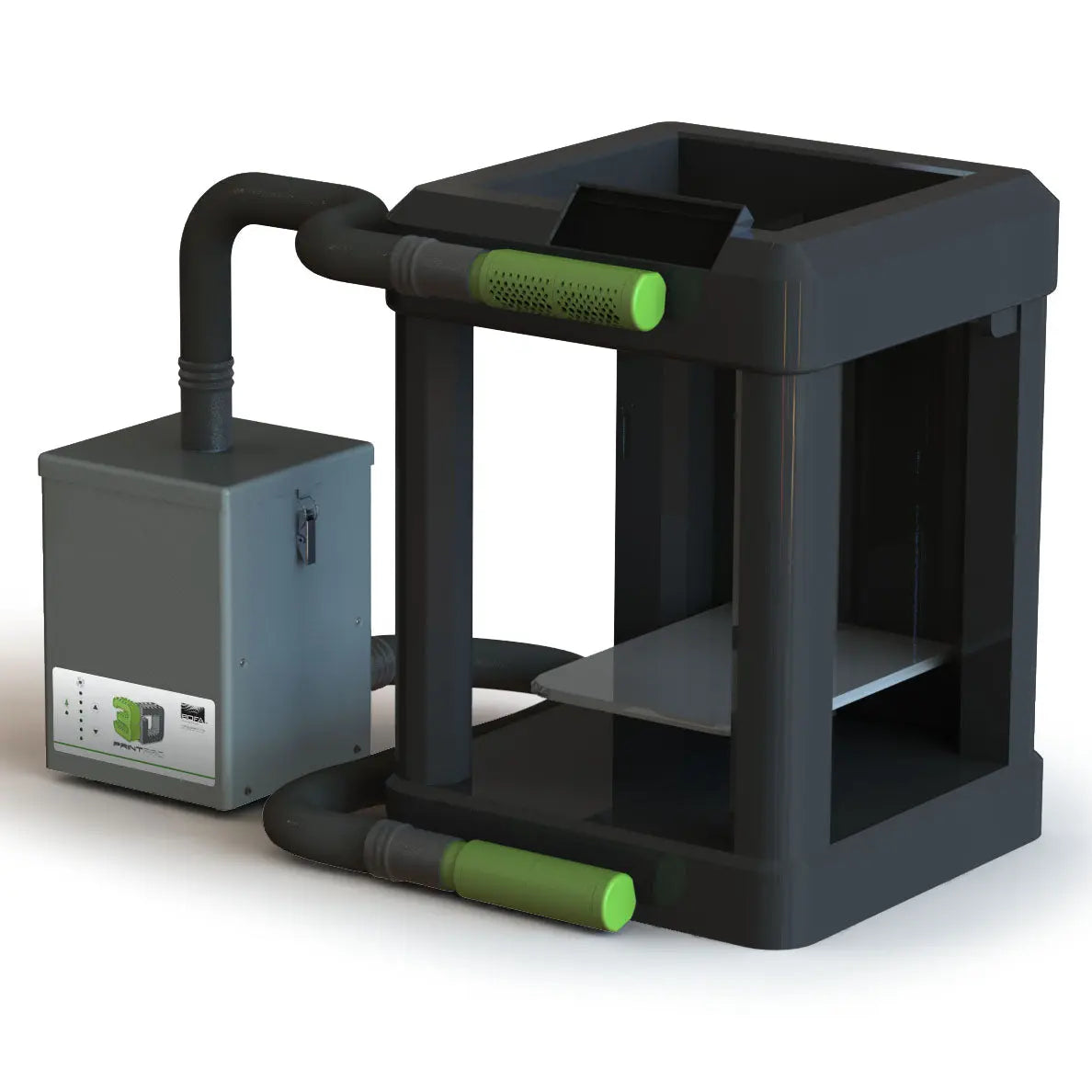

Designed for easy integration, the system includes a connection hose, stay-put extraction arm, conical nozzle, and guidance for creating a custom plenum—making it ideal for enclosed or semi-enclosed 3D printers in offices, labs, classrooms, and studios.
Ideal Applications
-
VAT polymerization (resin-based 3D printing)
-
Fused Filament Fabrication (FFF / FDM)
Key Features
-
Compact footprint for minimal workspace impact
-
Quiet operation suitable for shared environments
-
High-efficiency filtration to improve indoor air quality
-
Certified to UKCA and CE safety standards
Filtration Technology
HEPA Filtration
Captures up to 99.995% of particles at 0.3 microns, providing effective removal of ultrafine particulates generated during 3D printing.
Advanced Carbon Filter (ACF Technology)
Application-specific treated carbon efficiently absorbs fumes, VOCs, and odors. Engineered to reduce bypass and tunneling for consistent, long-term performance.
Smart System Features
Multi-Voltage Sensing
Automatically detects and adapts to local voltage requirements for seamless installation across regions.
Optional Remote Stop / Start
Allows the extractor to operate only when the 3D printer is active, reducing energy consumption and extending filter life.
Specifications
| Category | Imperial | Metric |
|---|---|---|
| Dimensions | 12.99 × 11.42 × 10.63 in | 330 × 290 × 270 mm |
| Weight | 17 lbs | 7.8 kg |
| Airflow | 27 cfm | 45 m³/hr |
| Electrical Supply | 115 V, 50/60 Hz | 230 V, 1 ph, 50/60 Hz |
| Full Load Current | 0.2 amps | 0.2 amps |
| Noise Level | < 44 dBA | < 44 dBA |
| Cabinet Construction | Powder-coated mild steel | Powder-coated mild steel |
Warranty
Covered under Donaldson BOFA’s standard manufacturer warranty.
Customer Resources
📄 Datasheet
📄 User manual
▶️ Video: Product Video; Unboxing;
about fume extraction
📧 Customer Support: Direct manufacturer assistance troubleshooting. Contact them at bofasalesus@donaldson.com | +1 (618) 205 5007
