Made in the USA | 1-Year Warranty | Free Technical Support from Centroform
Please note: This product typically takes 4-6 weeks to be built and shipped. Please message sales@techcraftstudio.com for confirmation of timeline before placing order.
Overview

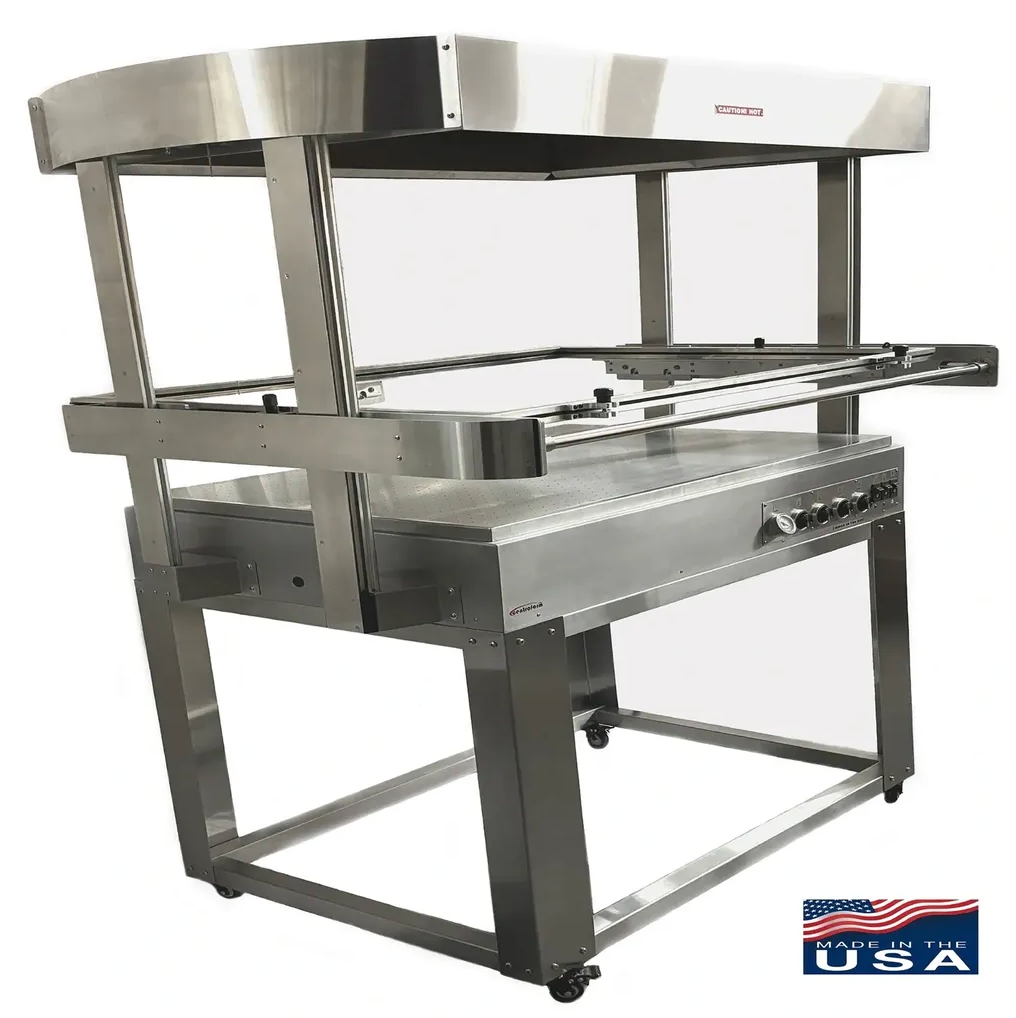

The Centroform EZFORM LV 2844 V2 is an industrial-class vacuum forming machine engineered for large-format parts, deeper draws, and higher-throughput production. Featuring a dual adjustable built-in vacuum system combined with fully adjustable temperature control, the LV 2844 V2 delivers powerful suction, precise heat management, and consistent material forming across large molds and complex geometries.
Built with all-stainless steel welded construction, a counter-balanced heating frame, and industrial-grade mechanical components, this system is designed for demanding prototyping, tooling, packaging, and production environments where reliability and repeatability are essential.
Shipping Notice
This product is not eligible for free shipping.
Flat Freight Rate: $349 (discounted rate)
Ideal For
-
Large-format plastic forming and deep-draw applications
-
Production-level prototyping and short-run manufacturing
-
Tooling, mold making, and packaging components
-
Sign making, displays, and special effects fabrication
-
Industrial and educational vacuum forming environments
Key Features
-
Dual adjustable built-in vacuum system for deep draws and fine detail capture
-
Fully adjustable temperature control with dual high-capacity heating elements
-
Total heating capacity of 8000 W (2 × 4000 W heaters) for uniform material heating
-
Counter-balanced heating frame for smooth operation and reduced operator fatigue
-
Stainless steel welded construction with polished forming edges
-
Adjustable vacuum level and vacuum duration for precise process control
-
Integrated vacuum gauge for real-time monitoring
-
Large forming area to accommodate oversized molds and parts
-
Designed for continuous use in production-level workflows
Specifications
| Specification |
Details |
| Forming Area |
28″ × 44″ |
| Plastic Sheet Size |
32″ × 48″ |
| Maximum Draw Depth |
14″–16″ (depending on mold geometry) |
| Weight |
Approximately 350 lb |
| Power |
210–240 V single phase, 40 A / 110–120 V, 15 A |
| Heater |
2 × 4000 W (8000 W total) |
| Material Thickness |
Up to ¼″ |
| Construction |
All-stainless steel welded body |
What’s Included
-
Centroform EZFORM LV 2844 V2 Vacuum Forming Machine
-
Integrated dual adjustable vacuum system
-
Counter-balanced heating frame
-
Adjustable stainless steel plastic loading frame
-
Vacuum gauge
-
Detailed operator’s manual with forming and mold guidance
Warranty
Backed by a full 1-year warranty and free lifetime technical support.
Proudly manufactured in the USA.
International voltage options available.
Customer Resources
📄 User Manual (coming soon)
📧 U.S. Support Team: Direct manufacturer assistance troubleshooting. Email them at sales@centroform.com
