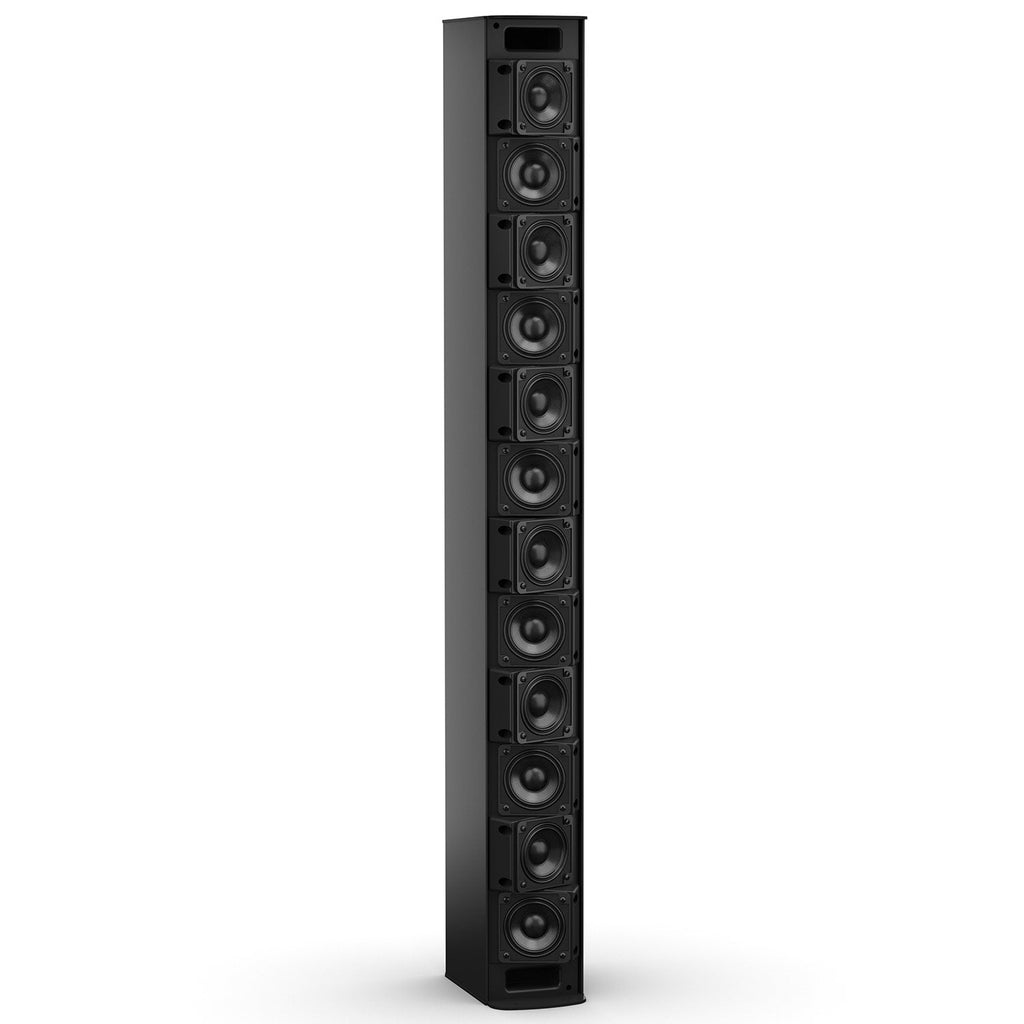

Bose Professional Panaray® MSA12X
The Panaray® MSA12X is a self-powered, digital beam-steering loudspeaker designed to deliver outstanding vocal clarity and tonal consistency while seamlessly blending into room aesthetics. Its proprietary Articulated Array® design provides wide 160° horizontal coverage, while the modular design allows vertical arrays of up to three units. Integrated with a Dante® digital audio network interface, it enables easy connection to other Dante-enabled devices over Ethernet networks.
Key Features
-
Digital Beam-Steering Technology: Built-in DSP and 600W amplification (12 x 50W) for precise sound control.
-
Consistent Sound Profile: Matches the Panaray MA12EX for seamless audio integration.
-
Wide Frequency Response: Twelve 2.25-inch full-range transducers provide a frequency range of 58 Hz – 18 kHz.
-
Dual Connectivity Options: Includes a Dante® interface for digital networks and line-level analog input.
-
Articulated Array® Design: Ensures broad 160° horizontal sound coverage.
-
Modular Versatility: Stack up to three units to create tailored vertical arrays.
-
Advanced Beam Steering: Algorithms optimize coverage, tonal balance, and SPL for diverse environments.
-
Dual Beam Control: Independent level and EQ adjustments for two beams per array.
-
Adjustable Mounting Bracket: Enables up to 90° horizontal yaw adjustment for precise positioning.
-
Precision Design Tools: Integrates with Bose Modeler® software for accurate acoustic predictions.
-
Comprehensive Control: Configure and monitor the system via Bose ControlSpace® Designer™ software.
-
Aesthetic Flexibility: Available in black or white to complement various spaces.
The Bose Panaray® MSA12X offers an ideal solution for projects requiring exceptional audio quality, flexible design, and modern aesthetics. Whether used in corporate, educational, or worship spaces, this loudspeaker combines innovative beam-steering technology with ease of installation and control.
