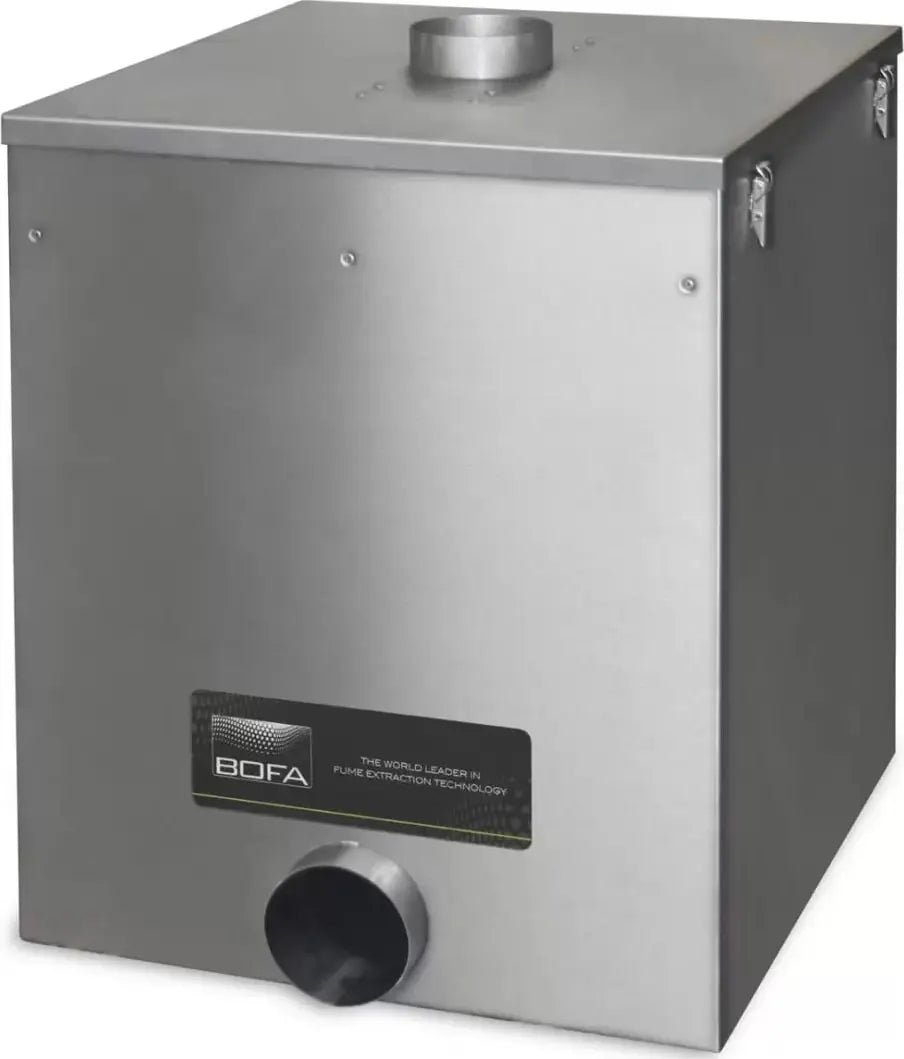

BOFA ILF-600 – High-Capacity Inline Pre-Filtration System
Overview
The Donaldson BOFA ILF-600 (1UA1030073) is a high-capacity inline bag pre-filter system designed to remove large volumes of coarse dust, chips, and debris before the airflow reaches the primary extraction unit. Engineered for high-particulate workflows such as CNC machining, routing, sanding, and large-format fabrication, the ILF-600 significantly extends the lifespan of downstream HEPA and carbon filters while maintaining strong, consistent airflow.

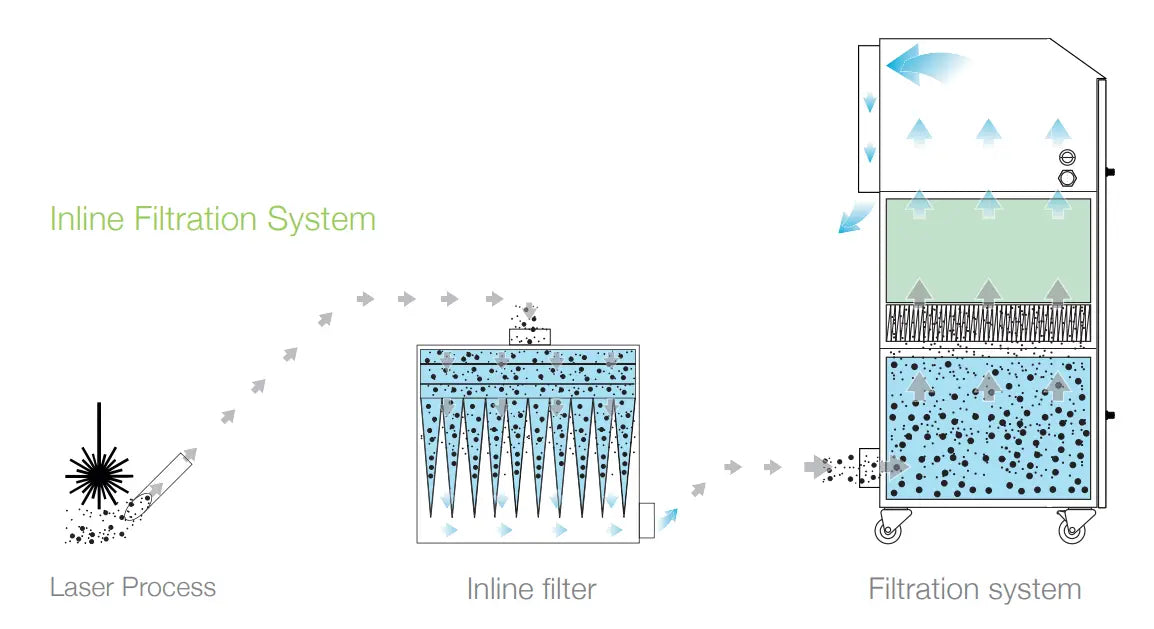

Installed between the equipment and the main fume/dust extractor, the ILF-600 improves system efficiency, reduces operating costs, and provides an essential first-stage filtration layer for heavy-duty environments.
Key Features
-
High-Volume Dust Capture
Captures large particulates and debris, preventing premature clogging of main filters.
-
Inline Pre-Filter Design
Installs between your equipment and BOFA extraction unit for staged filtration.
-
Protects HEPA & Carbon Filters
Reduces loading, increases filter lifespan, and lowers maintenance costs.
-
Heavy-Duty Construction
Built for industrial environments requiring continuous operation.
-
Tool-Free Bag Replacement
Easy access for fast, efficient filter changes.
-
Compatible With Multiple BOFA Extractors
Works across a range of dust and fume extraction systems.
Specifications
| Feature |
Detail |
| Product Type |
Inline bag pre-filter system |
| Filter Stages |
Large-capacity bag pre-filter |
| Primary Function |
Captures coarse dust & debris before main extractor |
| Housing Material |
Heavy-gauge steel |
| Application Type |
CNC, routing, sanding, machining, fabrication |
| Airflow Handling |
High-volume particulate workflows |
| Compatible Inline Filter |
ILF-600 Bag Filter (1UA1030151) |
| Part Number |
1UA1030073 |
Dimensions
| Measurement |
Size |
| Overall Width |
~400–450 mm |
| Overall Depth |
~350–400 mm |
| Overall Height |
~600–650 mm |
| Hose Port Diameter |
Commonly 75 mm (model-dependent) |
| Approx. Weight |
15–25 kg |
(Dimensions based on BOFA’s standard ILF-600 form factor.)
Compatible With
-
BOFA ILF-600 Bag Filter (1UA1030151)
-
BOFA extraction units requiring inline particulate reduction
-
CNC, woodworking, routing, laser, and machining setups
-
Part Number: 1UA1030073
Recommended For
-
CNC routers & mills
-
Woodworking: sanding, routing, drilling
-
Laser cutting (high particulate output)
-
Metal or composite machining
-
Production and industrial fabrication environments
Performance Benefits
-
Improves airflow stability across the entire extraction system
-
Prevents premature HEPA and carbon filter saturation
-
Reduces maintenance frequency and total operating cost
-
Enhances extraction performance in heavy-dust workflows
Warranty
Covered under Donaldson BOFA’s standard manufacturer warranty.
