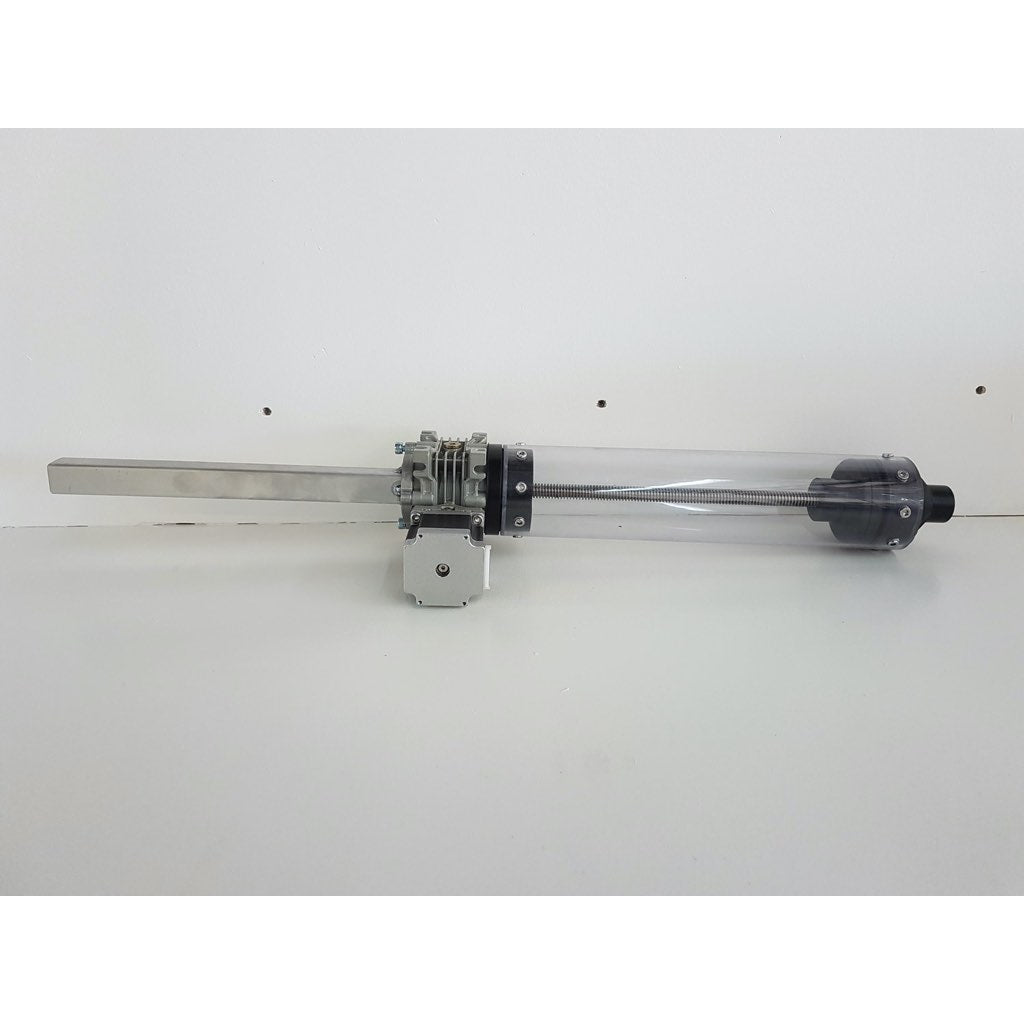

3D Potter - Linear Actuator Ram Extruder

Overview

The 3D Potter Linear Actuator RAM Extruder is engineered to handle thicker clay and ceramic materials with precision and reliability. Designed for both industrial and creative applications, it features a powerful closed-loop hybrid stepper motor capable of delivering consistent extrusion at higher rates — ideal for dense ceramic mixes and paste-based materials.

This extruder isn’t limited to clay alone. Its food-safe components make it versatile enough to print materials like frosting, chocolate, and other viscous pastes, expanding creative and research possibilities for artists, educators, and culinary professionals alike.

Key Features

• High-Torque Closed-Loop Motor – Provides powerful, consistent extrusion for thick clay and paste materials.

• Food-Safe Design – Suitable for edible materials such as frosting and chocolate.

• Multiple Capacity Options – Available in 1000ml, 2000ml, 3600ml, and 4000ml sizes.

• Quick-Load System – Includes a driver tool for fast loading and unloading.

• Complete Extruder Assembly – Comes fully equipped with tubes, connectors, nozzles, and accessories.

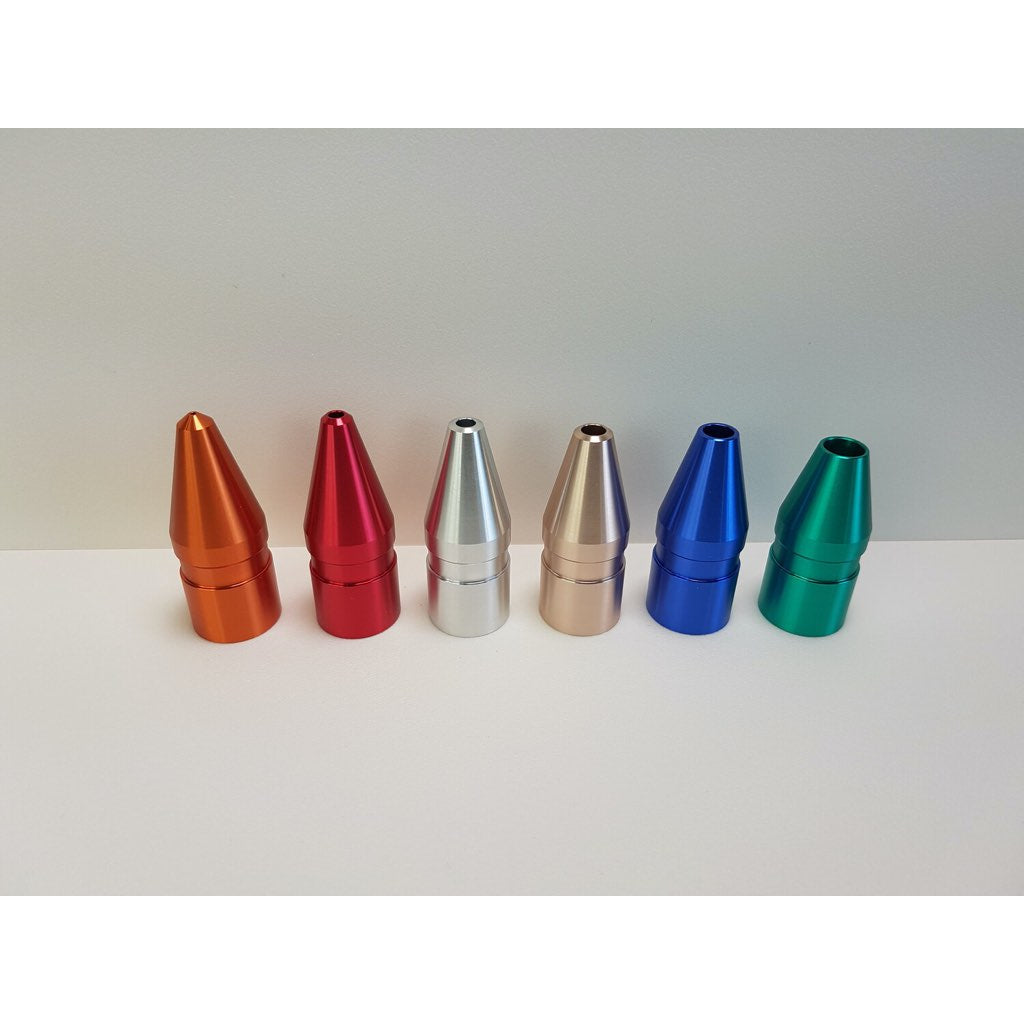

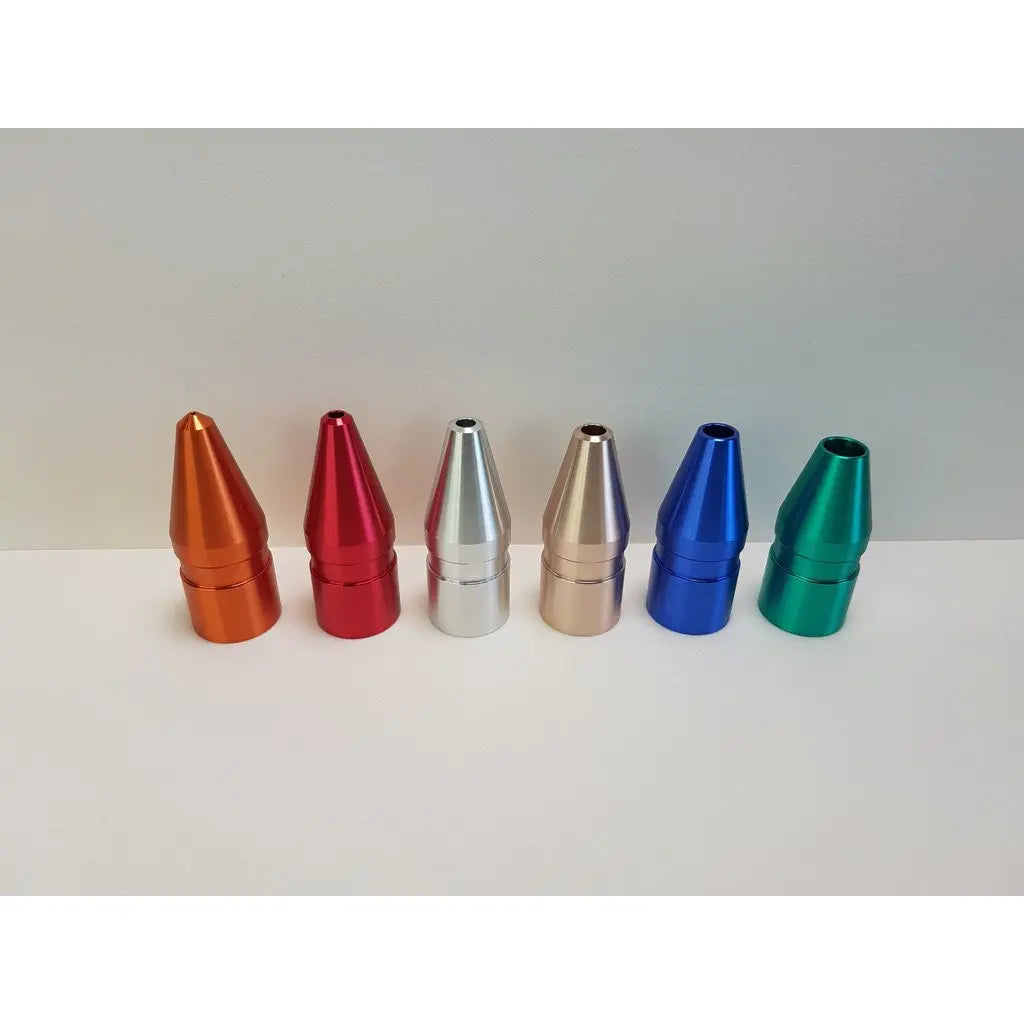

• Custom Nozzle Options – Aluminum print nozzles available in multiple sizes (custom options available upon request).

Specifications

• Category: Clay & Paste Extrusion System

• Model: Linear Actuator RAM

• Capacities Available: 1000ml, 2000ml, 3600ml, 4000ml

• Motor Type: Closed-loop hybrid stepper motor

• Power Supply: Included with 2000ml, 3600ml, and 4000ml models

• Tube Material: Polycarbonate

• Nozzle Sizes Included: 3mm, 4mm, 5mm, 6mm (4 anodized aluminum nozzles)

• Weight (Fully Loaded):

  • 1000ml – ~8 lbs

  • 2000ml – ~17 lbs

  • 3600ml – ~27 lbs

  • 4000ml – ~30 lbs

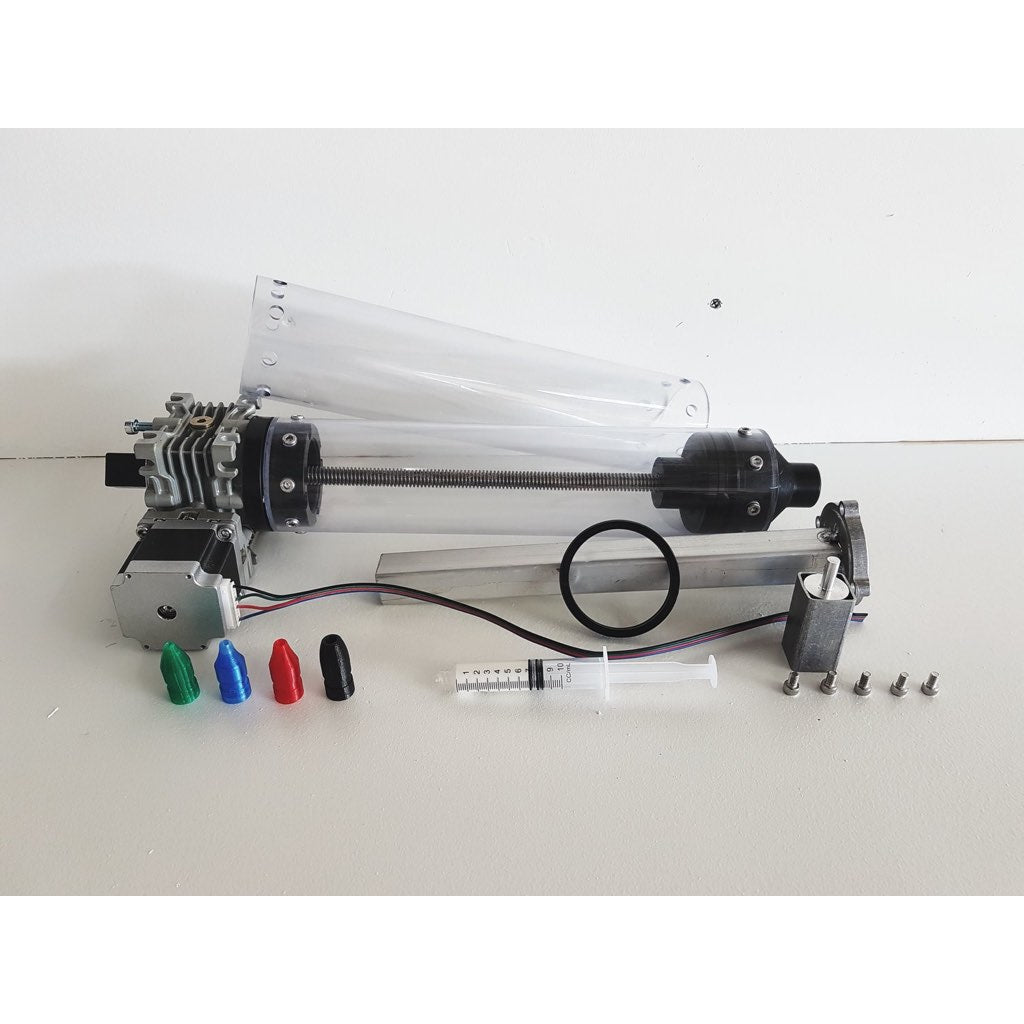

Included Components

• Extruder assembly

• Two polycarbonate ml tubes (size-specific)

• Driver tool for quick loading/unloading

• Wire connectors

• White lithium grease

• Four anodized aluminum nozzles (3–6mm)

• Extra screws and seal

• Power supply (2000ml, 3600ml, 4000ml only)

Compatibility & Usage Notes

• Wiring Tutorial: Watch here

• Wiring Diagram: View diagram

• Control Device: Not included — requires connection to your printer or driver per wiring diagram.

• Printer Compatibility: The 4000ml extruder (30 lbs fully loaded) is not recommended for the SCARA V4. For reliable use, 3D Potter recommends the 10 XL, which is engineered to handle this weight.

Warranty

3D Potter Inc. offers a 1-Year Limited Manufacturer Warranty on most accessories and equipment, including lift pumps, continuous cement mixers, and other non-printer products.

• Product components and hardware covered for 1 year

• Defective parts will be replaced free of charge under warranty

What is NOT covered and will void the warranty:

• Damage caused by improper use or operation outside of recommended guidelines

• Modification or altering of the product in any way

• Electrical surges, water damage, fire, or environmental damage

• Lack of proper maintenance

• Consumable items such as seals, gaskets, wear components, and replaceable operating parts

Extended warranty options are available for some equipment and accessories upon request. Coverage details and pricing vary by product category.

This warranty is not transferable. 3D Potter Inc. reserves the right to refuse warranty coverage on products that are obsolete or no longer in production.

Customer Resources

📄 User Manual: Included with purchase
▶️ Video
📞 U.S. Support Team: Direct manufacturer assistance for installation and troubleshooting. Email them at techsupport@3dpotter.com
