HEROLASER

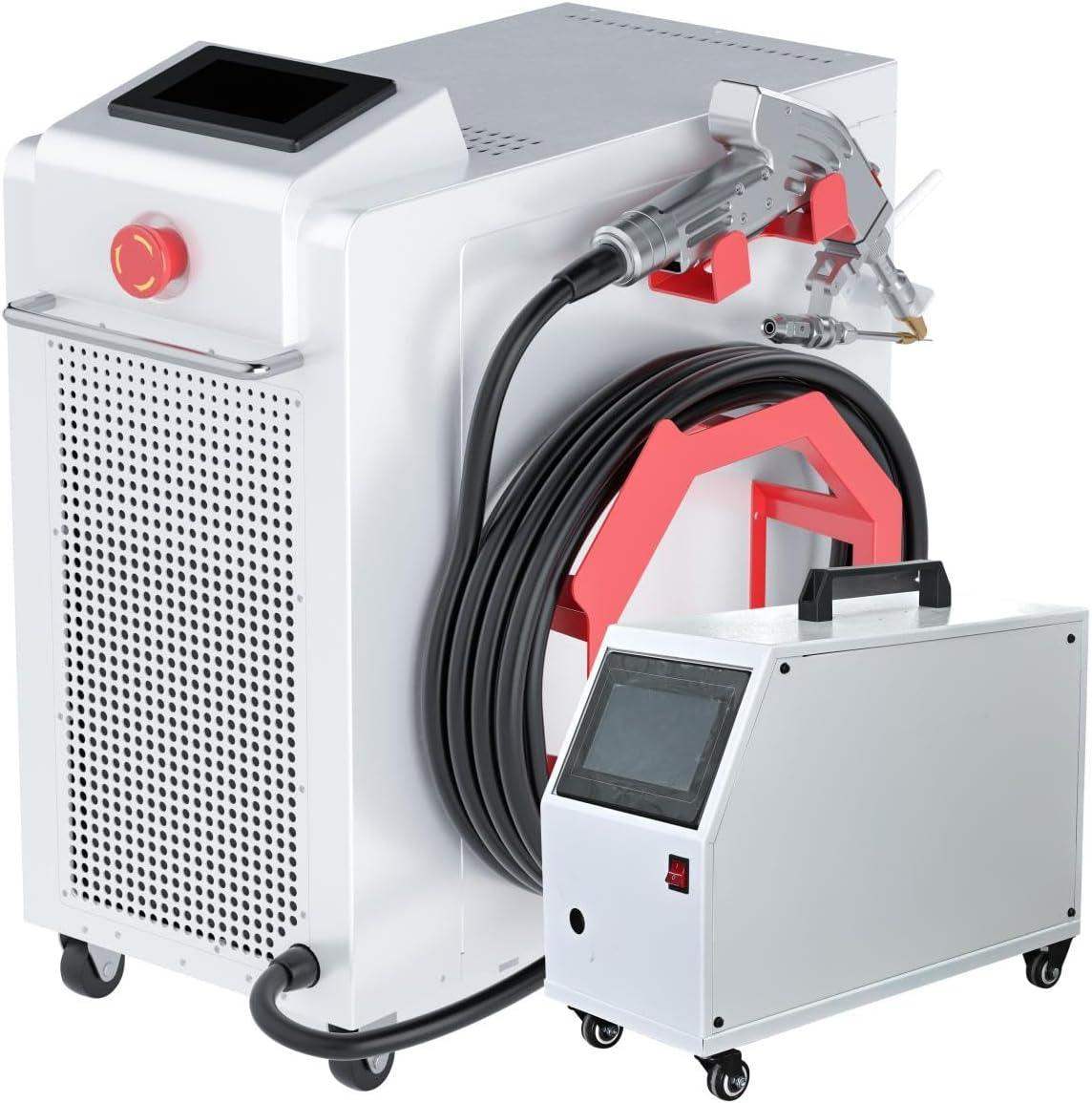

HEROLASER 1000W Air-Cooled Handheld Laser Welder eH10L-MM01
SKU: HLAILW1000W
Description
Portable Fiber Laser Welder | Air-Cooled Welding System | Handheld Metal Fabrication Solution
Overview
The HEROLASER eH10L-MM01 1000W Air-Cooled Handheld Laser Welder is a compact and energy-efficient laser welding system designed for precise metal joining across fabrication, repair, and industrial applications. Engineered with an advanced air-cooled architecture, this machine eliminates the need for external chillers, simplifying installation while reducing maintenance and energy consumption.
Equipped with an independently developed wobble welding head and automatic wire feeding capability, the eH10L-MM01 delivers stable weld formation, improved fault tolerance, and flexible handheld operation. Its portable design and IoT-enabled monitoring features make it ideal for modern fabrication workflows requiring efficiency, mobility, and clean weld quality.
Ideal For
- Stainless steel fabrication
- Sheet metal welding
- Automotive and equipment repair
- Portable fabrication workflows
- Industrial maintenance applications
- General metalworking and custom fabrication
Key Features
- 1000W fiber laser welding system for clean, efficient welding

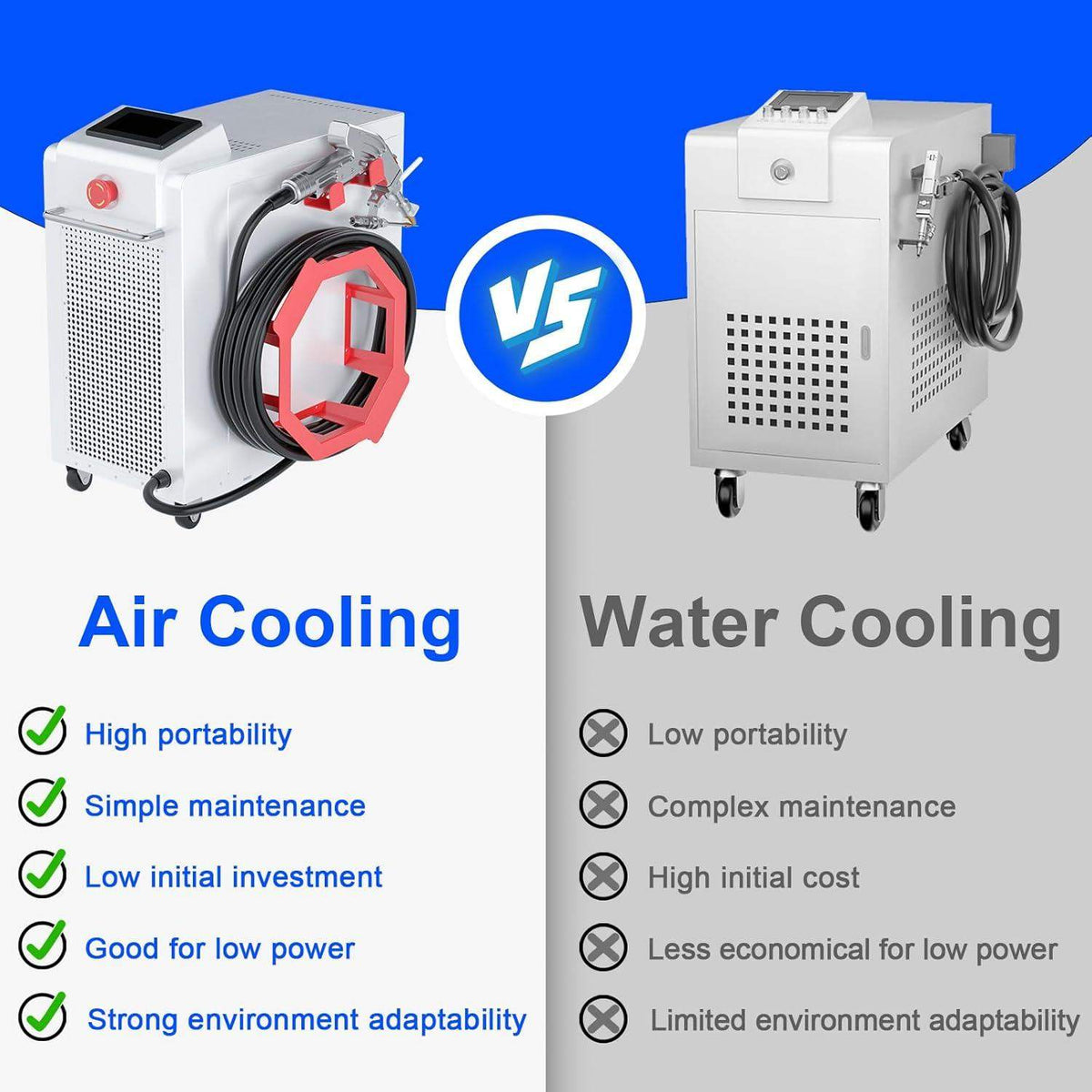

- Advanced air-cooled design eliminates external water chillers
- Automatic wire feeding system for improved welding consistency

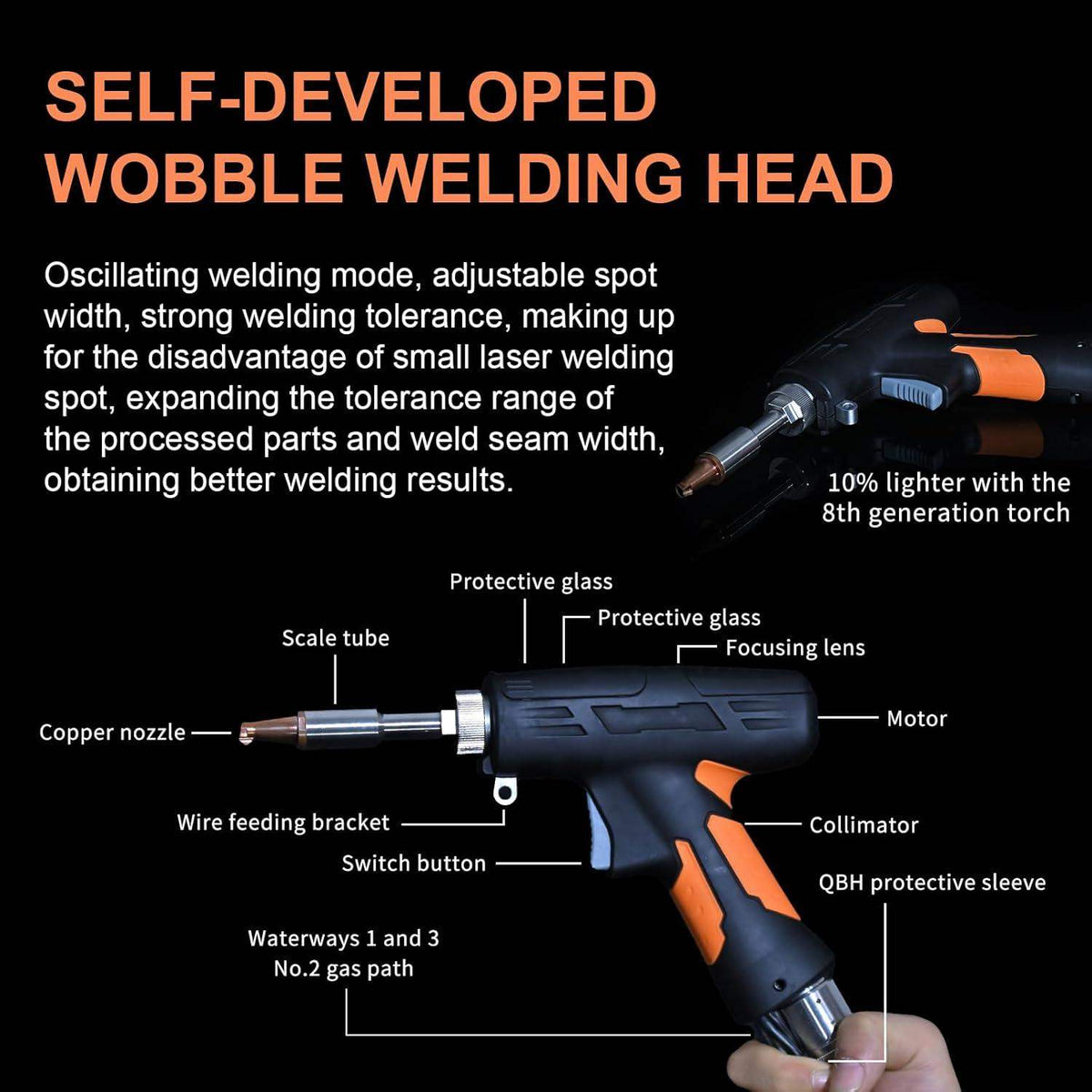

- Independently developed wobble welding head for enhanced weld quality
- IoT-enabled connectivity for real-time monitoring and system management
- Portable handheld architecture for flexible operation
- Reduced heat distortion and post-processing requirements
- Industrial-grade reliability for fabrication and repair environments
Welding Performance
The eH10L-MM01 delivers concentrated laser energy directly to the weld zone, producing smooth weld seams with reduced heat spread and minimal material distortion.
Benefits include:
- Clean weld appearance with reduced discoloration
- Improved weld consistency and fault tolerance
- Faster welding speeds and workflow efficiency
- Minimal grinding and finishing requirements
- Enhanced flexibility for multiple welding applications
The integrated wobble welding head further improves weld formation and adaptability across varying material types and joint geometries.
Material Compatibility
Suitable for welding:
- Stainless steel
- Carbon steel
- Aluminum
- Sheet metal and fabricated components
Material capability may vary depending on thickness and operating settings.
Applications
- Fabrication and metalworking shops
- Automotive repair and customization
- Industrial equipment maintenance
- Portable field repair operations
- Stainless steel processing
- Custom metal fabrication projects

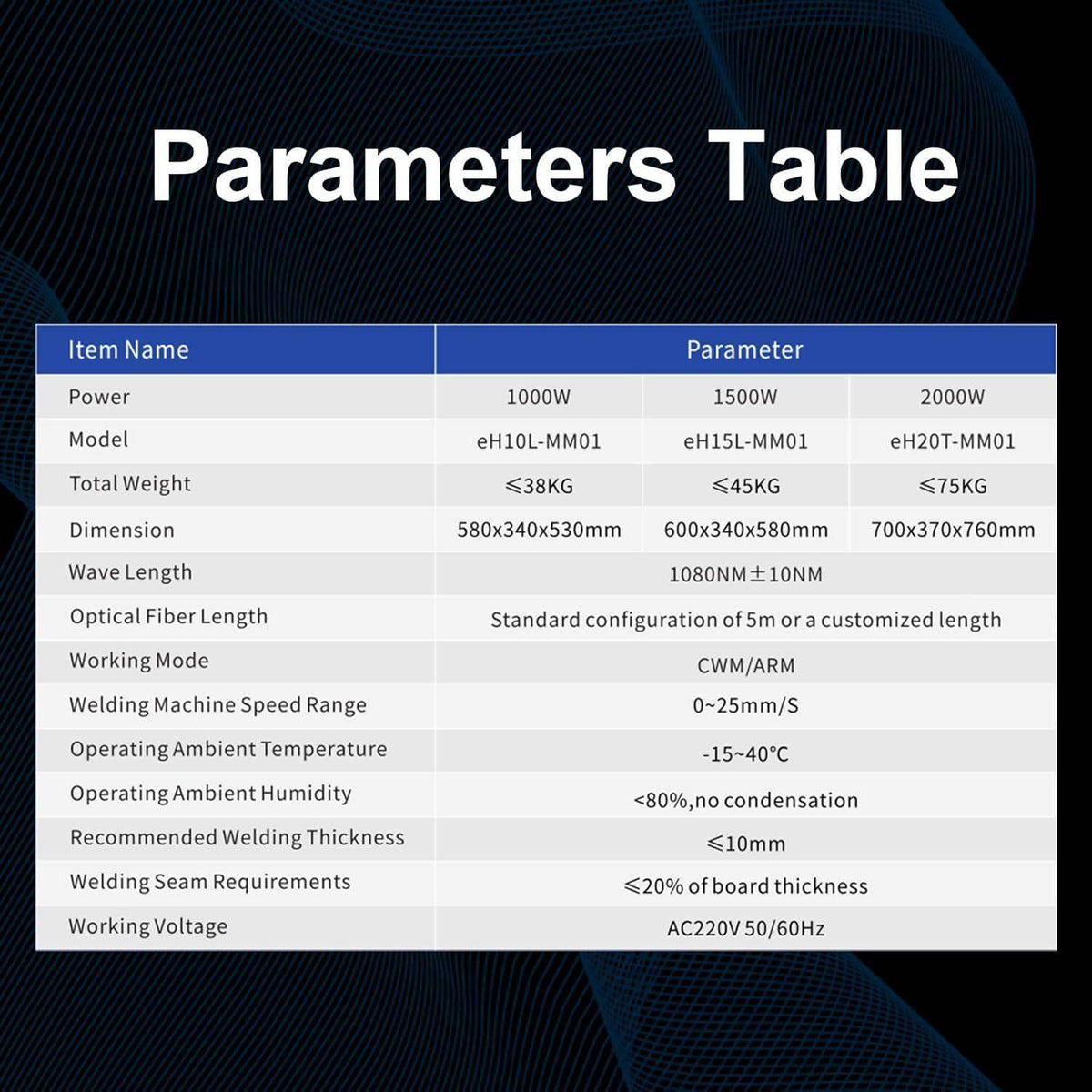

Specifications
| Specification | Details |
|---|---|
| Model | eH10L-MM01 |
| Laser Type | Fiber Laser |
| Laser Power | 1000W |
| Cooling System | Air-Cooled |
| Wire Feeding | Automatic wire feeder |
| Welding Head | Wobble welding head |
| Operating Voltage | AC220V / 50Hz |
| Connectivity | IoT-enabled |
| Max Welding Speed | Up to 25 mm/s |
| Operating Temperature | -15°C to 40°C |
| Laser Wavelength | 1070nm ±10nm |
| Optical Fiber Length | Standard 16.4 ft (5 m) |
| Operation Type | Handheld |
| Use Environment | Fabrication, industrial, workshop, maintenance |
What’s Included
- HEROLASER eH10L-MM01 Handheld Laser Welder
- Automatic wire feeding system
- Handheld welding head
- Power and connection cables
- User documentation
Warranty
HeroLaser Manufacturer Warranty
HeroLaser products are backed by a comprehensive manufacturer warranty covering defects in materials and workmanship under normal operating conditions.
| Component | Warranty Coverage |
|---|---|
| Laser Source | 2 Years |
| Handheld Laser Head | 1 Year (Optics and consumable protective lenses are excluded from the standard warranty.) |
| Water Chiller & Electronics | 1 Year |
| Main Machine Structure | 1 Year |
Lifetime Technical Support
Every HeroLaser system includes lifetime remote technical support to help keep your machine operating at peak performance.
Support is available via:
- Phone
- Video conferencing
- Remote troubleshooting
Replacement Parts
Replacement parts covered under the manufacturer's warranty will be provided at no charge for defects in materials or workmanship during the applicable warranty period.
U.S. Local Service Support
To minimize downtime, HeroLaser maintains a U.S. support depot in Connecticut for expedited service coordination and replacement parts when needed.
