Overview

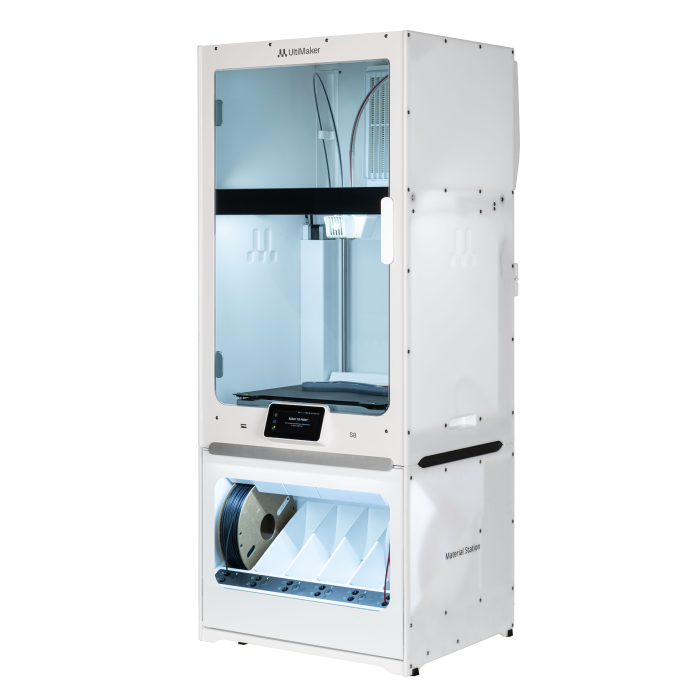

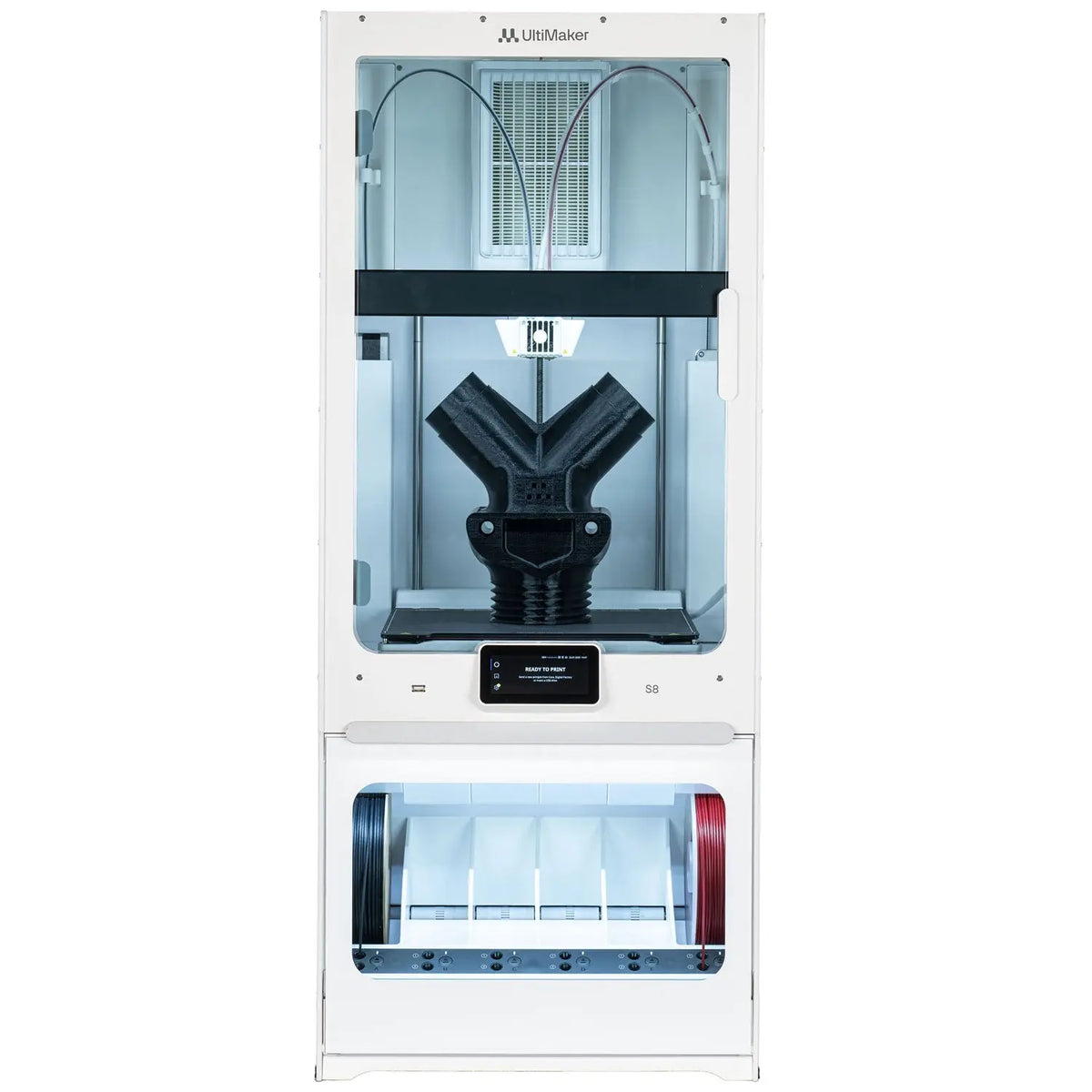

The UltiMaker S8 Pro Bundle is UltiMaker’s largest-scale professional 3D printing system , combining a massive 500 × 500 × 500 mm build volume with a fully integrated ecosystem for safe, continuous, and automated 3D printing.

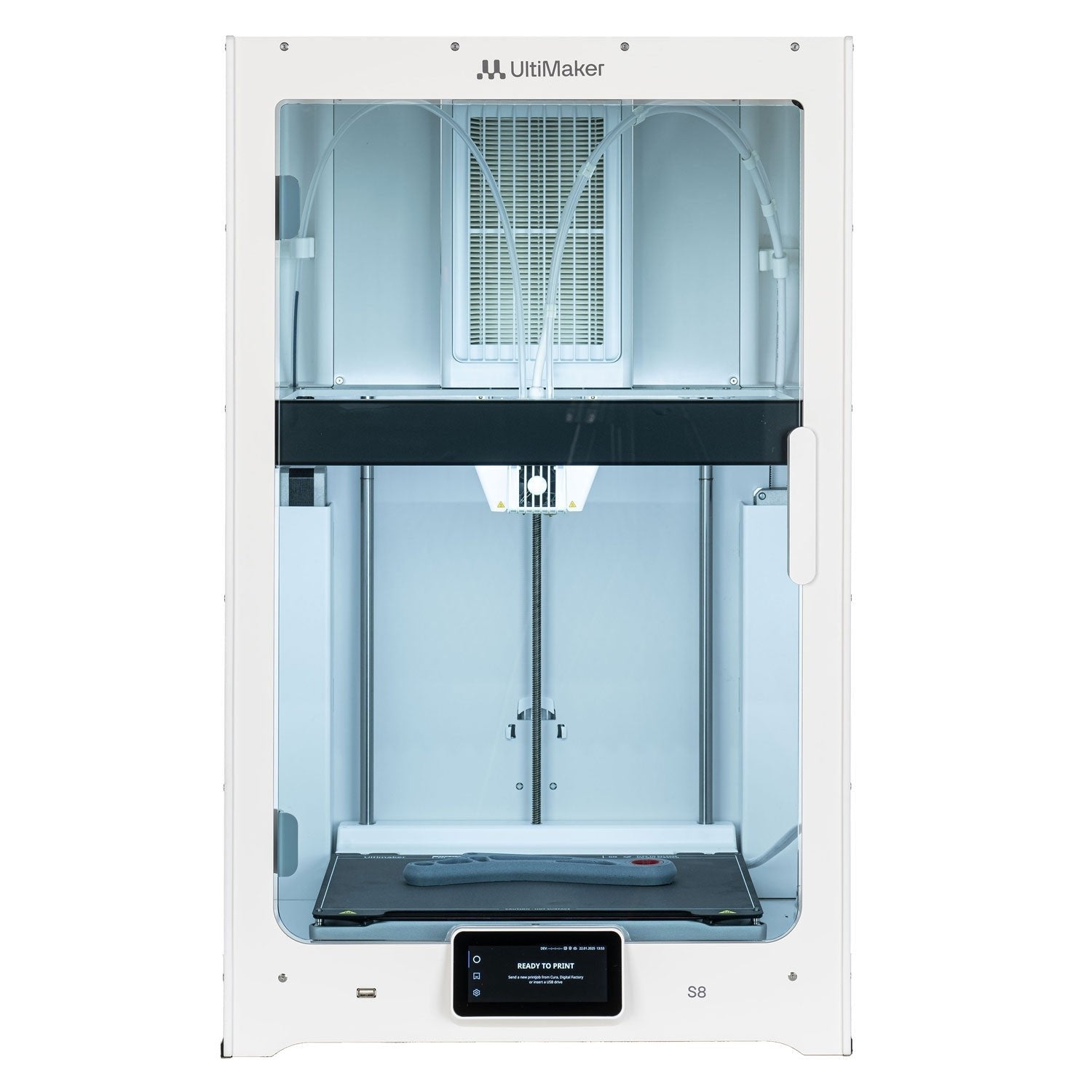

At the heart of the bundle is the S8 3D printer, capable of producing industrial-size parts, jigs, and functional prototypes with dual extrusion for soluble supports and composite materials. The Air Manager ensures workplace safety by filtering up to 95% of ultrafine particles, while the Material Station manages up to six spools of filament, automatically switching and maintaining humidity control for uninterrupted workflows.
With its scale, precision, and integrated safety features, the S8 Pro Bundle delivers a turnkey 3D printing solution for engineering-grade production and advanced R&D applications .
Specifications
Build Volume: 500 × 500 × 500 mm (19.7 × 19.7 × 19.7 in)
Extrusion: Dual extrusion with swappable print cores (AA, BB, CC)
Layer Resolution: 20–600 microns
Nozzle Options: 0.25, 0.4, 0.6, 0.8 mm
Filament Diameter: 2.85 mm (open material system)
Interface: 7” Full-Color Touchscreen
Connectivity: Wi-Fi, Ethernet, USB, UltiMaker Digital Factory
Camera: Integrated for remote monitoring & timelapse
Build Plate: Heated glass or optional flexible build plate
Bundle Components: Includes Air Manager + Material Station
Power Source: 110–240 VAC (dedicated circuit recommended)
Noise Level: ~50–55 dB
Use Case: Large-scale prototypes, jigs, fixtures, and end-use parts
Environment: Engineering departments, R&D labs, advanced universities, professional manufacturing shops
Key Features
Massive Build Volume: 500 × 500 × 500 mm for oversized parts and prototypes
Dual Extrusion System: Print in two materials, including soluble supports for complex geometries
Swappable Print Cores:
AA Core → Standard materials (PLA, ABS, Nylon, PETG, CPE)
BB Core → Soluble supports (PVA, Breakaway)
CC Core → Composite-ready (carbon fiber, glass-filled filaments)

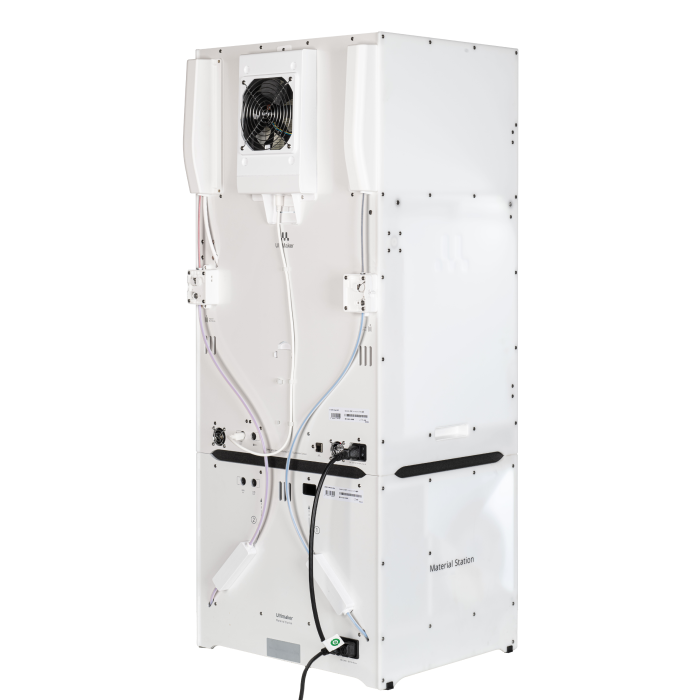

Air Manager: Filters up to 95% of ultrafine particles, encloses the print environment

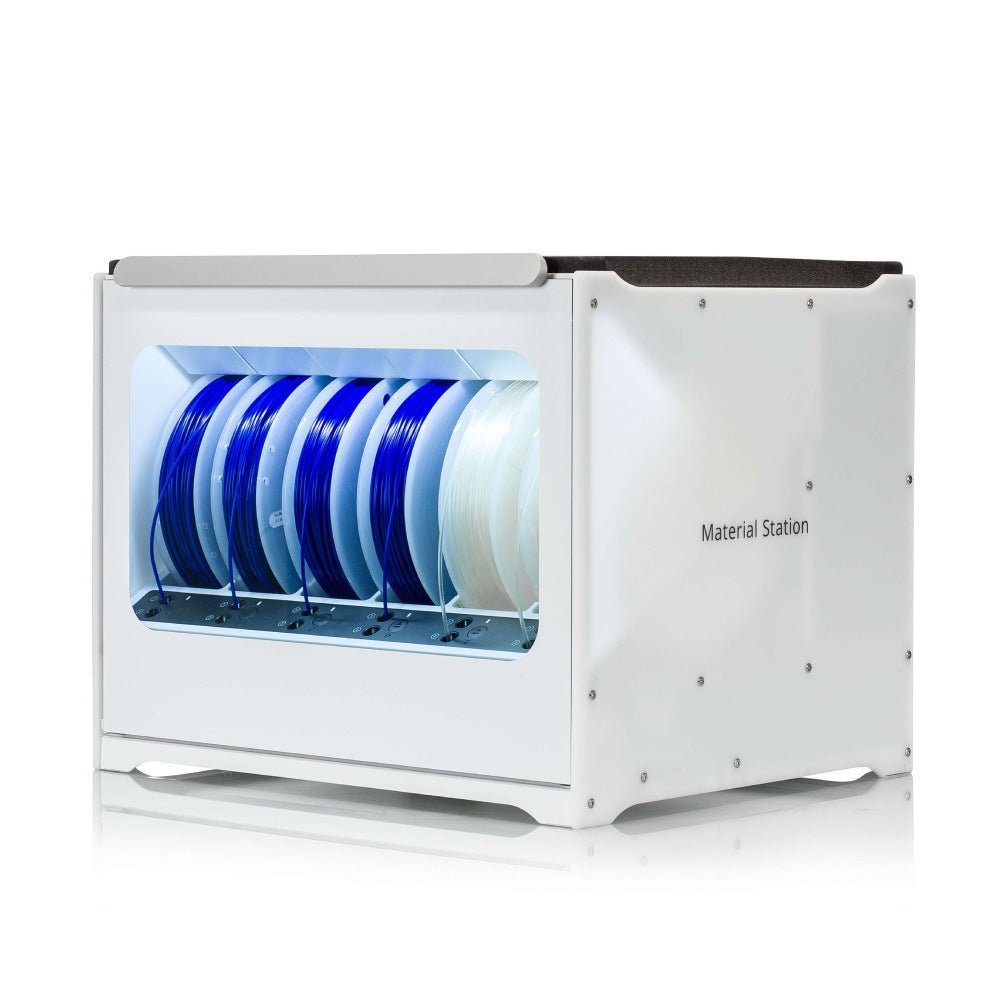

Material Station: Holds up to 6 spools, auto-switches filament, keeps materials humidity-controlled
Heated Glass Build Plate: Strong adhesion for large parts (flex plate available)
Smart Workflow: Seamless integration with Cura, Digital Factory, and CAD plug-ins (SolidWorks, Autodesk, Siemens NX)
Built-In Camera: Remote monitoring & time-lapse recording
Safe & Reliable: Designed for offices, labs, and industrial workspaces
Air Manager vs. Material Station Benefits
Feature
Air Manager Material Station
Function Filters UFPs, provides enclosed chamber
Stores up to 6 spools, manages filament
Safety Protects users with EPA-certified filtration
Protects materials from humidity
Productivity Stable temperature environment for large parts
Auto-switching for continuous workflows
Best Use Case Offices, classrooms, shared labs
Engineering labs, manufacturing, R&D teams
Model Comparison
Model
Build Volume
Key Difference
Best For
UltiMaker S5 330 × 240 × 300 mm
Mid-size dual extrusion
Professional prototyping, tooling
S5 Pro Bundle 330 × 240 × 300 mm
Air Manager + Material Station
Automated, safe continuous printing
UltiMaker S7 330 × 240 × 300 mm
Enhanced air management + flex plate
Advanced engineering materials
UltiMaker S8 Pro 500 × 500 × 500 mm
Massive build volume + Air/Material bundle
Industrial-scale prototyping
Ideal Applications
Large-scale prototyping of full-size assemblies
Jigs, fixtures, and tooling for manufacturing
Multi-material parts with soluble supports
Composite part production (carbon fiber, glass-filled)
University and R&D projects requiring oversized print capacity
Small-batch manufacturing of durable parts
Warranty
Customer Resources
📄 User Manual Video: S Series ; Machine ; Software Tutorial 💻 Software: Cura Material Guides ✔ Compliance Information: Learn about Ultimaker safety and compliance
Support Team: Direct manufacturer assistance troubleshooting. Submit a case with UltiMaker.
