Overview

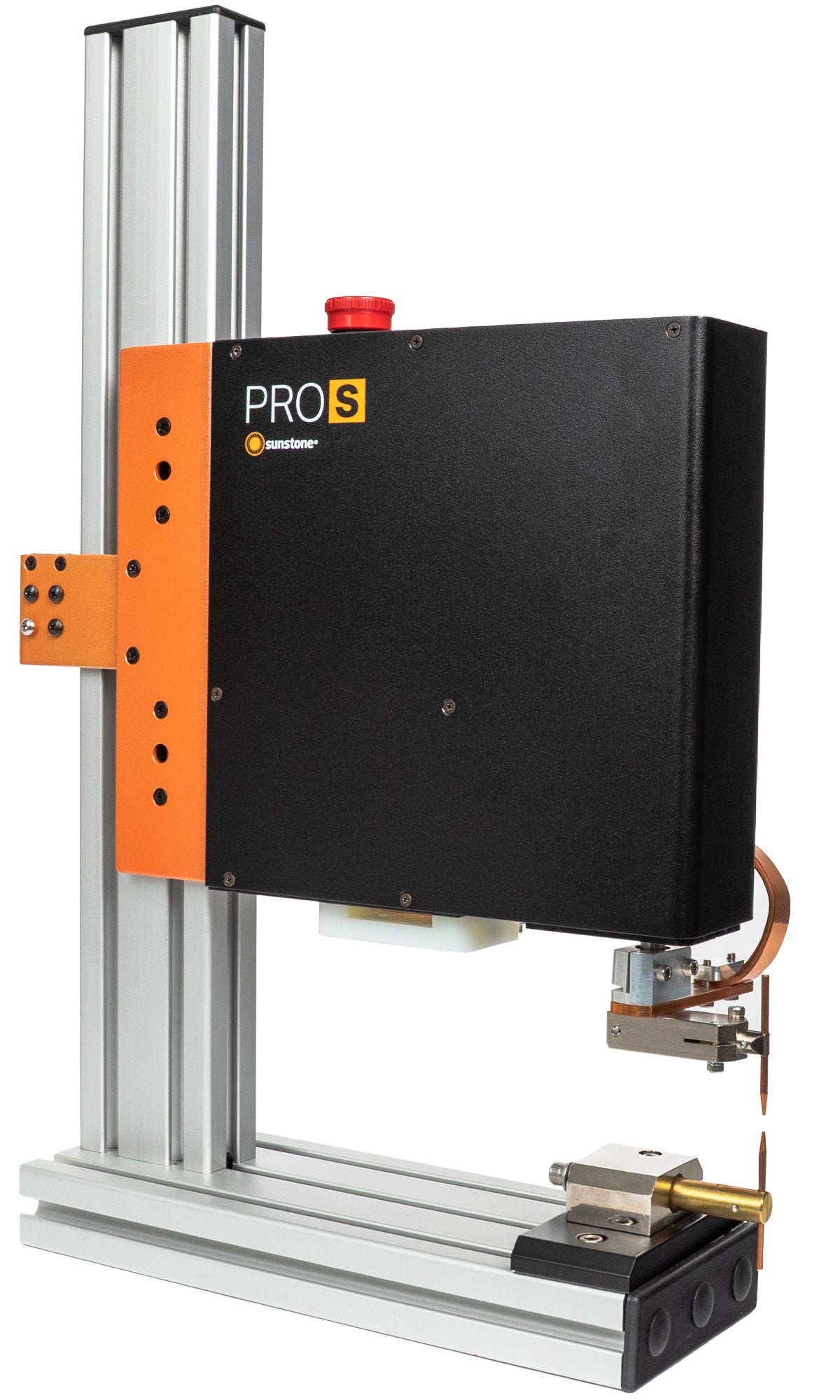

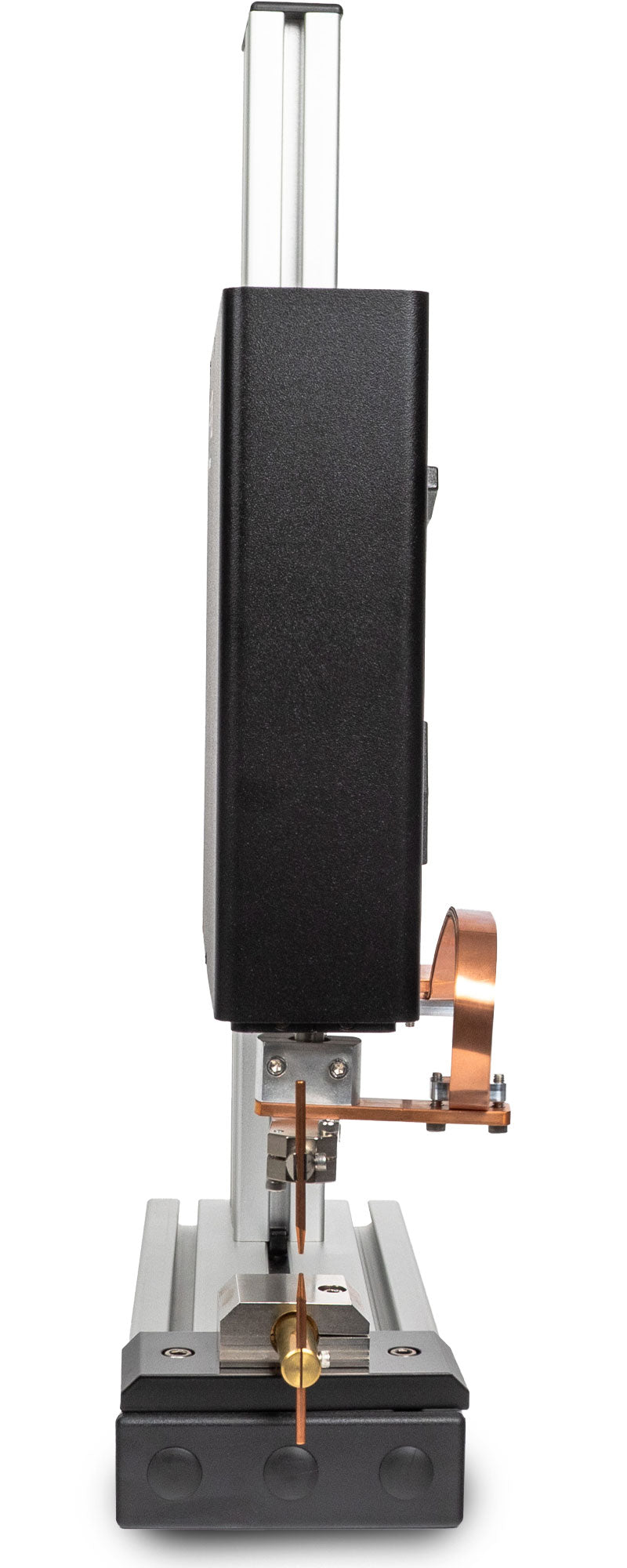

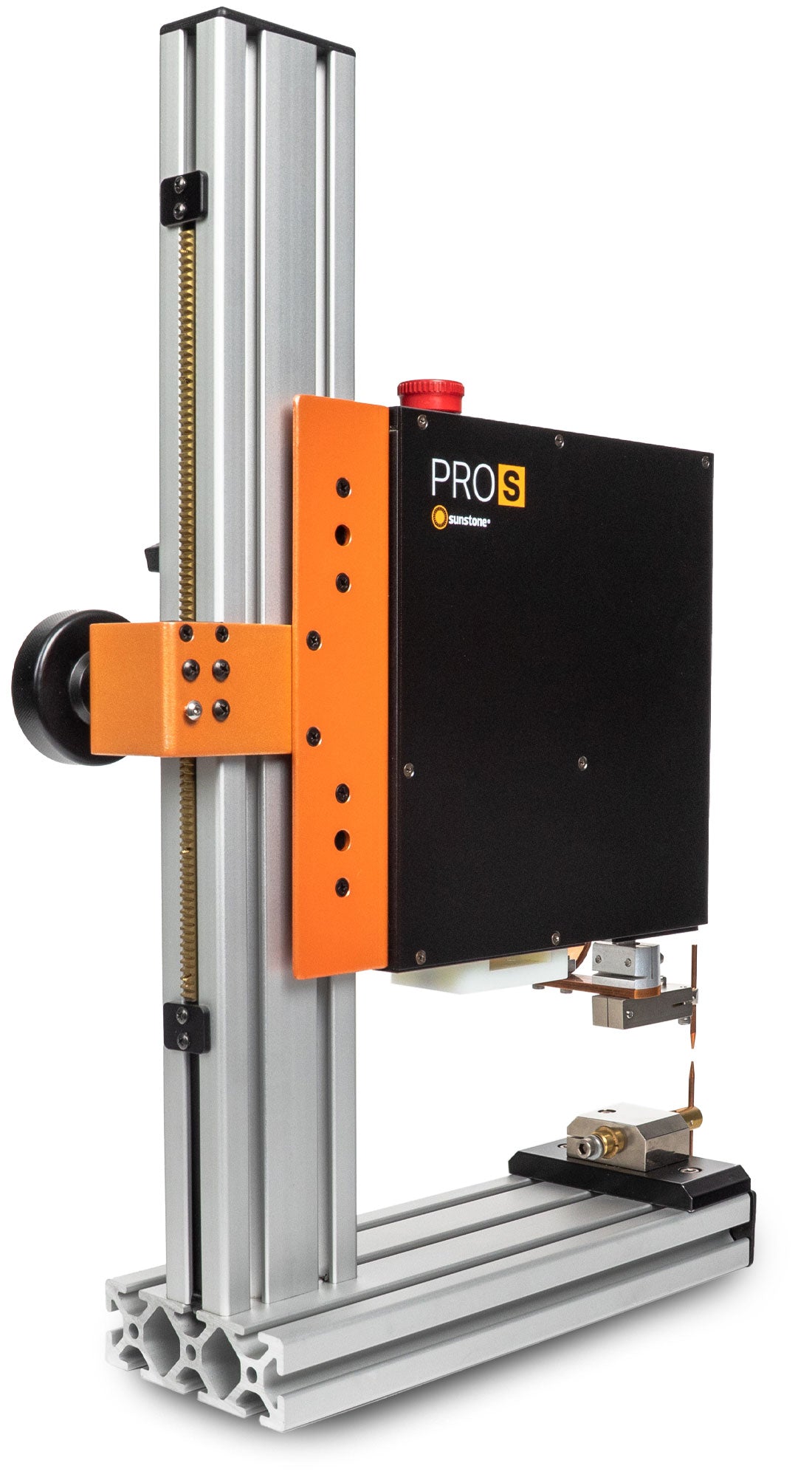

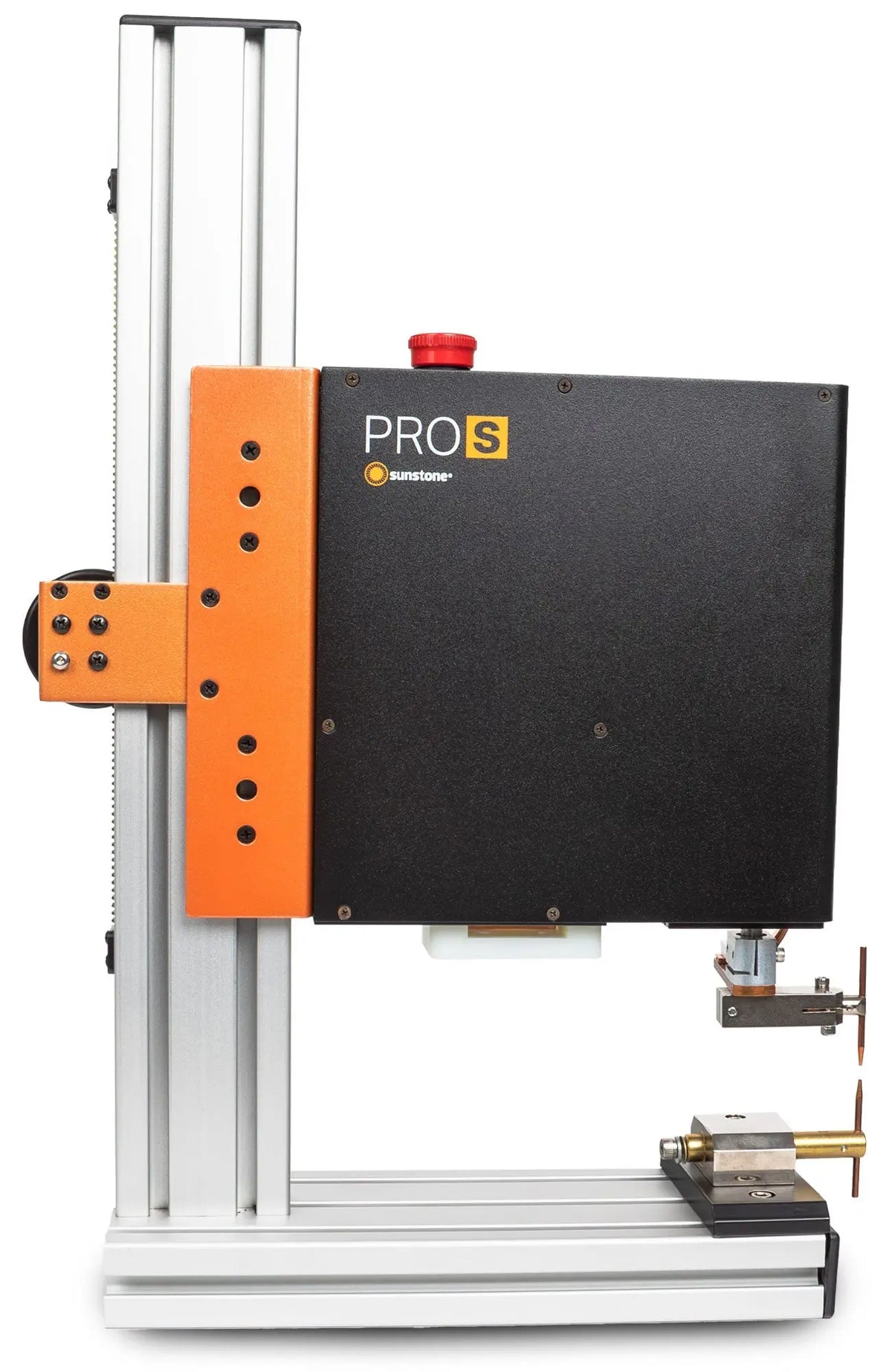

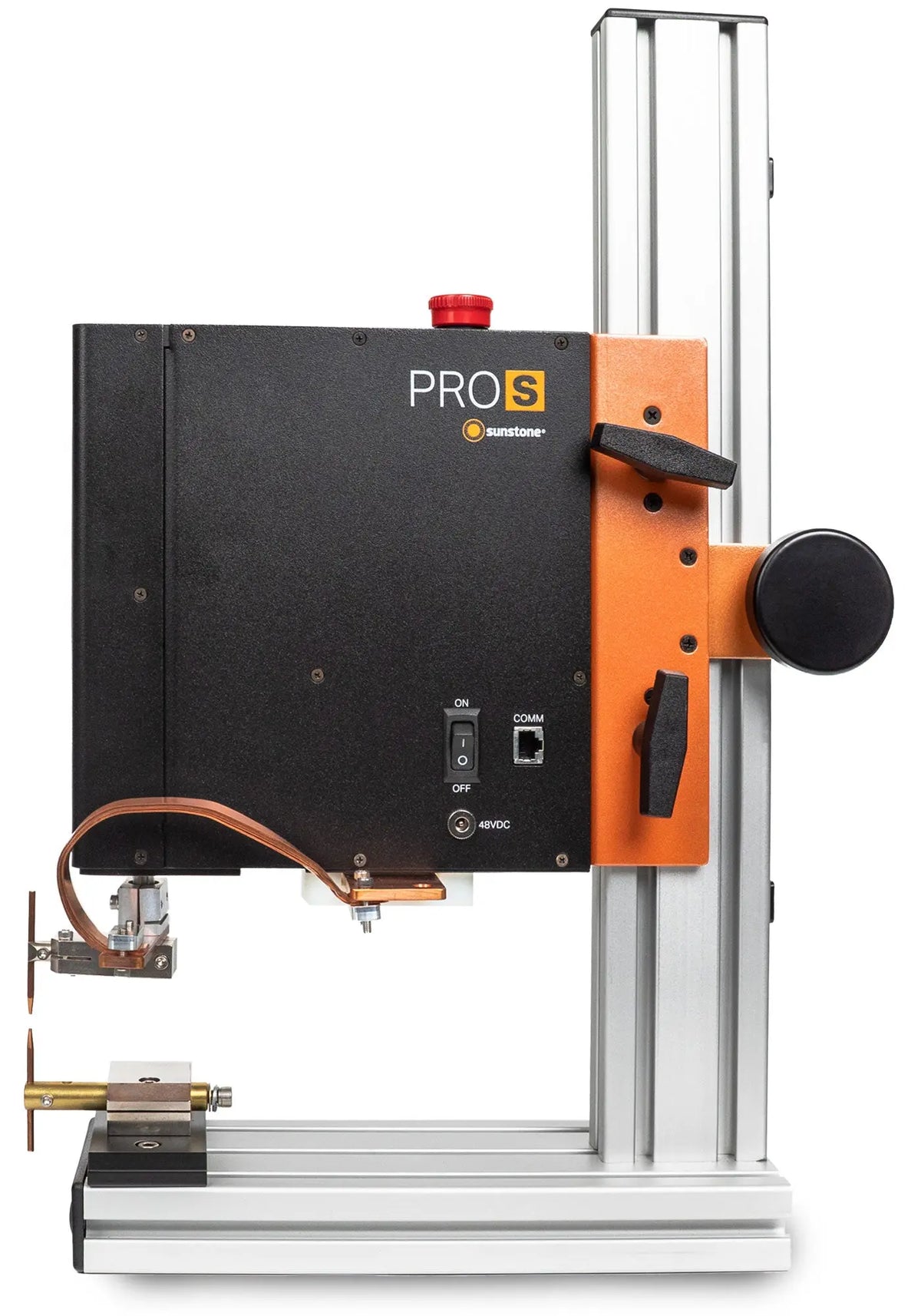

The Sunstone Pro-S Servo Weld Head is a servo-powered resistance weld head engineered for precision, repeatability, and process monitoring in both automated production environments and advanced tabletop setups. Designed in an opposed configuration, the Pro-S delivers significantly improved control compared to pneumatic weld heads by integrating real-time displacement and force monitoring directly into the system.
With adjustable weld force, precise positional feedback, and automation-ready capability, the Pro-S enables manufacturers to increase process consistency, reduce variability, and improve overall weld quality across demanding industrial applications.
Ideal For
-
Automated resistance welding production lines
-
Battery tab and pack assembly
-
Medical device manufacturing
-
Electronics and micro-component welding
-
Strain gauge and foil welding
-
Cross-wire and sheet welding
-
Research and development environments
Key Features
-
Built-in force feedback monitoring for real-time weld control
-
Integrated displacement feedback for precision process validation
-
Pull positional monitoring for improved weld repeatability
-
Servo-powered actuation for higher precision than pneumatic systems
-
Adjustable weld force from 1.8 to 29.2 lbs
-
2" electrode stroke for flexible application coverage
-
Positional displacement accuracy of 60 µm
-
Automation-ready for production integration
-
Rotary knob height adjustment for fast setup
-
Optional foot pedal control
-
100% duty cycle for continuous operation
Technology & Performance
The Pro-S utilizes servo-driven actuation to deliver controlled, repeatable weld force with precise positional tracking. Integrated monitoring systems provide feedback on:
-
Applied weld force
-
Electrode displacement
-
Pull position accuracy
This monitoring capability supports higher process validation standards, making the Pro-S ideal for manufacturers requiring documented weld consistency and quality assurance.
Compared to pneumatic weld heads, the Pro-S offers:
Specifications
| Specification |
Details |
| Tabletop Footprint (L × W × H) |
14" × 5" × 24" |
| Weight |
22 lbs |
| Weld Force |
1.8 – 29.2 lbs (8 – 130 N) |
| Max Electrode Stroke |
2" |
| Electrode Diameter |
1/8" |
| Power Input |
48 VDC @ 1.87 A |
| Max Throat Size (H × D) |
9" × 10" |
| Weld Cable Size / Length |
0 AWG / 24" |
| Foot Pedal Type |
Analog / Digital |
| Duty Cycle |
100% |
| Electrode Speed |
3 – 20 mm/sec |
| Operating Temperature |
32° – 149°F |
| Positional Displacement Accuracy |
60 µm |
| Actuation Method |
Automatic or Direct |
What’s Included
-
Sunstone Pro-S Servo Weld Head (Opposed Configuration)
-
Integrated displacement and force monitoring system
-
Weld cable (0 AWG, 24")
-
Height adjustment assembly
-
Setup documentation
Warranty
This product includes Sunstone’s 2-Year Limited Manufacturer Warranty, covering defects in materials and workmanship.
-
Internal electronics and system components covered for 2 years
-
Consumable components covered under a 1-Year warranty
-
Service and support provided by Sunstone’s U.S.-based technical team
