Centroform - EZFORM® LV 1827 E Vacuum Forming Machine

Made in the USA | 1-Year Warranty | Free Technical Support from Centroform

Overview:

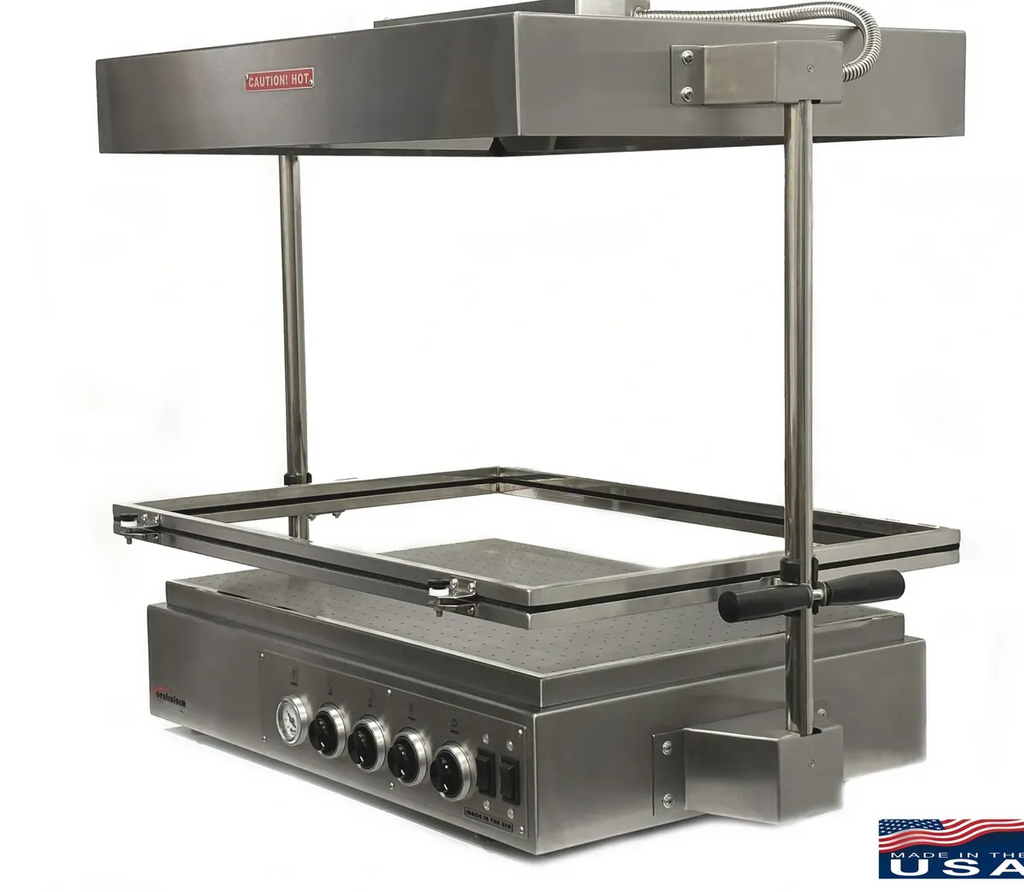

The EZFORM® LV 1827 E is a professional-grade vacuum forming machine designed for flexibility and precision. Engineered with durable stainless steel construction and customizable vacuum port functionality, it’s perfect for workshops that already use their own suction equipment. This machine offers the same powerful heating system and large forming area as the V2 model, with external vacuum source compatibility.

Key Features:

• Large Forming Area: 18" x 27"

• Plastic Sheet Size: Accepts 21.25" x 30.25" up to 22" x 31" (6 pieces from a 4’ x 8’ sheet)

• Max Draw Depth: 9–11 inches depending on mold geometry

• Heaters: Dual 1500W adjustable heaters (3000W total)

• Plastic Thickness: Handles sheets up to 1/4"

• Vacuum Port Integration:

  • Two rear-mounted female electrical outlets for connecting your own suction sources

  • Vacuum ports (1.5" and 3/8") controlled from the front panel for adjustable vacuum level, duration, and power

  • Ports stay sealed until suction is applied

• Vacuum Gauge: Included for precise control

• Construction: Welded stainless steel body with polished forming area

• Quick Load Frame: Adjustable stainless steel frame slides down quickly before plastic cools

• Heating Element: Symmetrical 1500W element ensures even heat distribution without hot or cold spots

• Fuse Protected: Built-in for safety

• Power Cord: Heavy-duty grounded cord included

Specifications:

• Unit Dimensions: 30.5" (H) x 37" (L) x 22" (W)

• Weight: 65 lbs

• Voltage: 110–120V standard (210–240V available for international use)

• Chamber Design: Compact internal chamber enables rapid suction

• Additional Ports: Allows connection of shop vacs, vacuum pumps, or storage tanks

• Included: Operator’s Manual with vacuum forming tips and mold-making guidance

Plastic Compatibility:

Supports most formable plastics, including:

• Styrene

• Acrylic / Plexiglas

• PET-G

• PVC

• ABS

• Polyethylene

• Vinyl

• Many others

Applications:

Ideal for:

• Prototype development

• Small-scale production

• Mold making (plaster, chocolate, candy, concrete)

• Blister and skin packaging

• Sign and mask creation

• RC parts (cowls, wingtips, canopies)

• Special effects

• Magnetic lettering and more

Warranty

Backed by a full 1-year warranty and free lifetime technical support.
Proudly manufactured in the USA.
International voltage options available.
