Fume Dog – Bulldog-EX-FLEX – Magnetic Wall-Mount Welding Fume Extraction / Exhaust System

Overview

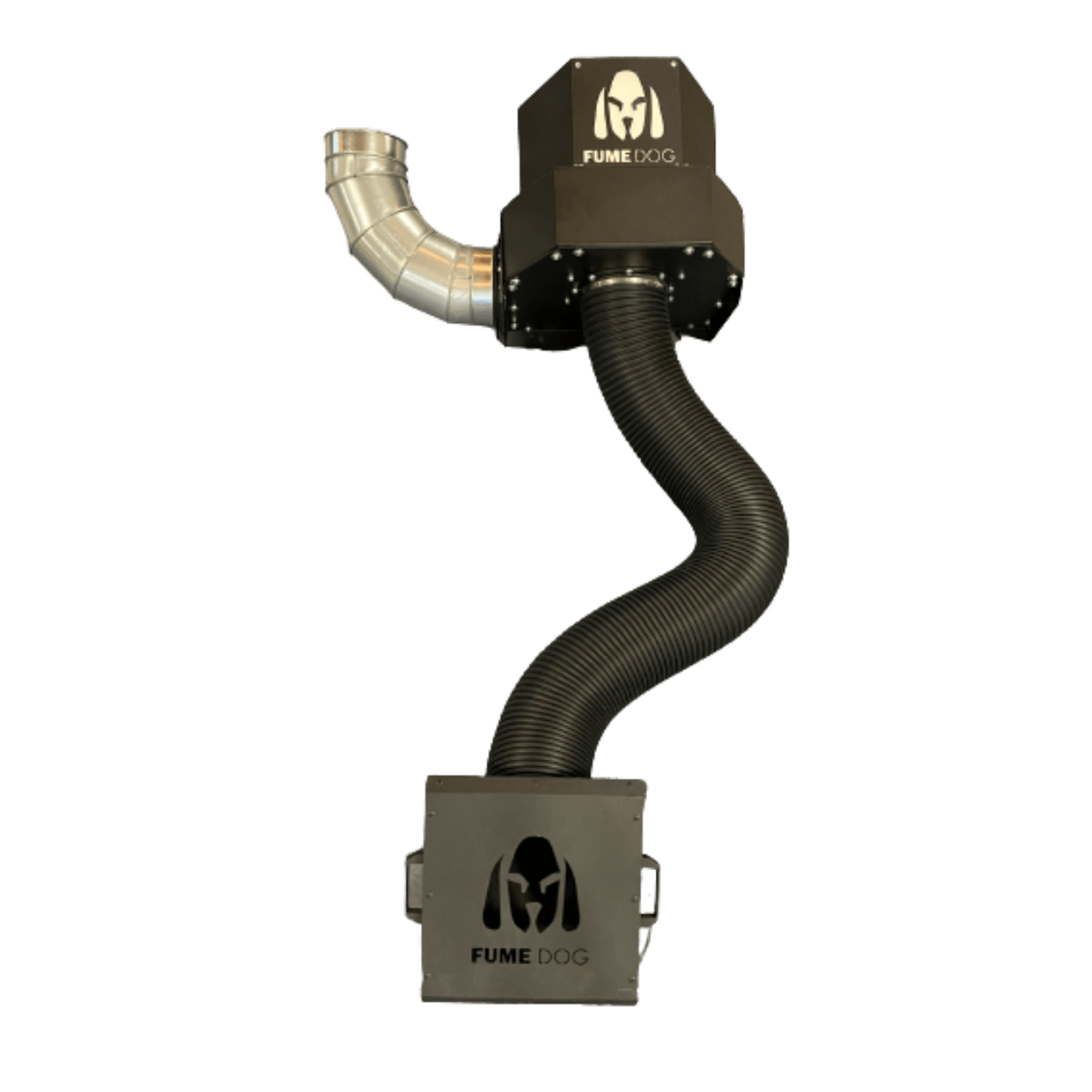

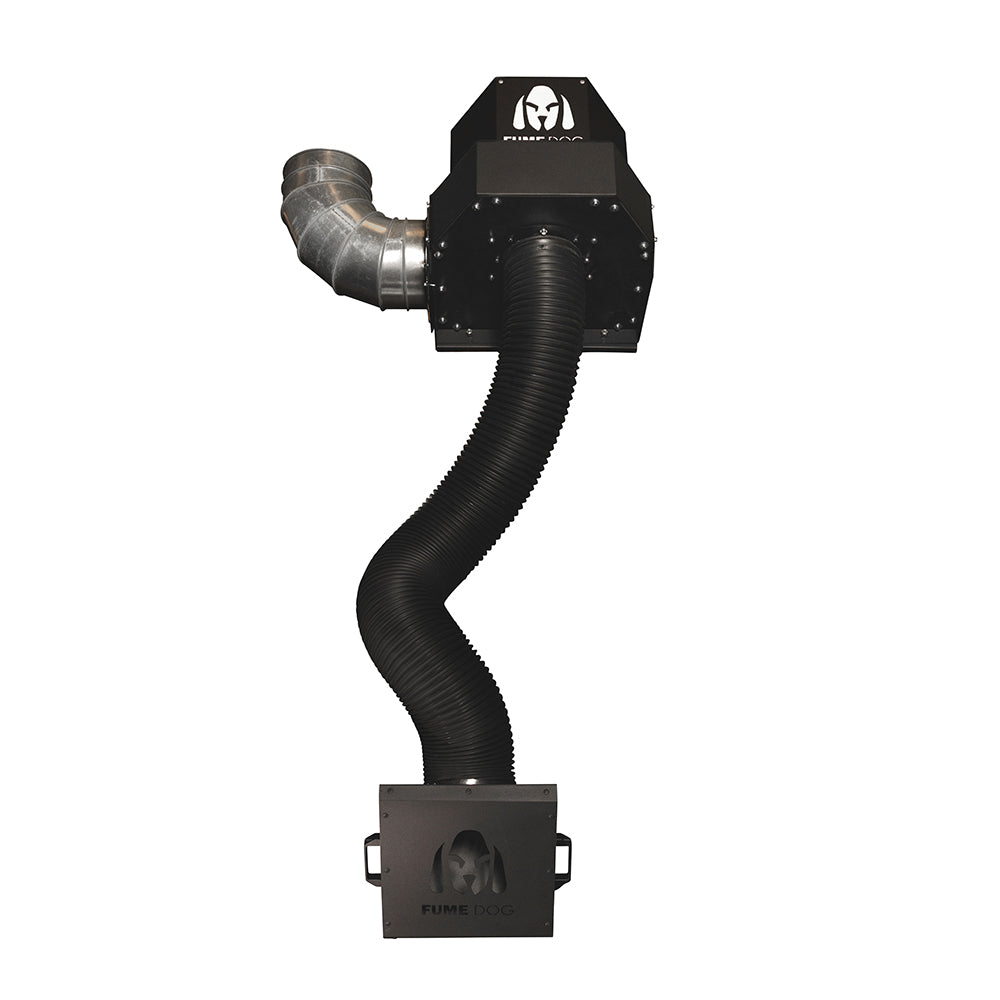

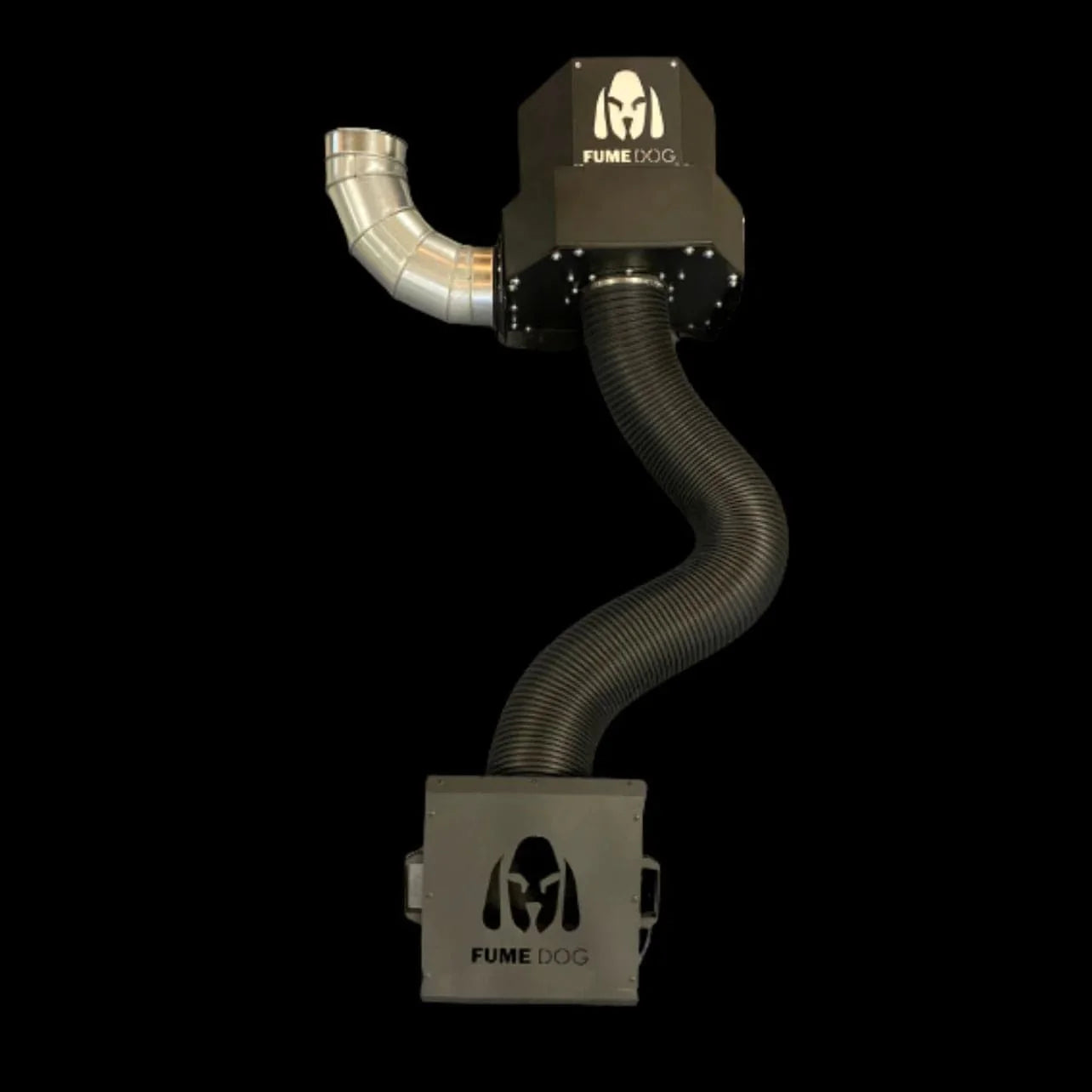

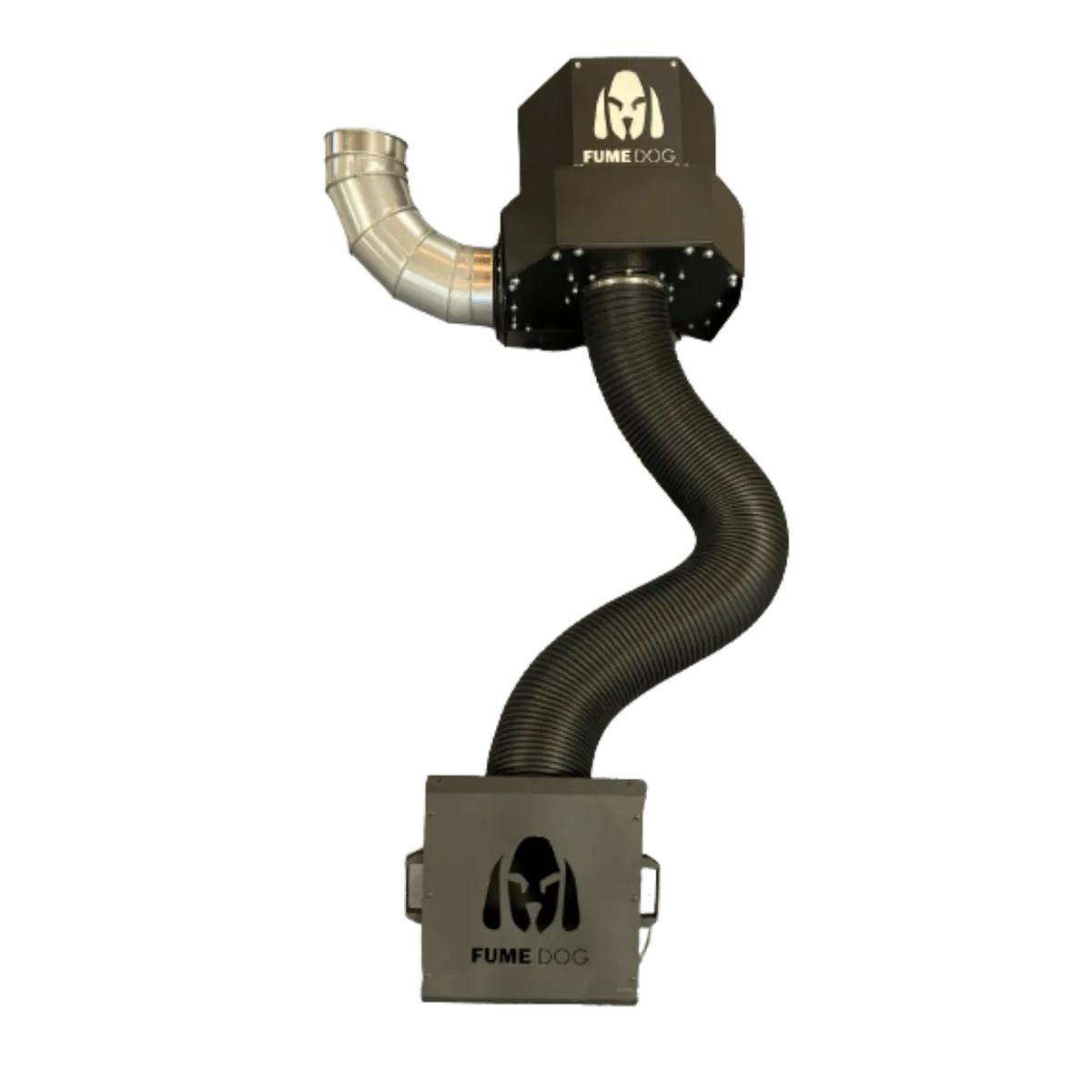

The Fume Dog Bulldog-EX-FLEX is a 1,200 CFM magnetic wall-mount welding fume extraction system designed for maximum flexibility and mobility. Featuring the same high-performance exhaust system as the Bulldog-EX, this version adds a magnetic mounting base that allows users to relocate the extraction arm easily between workstations.

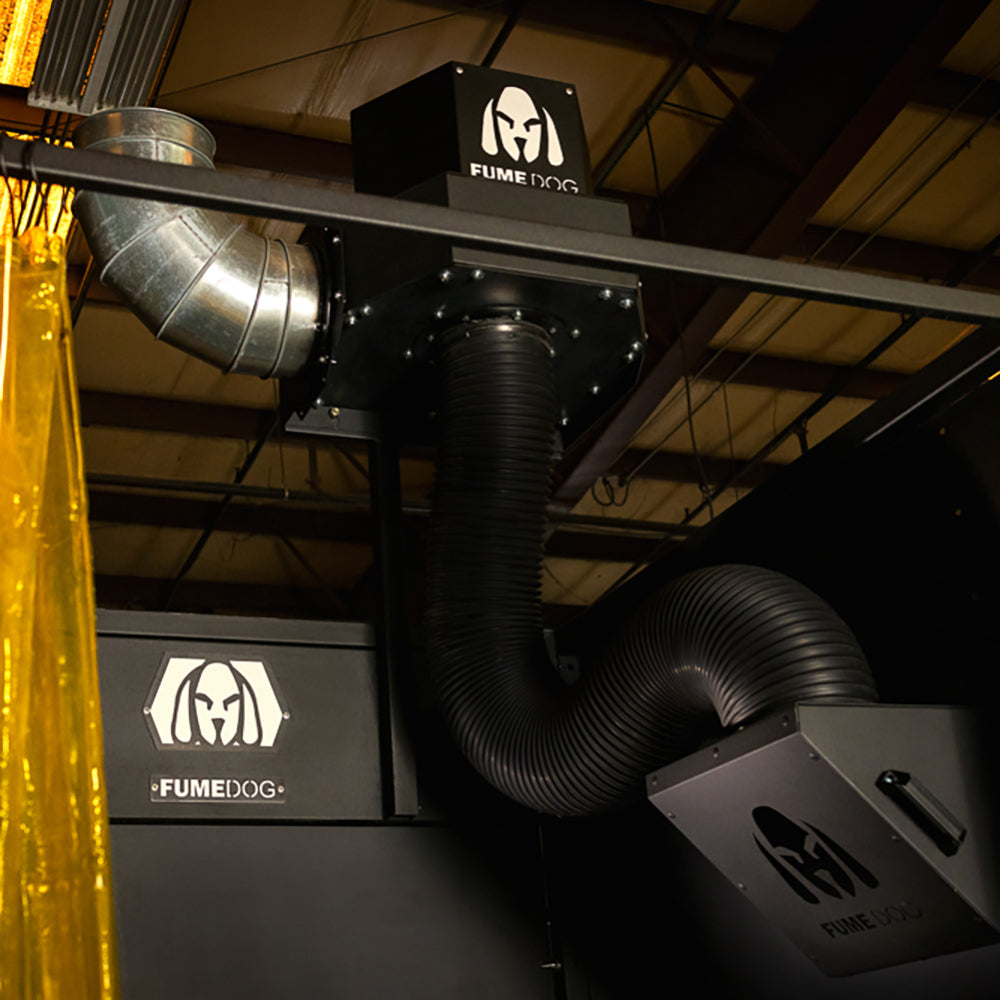

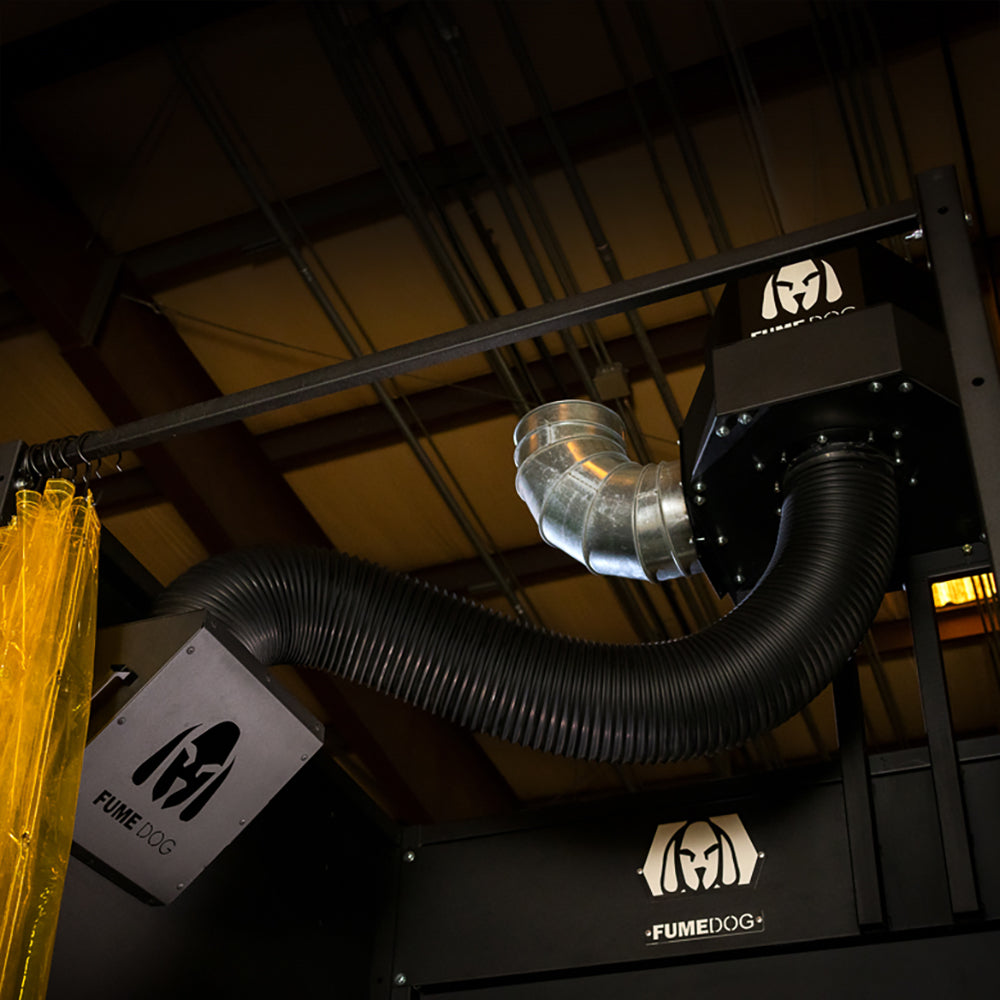

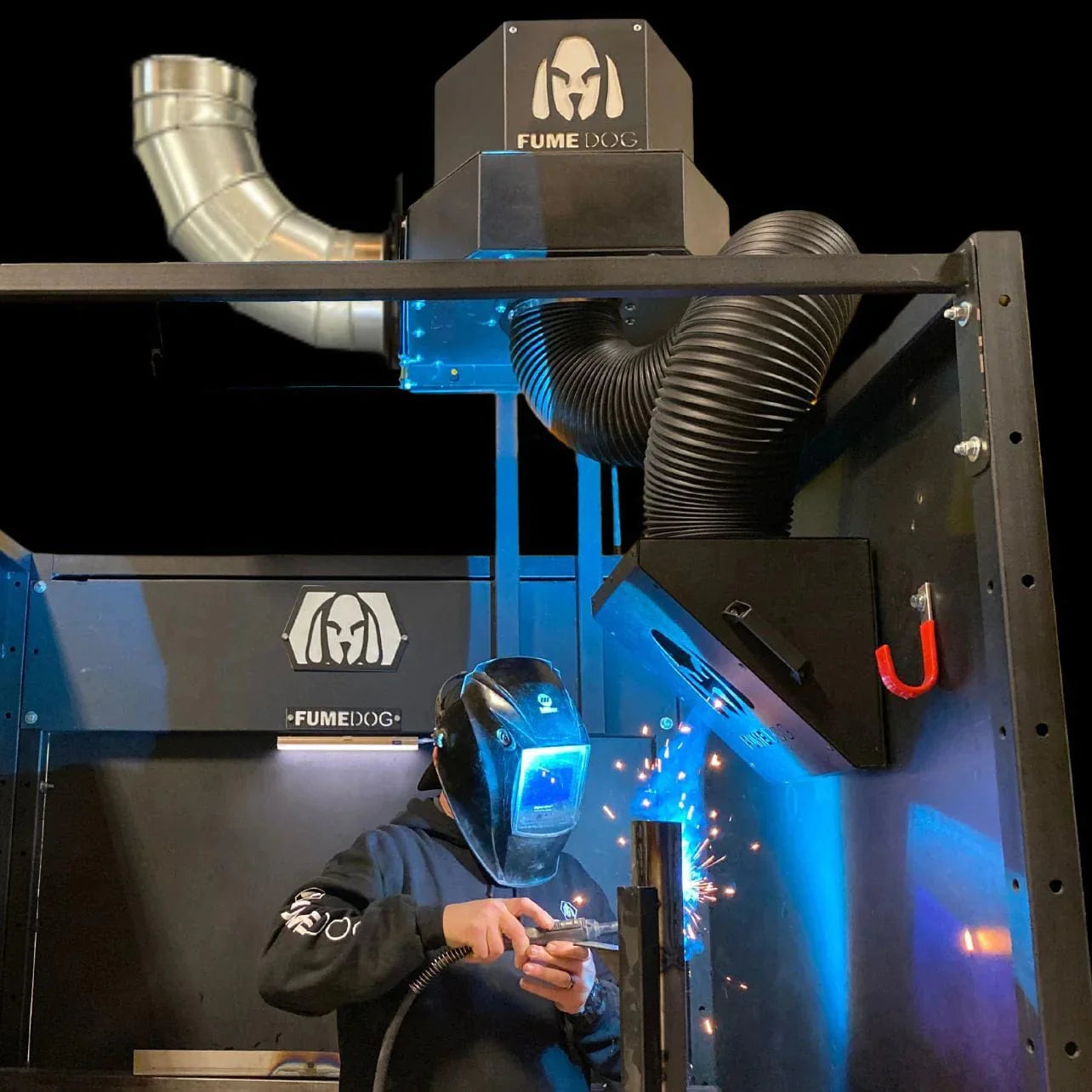

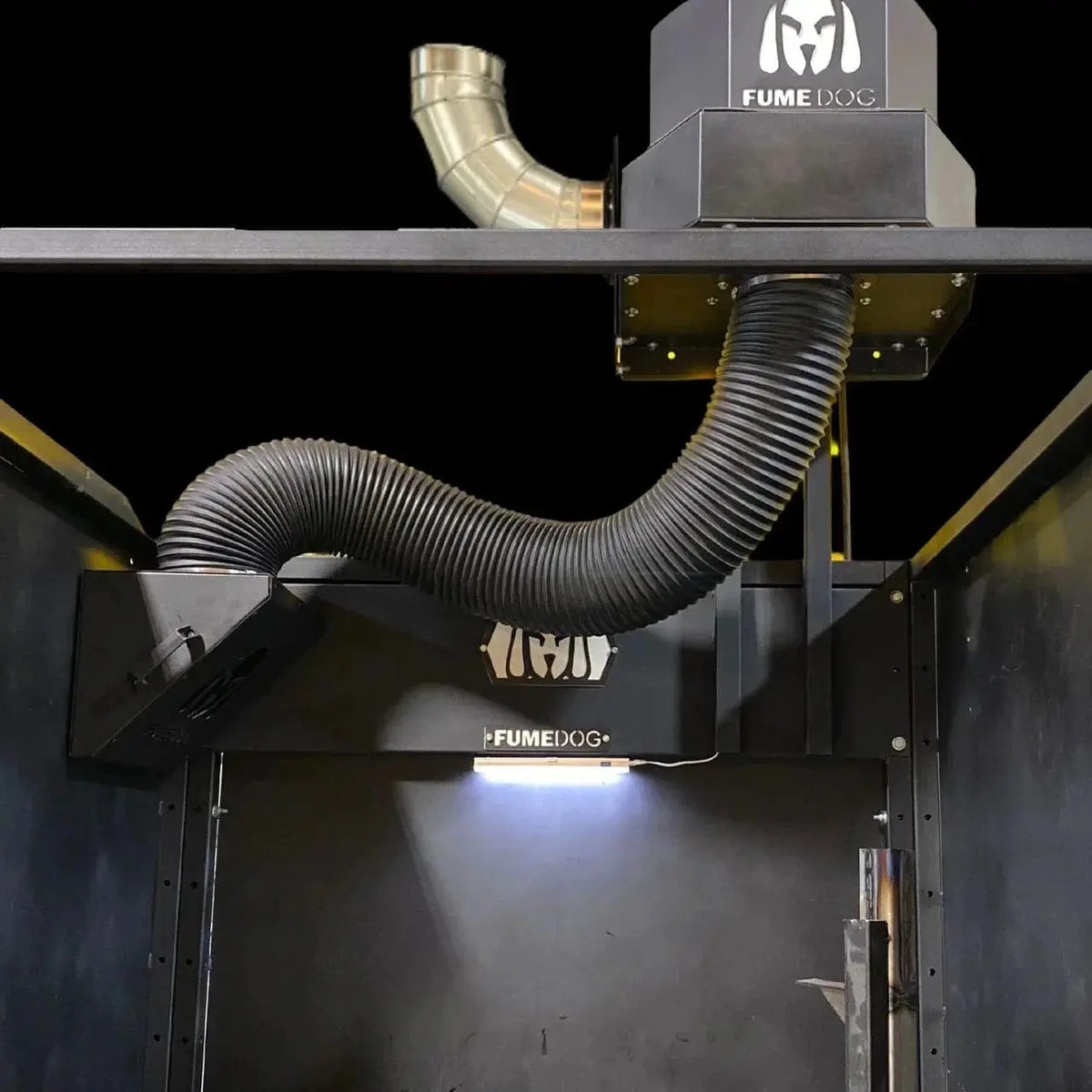

With its 8-inch articulating arm, external joints, and internal damper, the Bulldog-EX-FLEX provides precise source capture of welding fumes, venting them outdoors through a ducted system. Built from heavy-gauge steel, it’s designed for continuous use in demanding fabrication environments where both mobility and durability matter.

Shipping Notice

This product is not eligible for free shipping.
Flat Freight Rate: $299 (discounted rate).

Specifications

• Airflow: 1,200 CFM

• Motor: 1.5 HP

• Power: 120 V / 1-phase

• Mounting Style: Magnetic wall-mount with integrated steel bracket

• Extraction Arm: 8" diameter, 10 ft length, 360° range, external joints, internal airflow damper

• Exhaust Outlet: Configurable left or right side

• Dimensions (unit only): 40.5" × 26" × 31.5"

• Weight (unit only): 215 lb

• System Type: Exhaust-only extraction (no onboard filters, requires ducting to vent outdoors)

• Construction: Heavy-gauge steel housing

Key Features

• 1,200 CFM exhaust capacity for high-performance welding fume removal

• Magnetic Wall Mount: Easily repositionable across multiple welding stations

• Exhaust-only system: Direct vent outdoors (no onboard filters)

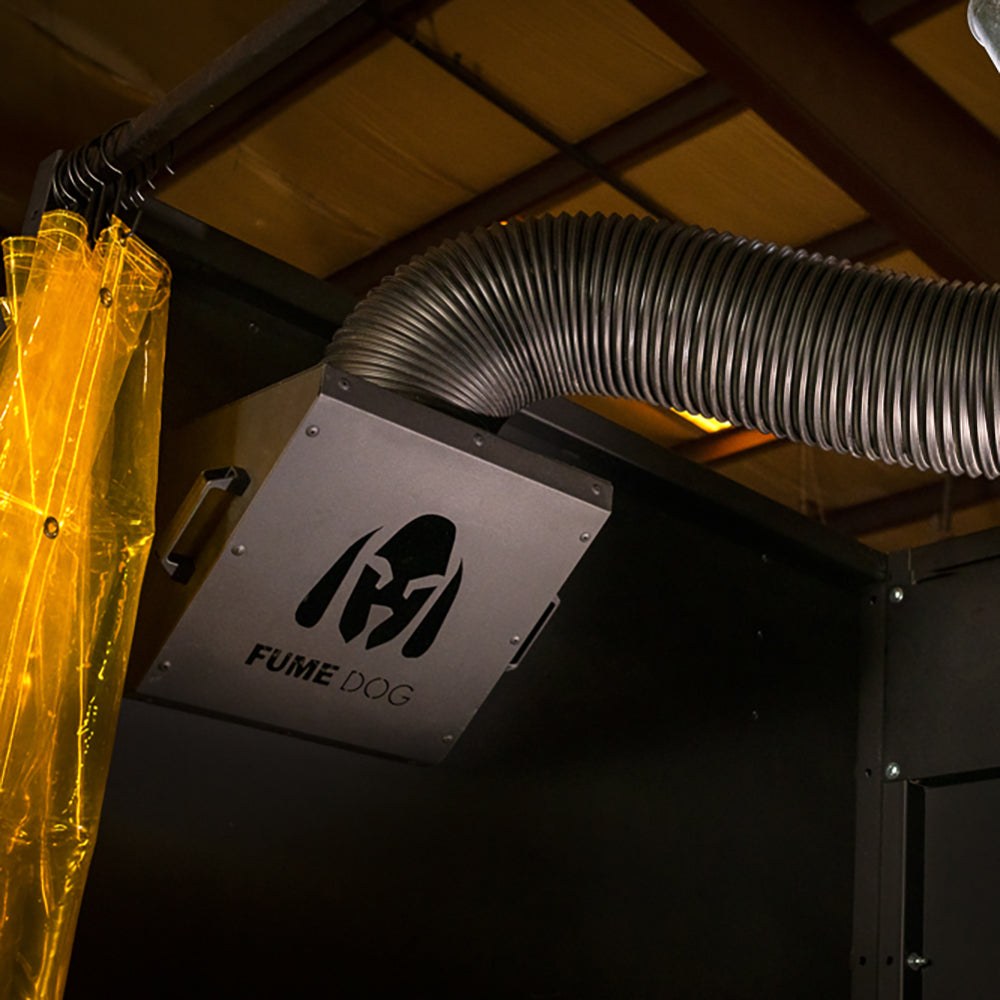

• 8" articulating extraction arm with external joints and internal damper

• Heavy-duty construction: Rugged, all-steel build for industrial use

• Compact footprint: Saves floor space while providing mobility

Ideal Applications

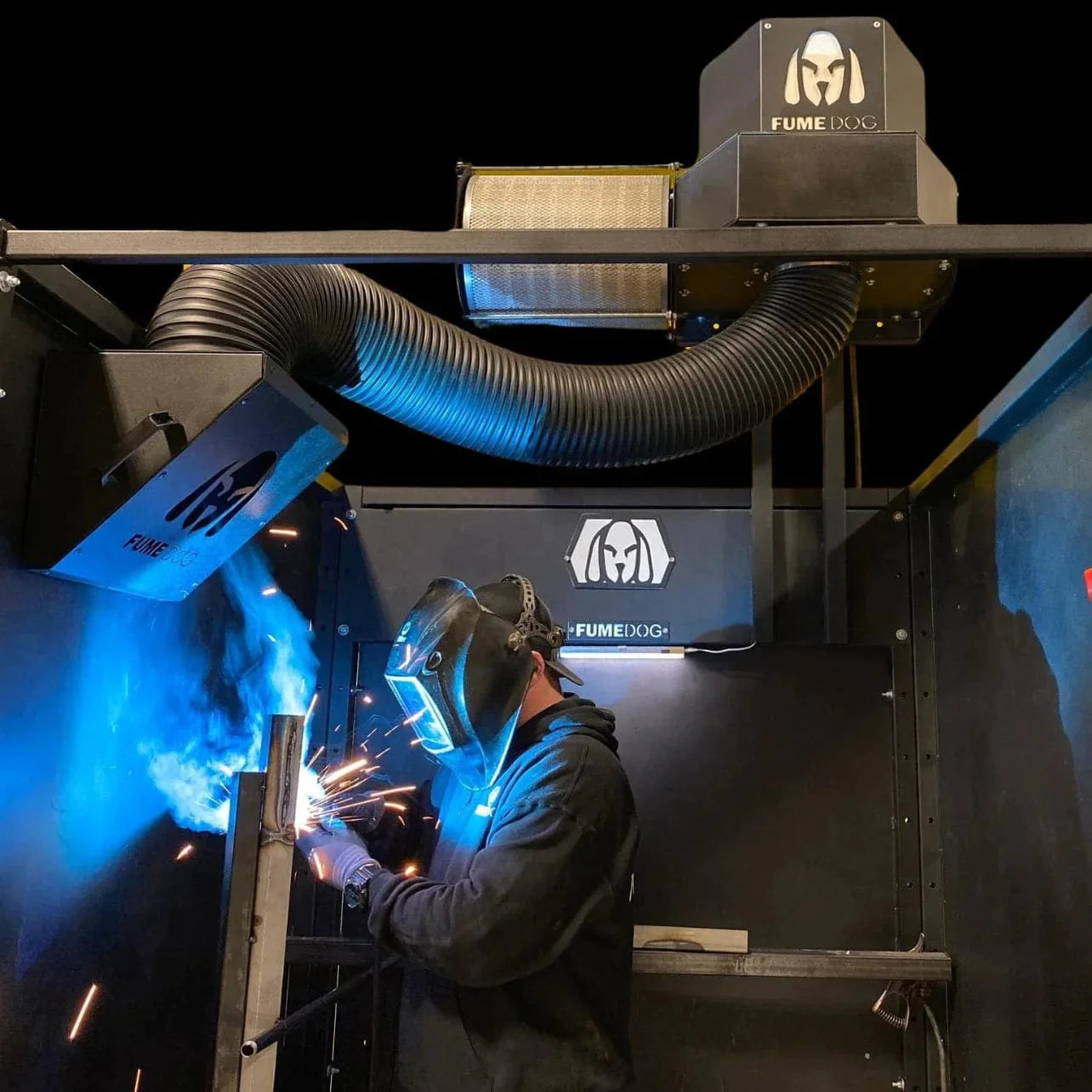

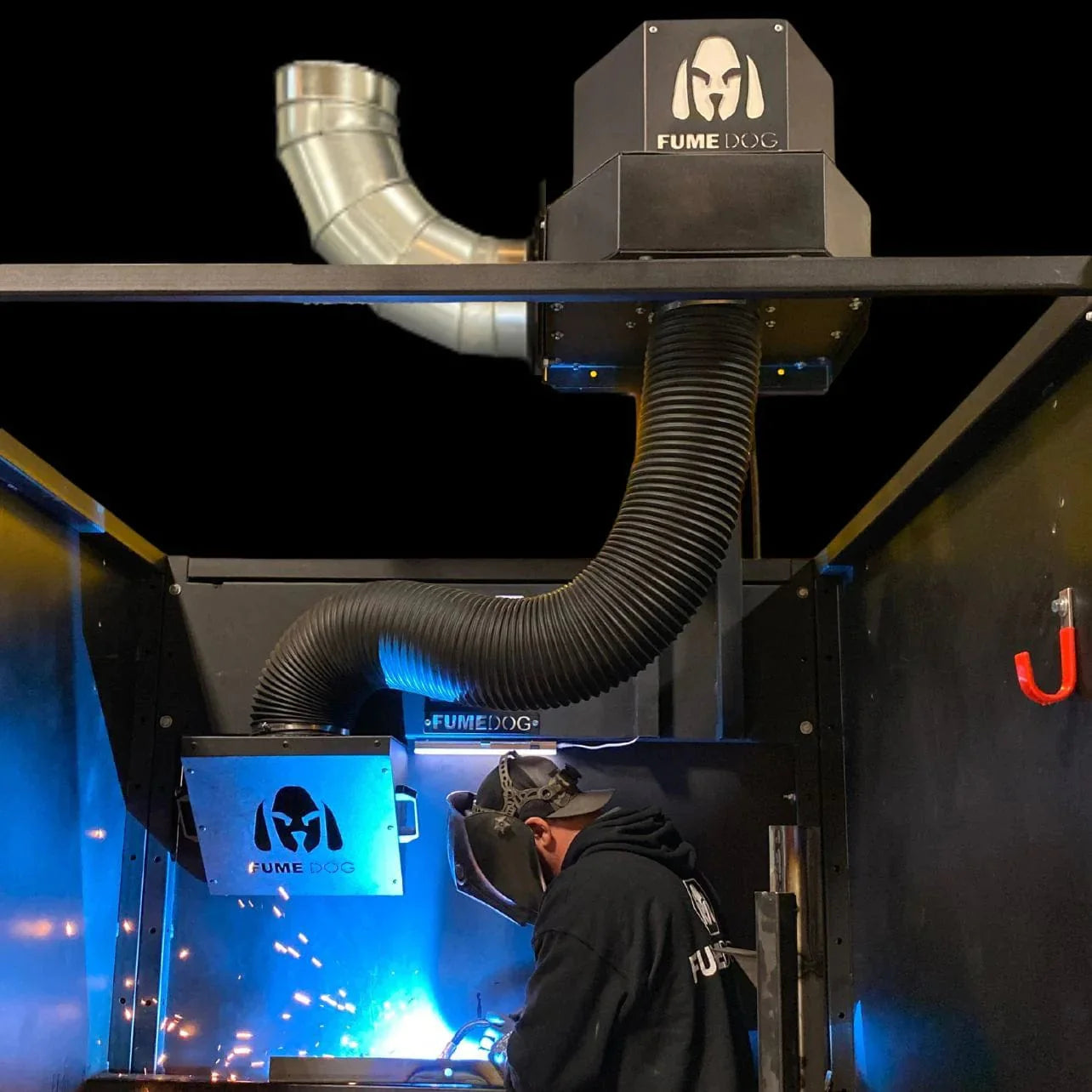

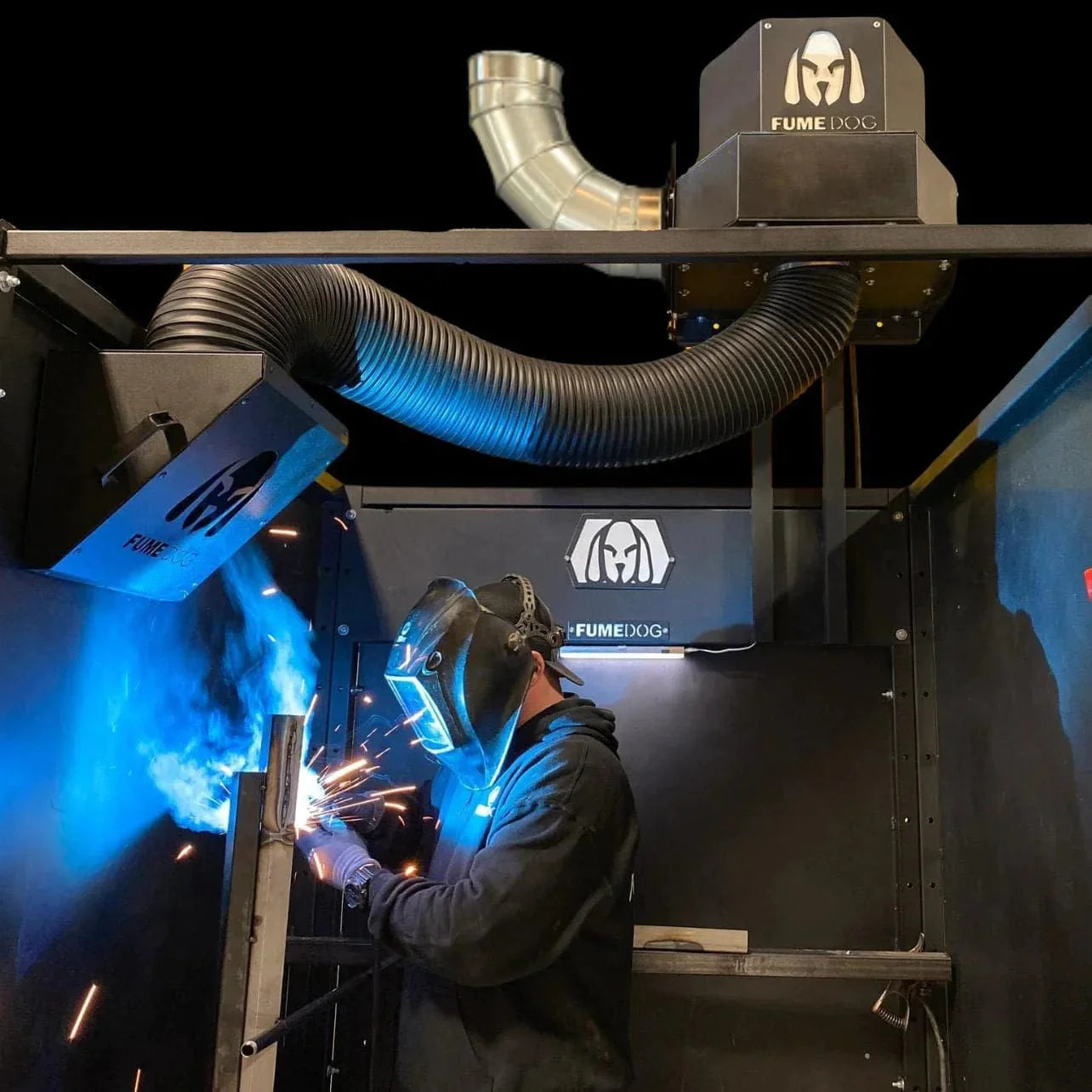

• Multi-station welding shops needing relocatable extraction

• MIG, TIG, and stick welding environments

• Training facilities and classrooms requiring flexible positioning

• Industrial facilities with ducting infrastructure

Warranty

• 1-Year Manufacturer Warranty

Customer Resources

📄 User Manual (2022)
📄 Brochure: Bulldog-EX-FLEX
▶️ Video: Performance Video
📧 Customer Support: support@fumedog.com | (877) 387-3348
