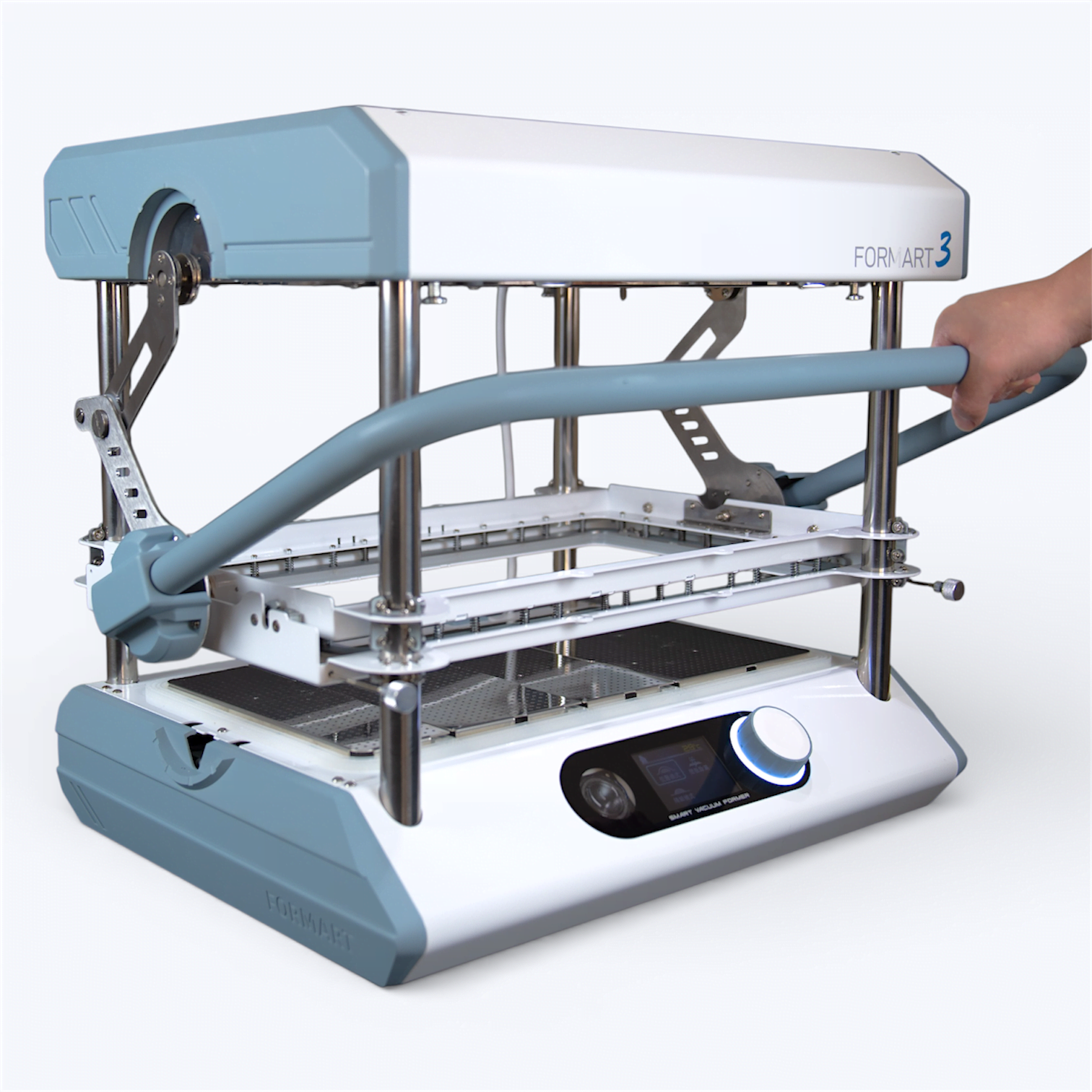

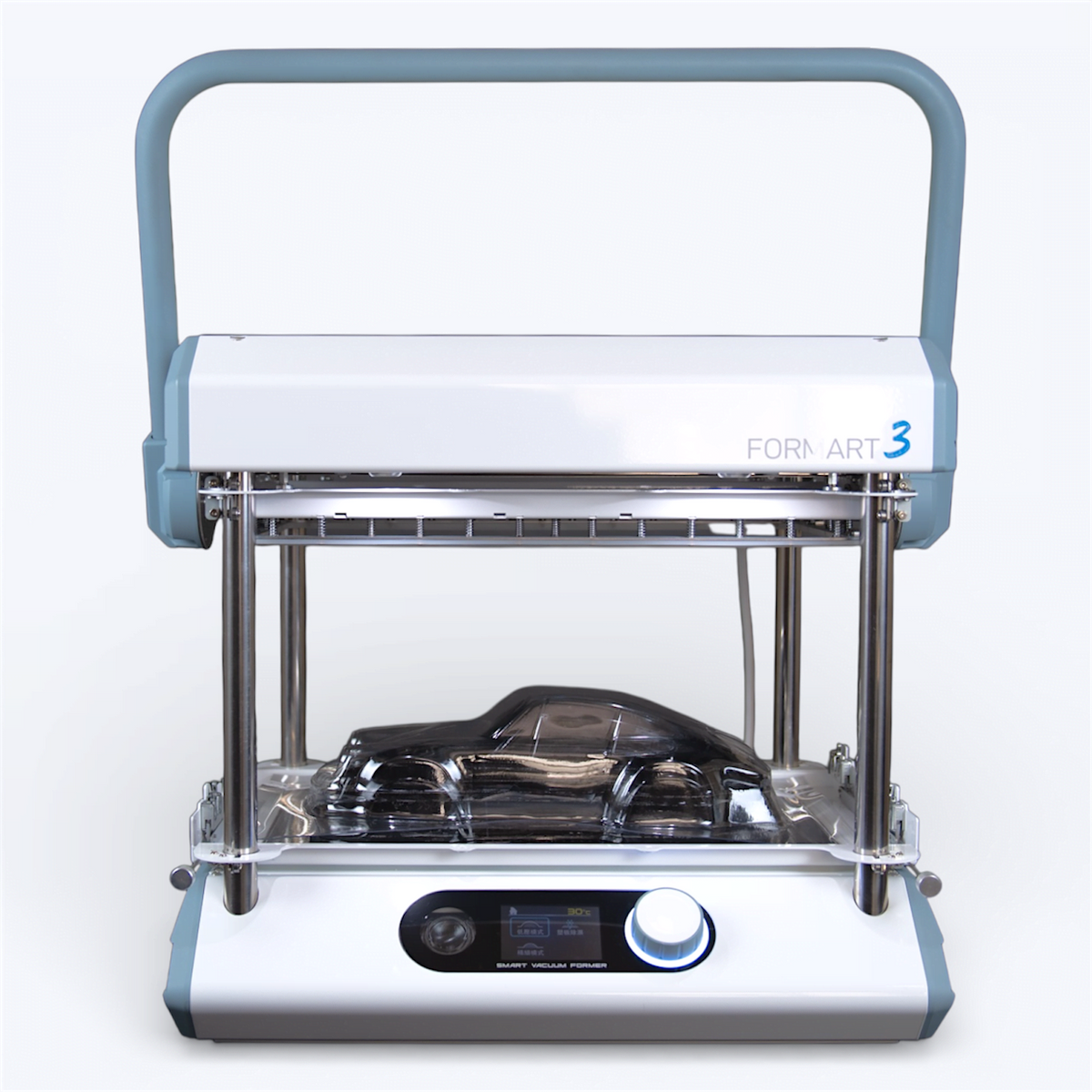

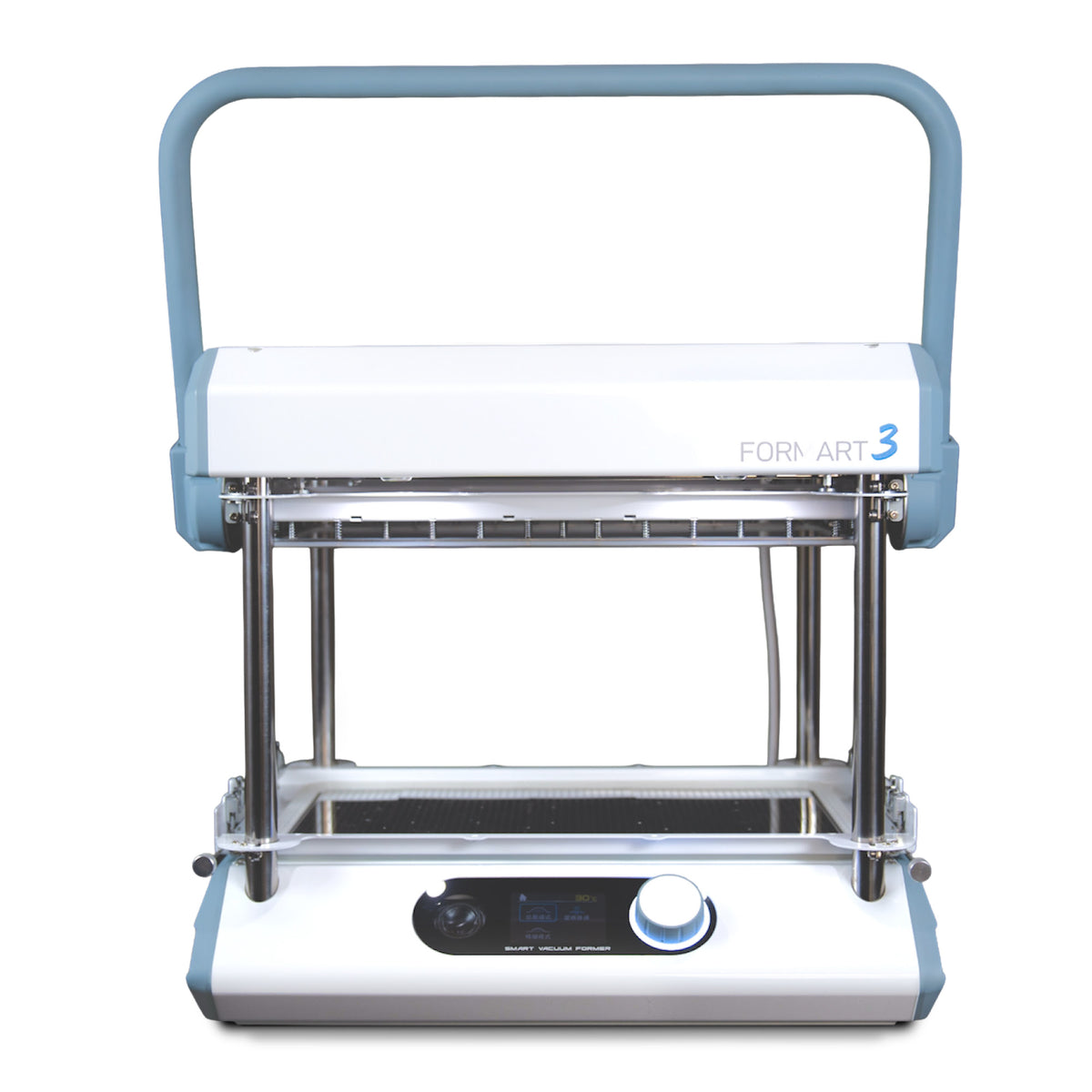

MYYARD FORMART 3 Smart Vacuum Former
Description
Professional Desktop Vacuum Forming Machine | Plug-and-Play Thermoforming System
Overview
The MYYARD FORMART 3 Smart Vacuum Former is a professional desktop thermoforming system engineered for makers, educators, designers, prototyping labs, and small production environments. Designed to simplify high-quality vacuum forming, the FORMART 3 combines intelligent automation, adjustable heating control, integrated vacuum power, and interchangeable sheet sizing into a compact, user-friendly platform.
Featuring a patented clamping frame system, built-in industrial vacuum pump, carbon fiber quartz heating technology, and smart material presets, the FORMART 3 delivers reliable forming performance for detailed prototypes, packaging, molds, cosplay parts, and custom fabrication projects.
The integrated 3.5" color display, adjustable heating curves, infrared temperature sensing, and sheet dehumidification functionality help ensure consistent forming results across a wide range of thermoformable plastics.
Ideal For
- Product prototyping
- Packaging and blister forming
- Cosplay and prop fabrication
- Educational and maker environments
- Mold and tooling creation
- Small-batch production workflows
- Custom plastic part fabrication
Key Features
- Built-in 300W industrial-grade vacuum pump with adjustable suction
- Maximum vacuum pressure up to -92 kPa

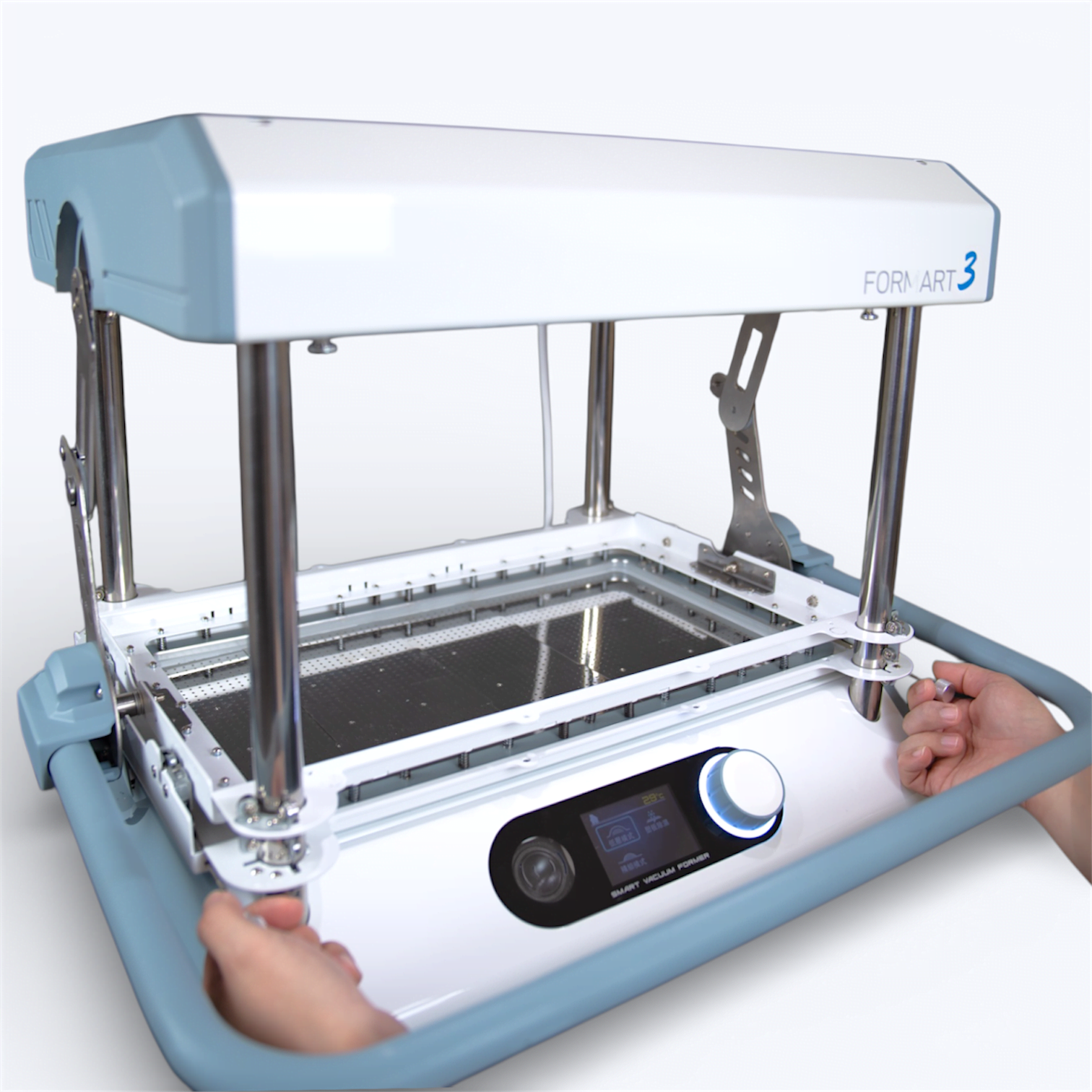

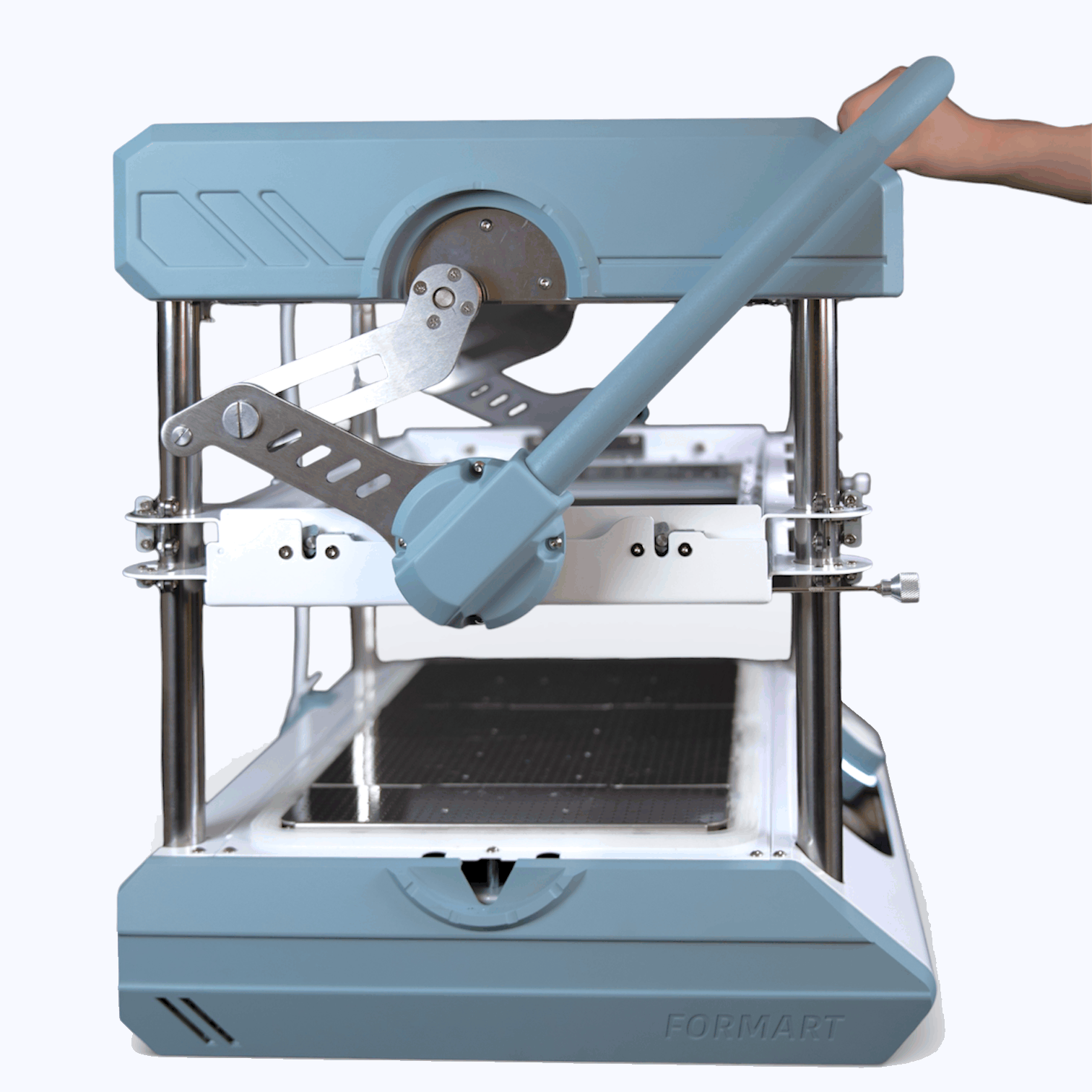

- Patented quick-release clamping frame system
- Supports four interchangeable sheet sizes
- Carbon fiber quartz heating tubes for fast, even heating
- Adjustable temperature control with customizable heating curves
- Infrared temperature monitoring system
- Plastic sheet dehumidification function for improved forming consistency

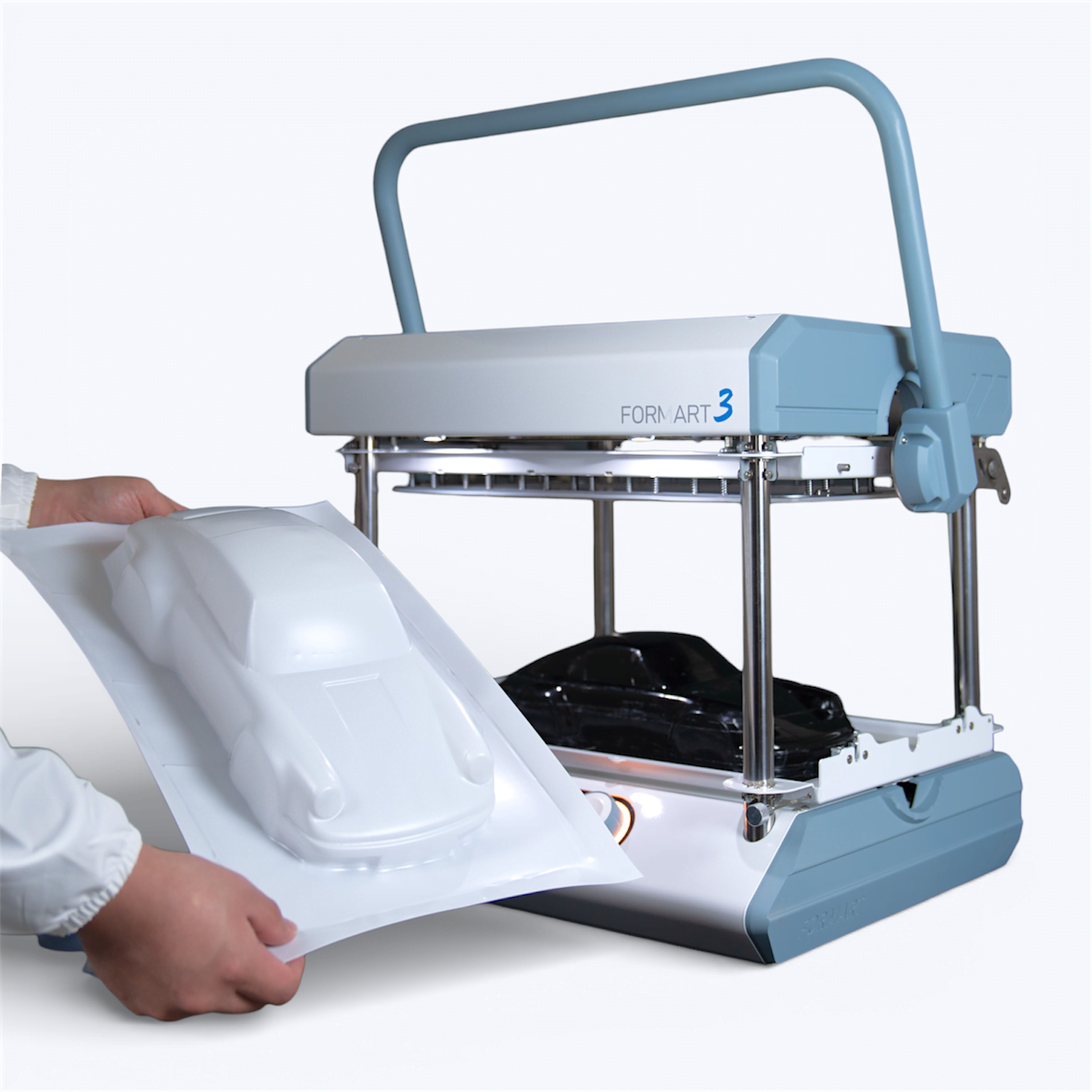

- Air blow-off demolding assistance

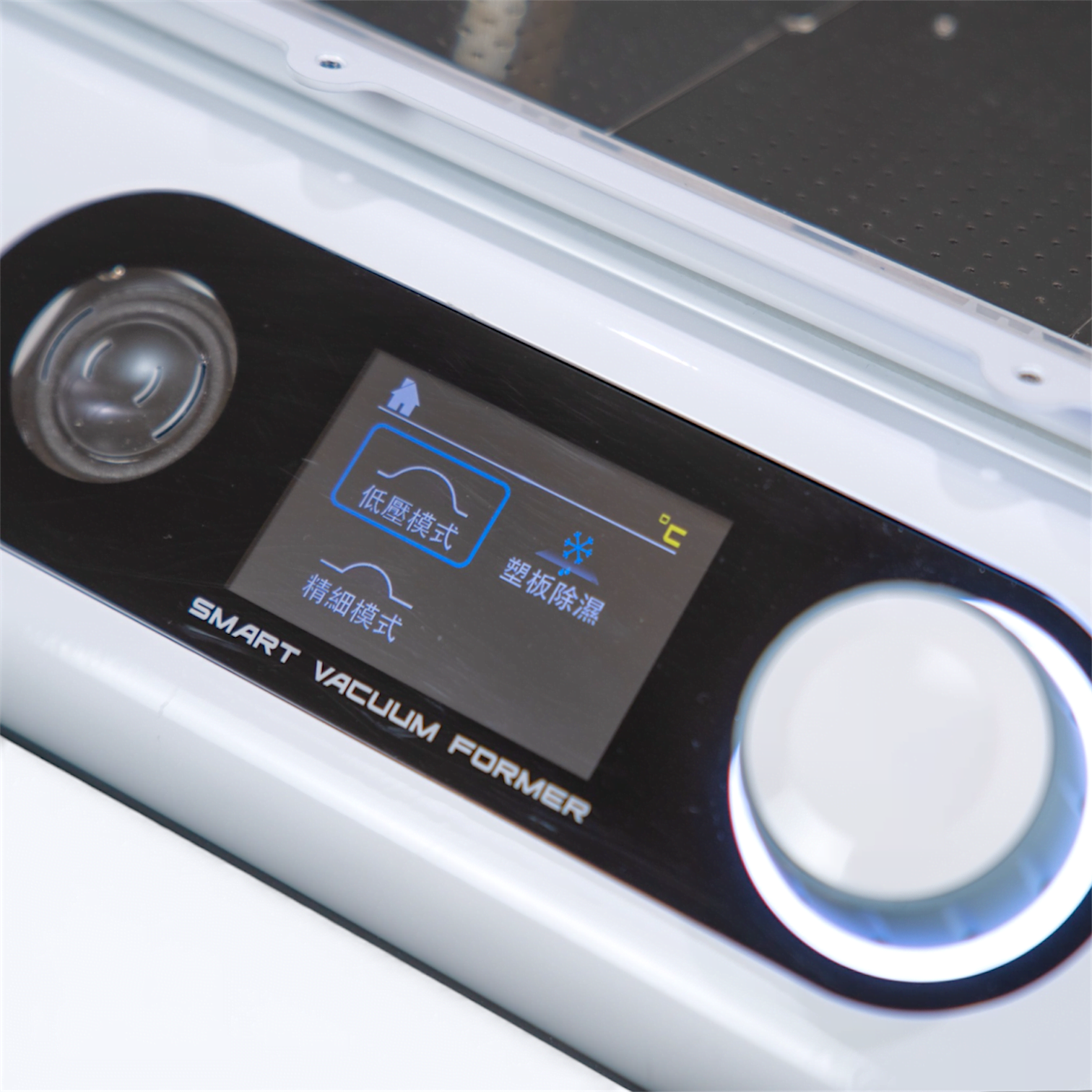

- 3.5" full-color display with intuitive controls
- Integrated material database with preset material profiles
- User-defined memory slots for custom settings
- Plug-and-play desktop operation
Smart Vacuum Forming System
The FORMART 3 is designed to streamline vacuum forming workflows through intelligent automation and precision thermal control. Its integrated vacuum system and adjustable heating curves help operators achieve detailed, repeatable forming results while minimizing setup complexity.
The built-in material database includes optimized presets for supported sheet materials, while advanced users can customize heating behavior and vacuum performance for specialized forming applications.
Heating & Vacuum Performance
The FORMART 3 utilizes high-efficiency carbon fiber quartz heating tubes combined with infrared temperature sensing to maintain stable heating performance and improved material consistency.
Additional performance features include:
- Adjustable heating curves
- Fine and low-pressure vacuum modes
- Vacuum duration adjustment
- Automatic air blow demolding assistance
- Built-in sheet dehumidification mode
The dehumidification function helps reduce moisture-related defects such as bubbling and whitening during thermoforming.
Compatible Materials
Compatible with many thermoformable plastics including:
- PETG
- ABS
- HIPS
- Acrylic
- PVC
- Styrene
- Polyethylene
- Additional compatible thermoforming materials
Material compatibility may vary depending on sheet thickness and operating settings.
Applications
- Product packaging and blister packs
- Prototype and product development
- Model making and hobby fabrication
- Educational demonstrations and training
- Vacuum forming molds and tooling
- Cosplay armor and prop creation
- Product display fabrication
Specifications
| Specification | Details |
|---|---|
| Machine Type | Smart desktop vacuum former |
| Forming Area | 18.11" × 10.24" |
| Maximum Forming Height | 6.3" |
| Supported Sheet Sizes | 19.7" × 11.8", 16.5" × 11.8", 11.8" × 11.8", 11.8" × 8.1" |
| Maximum Sheet Thickness | 0.12" (3.0 mm) |
| Heating System | 1500W carbon fiber quartz heating tubes |
| Adjustable Temperature Control | Yes |
| Maximum Heating Temperature | 446°F |
| Vacuum Pump | Built-in 300W industrial-grade vacuum pump |
| Maximum Vacuum Pressure | -92 kPa |
| Display | 3.5" full-color LCD |
| Material Presets | 16 built-in presets + 5 user-defined memory slots |
| Heating Curves | 3 adjustable heating curve modes |
| Power Requirement | 110-120 VAC / 60Hz / 1500W or 220-240 VAC / 50Hz / 1500W |

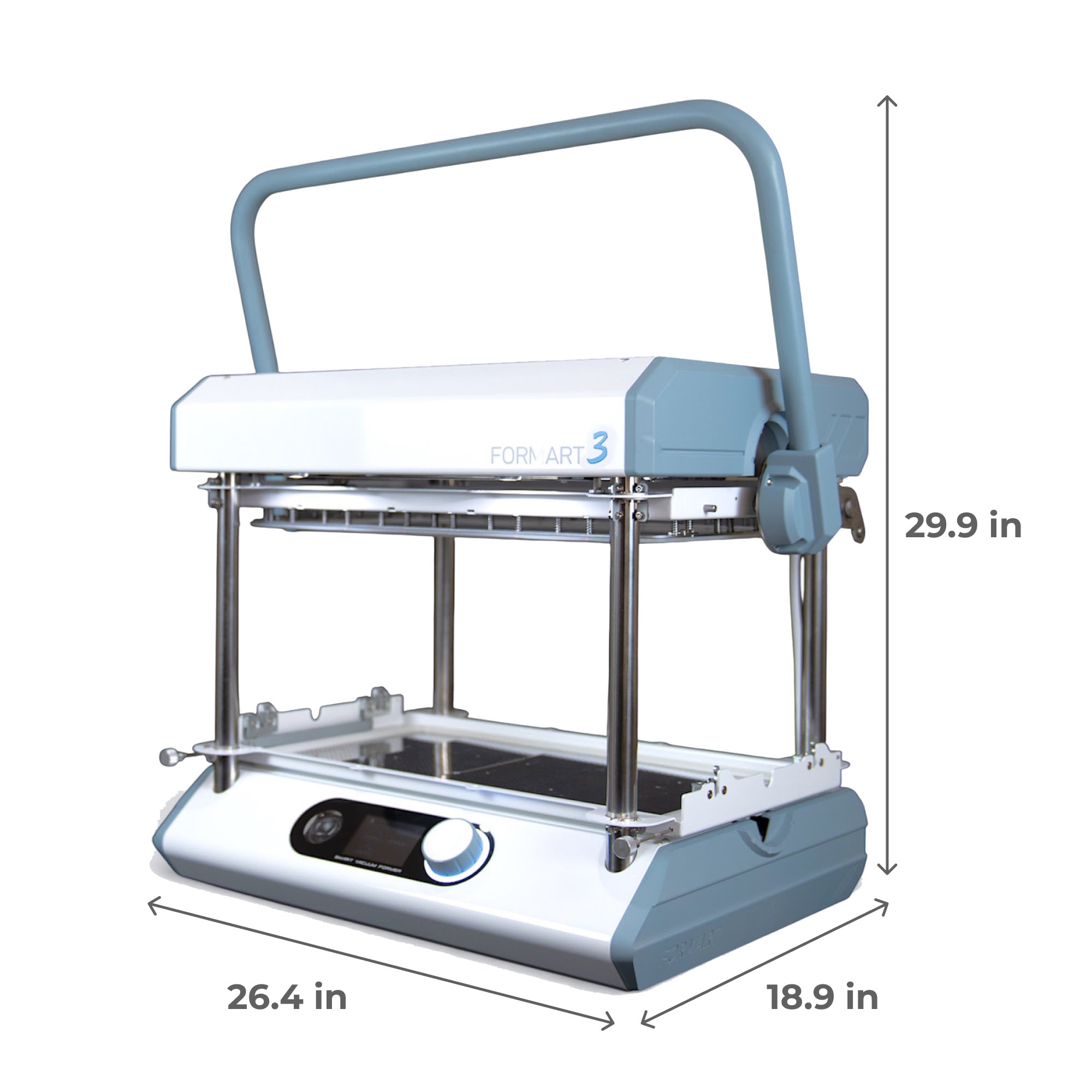

| Machine Dimensions | 18.9" × 26.4" × 29.9" |
| Weight | 66 lb |
What’s Included
- MYYARD FORMART 3 Smart Vacuum Former
- Bottom unit
- Top heater unit
- Plastic frames
- Stainless support tubes
- Handle assembly

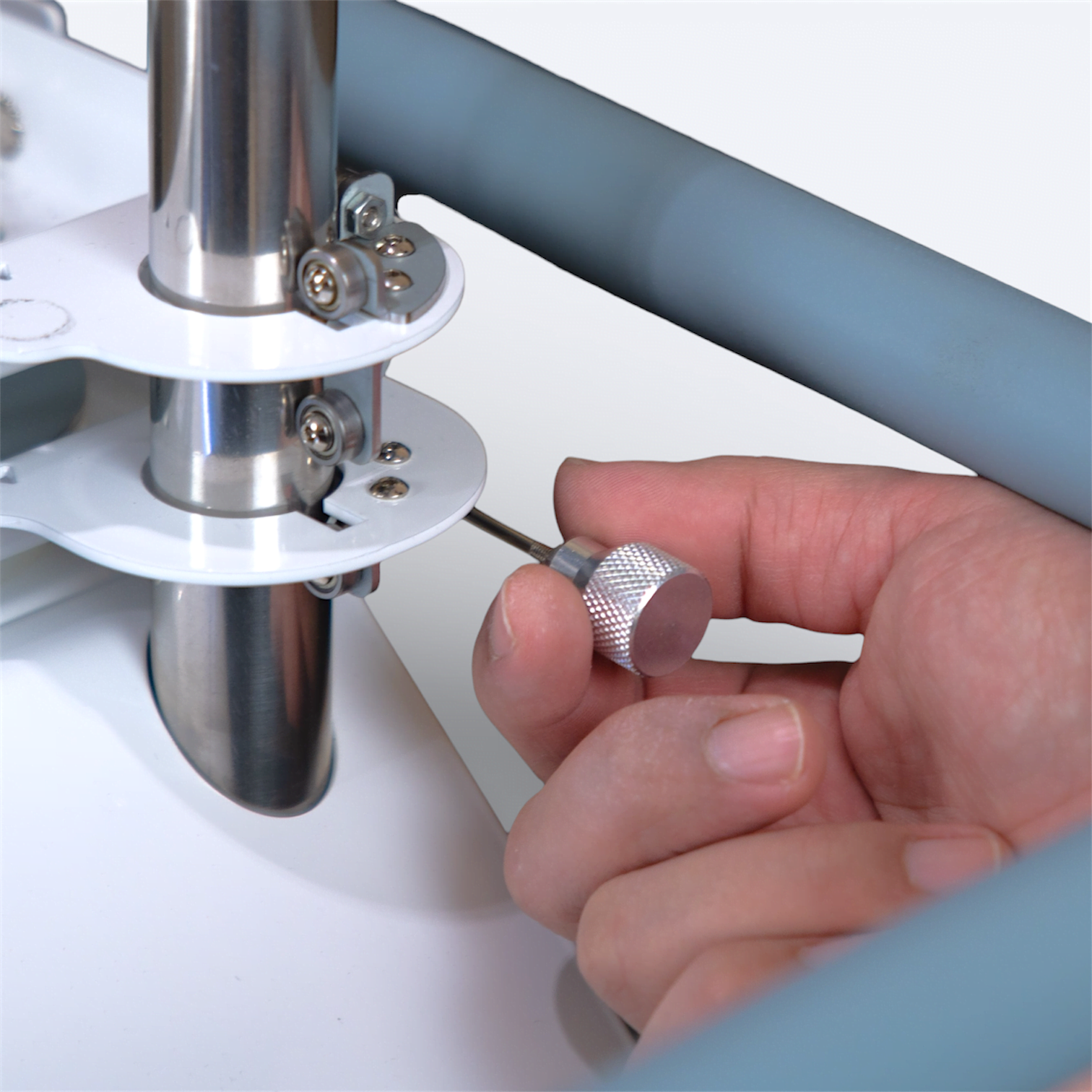

- Size switching kit
- Webbing remover kit
- Cat bowl mold
- Hardware and assembly tools
- User manual
Warranty & Support
-
Manufacturer Warranty – MYYARD vacuum forming machines include a manufacturer-backed warranty covering defects in materials and workmanship (excluding consumables and normal wear items).
-
30-Day Return Policy – Units may be returned within 30 days of the ship date in like-new condition. Refunds are issued minus shipping and handling costs.
-
Product Support – Access to dedicated product support for setup assistance, operation guidance, and troubleshooting.
