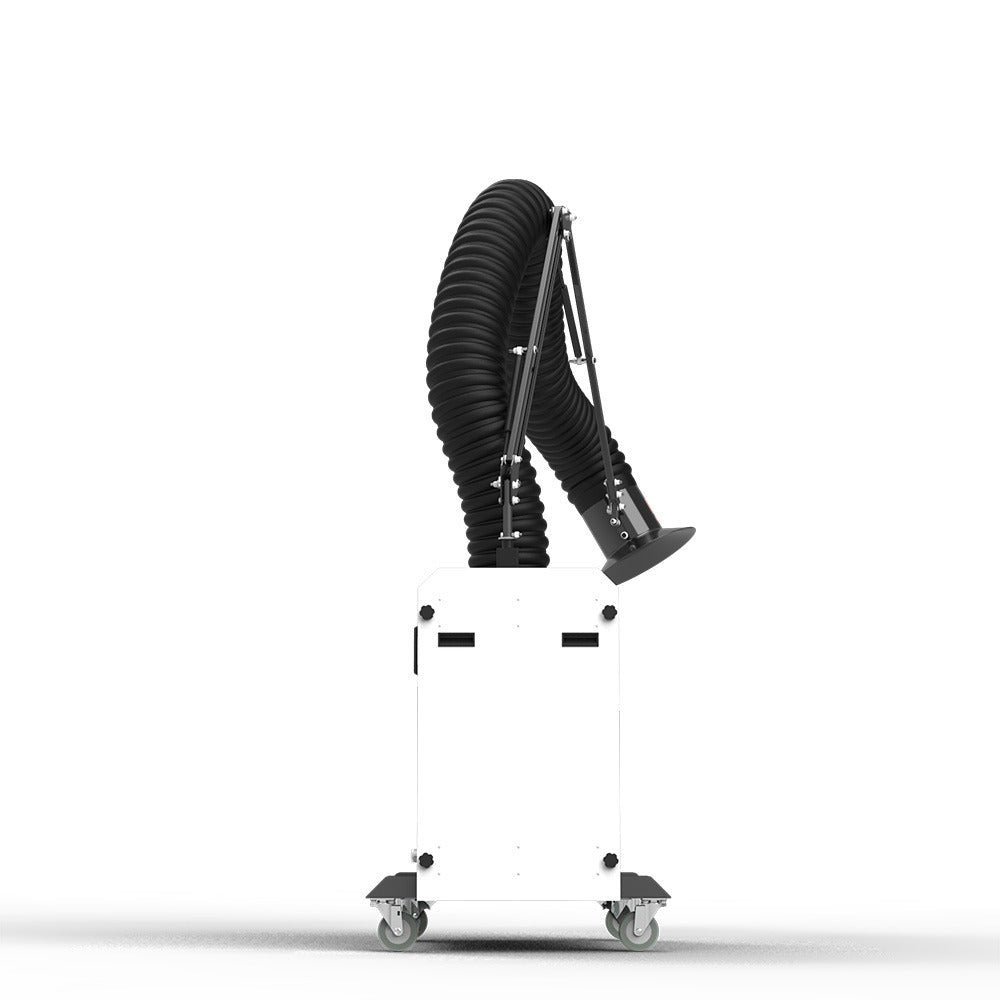

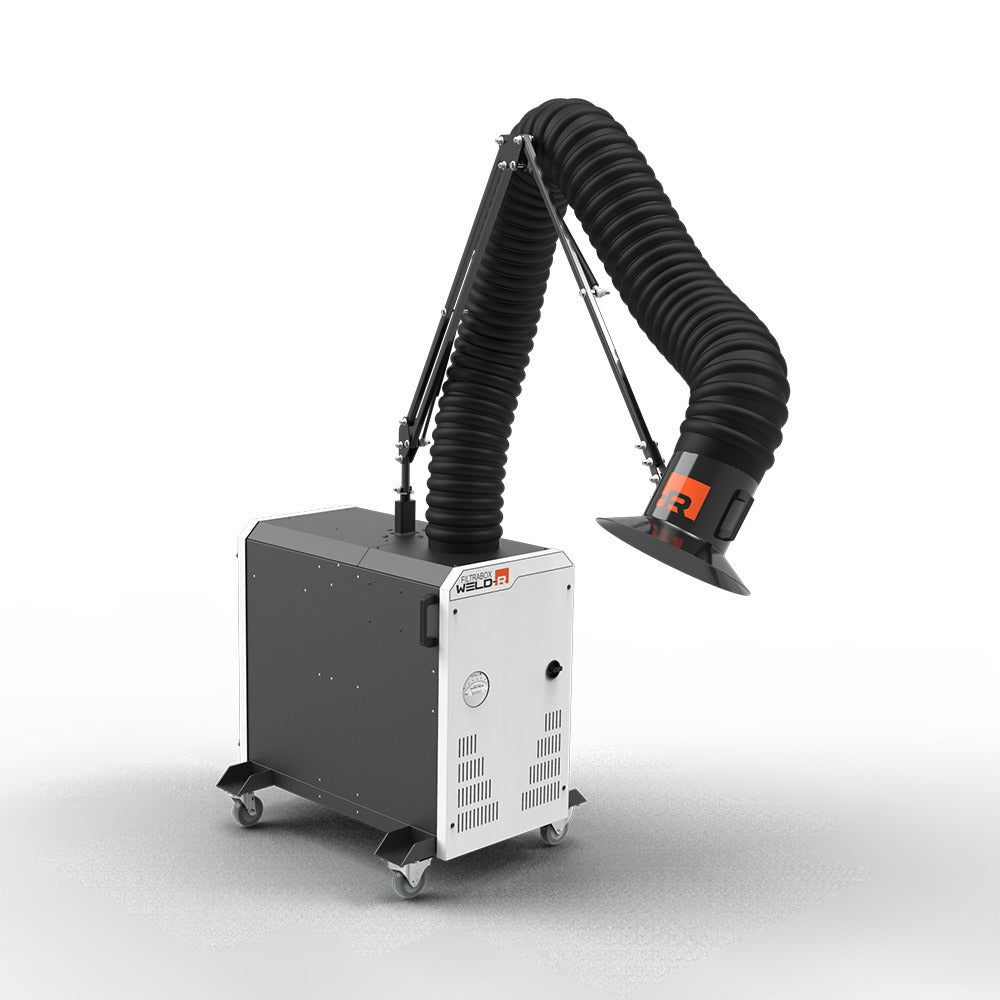

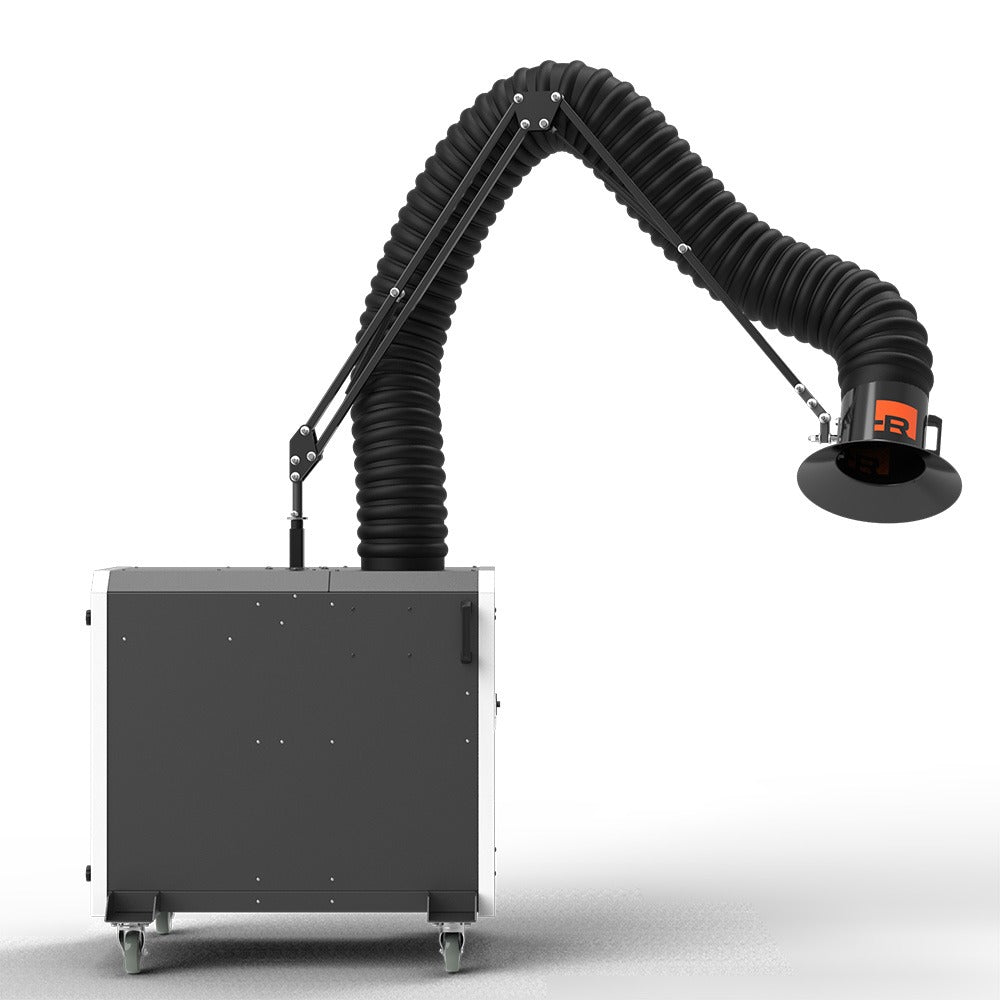

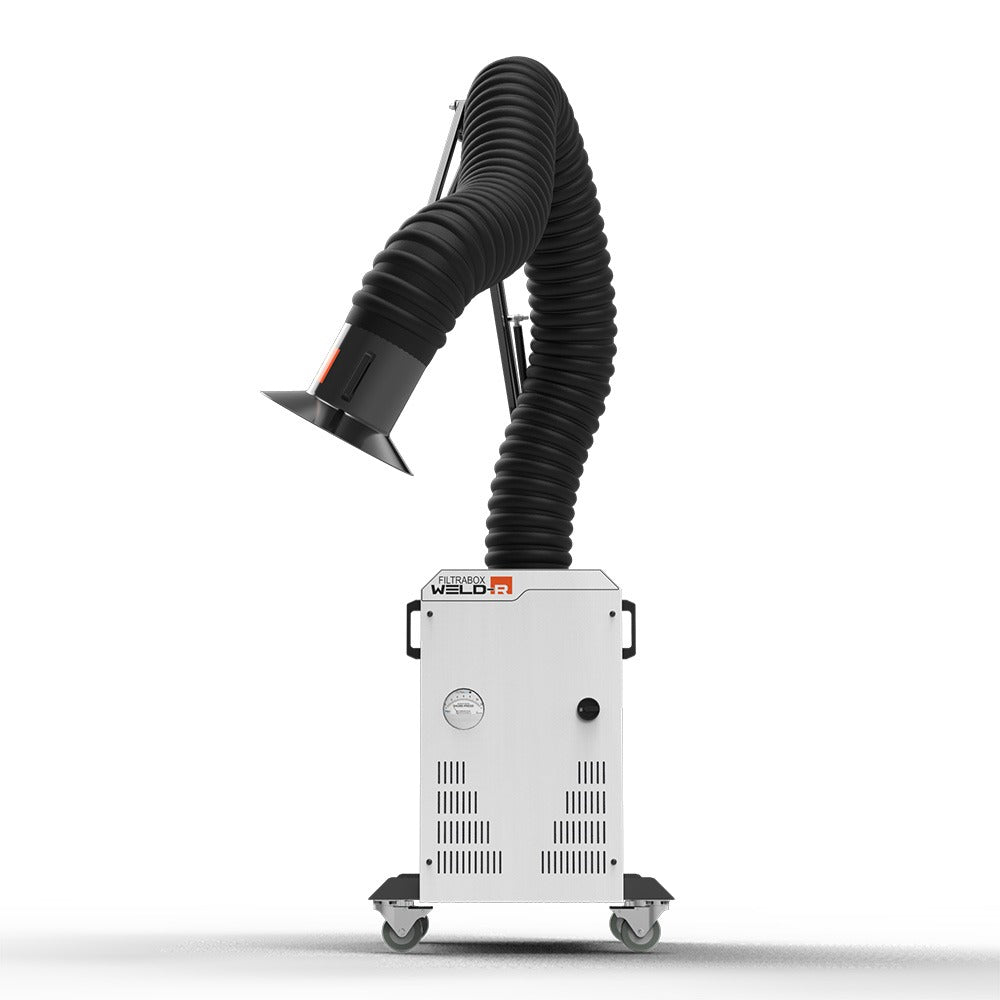

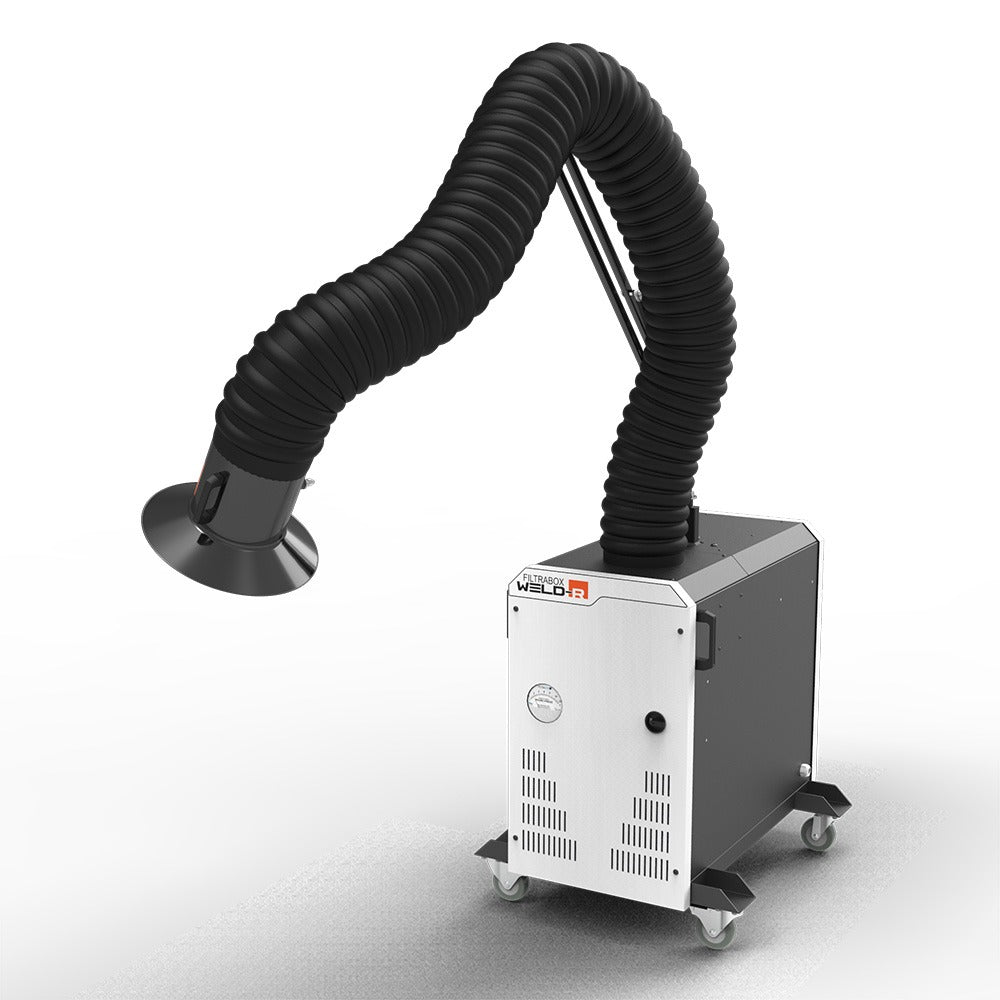

Filtrabox Weld-R Laser Fume Extraction System – Industrial HEPA & Carbon Filtration for Welding and Cleaning

Overview:

The Filtrabox Weld-R is a heavy-duty fume extraction system engineered for demanding laser welding, laser cleaning, and metal fabrication applications. Built for industrial reliability, it delivers powerful airflow, advanced multi-stage filtration, and continuous-duty performance, making it ideal for shops and facilities that require 24/7 operation.

Equipped with Filtrabox’s triple-stage filtration technology — including a high-capacity pre-filter, HEPA filter, and activated carbon stage — the Weld-R efficiently removes smoke, particulates, and harmful metal fumes at the source. Its rugged construction, digital control system, and quiet operation ensure cleaner air, safer workspaces, and longer equipment life.

Key Features

• High-Power Industrial Airflow – Designed for laser welding, cleaning, and cutting applications with heavy fume output.

• Three-Stage Filtration System – Includes pre-filter, HEPA, and activated carbon layers for comprehensive particulate and gas removal.

• High-Efficiency HEPA Filter – Captures airborne contaminants at 99.97% efficiency down to 0.3 microns.

• Activated Carbon Stage – Neutralizes metal and chemical fumes for improved indoor air quality.

• Variable-Speed Airflow Control – Adjust suction to match your welding or laser process.

• Digital Control Interface – Displays airflow level, filter status, and system diagnostics.

• Quiet, Continuous-Duty Operation – Optimized motor design enables 24-hour operation below 65 dB.

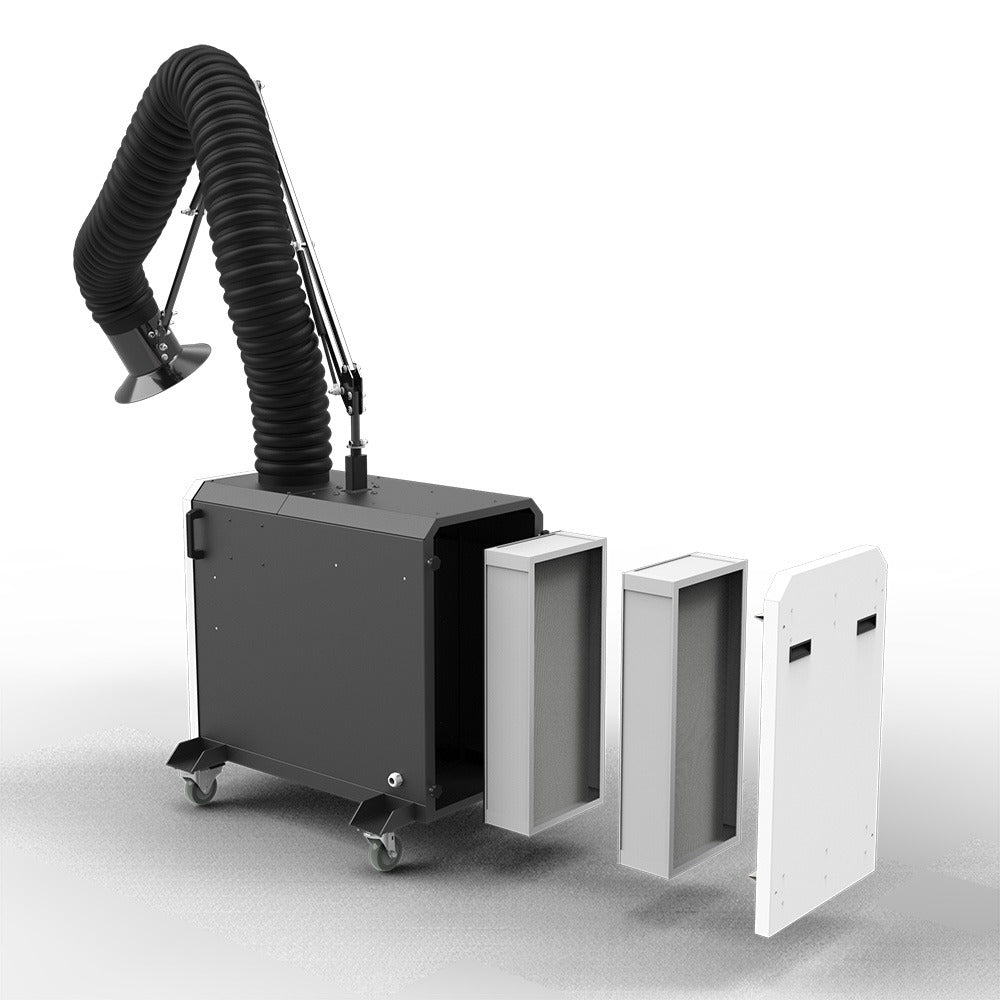

• Tool-Free Filter Access – Simplifies filter replacement and minimizes downtime.

• Heavy-Gauge Steel Enclosure – Rugged construction withstands industrial environments.

• Made in North America – Engineered for performance, safety, and reliability.

Specifications

• Model: Weld-R

• Airflow Capacity: 1000 m³/h (588 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 65 dB

• Motor Type: Industrial-grade brushless variable-speed motor

• Control System: Digital display with airflow and filter monitoring

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 24″ × 20″ × 30″

• Weight: Approx. 95 lbs (43 kg)

• Housing Material: Powder-coated steel

• Connection Port Diameter: 4″ (102 mm)

• Compatible Equipment: Laser welders, laser cleaners, CNC machines, and metalworking stations

Applications

• Laser welding and cleaning systems

• Metal fabrication and finishing

• CNC machining and grinding stations

• Industrial, R&D, and production facilities

Warranty

• 1-Year Manufacturer Warranty (parts and labor)

Customer Resources:

📄 User Manual
📄 Brochure

📧 Support Team: Direct manufacturer assistance troubleshooting. Email them at info@pattechnology.com
