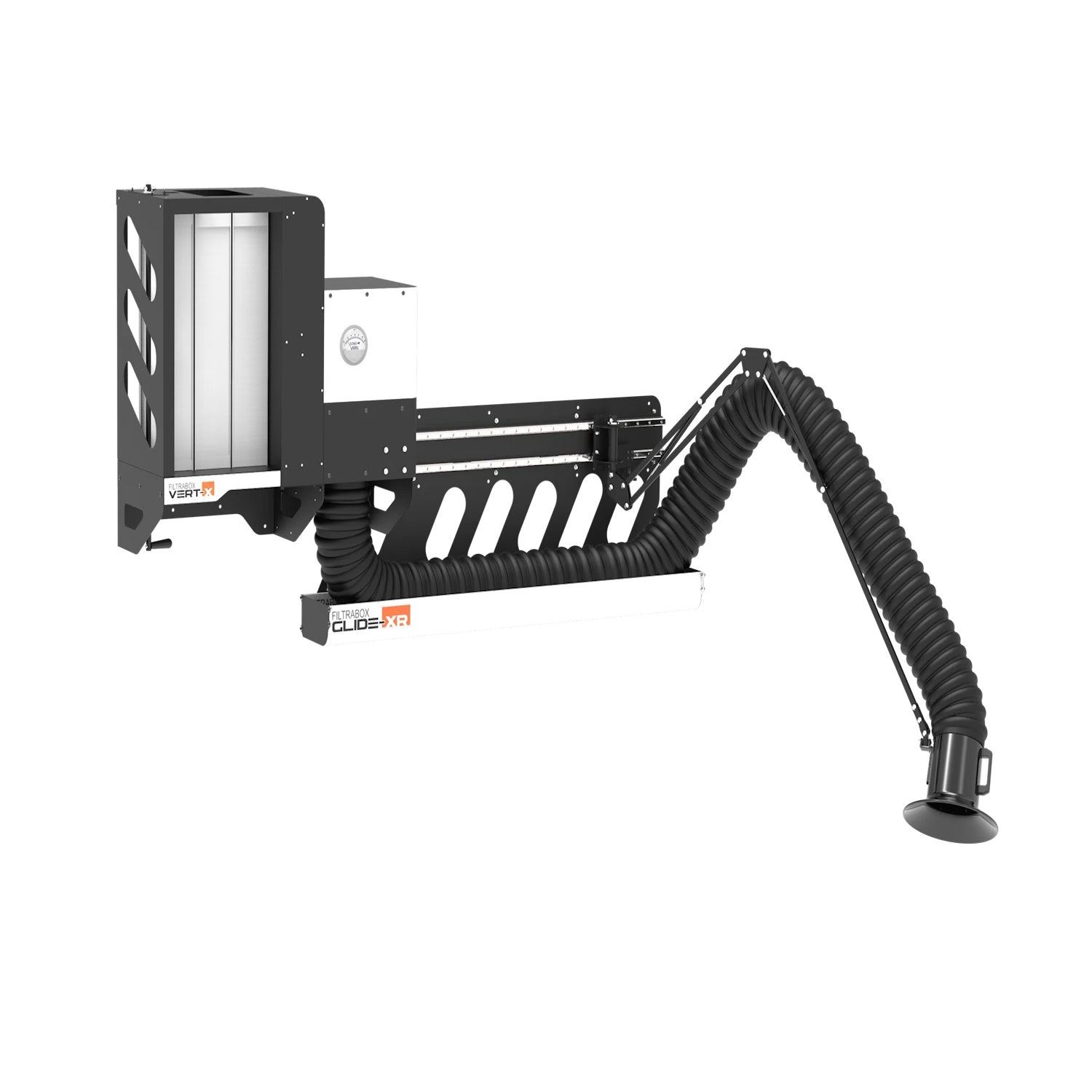

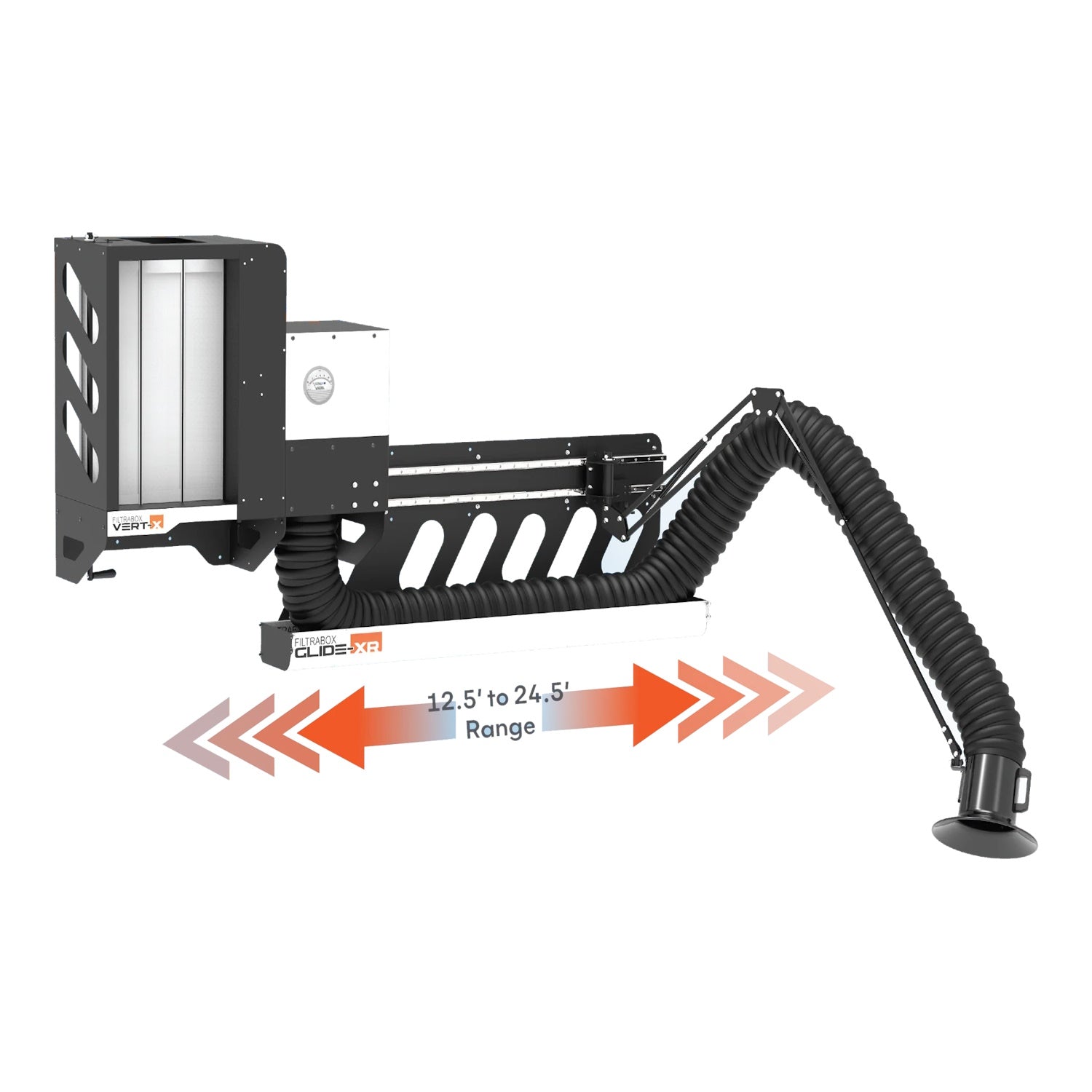

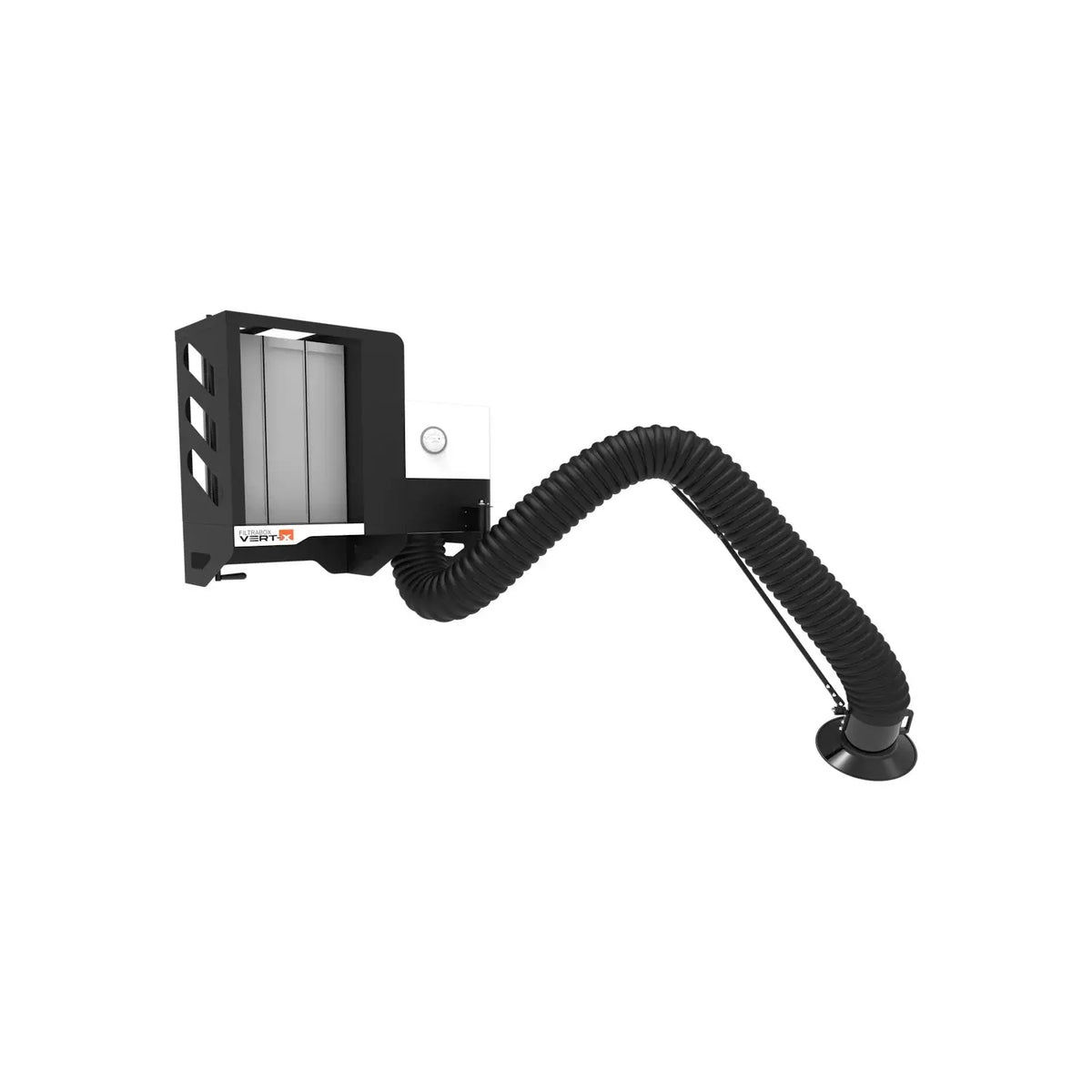

Filtrabox Vert-X Fume Extraction System – High-Capacity HEPA & Carbon Filtration for Laser and Welding Applications

NO RAIL

Overview:

The Filtrabox Vert-X is a vertical, high-capacity fume extraction system engineered for laser welding, cutting, and heavy industrial processes that demand continuous airflow and large-scale filtration. Combining powerful suction performance, advanced multi-stage filtration, and energy-efficient operation, the Vert-X ensures clean, safe air quality even under the toughest workloads.

Purpose-built for metal fabrication, manufacturing, and automated production lines, the Vert-X delivers industrial-grade filtration efficiency in a compact upright form. Its triple-stage filter configuration—including a long-life pre-filter, HEPA filter, and activated carbon stage—captures metal fumes, particulates, and gases at the source, maintaining compliance with air quality standards and protecting both personnel and equipment.

Key Features

• High-Capacity Vertical Design – Optimized for maximum filter volume and compact floor space usage.

• Triple-Stage Filtration System – Pre-filter, HEPA, and activated carbon stages remove particulates, fumes, and odors with 99.97% efficiency.

• Industrial-Strength HEPA Filter – Captures particles down to 0.3 microns, ideal for welding and laser fume applications.

• Activated Carbon Stage – Absorbs hazardous gases and volatile compounds for cleaner air.

• Powerful Variable-Speed Airflow – Adjustable suction levels for fine control across multiple processes.

• Digital Control Interface – Displays airflow performance, filter life, and maintenance alerts.

• Low-Noise Operation – Advanced motor and airflow design maintain performance below 65 dB.

• Tool-Free Filter Maintenance – Quick-access filter housing minimizes downtime.

• Rugged Construction – Heavy-duty powder-coated steel enclosure built for industrial environments.

• Made in North America – Professionally engineered for precision, reliability, and safety.

Specifications

• Model: Vert-X

• Airflow Capacity: 1200 m³/h (706 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 65 dB

• Motor Type: Brushless industrial-grade variable-speed motor

• Control System: Digital display with airflow and filter monitoring

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 26″ × 22″ × 44″

• Weight: Approx. 110 lbs (50 kg)

• Housing Material: Powder-coated steel

• Connection Port Diameter: 4″ (102 mm)

• Compatible Equipment: Laser welders, laser cleaners, CNC systems, and industrial workstations

Applications

• Laser welding and cutting

• Metal fabrication and finishing

• CNC machining and automated manufacturing

• Industrial and research laboratory environments

Warranty

• 1-Year Manufacturer Warranty (parts and labor)
