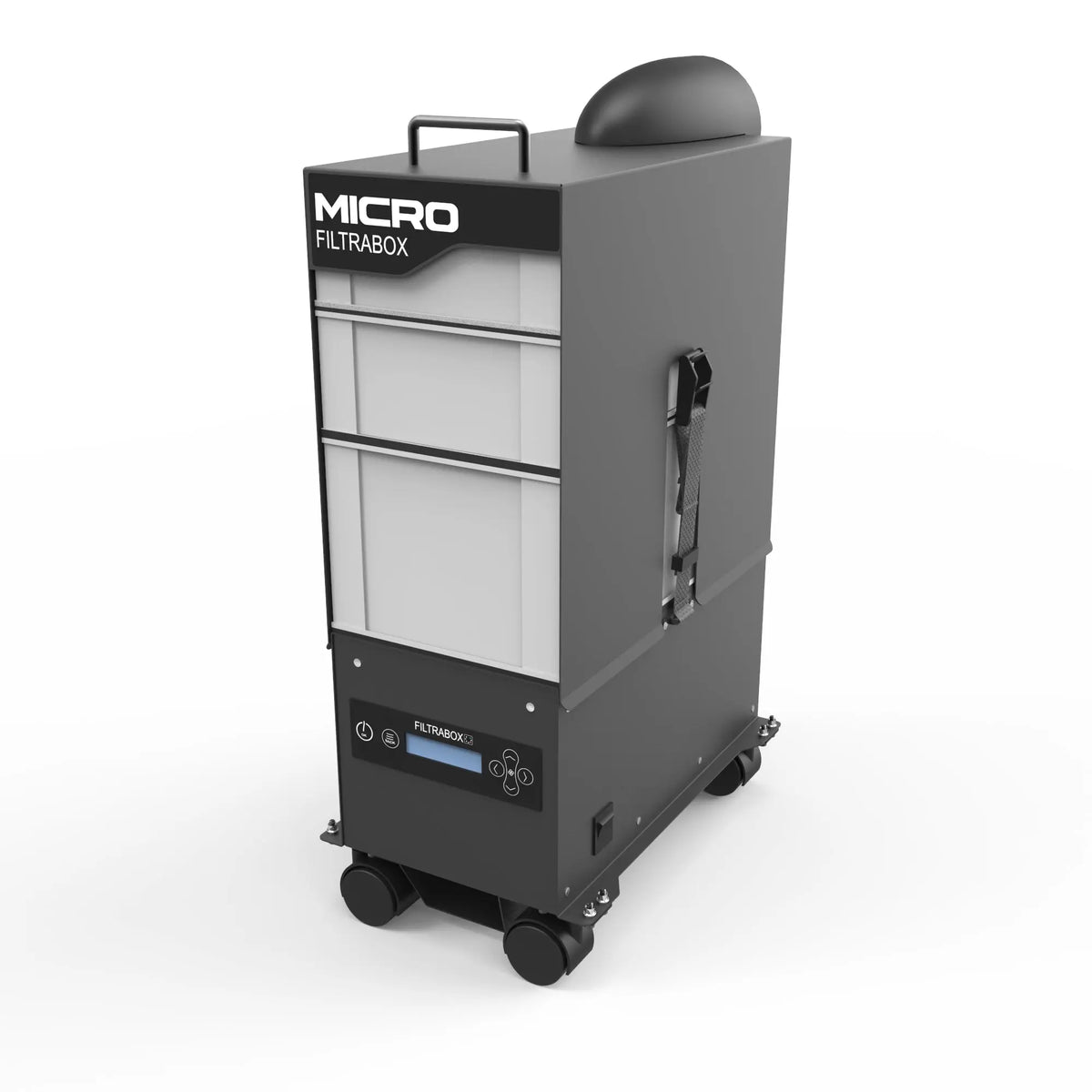

Filtrabox Micro Fume Extraction System – Multi-Configuration (Standard / DTF / 3DP / Solder)

Overview:

The Filtrabox Micro Series delivers professional-grade air purification in an ultra-compact footprint. Designed for small laser engravers, 3D printers, DTF printers, and soldering stations, the Micro offers industrial-quality HEPA and carbon filtration in a quiet, energy-efficient system that fits easily into any workspace.

Built to handle light-duty fumes and particulates with ease, the Micro combines triple-stage filtration—pre-filter, HEPA, and activated carbon—with variable-speed airflow control for precision performance. Its rugged steel housing and plug-and-play design make it the perfect fume extraction choice for classrooms, studios, and desktop manufacturing setups.

Configuration Options:

Choose the configuration best suited to your application:

• Standard – General Use – Ideal for small lasers and light fabrication.

• DTF – Direct-to-Film Printing – Optimized to capture fine pigments, binders, and adhesive fumes.

• 3DP – 3D Printing – Filters ultrafine plastic particles and VOCs from resin or filament printers.

• Solder – Electronics & Lab Work – Captures solder flux fumes and particulates in precision electronics assembly.

Key Features:

• Ultra-Compact Design – Small footprint fits easily under or beside desktop laser systems.

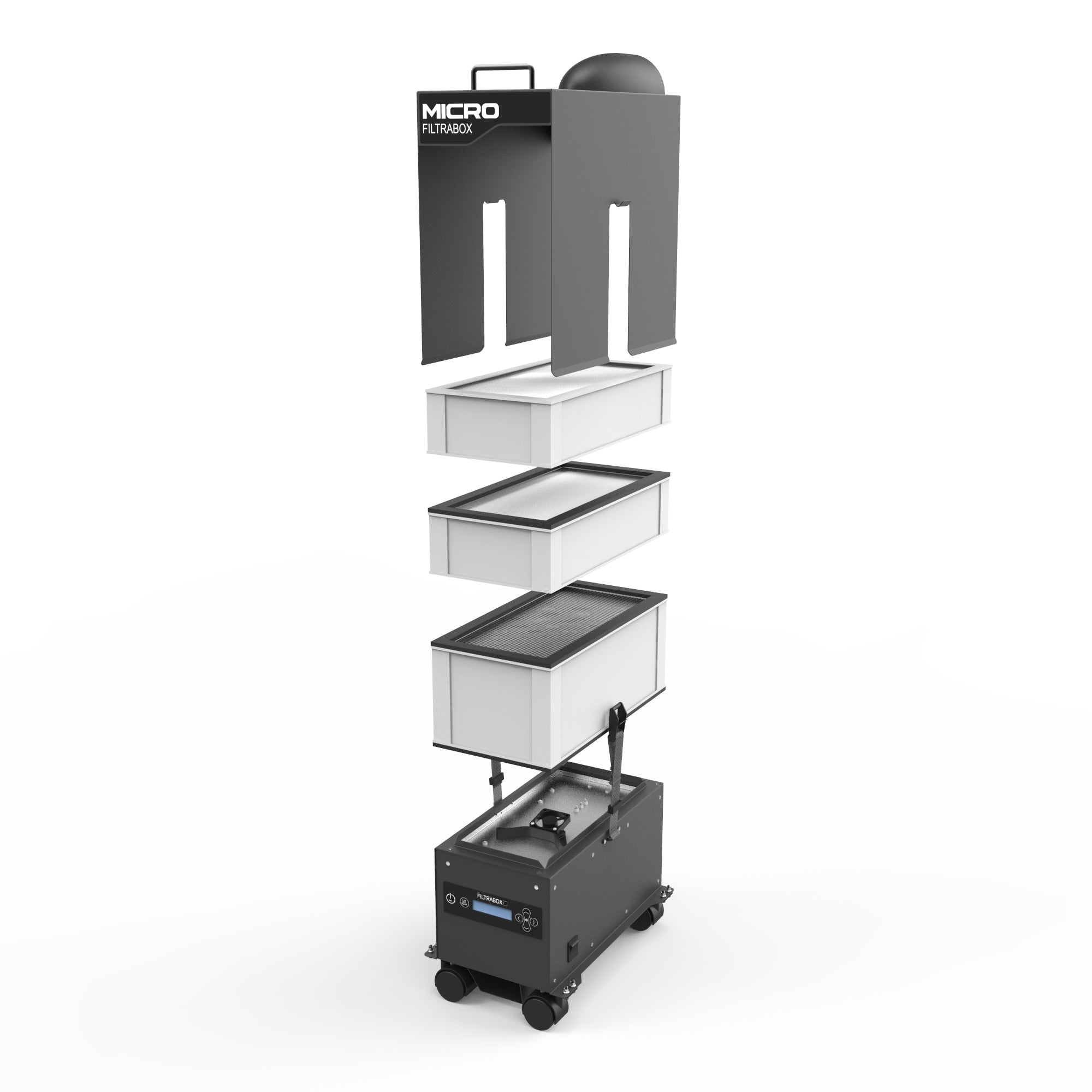

• Triple-Stage Filtration System – Pre-filter, HEPA, and activated carbon layers remove particulates, vapors, and odors.

• High-Efficiency HEPA Filter – Captures harmful particles at 99.97% efficiency down to 0.3 microns.

• Activated Carbon Stage – Adsorbs chemical fumes and odors for a cleaner, safer workspace.

• Quiet Operation – Runs below 55 dB, perfect for studios, classrooms, and office environments.

• Variable Airflow Control – Adjustable fan speed optimizes suction strength for each laser setup.

• Easy Filter Access – Tool-free design simplifies filter changes and maintenance.

• Durable Steel Housing – Rugged, powder-coated construction built for long service life.

• Energy Efficient – Designed for 24/7 operation with minimal power draw.

• Made in North America – Professionally engineered for precision, safety, and reliability.

Specifications:

• Model: Laser Micro

• Airflow Capacity: 200 m³/h (118 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 55 dB

• Motor Type: Brushless variable-speed motor

• Control System: Manual variable airflow dial

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 11″ × 10″ × 14″

• Weight: Approx. 28 lbs (13 kg)

• Housing Material: Powder-coated steel

• Connection Port Diameter: 2″ (51 mm)

• Compatible Equipment: Desktop CO₂, fiber, diode, and galvo laser systems

Applications:

• Compact laser engraving and marking machines

• Educational labs and classrooms

• Jewelry, craft, and design studios

• Electronic assembly and precision workstations

Warranty:

• 1-Year Manufacturer Warranty (parts and labor)

Customer Resources:

📄 User Manual

📧 Support Team: Direct manufacturer assistance troubleshooting. Email them at info@pattechnology.com
