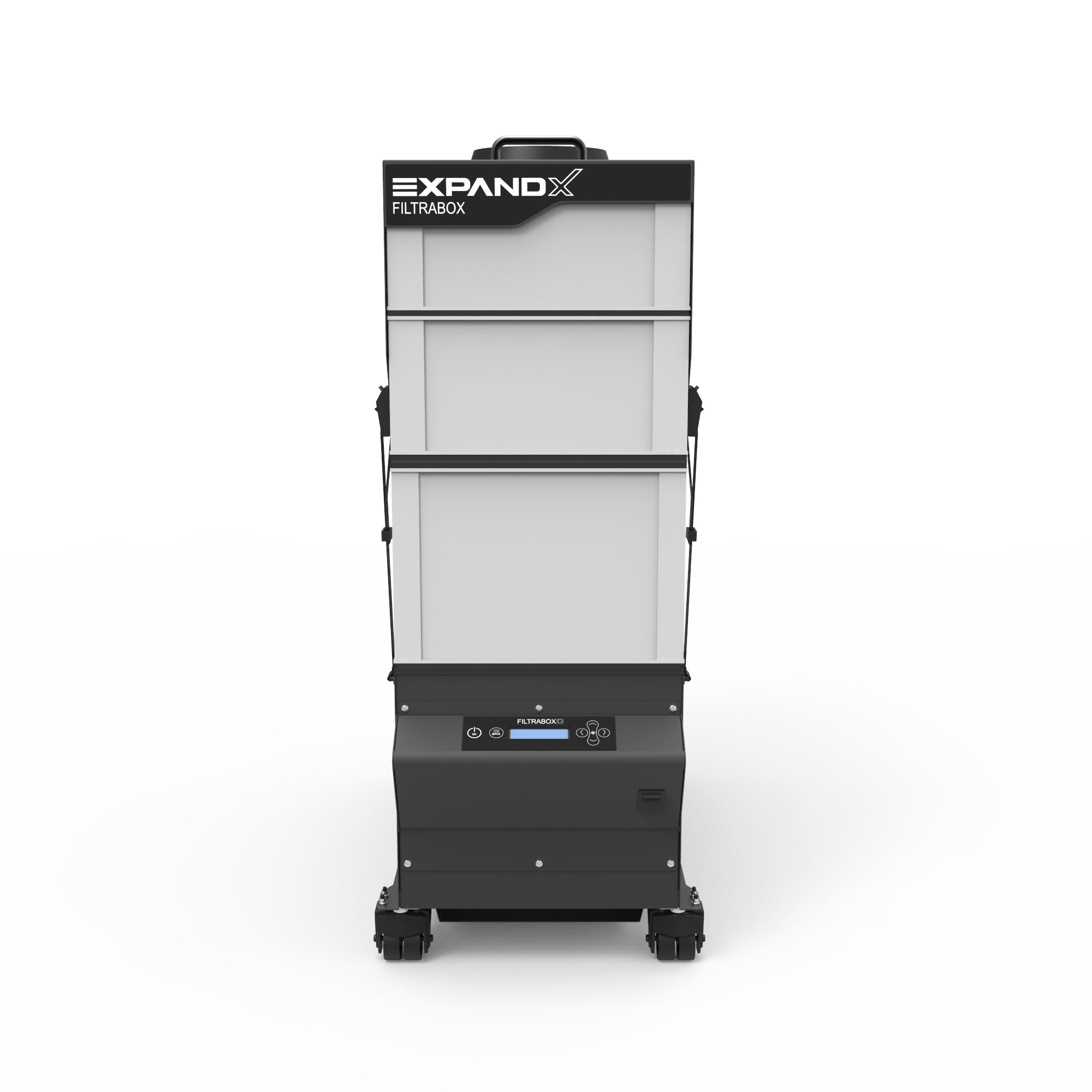

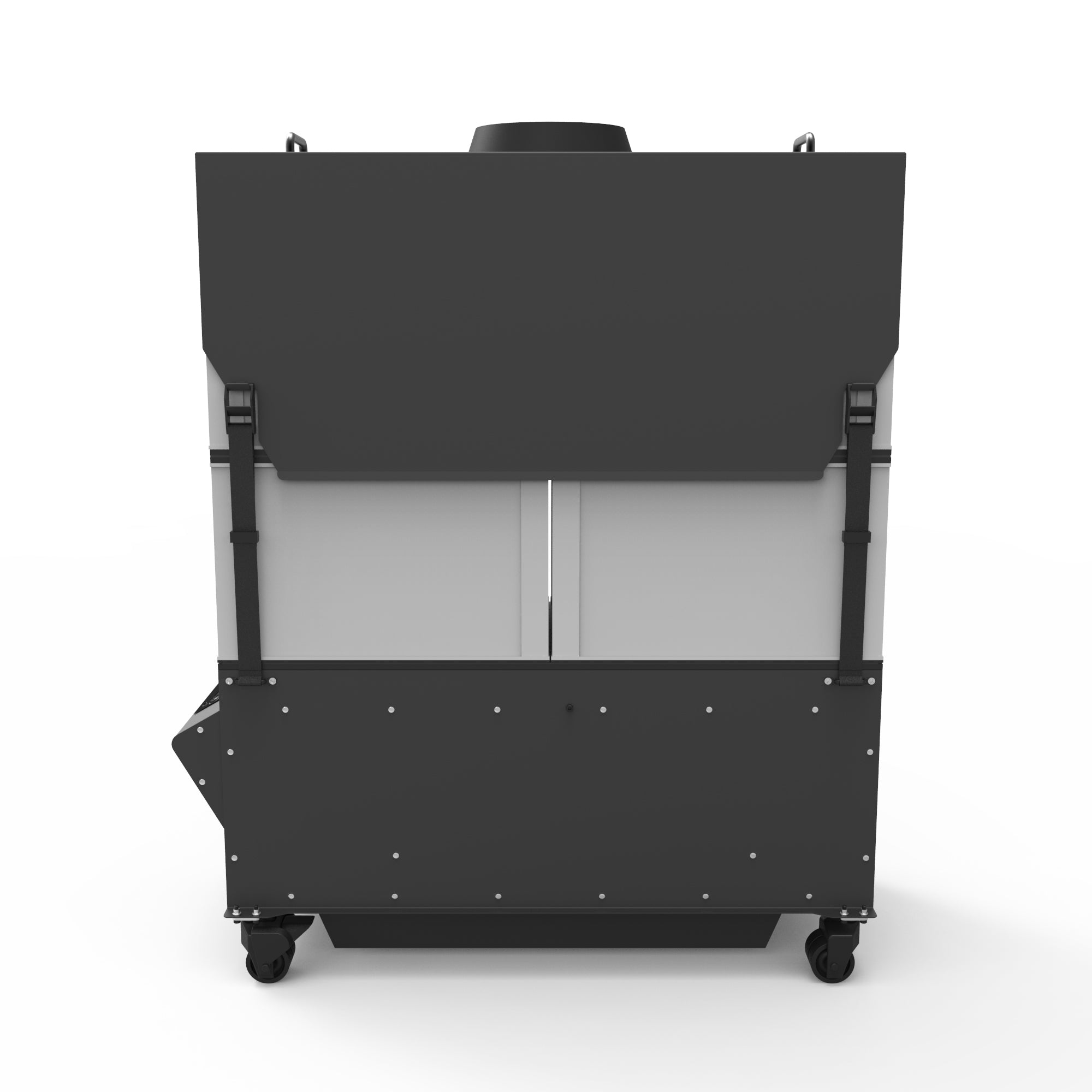

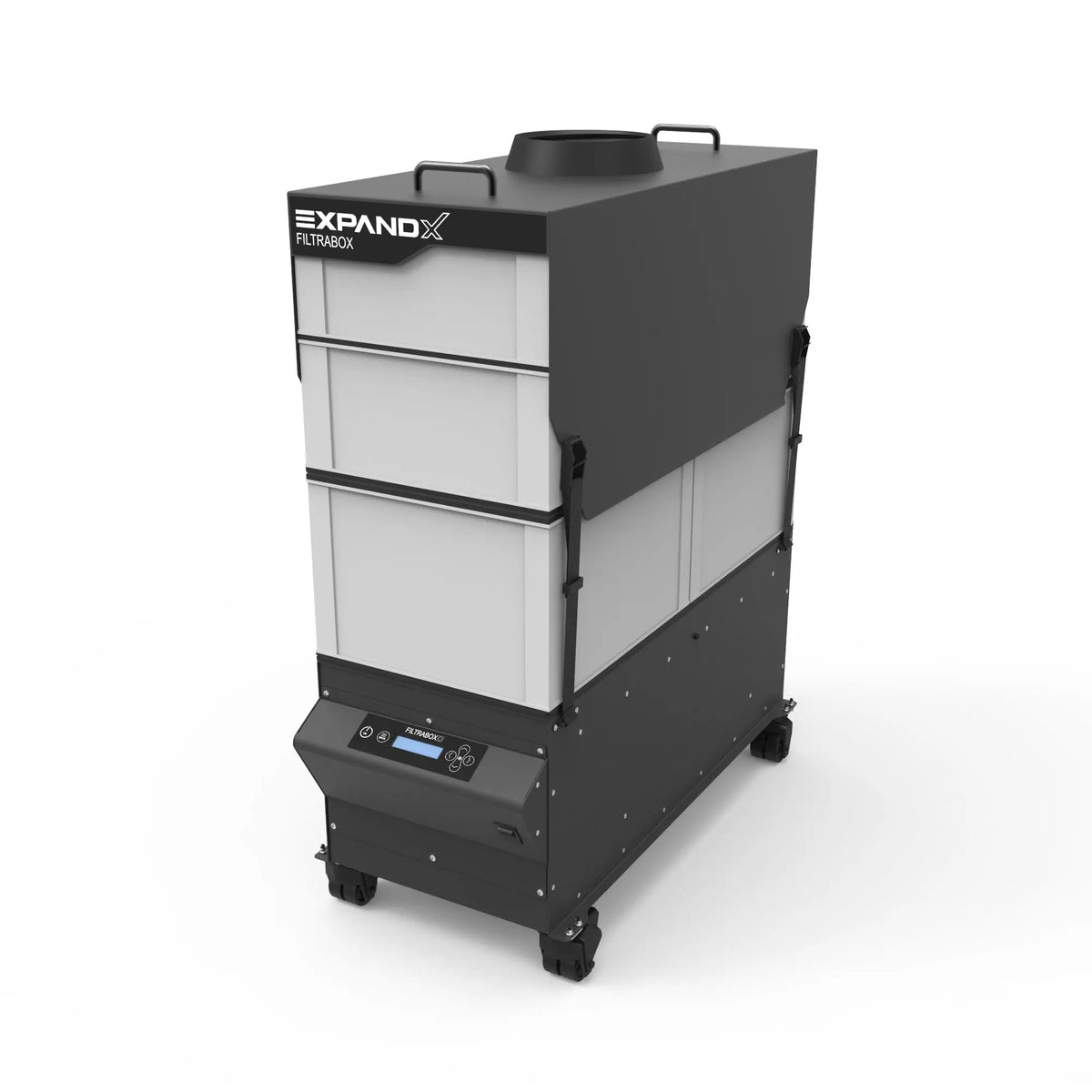

Filtrabox Expand X-2 Fume Extraction System

Overview:

The Filtrabox Expand X-2 is a dual-inlet fume extractor designed for medium-duty laser, printing, and production applications. With two 4-inch inlets and a triple-stage filtration system, it delivers efficient removal of smoke, dust, and chemical fumes while supporting two machines or workstations simultaneously.

Ideal for small production environments, the ExpandX-2 features variable airflow control, quiet performance, and Filtrabox’s trusted HEPA and carbon filtration technology—providing dependable protection in compact, high-output settings.

Key Features:

• High-Performance Dual-Inlet Design – Connect two machines simultaneously or maximize extraction efficiency for large-format equipment.

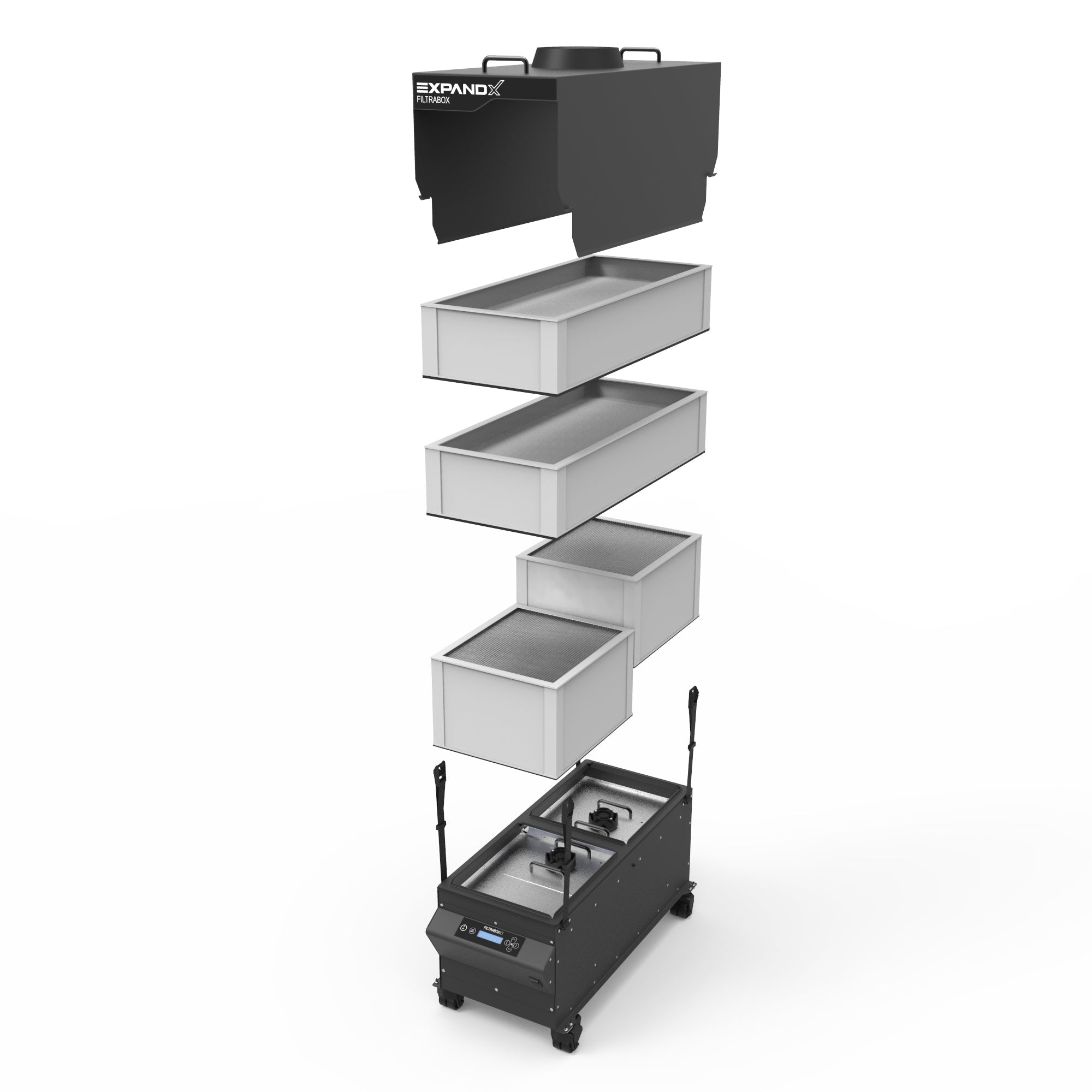

• Triple-Stage Filtration System – Pre-filter, HEPA, and activated carbon stages capture fine particulates and harmful gases at 99.97% efficiency.

• Advanced HEPA Filter Technology – Captures dust and smoke down to 0.3 microns, ensuring superior air quality.

• Adjustable Airflow Control – Variable-speed motor allows precise suction adjustment for each application.

• Quiet, Energy-Efficient Operation – Delivers powerful performance while maintaining noise levels below 60 dB.

• Digital Control Interface – Displays airflow speed, system diagnostics, and filter life monitoring.

• Tool-Free Filter Replacement – Simplifies maintenance for minimal downtime.

• Durable Steel Construction – Built for long-term reliability in demanding production environments.

• Compact Industrial Footprint – Ideal for mounting beside or beneath laser and 3D systems.

• Made in North America – Designed and manufactured to meet professional safety and quality standards.

Specifications:

• Model: ExpandX 2

• Airflow Capacity: 500 m³/h (294 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 60 dB (at full power)

• Motor Type: Brushless variable-speed motor

• Control System: Digital airflow and filter status display

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 17″ × 15″ × 20″

• Weight: Approx. 55 lbs (25 kg)

• Housing Material: Powder-coated steel

• Connection Ports: Dual 3″ (76 mm) diameter inlets

• Compatible Equipment: Dual-laser workstations, large-format engravers, CNC enclosures, and additive manufacturing systems

Applications:

• Mid to large-format laser cutting and engraving

• Multi-machine 3D printing workstations

• Electronics assembly and soldering fume extraction

• Laboratories, universities, and design studios

Warranty:

• 1-Year Manufacturer Warranty (parts and labor)

Customer Resources:

📄 User Manual

📧 Support Team: Direct manufacturer assistance troubleshooting. Email them at info@pattechnology.com
