Filtrabox Expand X-1 Fume Extraction System – Compact HEPA & Carbon Air Filtration Unit

Overview:

The Filtrabox ExpandX 1 is a compact, high-performance fume extraction system engineered to capture and filter particulates, vapors, and gases generated during laser engraving, cutting, 3D printing, and industrial manufacturing. Designed for quiet operation and exceptional efficiency, the ExpandX 1 delivers cleaner air, lower maintenance, and longer filter life—making it ideal for studios, classrooms, laboratories, and light production environments.

Built with Filtrabox’s advanced multi-stage filtration technology and variable-speed digital control, the ExpandX 1 ensures a safe, low-noise, energy-efficient workspace while maintaining powerful airflow performance in a compact footprint.

Key Features:

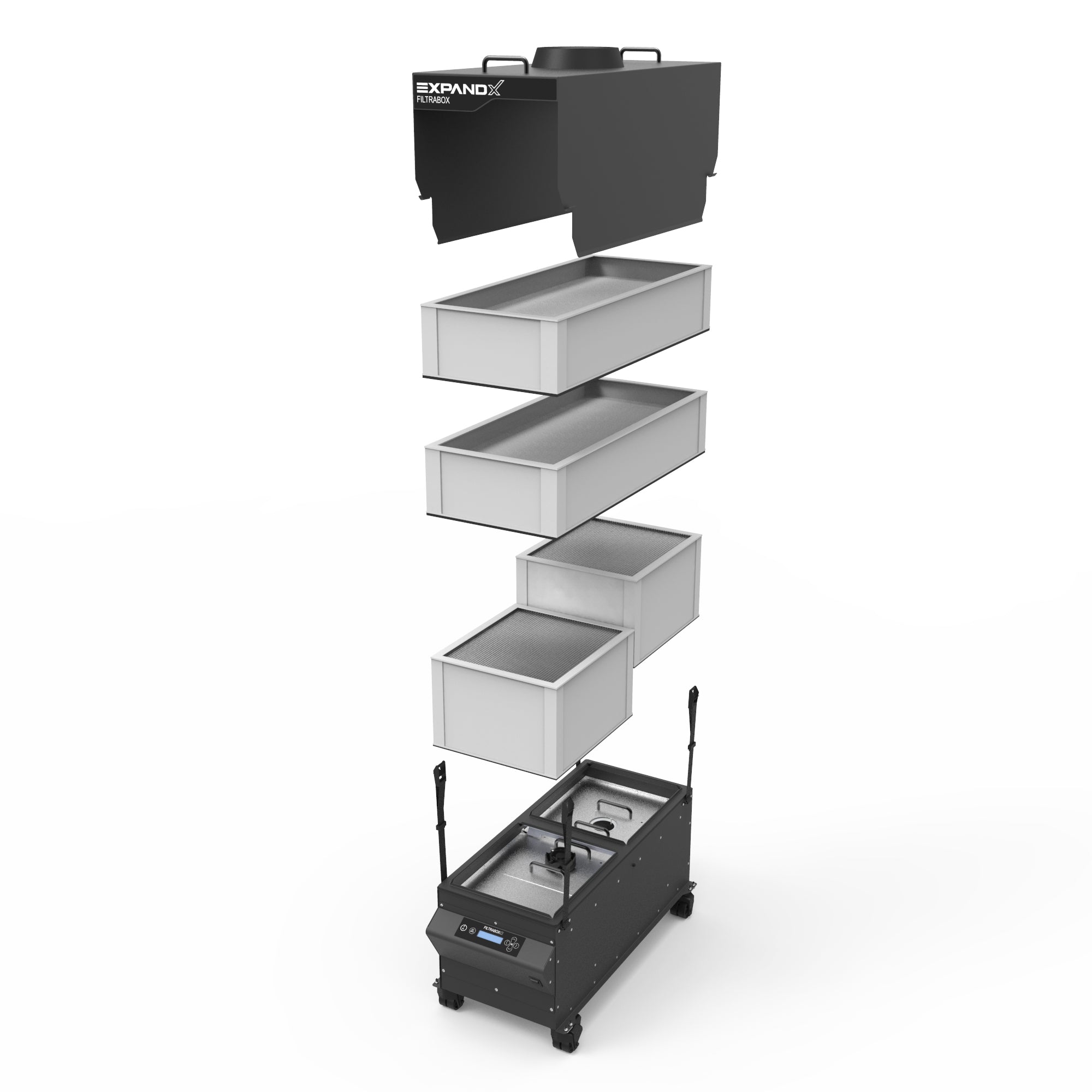

• Multi-Stage Filtration System – Pre-filter, HEPA, and activated carbon stages capture particulates and harmful fumes at the source.

• High-Efficiency HEPA Filter – Rated at 99.97% efficiency down to 0.3 microns for clean, contaminant-free air.

• Compact All-in-One Design – Space-saving unit fits easily beneath or beside laser and 3D systems.

• Variable Speed Control – Adjust airflow for optimal suction and filter longevity.

• Quiet Operation – Engineered for low-noise performance ideal for offices and labs.

• Tool-Free Filter Replacement – Quick-access panels simplify filter maintenance and changeouts.

• Digital Control Interface – Provides airflow adjustment, filter life monitoring, and system diagnostics.

• Durable Steel Construction – Rigid frame and industrial-grade build ensure long service life.

• Energy Efficient – Optimized airflow path reduces power consumption without sacrificing performance.

• Made in North America – Built to Filtrabox’s professional manufacturing standards for reliability and safety.

Specifications:

• Model: ExpandX 1

• Airflow Capacity: 350 m³/h (206 CFM)

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 60 dB (at full power)

• Motor Type: Brushless variable-speed motor

• Control System: Digital speed and filter life display

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 14.5″ × 13.5″ × 18″

• Weight: Approx. 40 lbs (18 kg)

• Housing Material: Powder-coated steel

• Connection Port Diameter: 3″ (76 mm)

• Compatible Equipment: Laser cutters, engravers, 3D printers, soldering stations, and laboratory devices

Applications:

• Laser cutting and engraving systems

• 3D printing and additive manufacturing

• Electronics assembly and soldering

• Light industrial, R&D, and educational environments

Warranty:

• 1-Year Manufacturer Warranty (parts and labor)

Customer Resources:

📄 User Manual

📧 Support Team: Direct manufacturer assistance troubleshooting. Email them at info@pattechnology.com
