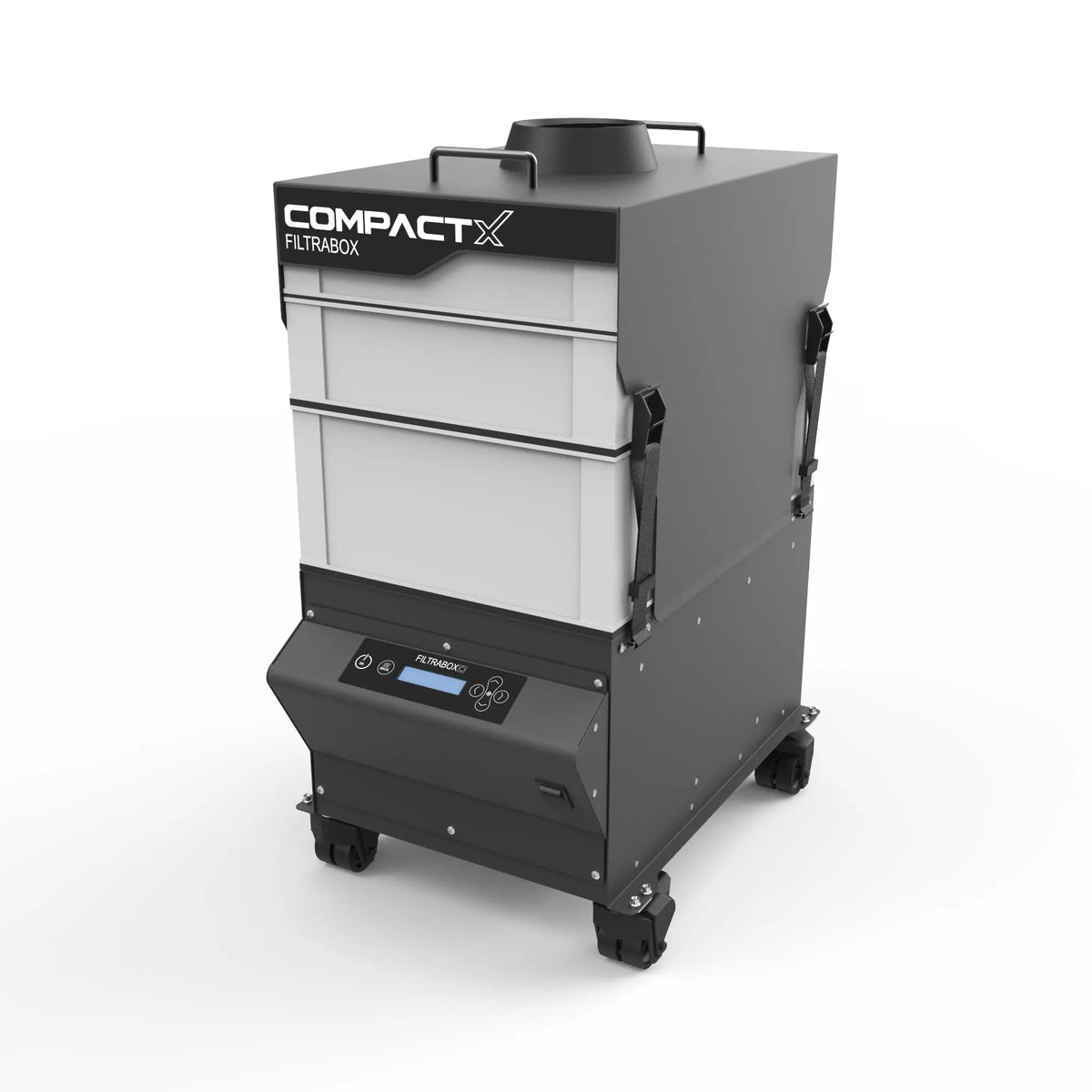

Filtrabox Compact X Fume Extraction System – Multi-Configuration HEPA & Carbon Filtration (DTF / 3DP / Solder / General Use)

Overview:

The Filtrabox Compact X is a powerful yet space-saving fume extraction system engineered for small laser engravers, desktop 3D printers, and light-duty industrial applications. Despite its compact footprint, it delivers exceptional air purification performance through Filtrabox’s multi-stage HEPA and carbon filtration technology, ensuring a clean, safe, and quiet workspace.

Designed for convenience and reliability, the Compact X features a brushless motor, variable-speed control, and tool-free filter access, providing professional-level air filtration in a portable, plug-and-play unit. It’s the perfect combination of power, portability, and precision filtration for creative studios, classrooms, and small manufacturing environments.

Key Features:

• Compact Footprint, Full Power – Optimized for small workstations without sacrificing airflow performance.

• Triple-Stage Filtration System – Pre-filter, HEPA, and activated carbon stages remove particulates, fumes, and gases with 99.97% efficiency.

• High-Efficiency HEPA Filter – Captures fine particulates down to 0.3 microns for clean, contaminant-free air.

• Adjustable Airflow Control – Variable-speed brushless motor for precise suction and reduced filter wear.

• Quiet Operation – Designed for low-noise environments such as offices, studios, and classrooms.

• Digital Control Panel – Provides airflow adjustment and filter life indicators for easy monitoring.

• Tool-Free Filter Replacement – Quick, simple access for maintenance-free operation.

• Durable Steel Construction – Industrial-grade housing ensures long-term reliability.

• Energy Efficient – Consumes minimal power while maintaining steady airflow performance.

• Made in North America – Built to Filtrabox’s professional safety and manufacturing standards.

Specifications:

• Model: Compact X

• Airflow Capacity: 250 m³/h (147 CFM)

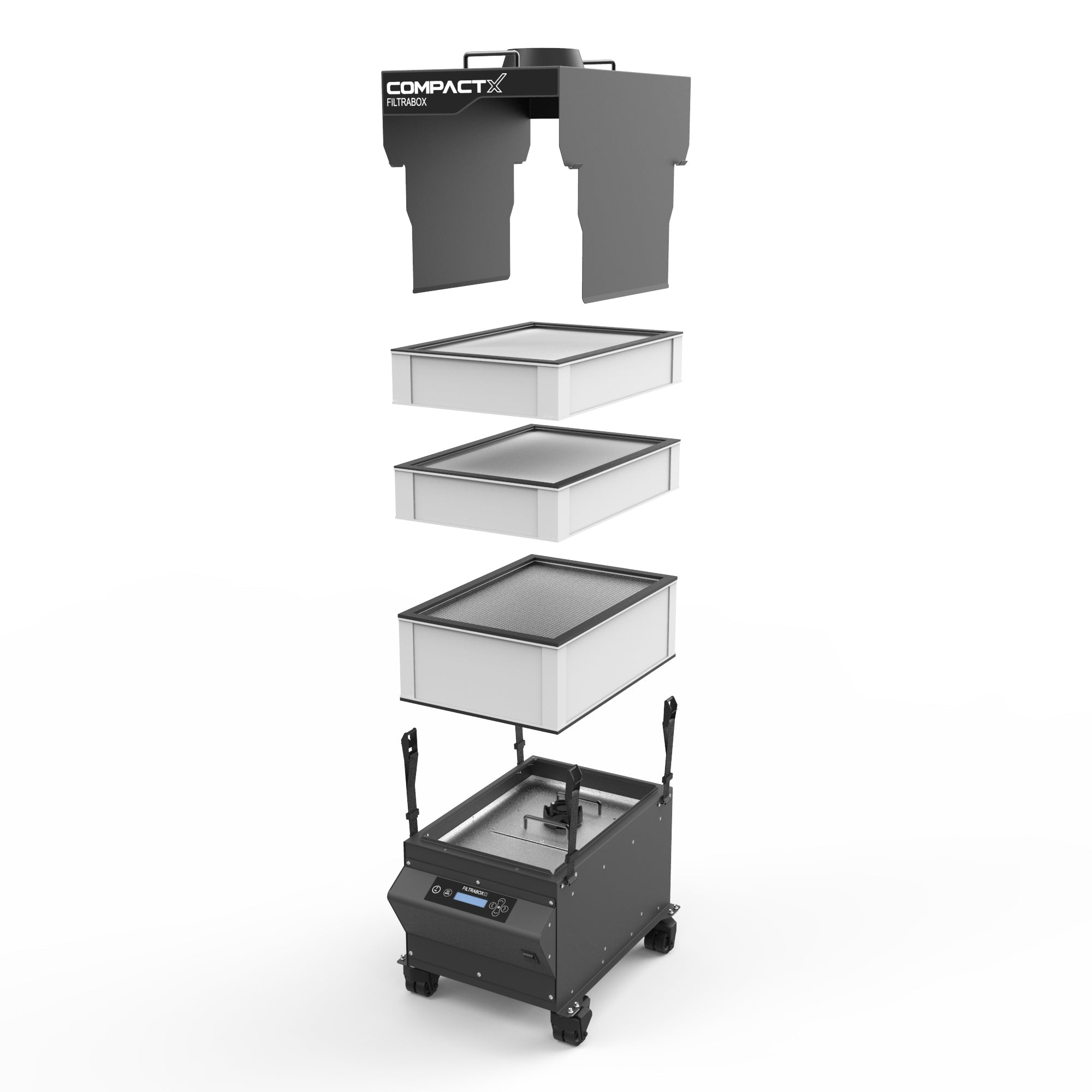

• Filter Stages: Pre-filter + HEPA + Activated Carbon

• HEPA Efficiency: 99.97% @ 0.3 µm

• Noise Level: < 55 dB

• Motor Type: Brushless variable-speed motor

• Control System: Digital airflow and filter status display

• Power Requirement: 120 V, 60 Hz

• Dimensions (L × W × H): 13″ × 12″ × 16″

• Weight: Approx. 35 lbs (16 kg)

• Housing Material: Powder-coated steel

• Connection Port Diameter: 2.5″ (63 mm)

• Compatible Equipment: Desktop laser engravers, small 3D printers, soldering stations, and light manufacturing tools

Applications:

• Desktop and small-format laser engraving systems

• 3D printing and resin curing workstations

• Electronics, soldering, and precision assembly

• Educational and light industrial workspaces

Warranty:

• 1-Year Manufacturer Warranty (parts and labor)

Customer Resources:

📄 User Manual

📧 Support Team: Direct manufacturer assistance troubleshooting. Email them at info@pattechnology.com
