Overview

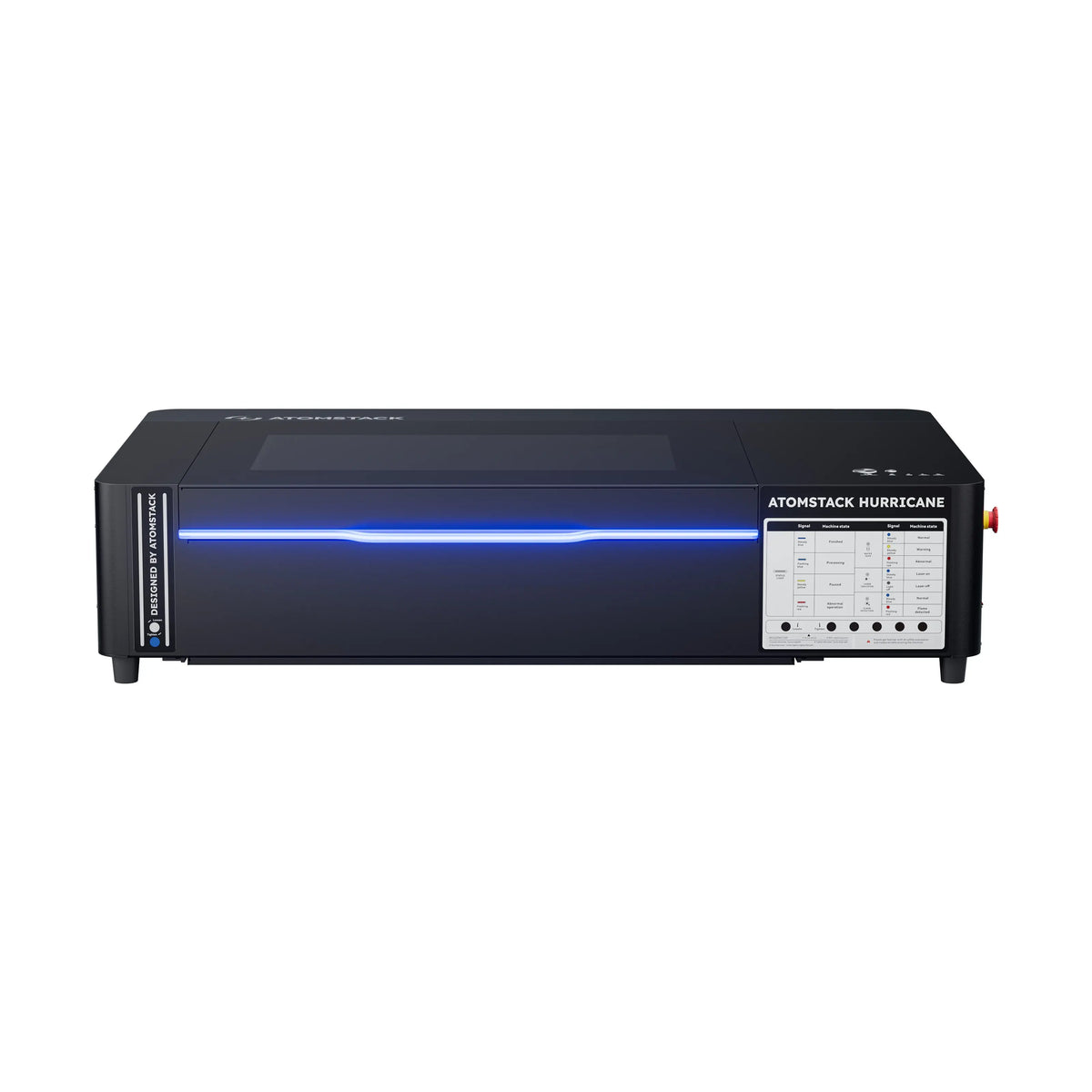

The Atomstack Hurricane is a professional-grade 55 W CO₂ laser cutter and engraver designed for makers, studios, and small manufacturers who need powerful performance in a compact form. Its CO₂ laser source allows cutting and engraving on materials that diode lasers cannot handle, including clear acrylic, glass, leather, stone, and coated metals.
Featuring autofocus, a built-in HD camera, and expandable work area, the Hurricane combines industrial precision with user-friendly controls. Safety-certified and built for reliability, it’s ideal for continuous, production-level workflows.
Key Features
-
High-Power 55 W CO₂ Laser – Effortlessly cuts and engraves wood, acrylic, leather, glass, and coated metals.
-

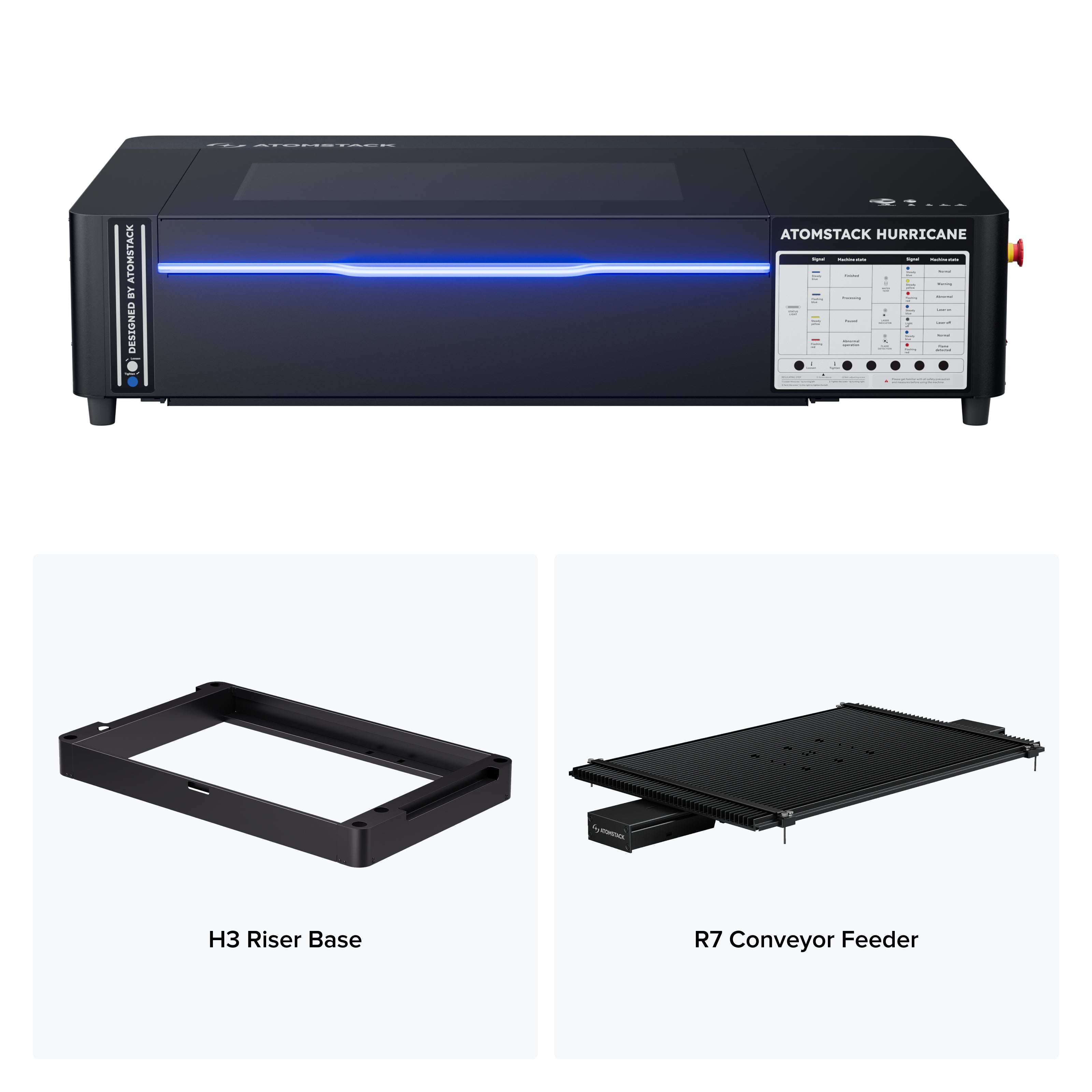

Large Working Area – 19.7″ × 11.8″ (500 × 300 mm) expandable to 31.5″ × 19.7″ (800 × 500 mm) with conveyor feeder.
-

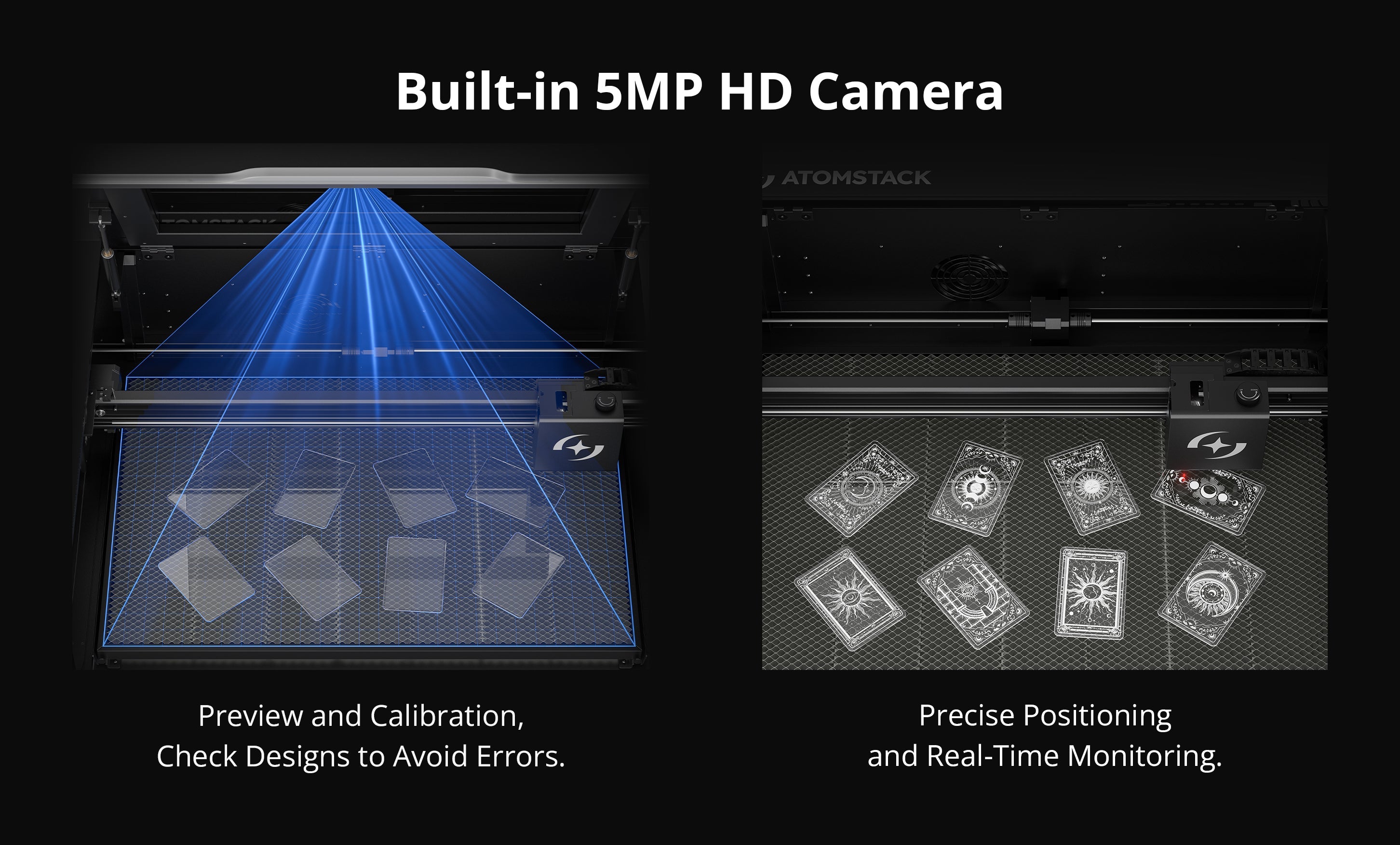

Autofocus & Camera Alignment – Built-in 5 MP camera enables precise positioning and batch engraving.
-

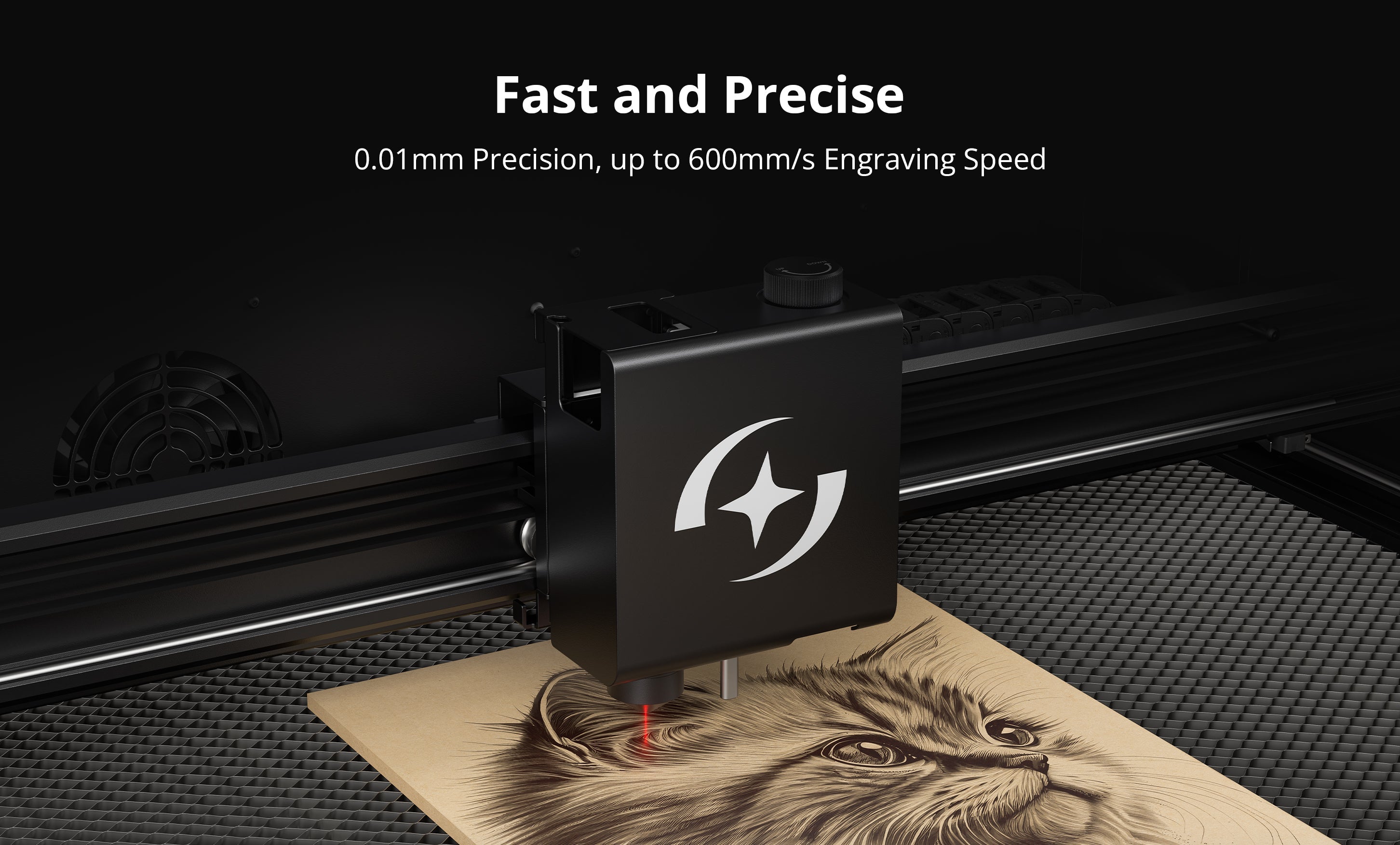

Fast Engraving Speed – Up to 600 mm/s with dual-axis core rail motion for smooth operation.
-
Fully Enclosed Class 1 Design – Certified for safe indoor use with integrated air assist and smoke exhaust system.
-
Smart Workflow Features – Power-off resume, batch engraving, and camera preview for efficient production.
-
Comprehensive Safety System – Includes fire detection and auto extinguishing, emergency stop, lid-open shutoff, and tilt protection.
Specifications
-

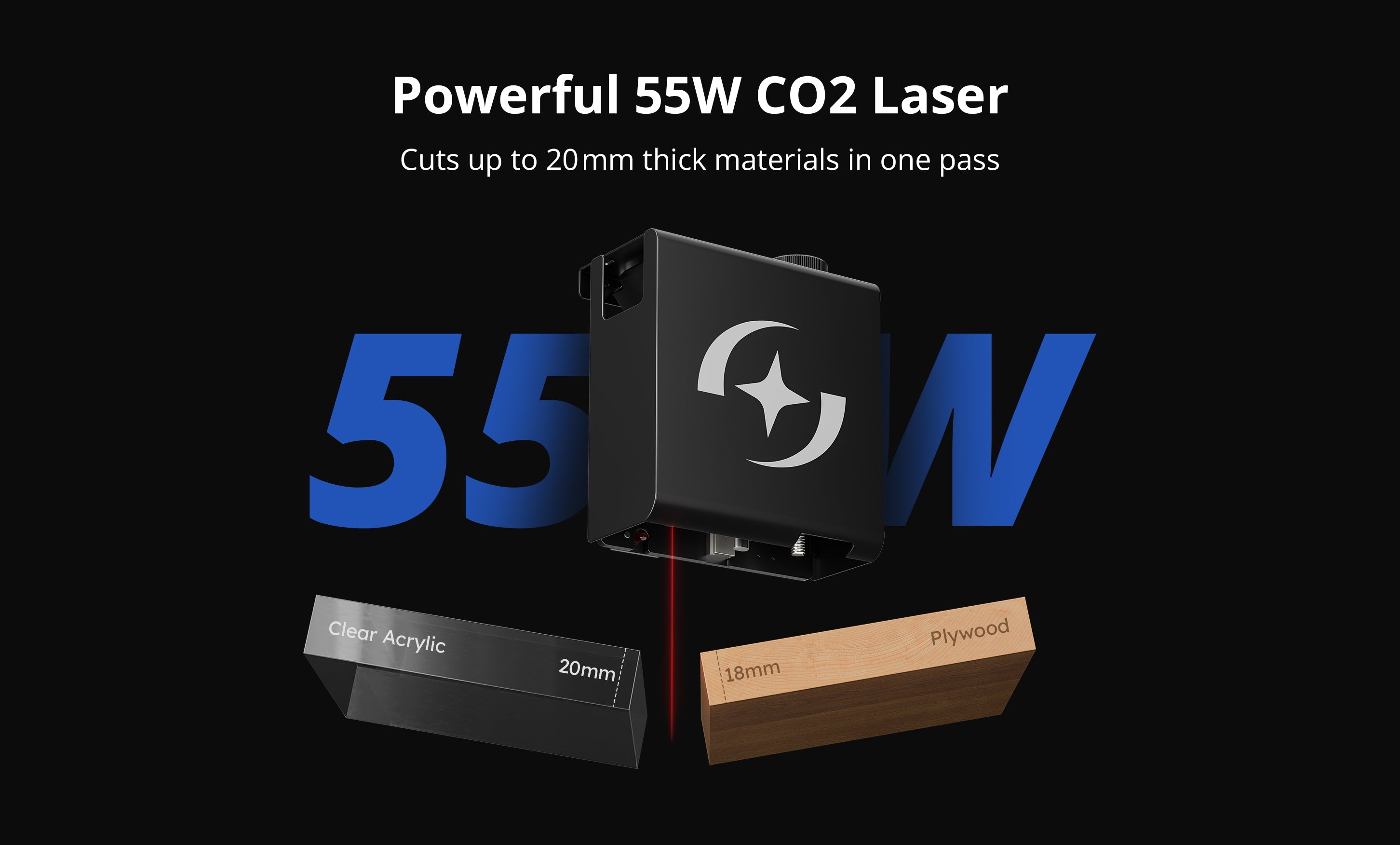

Laser Type / Power: 55 W CO₂ (10.6 µm wavelength)
-

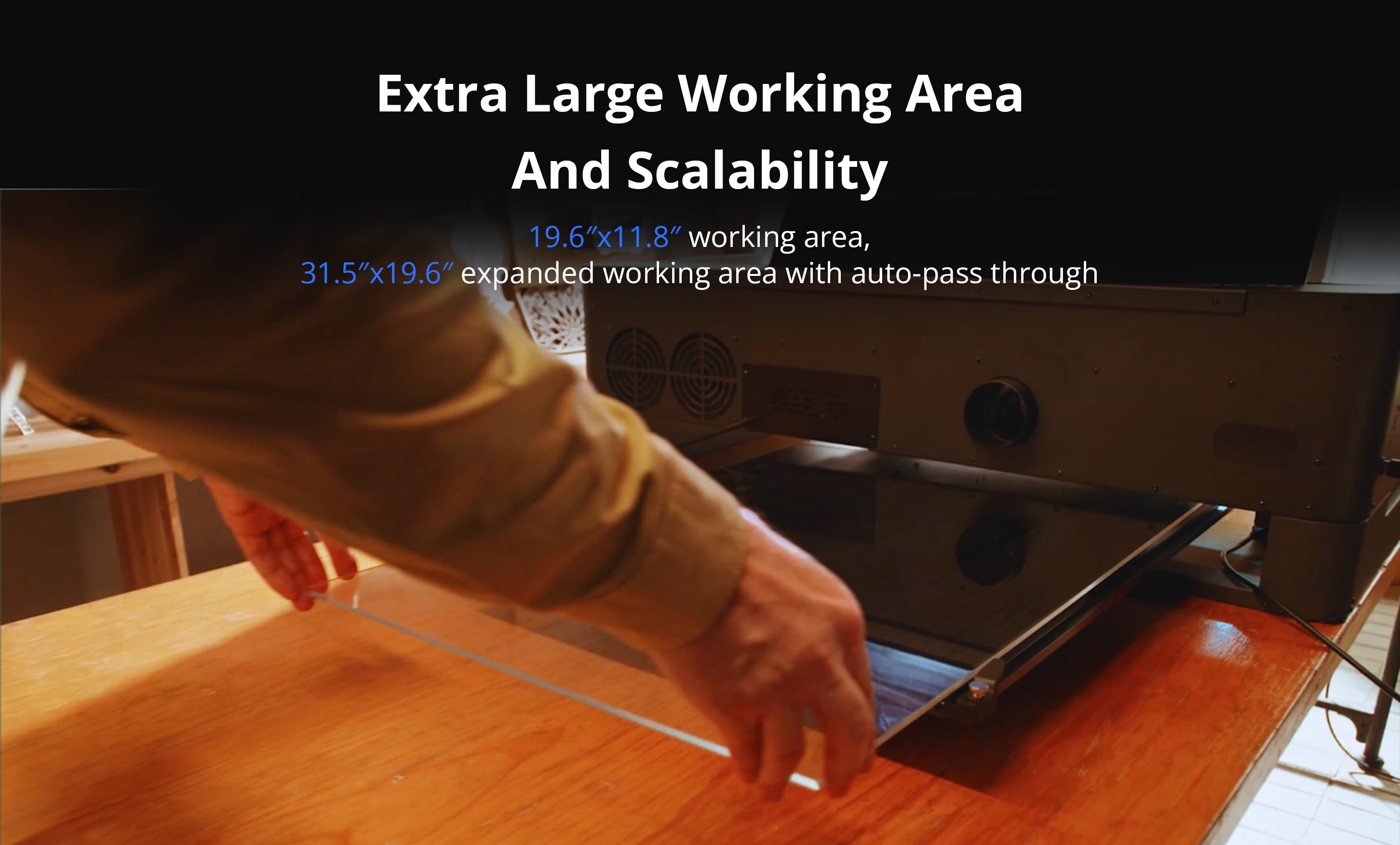

Working Area: 500 × 300 mm (19.7″ × 11.8″) | Expandable to 800 × 500 mm (31.5″ × 19.7″)
-
Engraving Speed (Max): 600 mm/s
-
Spot Size: ≈ 0.15 × 0.15 mm
-
Camera: 5 MP HD for visual positioning and batch layout
-
Dimensions: Approx. 40.9″ × 26.9″ × 8.8″ (1038 × 682 × 224 mm)
-
Construction: Steel and aluminum frame with sealed safety enclosure
-
Software: AtomStack Studio / LightBurn compatible
-
Connectivity: USB / Wi-Fi / Offline via U-disk
-
Supported File Formats: DXF, JPG, PNG, BMP, SVG, GIF
-
Power Supply: AC input with 24 V output
-
Laser Safety Class: IEC 60825-1 Class 1
Material Compatibility
-
Cutting: Wood, acrylic (including clear), MDF, rubber, leather, paper, and fabric.
-
Engraving: Wood, leather, stone, glass, ceramics, painted metal, coated steel, plastic, and other organics.
Safety & Maintenance
-

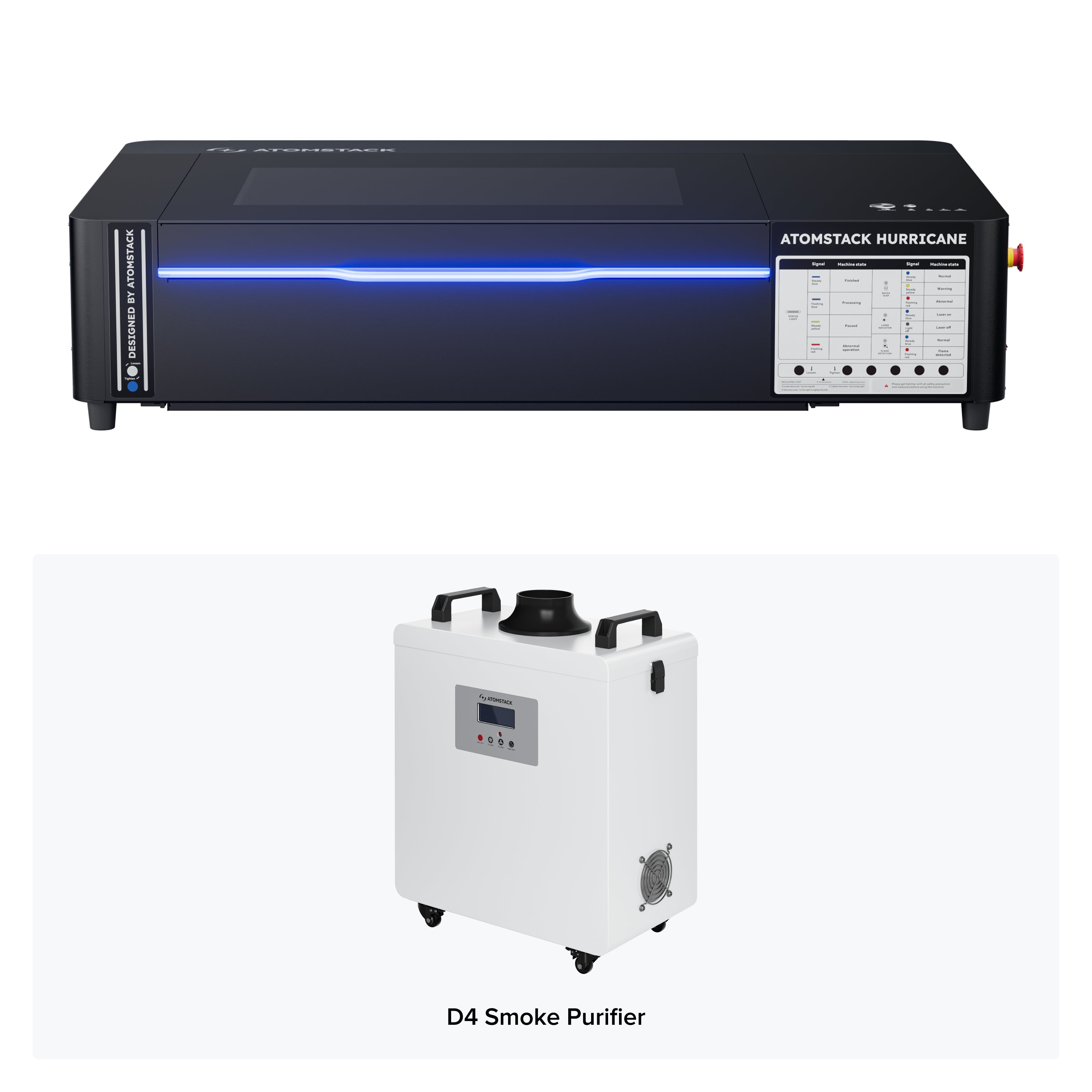

Integrated air assist and exhaust system for cleaner cuts and reduced smoke.
-

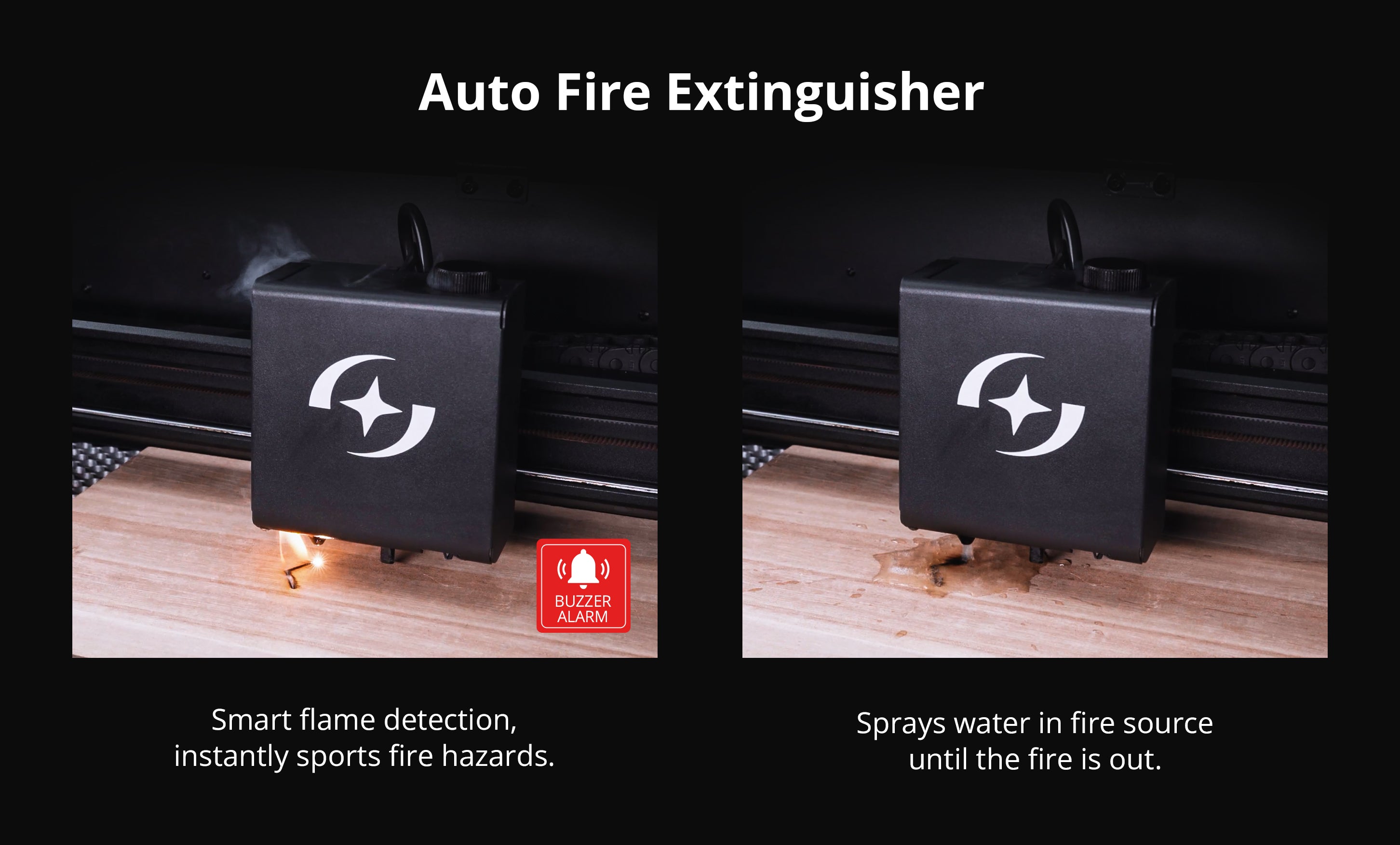

Automatic flame detection and fire extinguishing system for enhanced safety.
-
Lid-open and tilt sensors for immediate laser shutoff.
-

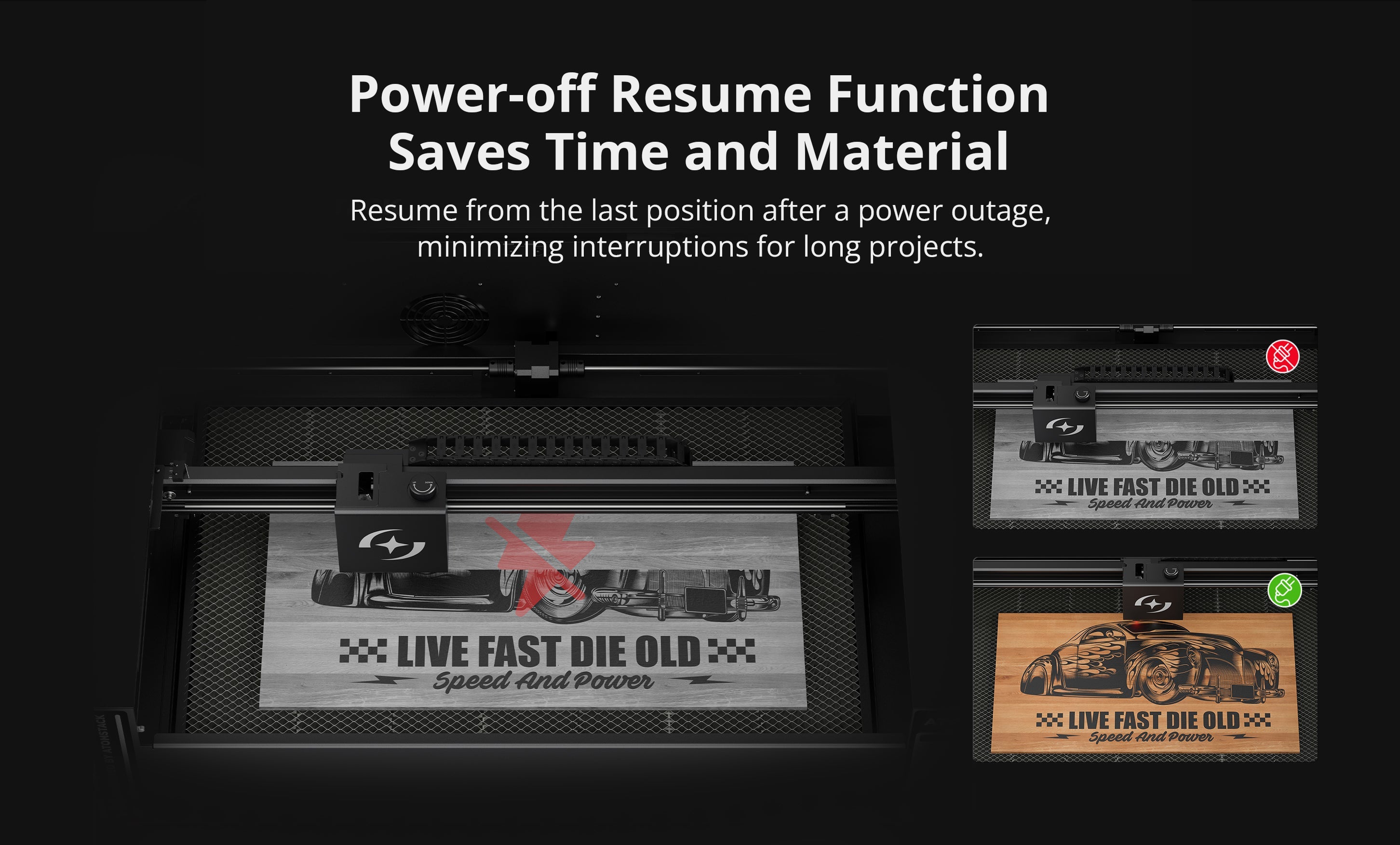

Power-off resume prevents waste after interruptions.
