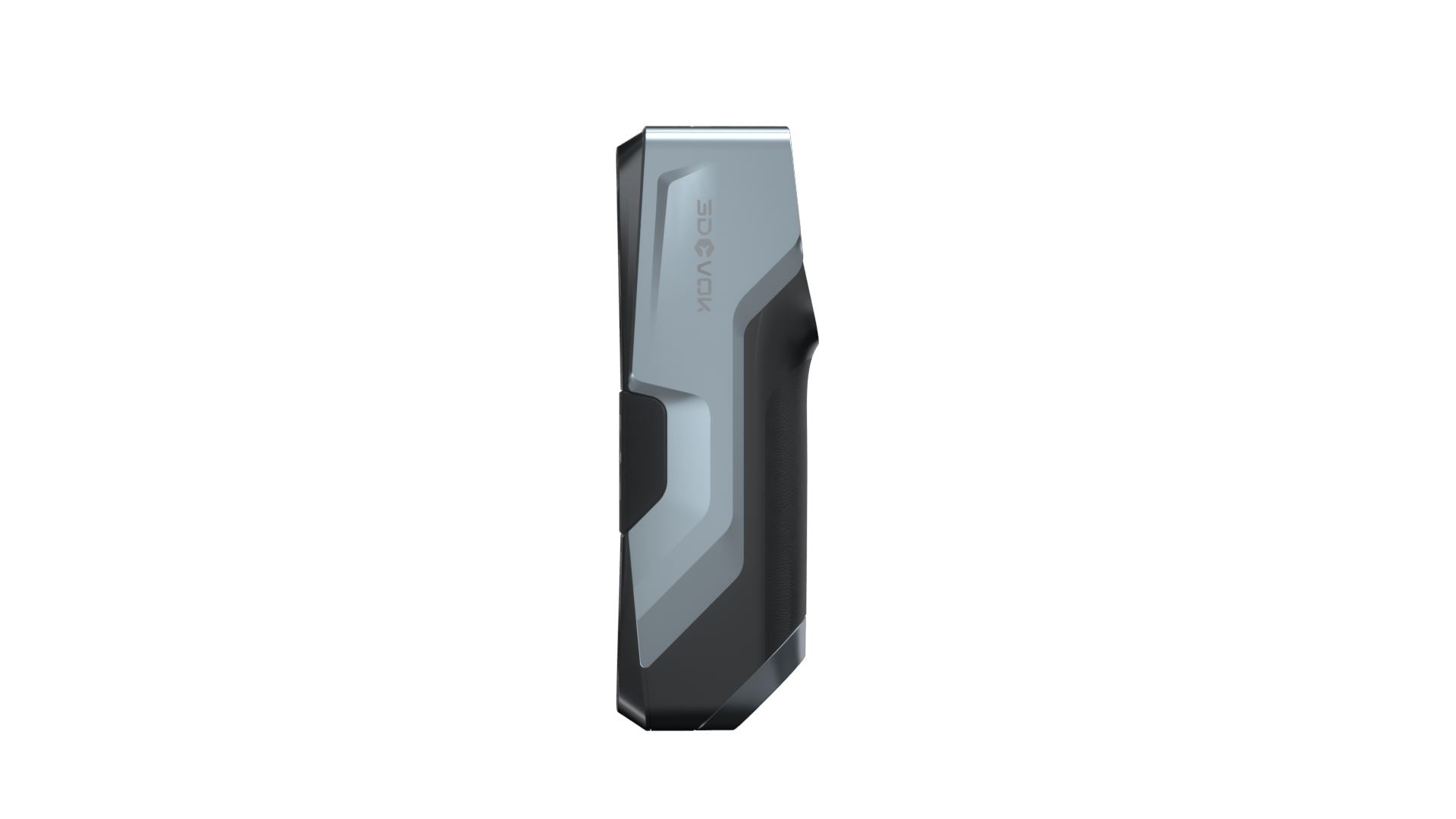

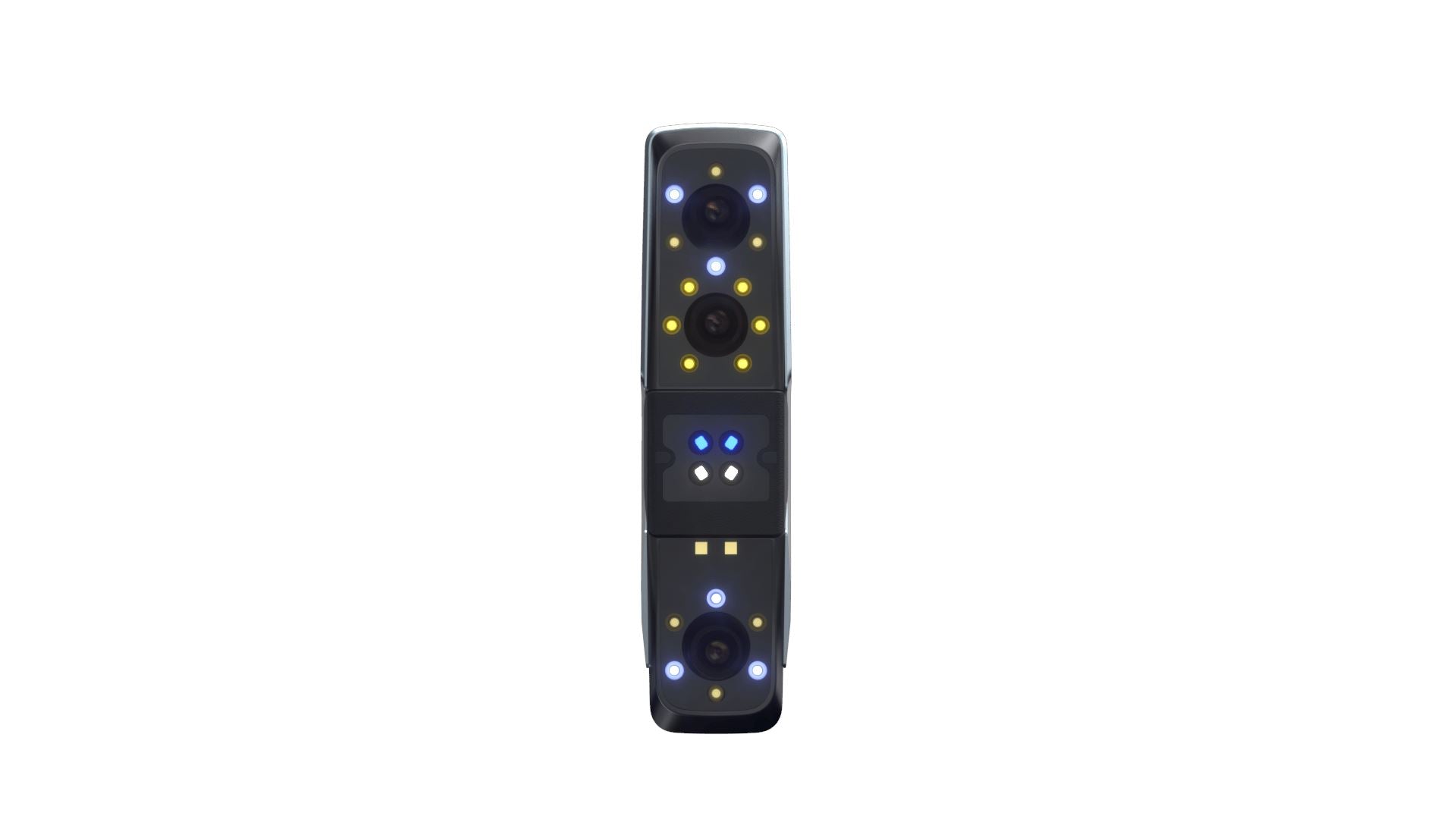

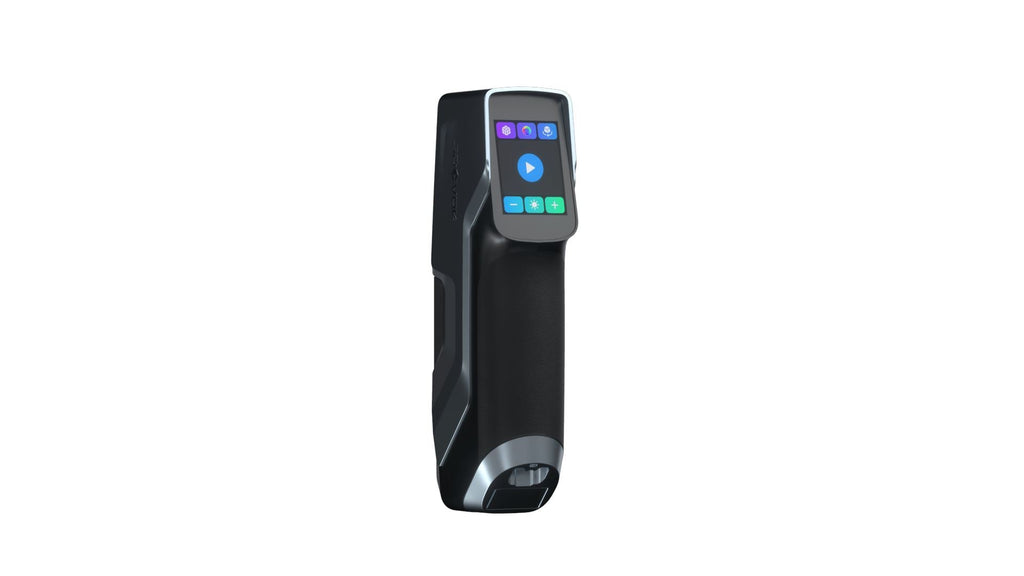

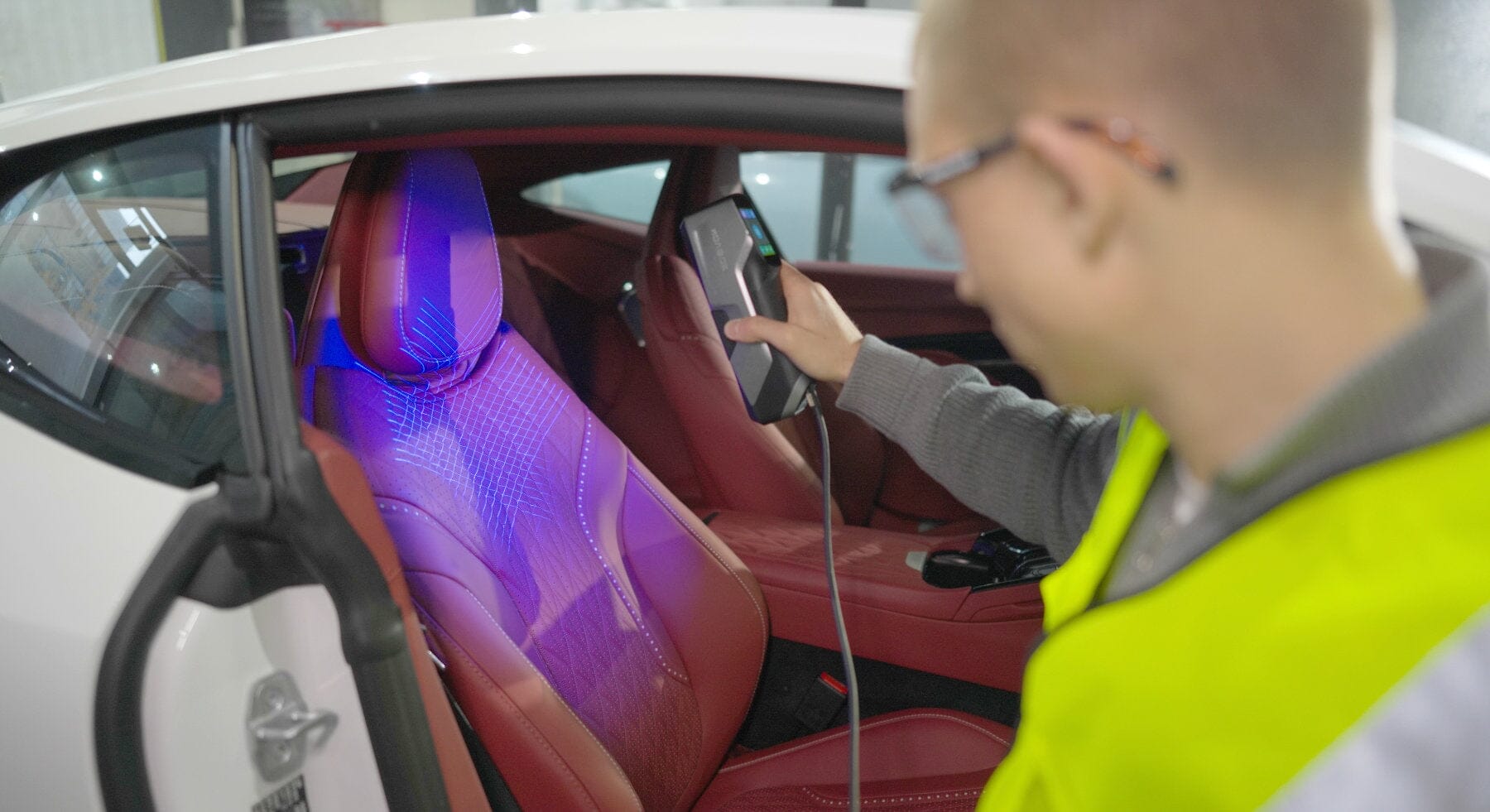

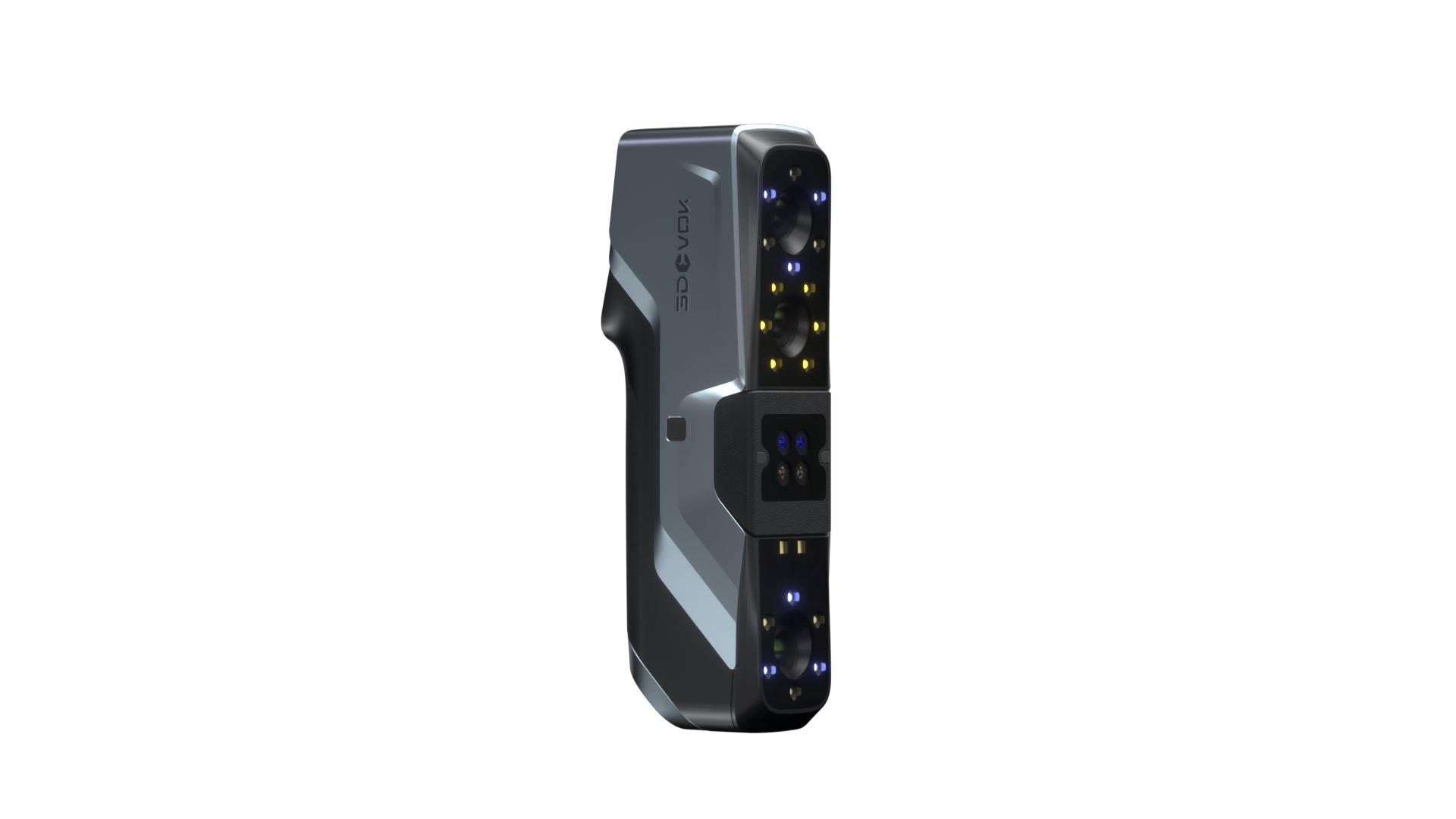

The 3DeVOK MT is a powerful, handheld 3D scanner built for professionals who need precise detail and flexible performance. With up to 0.04 mm precision and support for scanning both large and small objects, it's the perfect solution for demanding applications like reverse engineering, inspection, product design, medical modeling, and digital archiving.

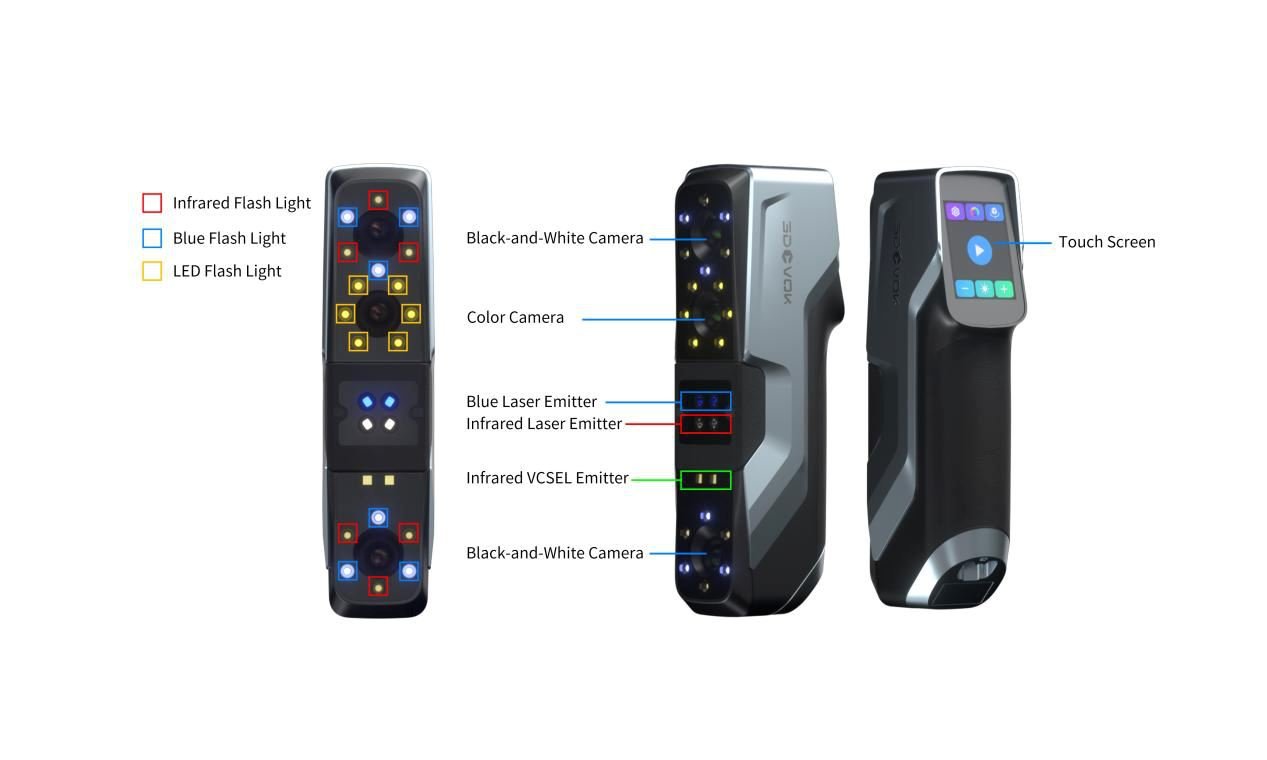

Equipped with blue light and infrared scanning modes, it offers exceptional versatility across different surfaces, object sizes, and working conditions—indoors or out.
Key Features
-
High Precision: Capture ultra-fine details with up to 0.04 mm accuracy
-
Fast Scanning: Scan at speeds up to 4.5 million points per second
-
Flexible Object Sizes: Scan everything from tiny parts to large machinery
-
Marker-Free Option: Scan without target stickers using infrared mode
-
Multi-Surface Ready: Works on matte, black, reflective, shiny, or even hair-covered surfaces
-
Portable & Efficient: Handheld, lightweight, and field-ready
-
User-Friendly Software: Includes intuitive 3DeVOK Studio and texture mapping software
Included Software
-
3DeVOK Studio – Comprehensive scanning software with tools for aligning, smoothing, editing, and exporting models
-
3DeVOK Mapping Software – Quickly convert STL models into textured 3D files using photos taken from multiple angles
Technical Specifications
| Feature |
Details |
| Accuracy |
Up to 0.04 mm |
| Resolution |
Up to 0.05 mm |
| Scan Speed |
Up to 4.5 million points/sec |
| Frame Rate |
Up to 70 FPS |
| Scan Modes |
Blue light & infrared |
| Scanning Range |
150 mm – 1,500 mm |
| Object Size Range |
50 mm – 5,000 mm |
| Scanning Surfaces |
Matte, black, shiny, hair, reflective |
| Alignment Modes |
Hybrid (markerless or with markers) |
| Lighting Conditions |
Works in indoor & outdoor environments |
| Software Included |
3DeVOK Studio, 3DeVOK Mapping Software |
| OS Compatibility |
Windows 10 / 11 |
| Connectivity |
USB |
| File Formats |
STL, OBJ, PLY, ASC, etc. |
| Accessories Included |
Calibration board, power adapter, USB stick, carrying case, markers, sample object, cleaning cloth |
Perfect For
-
Reverse engineering
-
Quality inspection
-
Product design & prototyping
-

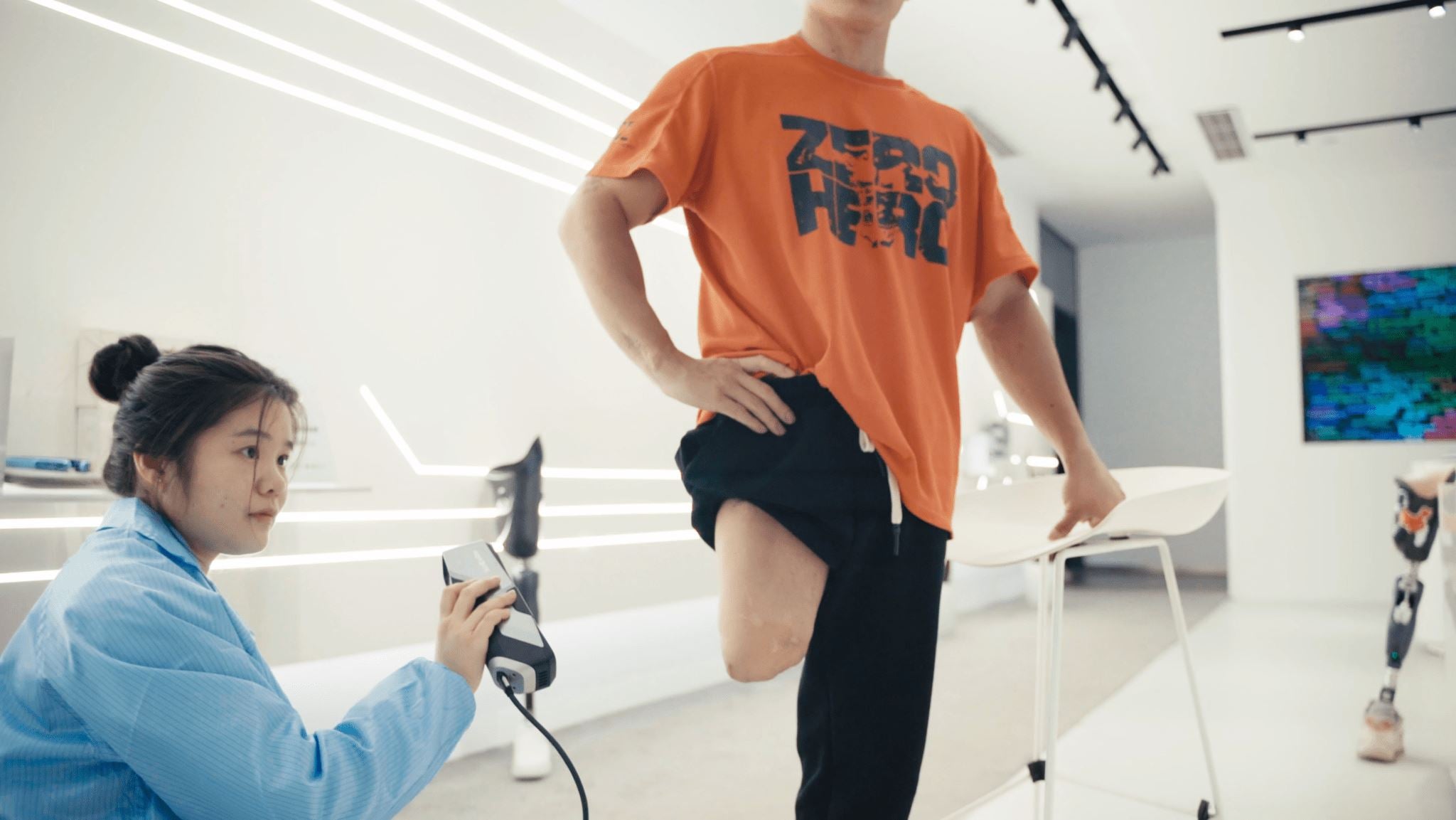

Medical and clinical scanning
-
Digital asset creation
-

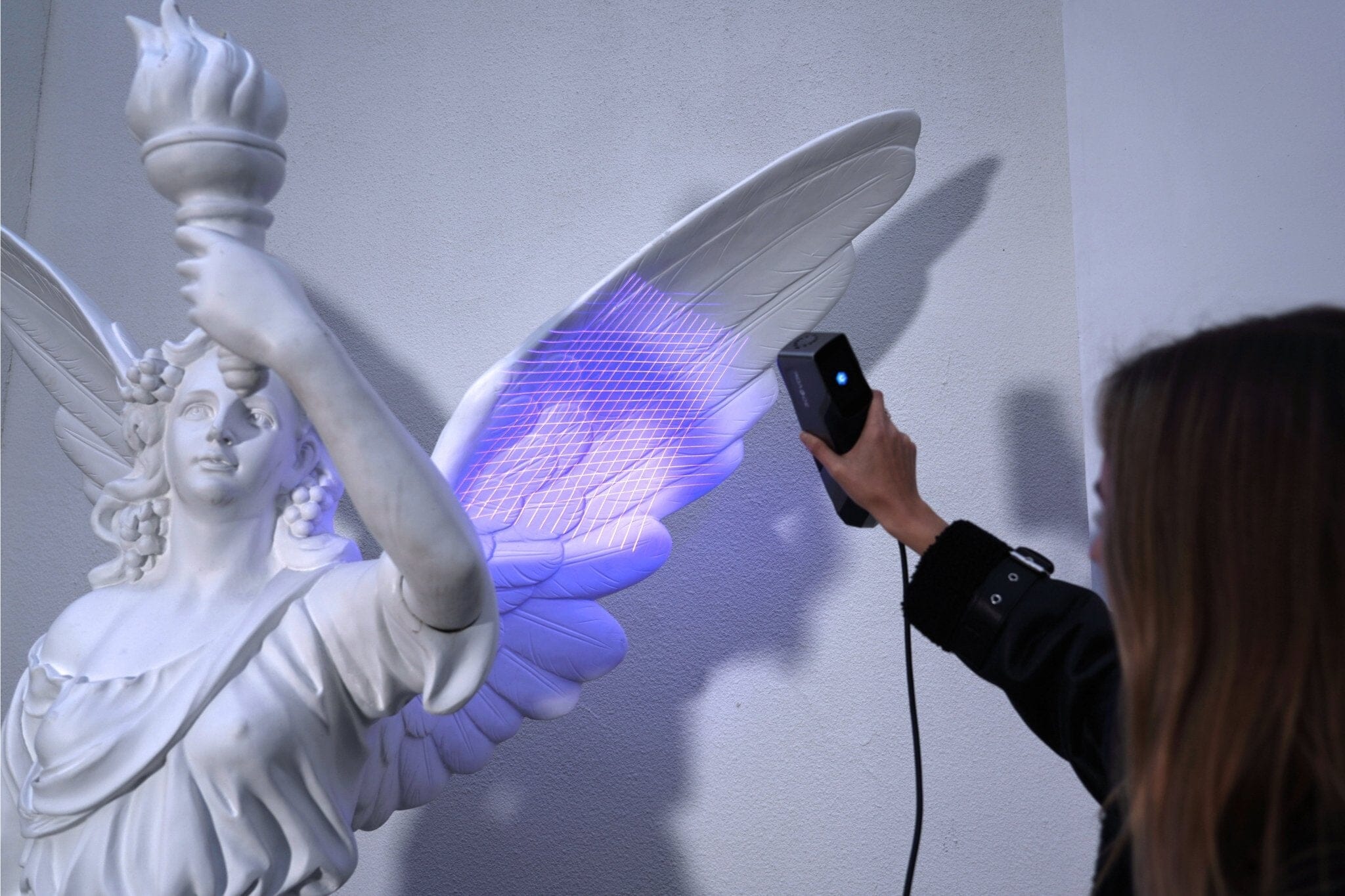

Heritage & art preservation
-
Education and research
