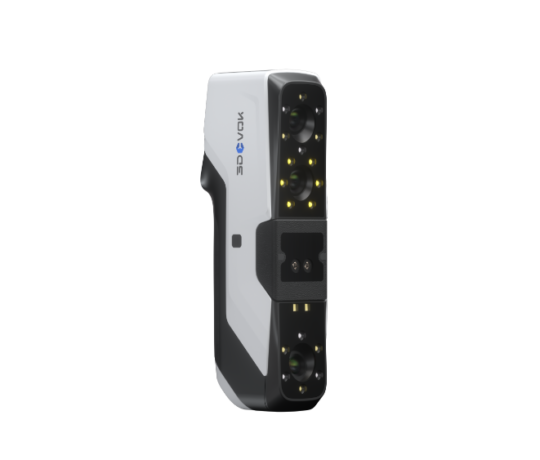

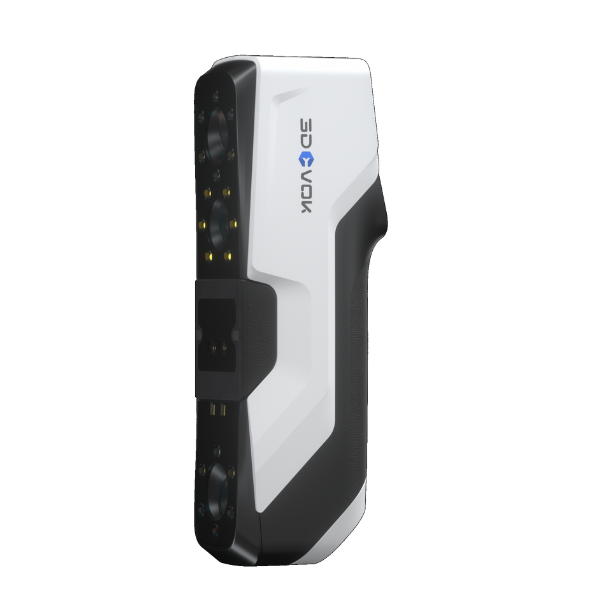

The 3DeVOK MQ is a feature-packed, handheld color 3D scanner tailored for professionals and creators. With invisible infrared lasers, wide-field infrared speckle, and an optional wireless handle, it delivers accurate, full-color scans without markers—no cables, no hassle. Ideal for a wide range of applications, from reverse engineering and medical modeling to cultural preservation, artistic design, and education.
Key Features
Technical Specifications
| Feature |
Details |
| Light Sources |
22-line IR laser + IR VCSEL speckle (dual FoV) rapidscan3d.com+113devok.com+113d-scantech.com+11
|
| Accuracy |
Up to 0.08 mm |
| Resolution (Point Distance) |
0.1 – 5 mm (fine scan down to 0.1 mm) |
| Scan Speed |
2.45 M pts/s to 4.5 M pts/s |
| Frame Rate |
Up to 70 FPS (marker-aligned); ~30 FPS (hybrid) |
| Scanning Distance |
150–1,500 mm |
| Field of View |
50×75 mm to 1,100×1,000 mm |
| Texture Capture |
24-bit color with texture-mapping capability |
| Alignment Modes |
Hybrid, markers, texture, geometry |
| Wireless Scanning |

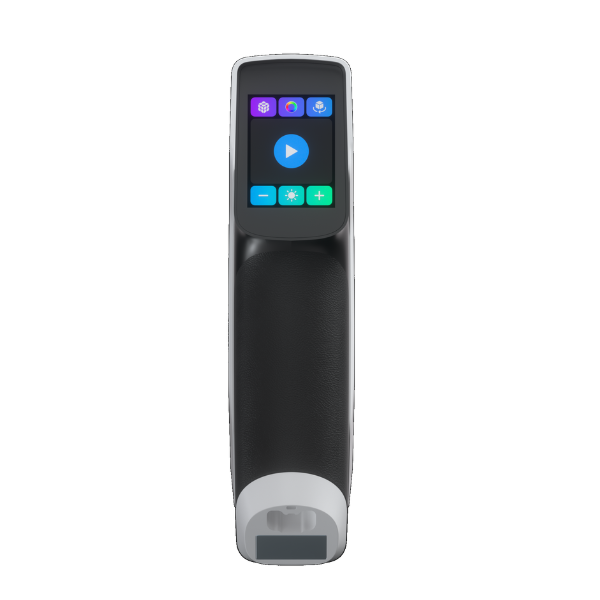

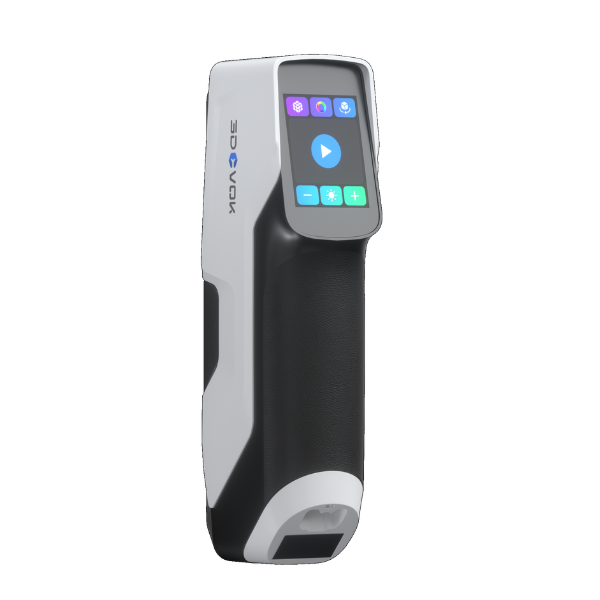

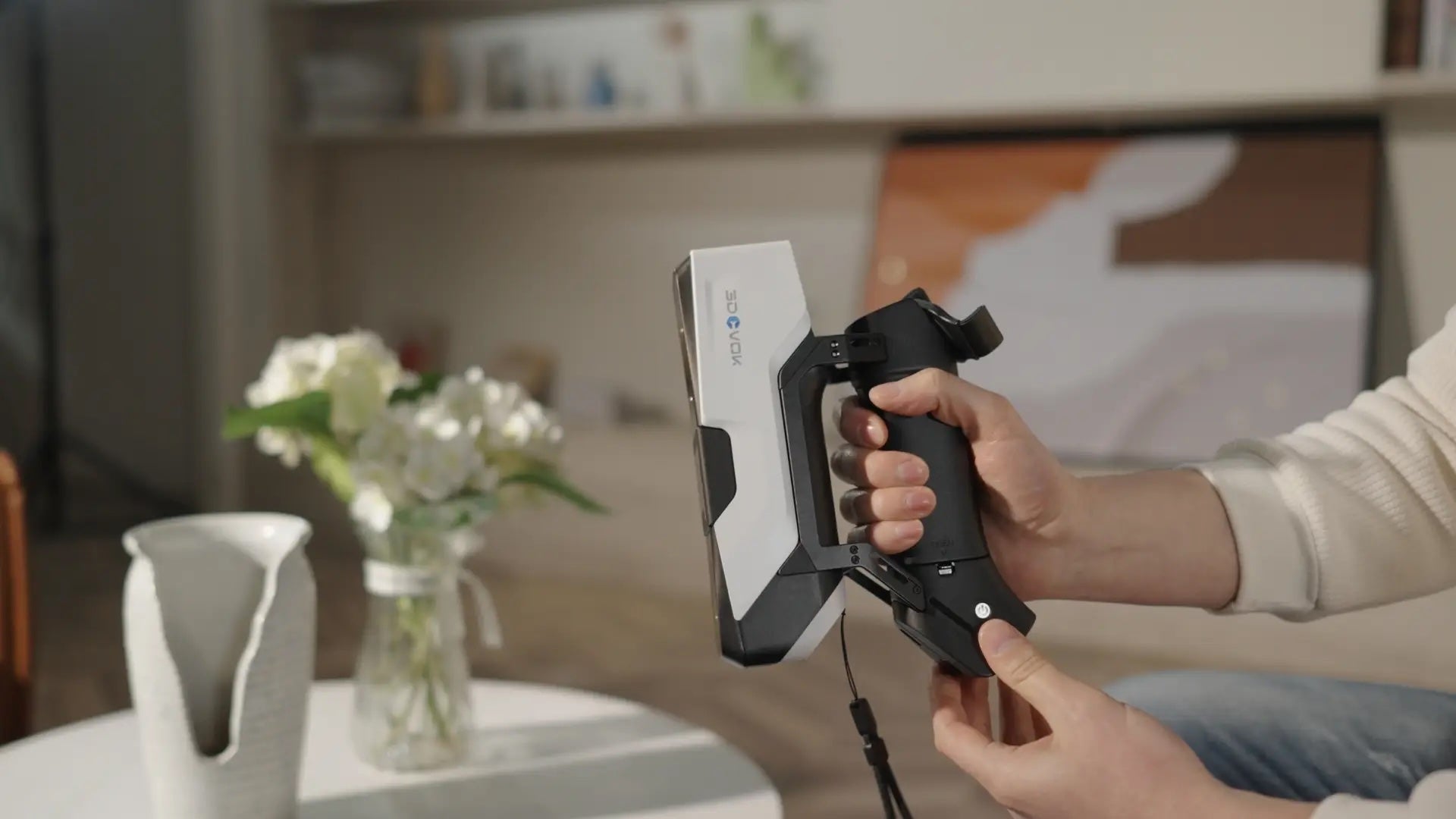

Supported with optional handle |
| Interface |
USB 3.0 |
| Dimensions |
215×73×53 mm; Weight ~550 g |
| Power |
12 V DC, 5 A |
| Certifications |
CE, FCC, RoHS, IEC 60825, 62471, IP50 |
| Operating Conditions |
0–40 °C; 10–90 % RH (non-condensing) |
| PC Requirements |
Win10/11, i7‑13650HX+, 32 GB RAM, RTX3060+, 6 GB VRAM |
| Output Formats |
OBJ, STL, PLY, ASC, MK2, TXT, EPJ, APJ, SPJ, MAP, SK |
Ideal Applications
-
Industrial reverse engineering and inspection
-
Cultural heritage digitization and archiving
-
Full-color 3D model creation for engineering and product design
-
Medical and rehabilitation use: body parts, prosthetics, orthotics
-
Education, research, art studios, VR/AR content creation
📦 What’s in the Box
(Tailor based on your included accessories set—typically includes scanner, wireless handle option, calibration tools, cables, software USB, cleaning cloth, gray card, carrying case.)
Why 3DeVOK MQ?
The MQ combines industrial-grade performance with user-friendly operation—delivering accurate, photo-realistic scans whether you’re in the studio or in the field. Its marker-free, wireless setup and fast capture speed make it ideal for professionals who value efficiency and quality.
