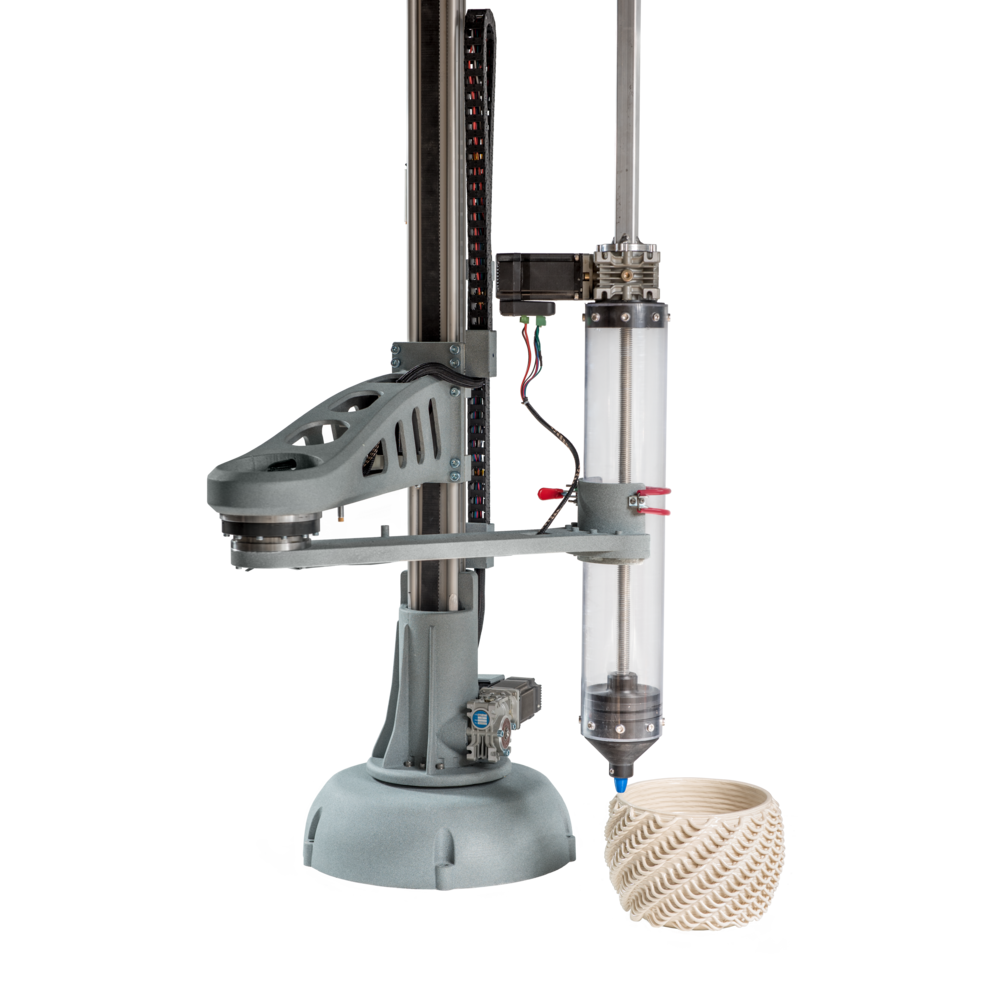

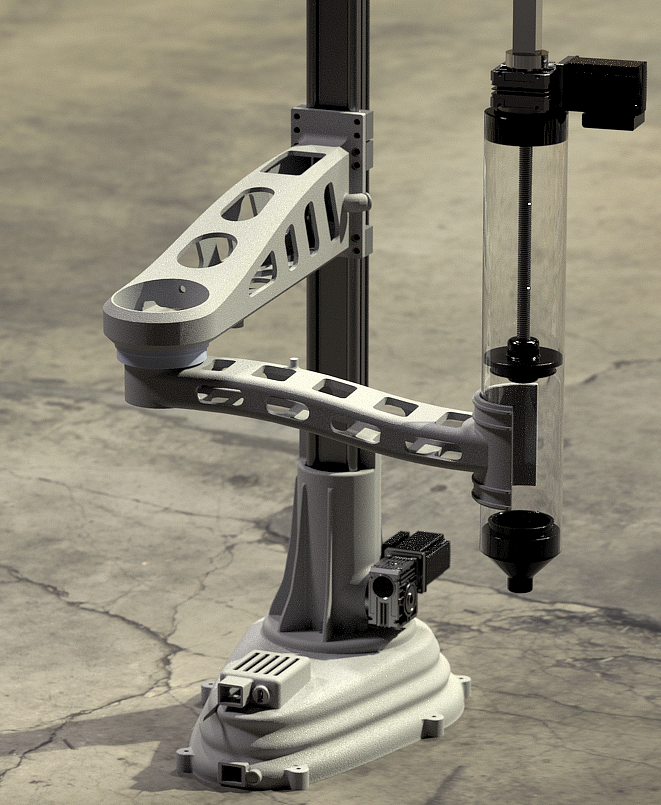

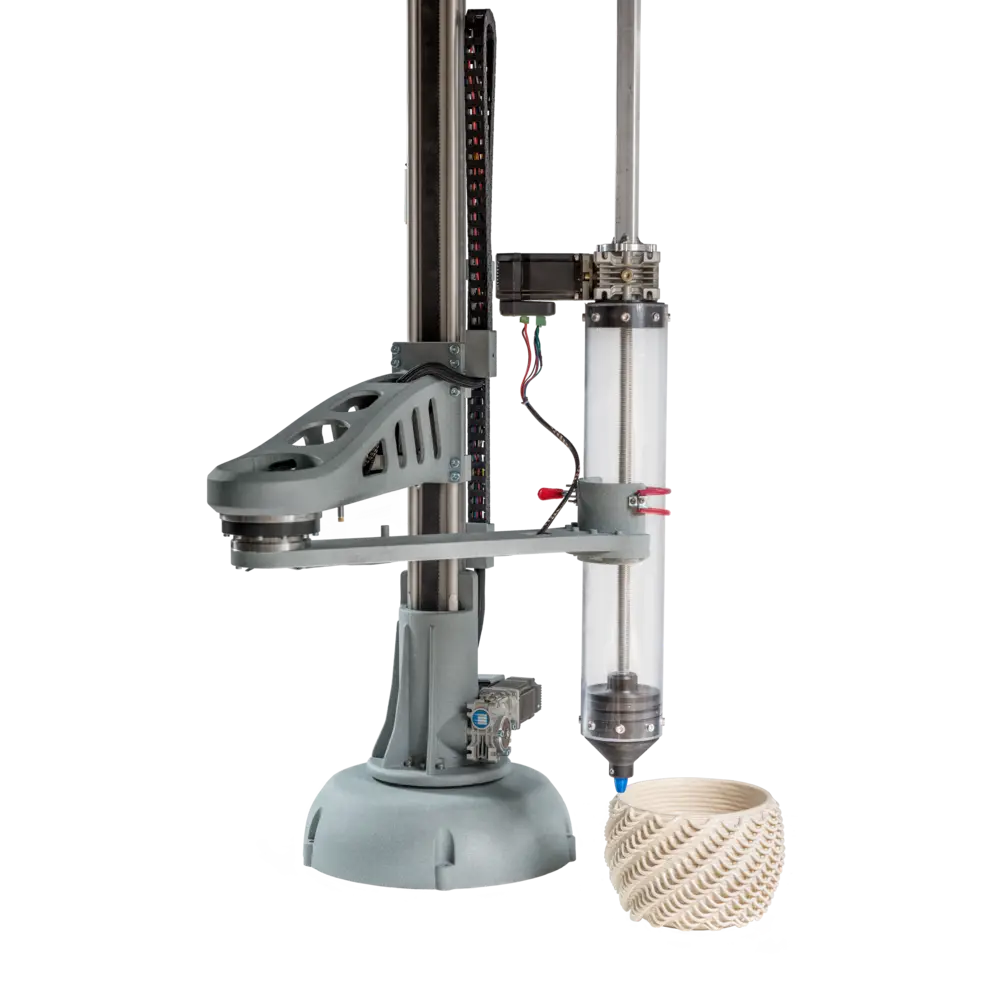

3D PotterBot - Scara V4 3D Printer

Overview

The 3D PotterBot SCARA V4 is a robotic-arm ceramic 3D printer engineered for oversized clay builds, architectural elements, and large-format ceramic art. Unlike traditional gantry printers, the SCARA V4 uses a 4th-generation robotic arm system, offering unmatched build height, reach, and flexibility.

Designed for professionals, universities, and research labs, the SCARA V4 is capable of printing massive ceramic structures with 10 lb clay cartridges and direct extrusion technology. Its industrial-grade motion control and high-strength aluminum frame deliver stability and precision even on very tall builds.

Key Features

• SCARA Robotic Arm System – Extended reach and build height beyond standard gantry printers.

• Direct Clay Extrusion – Prints real clay and paste-based ceramics, no filament conversion required.

• Stainless Steel Auger Drive – Provides continuous, consistent material flow.

• Massive Build Volume – Print large-scale ceramic pieces and architectural components.

• Industrial Linear Rails & Bearings – Ensure precision, repeatability, and structural stability.

• 10 lb Clay Cartridge – Handles extended print sessions without frequent reloads.

Specifications

• Category: Ceramic / Clay 3D Printer – SCARA Robotic Arm

• Model: PotterBot SCARA V4

• Build Volume:

  • Reach: Up to ~72" diameter (approx. 180 cm)

  • Height: Up to ~52" (approx. 132 cm)

• Clay Capacity: 10 lbs (4.5 kg)

• Motion System: 4th-gen SCARA robotic arm with precision linear rails

• Extrusion: Stainless steel auger extrusion system

• Frame: Heavy-duty aluminum and steel design

• Power: Standard AC outlet

• Software: Compatible with open-source slicers (Cura, Simplify3D, Repetier, etc.)

Compatibility

• Materials: Standard pottery clay, porcelain, and paste-based ceramics

• Software: Cura, Simplify3D, Repetier, and other G-code slicers

• Connectivity: USB/SD card

Warranty

3D Potter Inc. includes a 1-Year Limited Manufacturer Warranty covering defects in materials and workmanship from the original purchase date.

• Printer components and hardware covered for 1 year

• Defective parts will be replaced free of charge under warranty

• Warranty coverage is valid for a total of 3 years from the original purchase date when combined with annual extended warranty plans

What is NOT covered and will void the warranty:

• Damage caused by improper use or operation outside of recommended guidelines

• Modification or altering of the printer in any way

• Electrical surges, water damage, fire, or environmental damage

• Lack of proper machine maintenance

• Alteration of configuration, firmware, or system files

• Consumable items such as clay, rubber seals, polycarbonate tubes, and similar wear parts

Extended warranty options are available:

• Extended Warranty: $250 per year for all standard 3D Potter models

• Scara Series Extended Warranty: $450 per year

This warranty is not transferable. 3D Potter Inc. reserves the right to refuse warranty coverage on printers that are obsolete or no longer in production.

Customer Resources

📄 User Manual: Included with purchase
▶️ Training Videos - Interface Preview
📞 U.S. Support Team: Direct manufacturer assistance for installation and troubleshooting. Email them at techsupport@3dpotter.com
